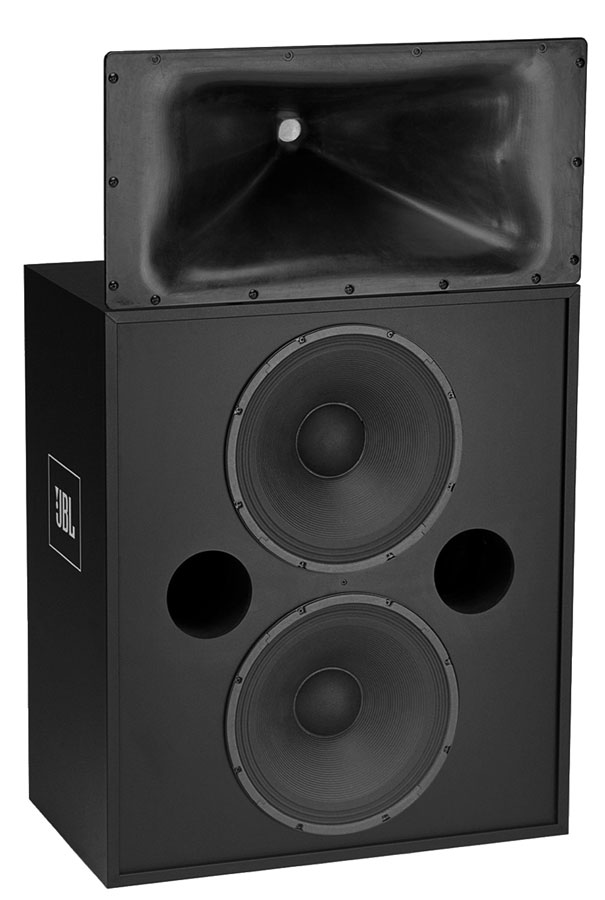

Two-Way ScreenArray™ Cinema Loudspeaker System
The 3722N provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost
effective system

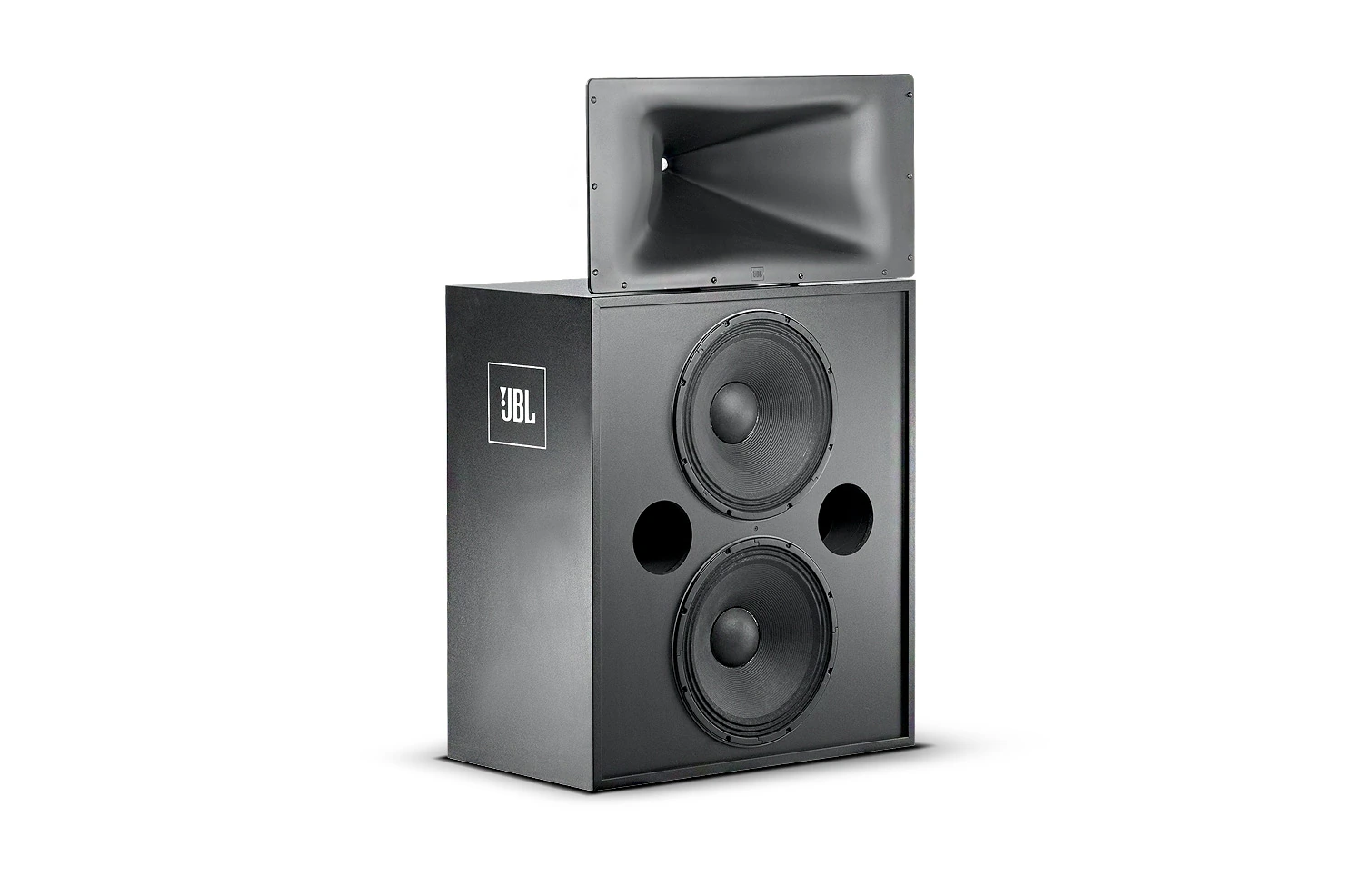

拡大画像
特長
- 3722 available as a Passive model with network (3722N)
or BiAmp Ready 3722 - Power Capacity: 400 W continuous IEC pink noise
- Sophisticated crossover network
- High quality in a compact and very cost effective system
- Smooth response, Controlled coverage
ダウンロード
Specifications
| サイズ | |
|
|
148KB |
Compliances
| サイズ | |
| 90.6KB |
Images
| サイズ | |
|
|
53.7KB |
上記のリンクをクリックしてブラウザで文字化けが発生する場合は、ファイルを右クリックしてコンピューターに保存してください。
パーツとサービス
仕様
| Frequency Response (±3 dB) | 40 Hz - 18 kHz |
| Frequency Range (-10dB) | 30 Hz - 18 kHz |
| Sensitivity | 104dB, 2.83V @ 1m (3.3ft) |
| Nominal Impedance | 4Ω |
| Maximum SPL (1m) | 127dB, @ 1m (3.3 ft) 133db peak |
| Passive System Input Power Rating | 400W |
| Crossover Frequency | 1300Hz |
| Dimensions (H x W x D) | 1265 x 762 x 450mm (49.8 x 30 x 17.75in) |
| Net Weight (each) | 137 lbs (62.2 kg) |
| 3739 Low Frequency | 2 M115H-8A 380 mm (15 in) dia.61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in 4509 LF enclosure |
| Shipping Weight | 140 lbs (63.6 kg) |
| 3722-HF High Frequency Pack | One 2418H-1 Compression Driver, One2374 HF horn, one adjustable bracket |
| Power Handling (2Hr AES Rating) | 400W |
