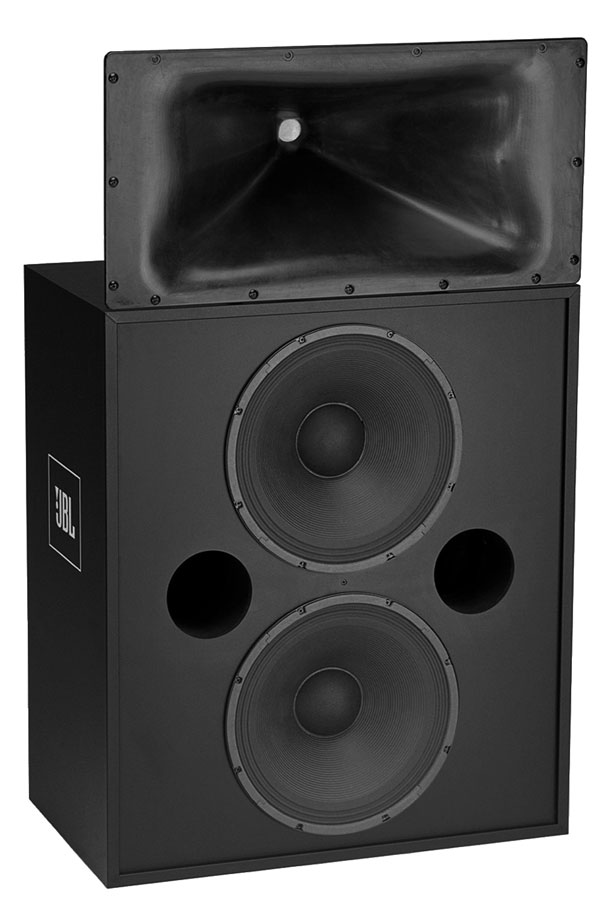

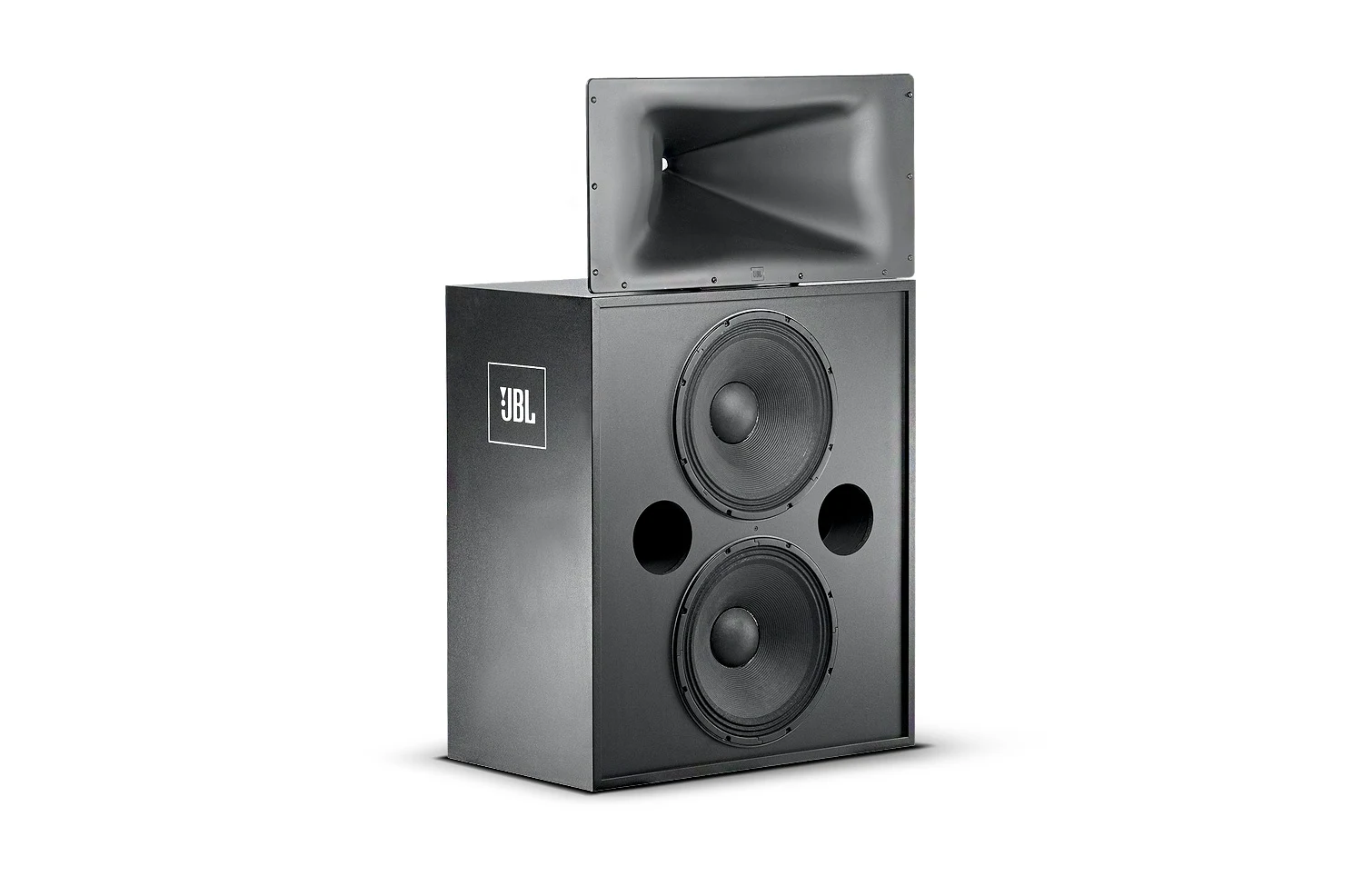

Two-Way ScreenArray™ Cinema Loudspeaker System
The 3722N provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost
effective system
큰 이미지
특징
- 3722 available as a Passive model with network (3722N)
or BiAmp Ready 3722 - Power Capacity: 400 W continuous IEC pink noise
- Sophisticated crossover network
- High quality in a compact and very cost effective system
- Smooth response, Controlled coverage
다운로드
Specifications
| 크기 | |
|
|
148KB |
Compliances
| 크기 | |
| 90.6KB |
Images
| 크기 | |
|
|
53.7KB |
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.
부품 및 서비스
사양
| Frequency Response (±3 dB) | 40 Hz - 18 kHz |
| Frequency Range (-10dB) | 30 Hz - 18 kHz |
| Sensitivity | 104dB, 2.83V @ 1m (3.3ft) |
| Nominal Impedance | 4Ω |
| Maximum SPL (1m) | 127dB, @ 1m (3.3 ft) 133db peak |
| Passive System Input Power Rating | 400W |
| Crossover Frequency | 1300Hz |
| Dimensions (H x W x D) | 1265 x 762 x 450mm (49.8 x 30 x 17.75in) |
| Net Weight (each) | 137 lbs (62.2 kg) |
| 3739 Low Frequency | 2 M115H-8A 380 mm (15 in) dia.61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in 4509 LF enclosure |
| Shipping Weight | 140 lbs (63.6 kg) |
| 3722-HF High Frequency Pack | One 2418H-1 Compression Driver, One2374 HF horn, one adjustable bracket |
| Power Handling (2Hr AES Rating) | 400W |
