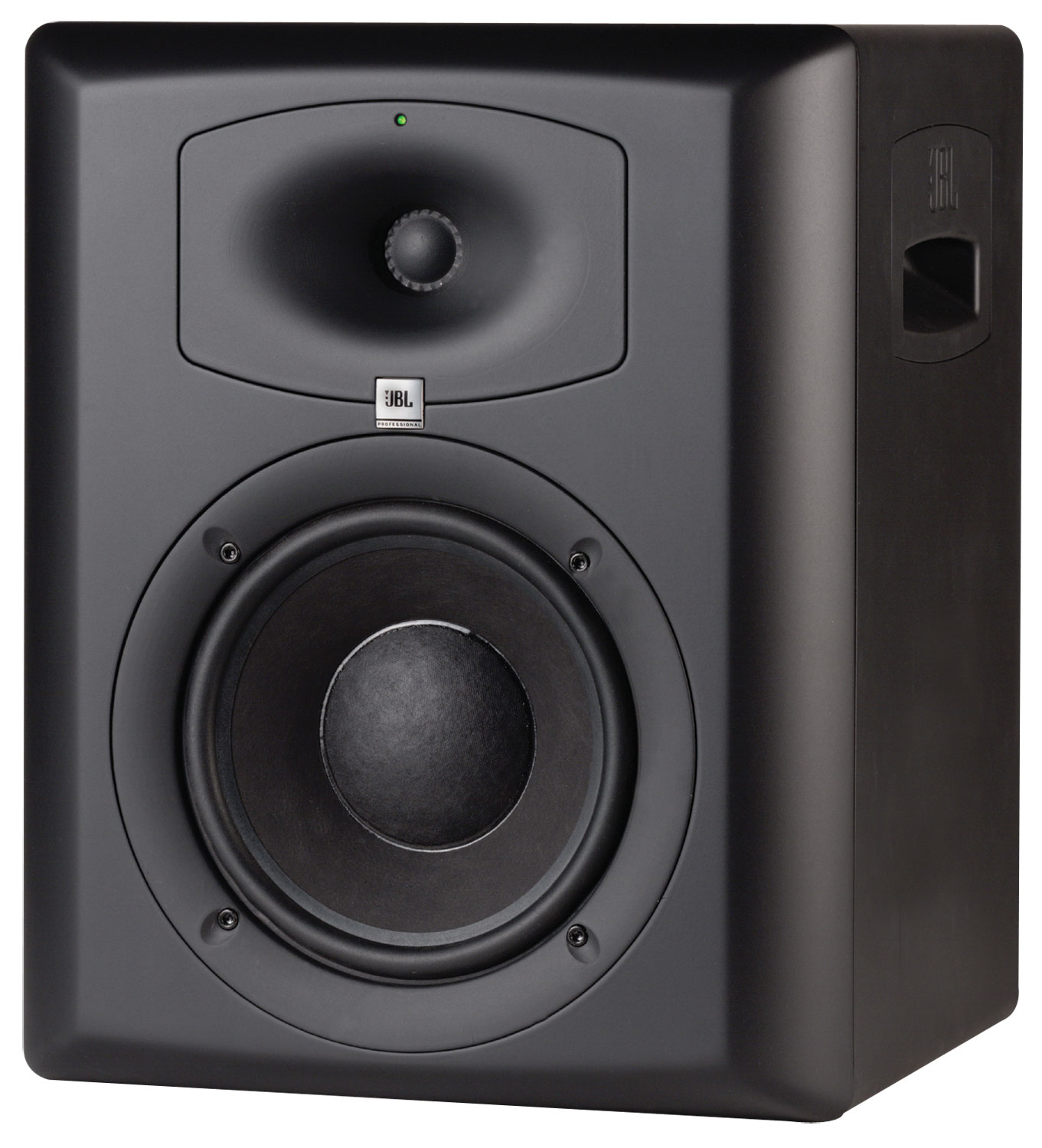

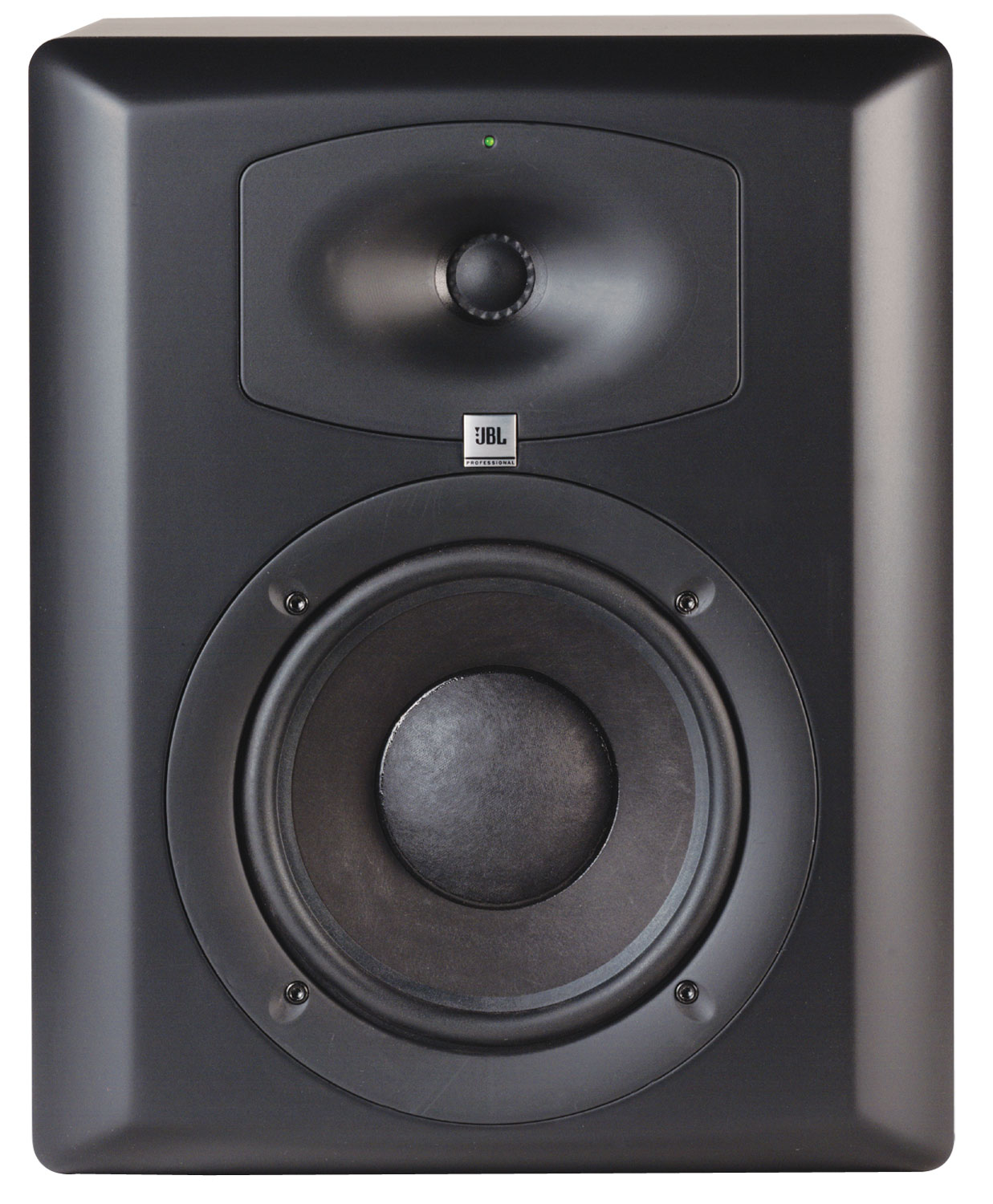

Linear Spatial Reference Bi-amplified Studio Monitor
The LSR6328P is the choice for stereo and multi-channel music and post audio applications where accuracy and high SPL are required. THX® pm3 Approved. METAlliance® Certified.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- Advanced Linear Spatial Reference design ensures flatter-off-axis response for greater clarity at the mix position.
- RMC™ Room Mode Correction provides electronic
control of room modes. User measurement and
calibration kit available. - Differential Drive® technology with dynamic braking
for extended low frequency response and minimal
power compression. - Integrated bi-amplification with factory calibrated sensitivities.
- Titanium composite high frequency transducer with Elliptical Oblate Spheroidal waveguide for precise
pattern control. - Magnetically shielded high frequency transducer minimizes interference when used in close proximity to
video monitors. - High-density baffle for low enclosure resonance.
- Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
- Reinforced enclosure and convenient mounting points for mounted installation.
- Integral handles facilitate ease of positioning.
Λήψεις
Specifications
| Μέγεθος | |
|
|
500 KB |
Manuals
| Μέγεθος | |
|
|
50 KB |
Brochures
| Μέγεθος | |
|
|
6 MB |
|
|
2 MB |
Compliances
| Μέγεθος | |
|
|
90 KB |
Tech Notes
| Μέγεθος | |
|
|
600 KB |
Simulation Data
| Μέγεθος | |
|
|
20 MB |
Images
| Μέγεθος | |
|
|
200 KB |
|
|
200 KB |
Helpful Links
| Μέγεθος | |
|
|
200 KB |
|
|
60 KB |
User Guides
| Μέγεθος | |
|
|
3 MB |
Install Guides
| Μέγεθος | |
|
|
30 KB |
Owner's Manuals
| Μέγεθος | |
|
|
800 KB |
Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.
Ανταλλακτικά και σέρβις
Προδιαγραφές
| Frequency Response | 50 Hz - 20 kHz (+1, -1.5 dB) |
| Enclosure Resonance Frequency | 38 Hz |
| Low Frequency Extension | User controls set to default |
| -3 dB | 46 Hz |
| 10 dB | 36 Hz |
| Low-High Frequency Crossover | 1.7 kHz 6th-order acoustic Linkwitz-Riley |
| Distortion, 96 dB SPL, 1m | N/A |
| Mid-High Frequency (120 Hz - 20 kHz) | N/A |
| 2nd Harmonic | <0.6% |
| 3rd Harmonic | <1% |
| Maximum SPL (80 Hz - 20 kHz) | >108 dB SPL / 1m |
| Maximum Peak SPL (80 Hz - 20 kHz) | >111 dB SPL / 1m |
| Signal Input | Neutrik “Combi” XLR-1⁄4-in tip-ring-sleeve balanced or unbalanced positive voltage applied to XLR pin 2 (1⁄4" tip) produces outward woofer motion |
| Calibrated Input Sensitivity, XLR & 1⁄4" | N/A |
| +4 dBu / +8 dBu | 96 dB SPL / 1 m |
| -10 dBV | 96 dB SPL / 1 m |
| AC INPUT VOLTAGE | 100 / 240 VAC |
| AC Input Connector | IEC |
| Long-Term Maximum System Power | 220 W (IEC265-5) |
