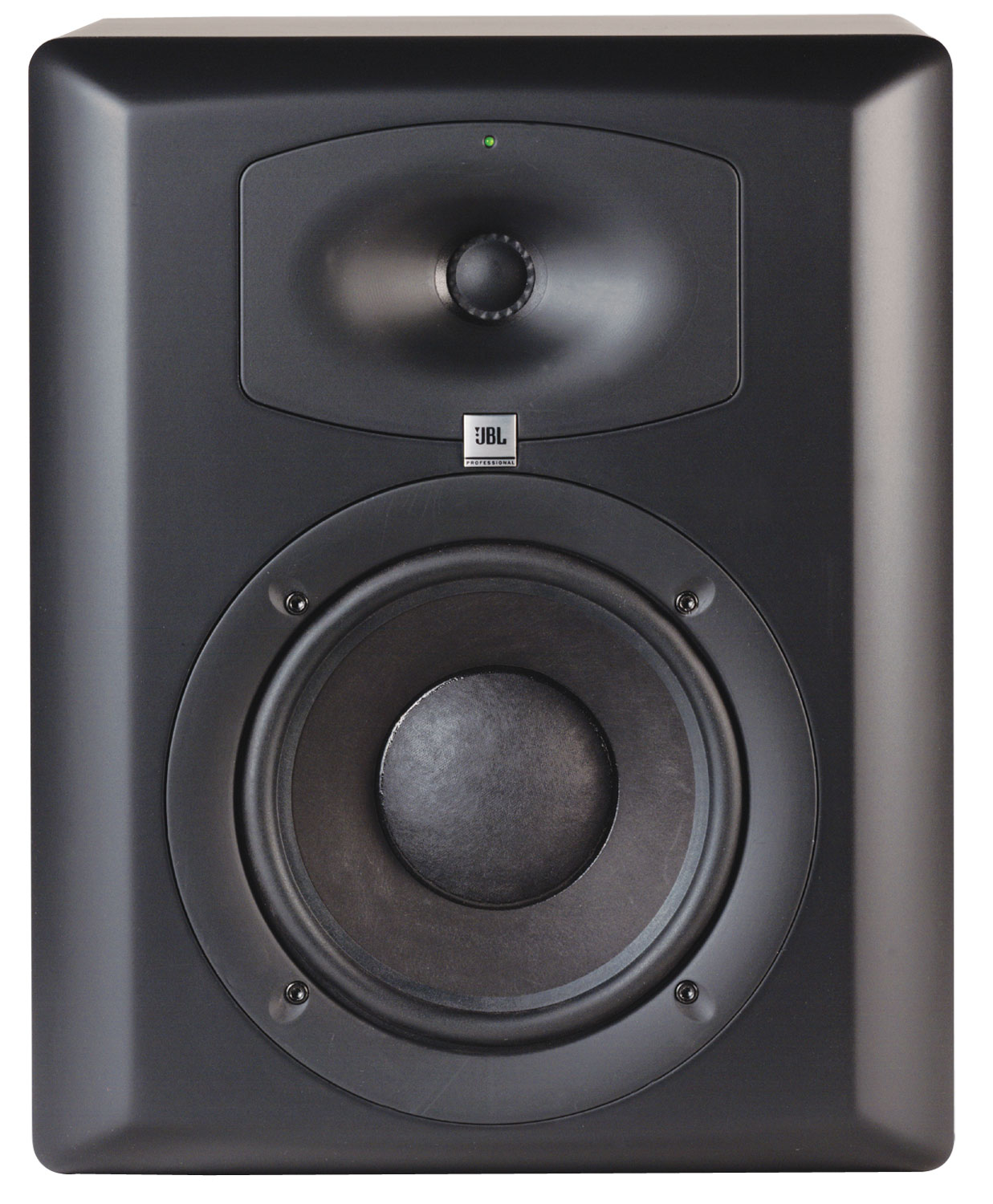

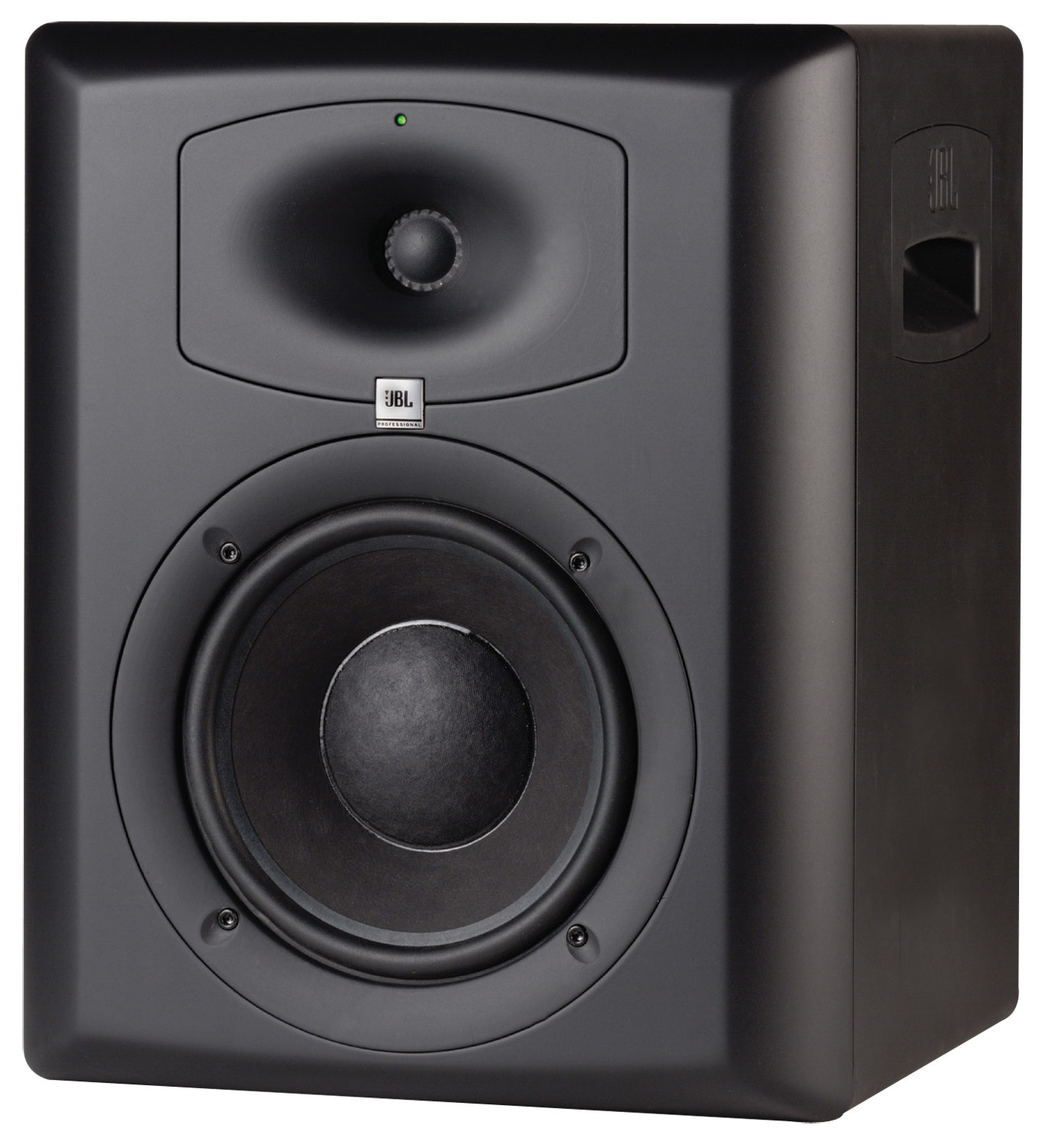

Linear Spatial Reference Bi-amplified Studio Monitor
The LSR6328P is the choice for stereo and multi-channel music and post audio applications where accuracy and high SPL are required. THX® pm3 Approved. METAlliance® Certified.
Grandes images
Caractéristiques
- Advanced Linear Spatial Reference design ensures flatter-off-axis response for greater clarity at the mix position.
- RMC™ Room Mode Correction provides electronic
control of room modes. User measurement and
calibration kit available. - Differential Drive® technology with dynamic braking
for extended low frequency response and minimal
power compression. - Integrated bi-amplification with factory calibrated sensitivities.
- Titanium composite high frequency transducer with Elliptical Oblate Spheroidal waveguide for precise
pattern control. - Magnetically shielded high frequency transducer minimizes interference when used in close proximity to
video monitors. - High-density baffle for low enclosure resonance.
- Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
- Reinforced enclosure and convenient mounting points for mounted installation.
- Integral handles facilitate ease of positioning.
Téléchargements
Specifications
| Taille | |
|
|
476 ko |
Manuals
| Taille | |
|
|
48,8 ko |
Brochures
| Taille | |
|
|
5,89 Mo |
|
|
1,81 Mo |
Compliances
| Taille | |
|
|
93,2 ko |
Tech Notes
| Taille | |
|
|
627 ko |
Simulation Data
| Taille | |
|
|
21 Mo |
Images
| Taille | |
|
|
227 ko |
|
|
187 ko |
Helpful Links
| Taille | |
|
|
189 ko |
|
|
60 ko |
User Guides
| Taille | |
|
|
2,58 Mo |
Install Guides
| Taille | |
|
|
26,2 ko |
Owner's Manuals
| Taille | |
|
|
815 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Response | 50 Hz - 20 kHz (+1, -1.5 dB) |
| Enclosure Resonance Frequency | 38 Hz |
| Low Frequency Extension | User controls set to default |
| -3 dB | 46 Hz |
| 10 dB | 36 Hz |
| Low-High Frequency Crossover | 1.7 kHz 6th-order acoustic Linkwitz-Riley |
| Distortion, 96 dB SPL, 1m | N/A |
| Mid-High Frequency (120 Hz - 20 kHz) | N/A |
| 2nd Harmonic | <0.6% |
| 3rd Harmonic | <1% |
| Maximum SPL (80 Hz - 20 kHz) | >108 dB SPL / 1m |
| Maximum Peak SPL (80 Hz - 20 kHz) | >111 dB SPL / 1m |
| Signal Input | Neutrik “Combi” XLR-1⁄4-in tip-ring-sleeve balanced or unbalanced positive voltage applied to XLR pin 2 (1⁄4" tip) produces outward woofer motion |
| Calibrated Input Sensitivity, XLR & 1⁄4" | N/A |
| +4 dBu / +8 dBu | 96 dB SPL / 1 m |
| -10 dBV | 96 dB SPL / 1 m |
| AC INPUT VOLTAGE | 100 / 240 VAC |
| AC Input Connector | IEC |
| Long-Term Maximum System Power | 220 W (IEC265-5) |
