LSR6328P (discontinued)

Linear Spatial Reference Bi-amplified Studio Monitor

LSR6328P
Larger Images

Linear Spatial Reference Bi-amplified Studio Monitor

The LSR6328P is the choice for stereo and multi-channel music and post audio applications where accuracy and high SPL are required. THX® pm3 Approved. METAlliance® Certified.

Fitur

  • Advanced Linear Spatial Reference design ensures flatter-off-axis response for greater clarity at the mix position.
  • RMC™ Room Mode Correction provides electronic control of room modes. User measurement and
    calibration kit available.
  • Differential Drive® technology with dynamic braking for extended low frequency response and minimal
    power compression.
  • Integrated bi-amplification with factory calibrated sensitivities.
  • Titanium composite high frequency transducer with Elliptical Oblate Spheroidal waveguide for precise
    pattern control.
  • Magnetically shielded high frequency transducer minimizes interference when used in close proximity to
    video monitors.
  • High-density baffle for low enclosure resonance.
  • Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
  • Reinforced enclosure and convenient mounting points for mounted installation.
  • Integral handles facilitate ease of positioning.

Downloads

  Version Language Size Uploaded
Specifications
file type icon LSR6328P Spec Sheet
updated: Okt 2020
    476 KB Okt 2020
Manuals
file type icon LSR6328P/6332/6312SP Mounting Specs
updated: Okt 2019
    48,8 KB Okt 2019
Brochures
file type icon LSR 6300 Brochure
updated: Okt 2020
    5,89 MB Okt 2020
file type icon Recording & Broadcast Full Line Catalog
updated: Okt 2020
    1,81 MB Okt 2020
Compliances
file type icon LSR6300 Series Declaration of Conformity
updated: Okt 2019
    93,2 KB Okt 2019
Tech Notes
file type icon Tech Note: The New JBL LSR6300 Series Studio Monitors
updated: Okt 2019
    627 KB Okt 2019
Images

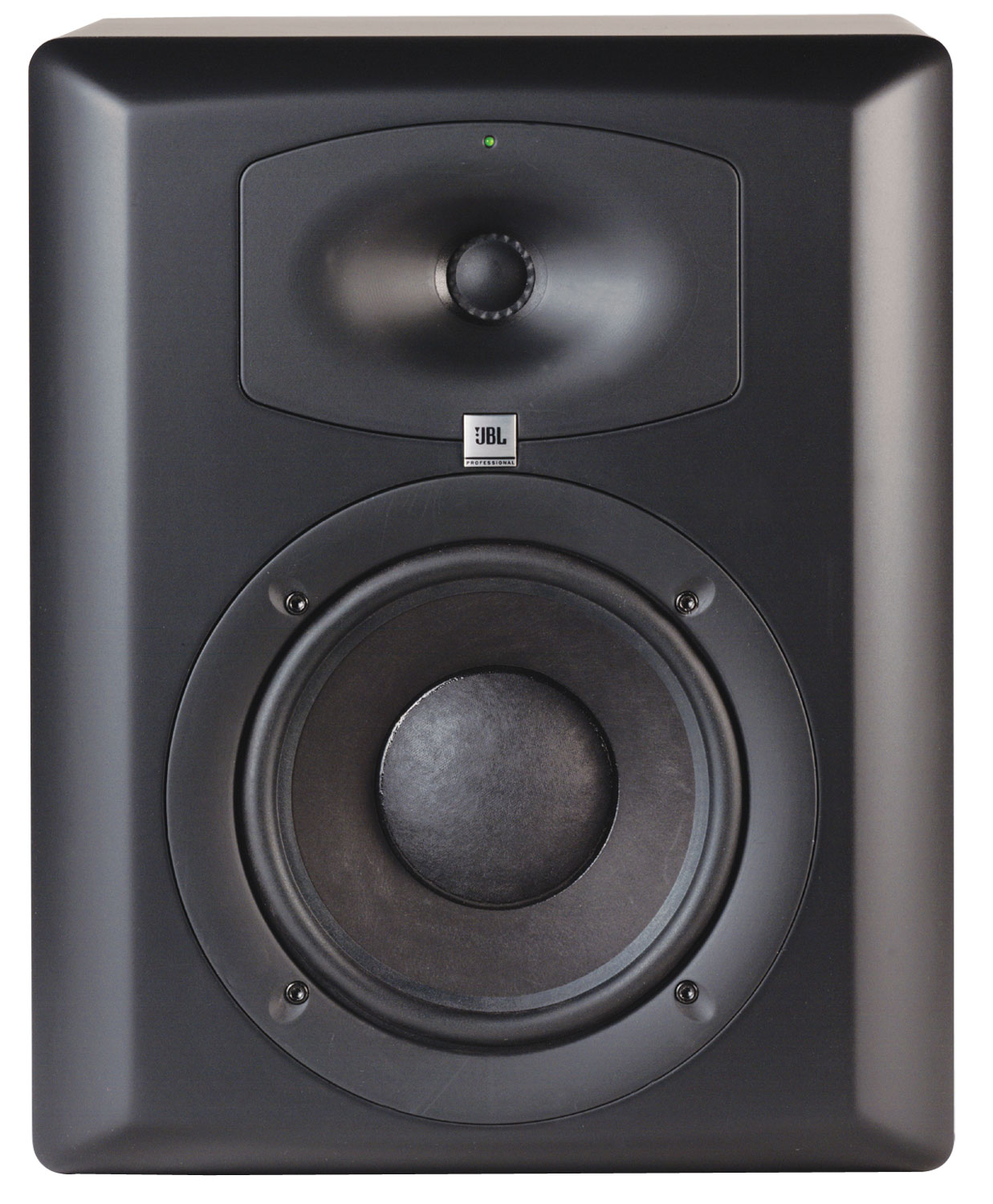

file type icon LSR6328P Front
updated: Okt 2019
    227 KB Okt 2019

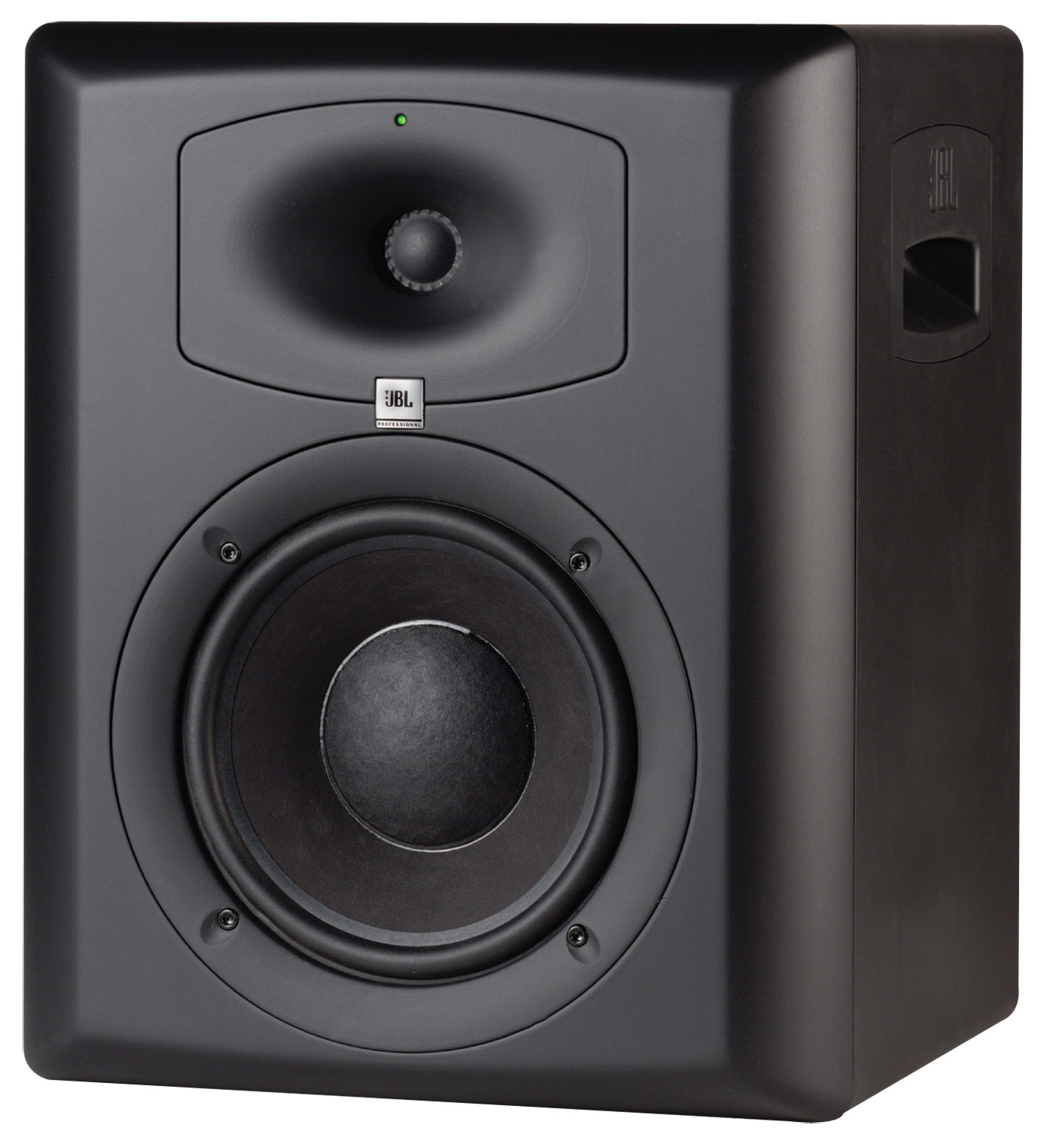

file type icon LSR6328P Left Angle
updated: Okt 2020
    187 KB Okt 2020
Helpful Links
file type icon RMC White Paper
updated: Okt 2020
    189 KB Okt 2020
file type icon RMC Graph Paper
updated: Okt 2020
    60 KB Okt 2020
User Guides
file type icon RMC User Guide
updated: Okt 2020
    2,58 MB Okt 2020
Install Guides
file type icon R&B Mounting Brackets
updated: Okt 2020
    26,2 KB Okt 2020
Owner's Manuals
file type icon LSR6300 Manual
updated: Okt 2020
    815 KB Okt 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: Mar 2022
    21 MB Mar 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Response 50 Hz - 20 kHz (+1, -1.5 dB)
Enclosure Resonance Frequency 38 Hz
Low Frequency Extension User controls set to default
-3 dB 46 Hz
10 dB 36 Hz
Low-High Frequency Crossover 1.7 kHz 6th-order acoustic Linkwitz-Riley
Distortion, 96 dB SPL, 1m N/A
Mid-High Frequency (120 Hz - 20 kHz) N/A
2nd Harmonic <0.6%
3rd Harmonic <1%
Maximum SPL (80 Hz - 20 kHz) >108 dB SPL / 1m
Maximum Peak SPL (80 Hz - 20 kHz) >111 dB SPL / 1m
Signal Input Neutrik “Combi” XLR-1⁄4-in tip-ring-sleeve balanced or unbalanced positive voltage applied to XLR pin 2 (1⁄4" tip) produces outward woofer motion
Calibrated Input Sensitivity, XLR & 1⁄4" N/A
+4 dBu / +8 dBu 96 dB SPL / 1 m
-10 dBV 96 dB SPL / 1 m
AC INPUT VOLTAGE 100 / 240 VAC
AC Input Connector IEC
Long-Term Maximum System Power 220 W (IEC265-5)
