Control HST

Wide-Coverage Speaker with 5-1/4" LF, Dual Tweeters and HST Technology™

Control HST
较大的图像

Wide-Coverage Speaker with 5-1/4" LF, Dual Tweeters and HST Technology™

特点

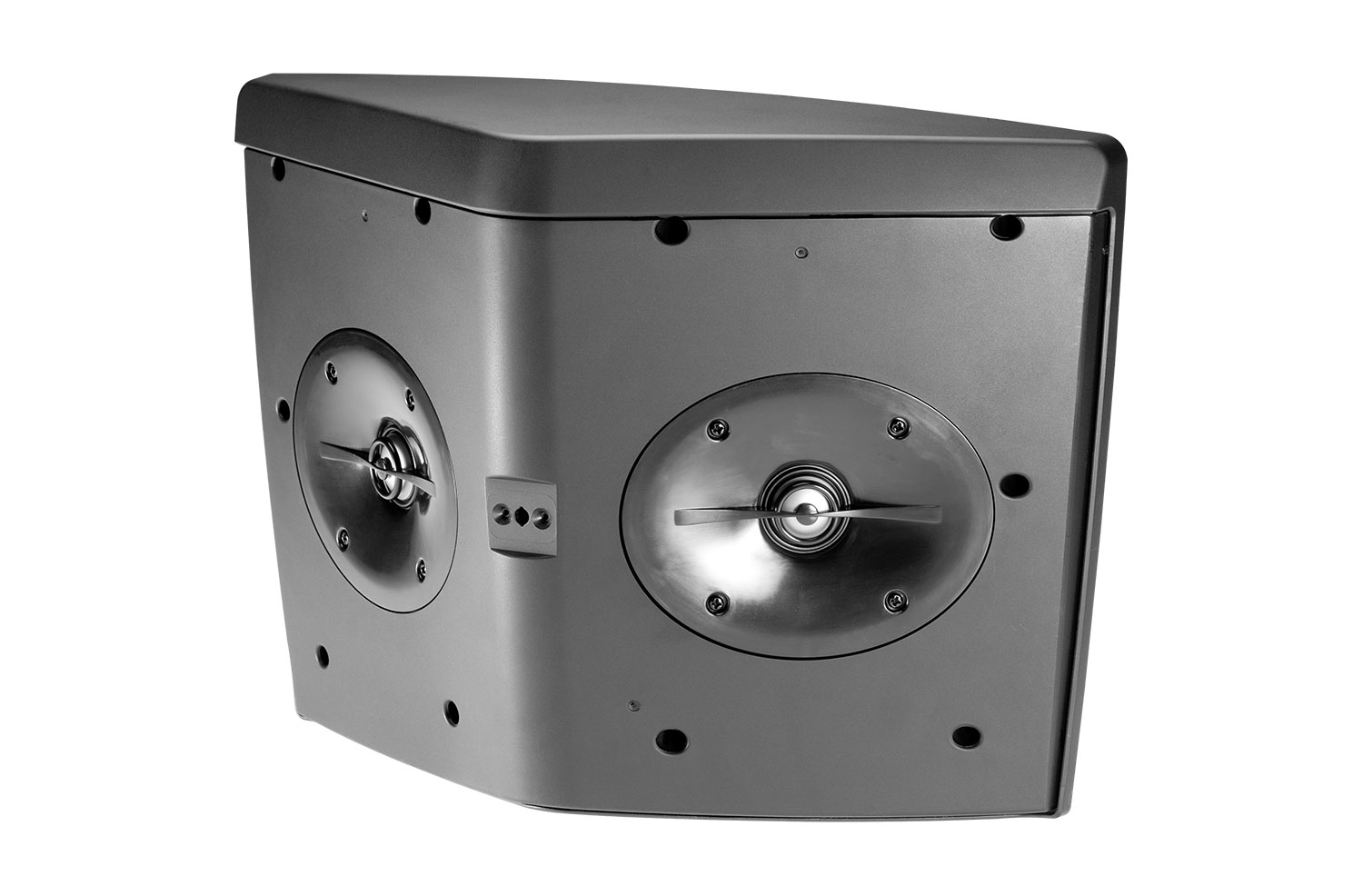

SPLAYED TWEETERS

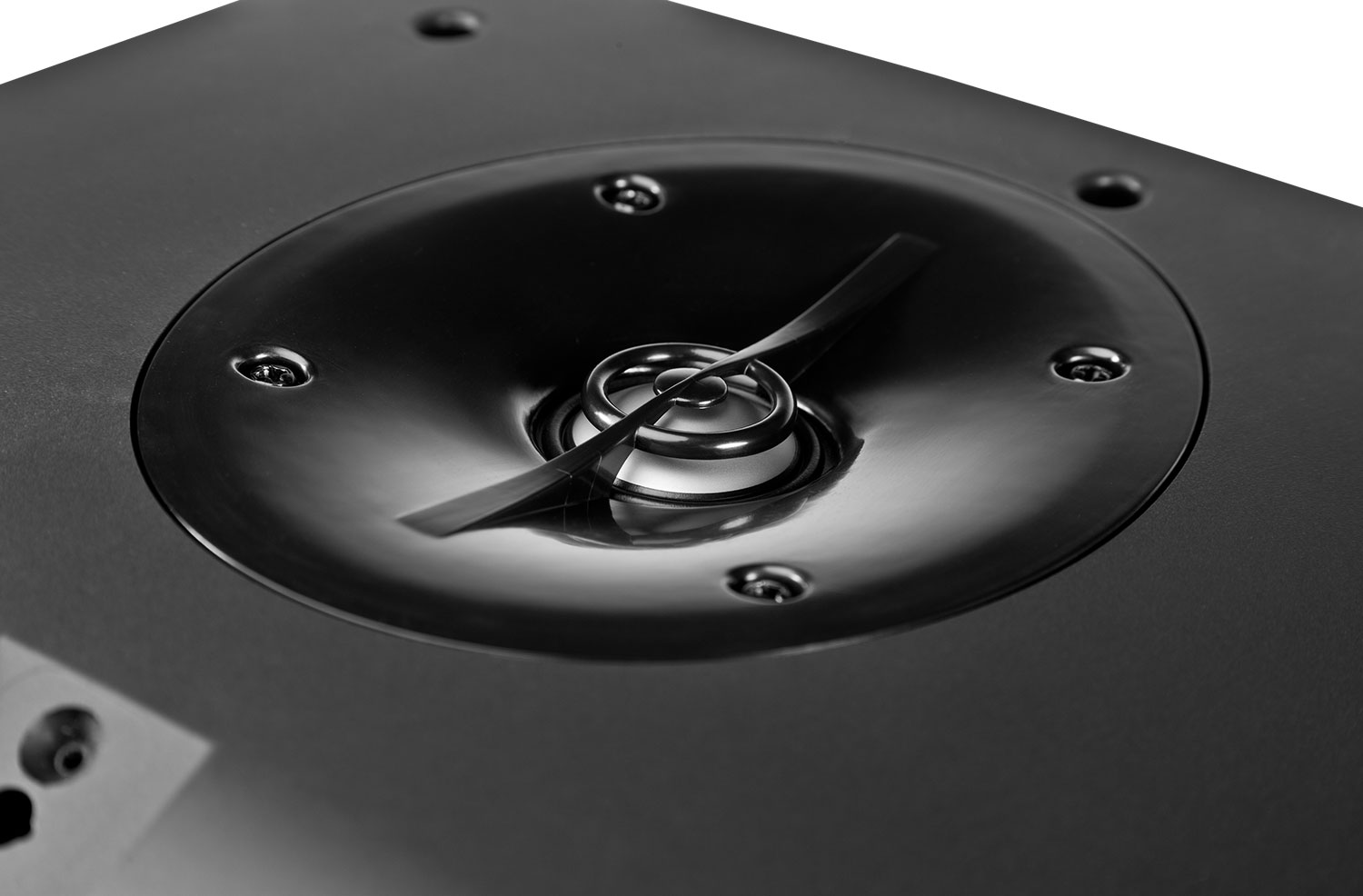

The dual tweeters feature aluminum diaphragms with a CMMD treat, polyurethane surround, a neodymium magnet, and fluid-cooling for high output, low distortion
and humidity resistance.

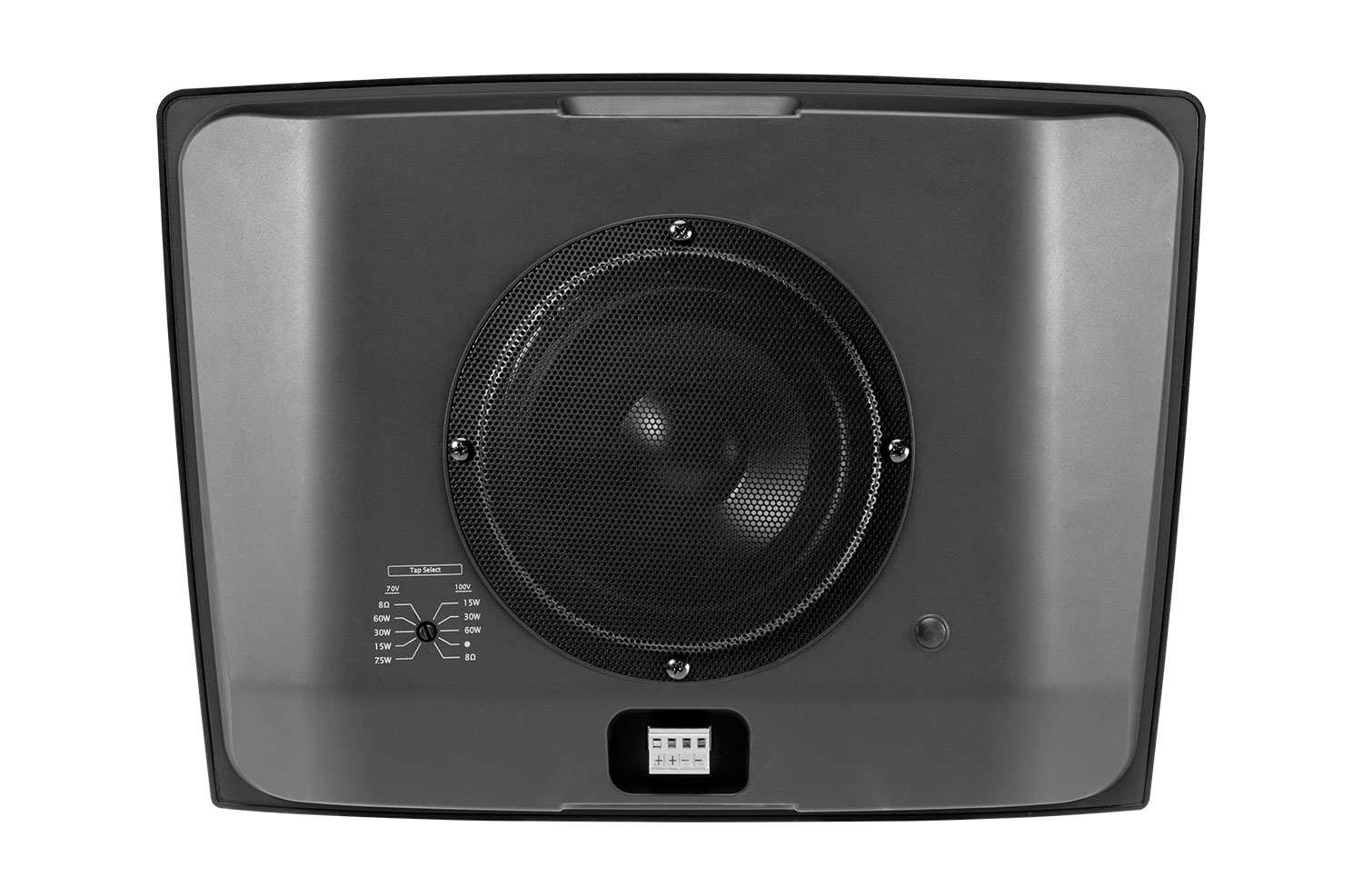

WALL FACING WOOFER

The well-damped woofer incorporates a CMMD ceramic metal matrix diaphragm for a very high stiffness-to-weight ratio, high output, resistance to humidity
and long-term durability.

CONTROLLED SOUND

Engineered noise cancelling allows Control HST to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.

更多详情

ELIMINATION OF WALL REFLECTION

The patent-pending design includes a wall-facing woofer, two horizontally splayed tweeters, a wall bracket that spaces the speaker the required distance from the wall, and a tapered cabinet that provides proper loading and dispersion of the sound. With most on-wall (surface-mount) speakers, the baffle of the speaker is some distance from the wall. It is the nature of low and low-mid frequency sound waves to wrap around the speaker, where they reflect back out from the wall, recombining with the original sound. When this occurs, some frequencies add coherently to the original sound and other frequencies cancel, causing peaks and dips in the resulting frequency response and inconsistencies from location to location within the listening space. By substantially reducing this occurrence, Control HST is able to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.

下载

  Version Language Size Uploaded
Specifications
file type icon Control HST Spec Sheet
updated: 10月22日
    1.8 MB 10月22日
CAD Drawings
file type icon Control HST PDF
updated: 10月22日
    53.5 KB 10月22日
file type icon Control HST - DWG's
updated: 10月22日
    1.2 MB 10月22日
Bim Objects
file type icon CONTROL HST BIM Object
updated: 8月27日
    8月27日
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: 12月17日
    179.3 KB 12月17日
file type icon Control Contractor Series Declaration of Conformity
updated: 10月18日
    130.9 KB 10月18日
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 7月08日
    20.5 MB 7月08日
file type icon Ease GLL Files
updated: 10月22日
    2.1 MB 10月22日
file type icon Control HST Ease Data
updated: 10月22日
    283.4 KB 10月22日
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 181030
updated: 10月22日
    557.0 KB 10月22日
Images
file type icon Control HST - Detail 2
updated: 10月23日
    167.2 KB 10月23日
file type icon Control HST - Detail 1
updated: 10月23日
    92.1 KB 10月23日
file type icon Control HST - Back
updated: 10月23日
    186.3 KB 10月23日
file type icon Control HST - No Grill
updated: 10月23日
    108.2 KB 10月23日
file type icon Control HST White
updated: 10月23日
    939.6 KB 10月23日
file type icon Control HST - Front
updated: 10月23日
    246.1 KB 10月23日
Clf Files
file type icon JBL Pro ALL CLF Files
version 03-19-20, updated: 3月19日
03-19-20    23.9 MB 3月19日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 (-10dB) 50 Hz – 20 kHz
Frequency Response (±3 dB) 68 Hz – 18 kHz
覆盖角度 180° H x 160° V (1 kHz – 2 kHz, nominal) 160° H x 150° V (ave, 1 kHz – 16 kHz)
Directivity Factor (Q) 5.4 (1 k – 16 kHz)
Directivity Index (DI) 7.2 dB (1 k – 16 kHz)
System Power Rating (IEC) 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.

灵敏度

88 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL (1m) Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W
Crossover Network 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
阻抗 8 ohms

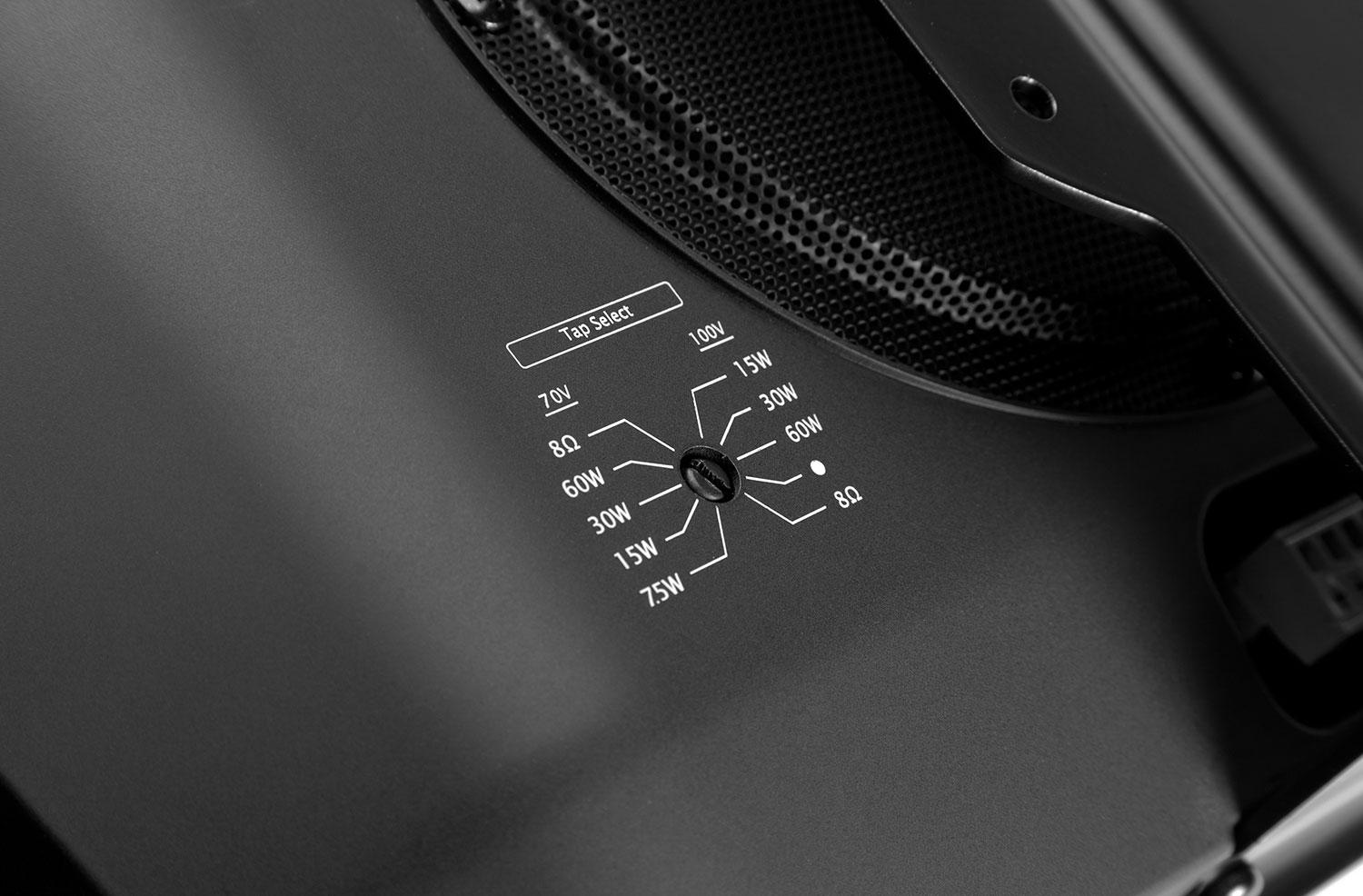

变压器抽头 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
Drivers LF: CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil.
HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
Enclosure Fiberglass-reinforced ABS
Attachment Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
网罩 Aluminum grille, painted to match cabinet color.
输入接口 Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
Outdoor Capability IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
尺寸(高 x 宽 x 厚) 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.

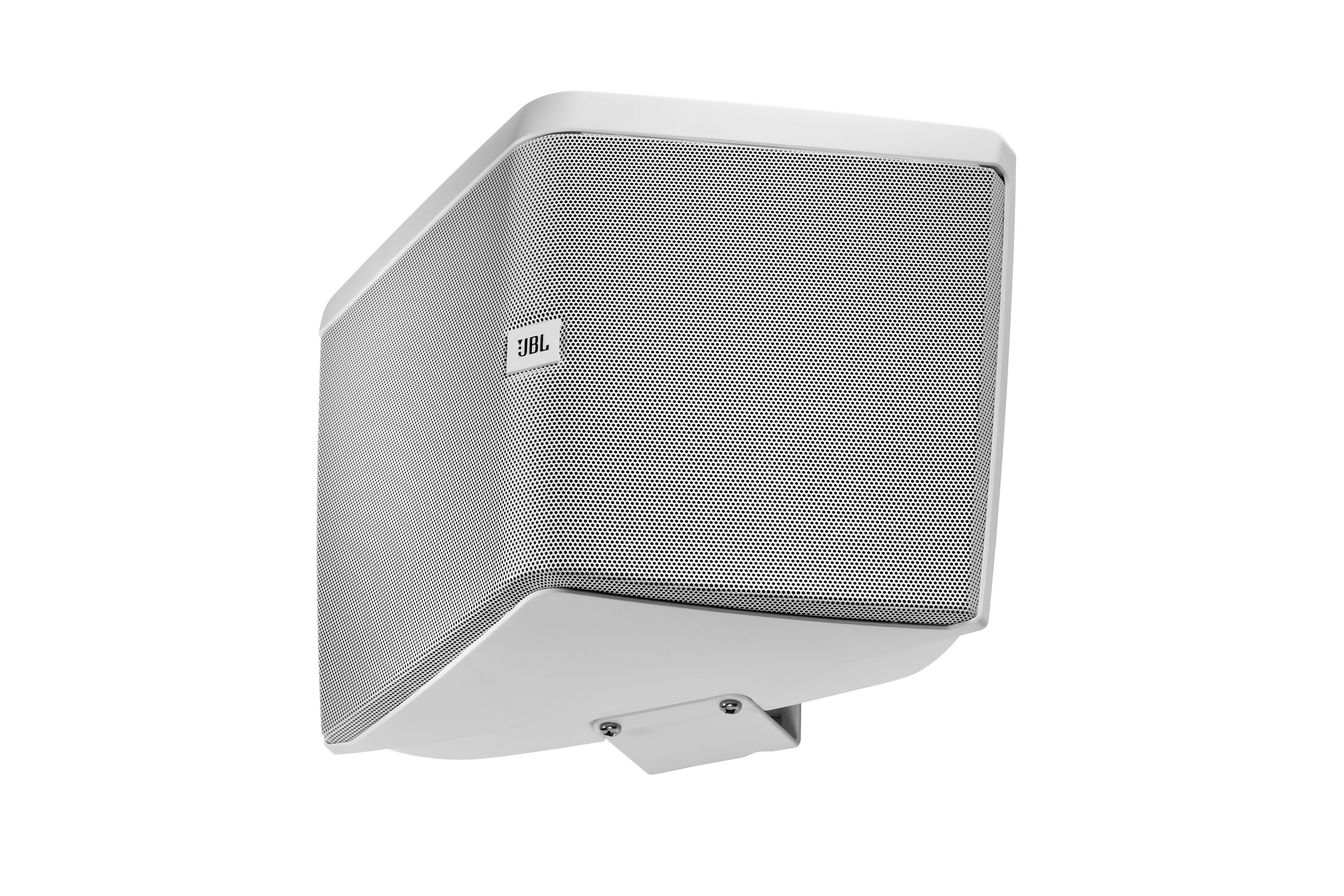

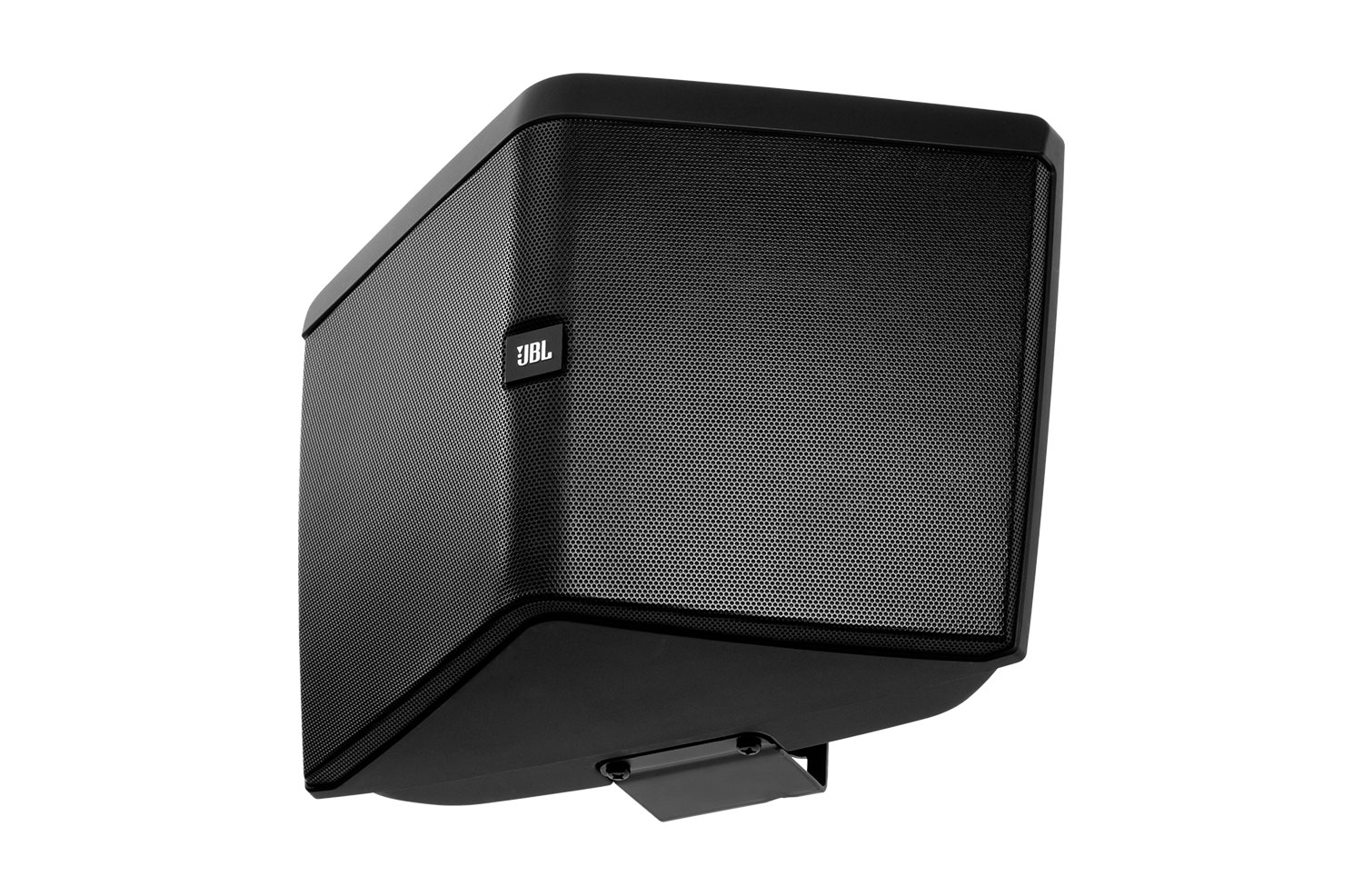

Colors Available in black (RAL9004) and white (-WH, RAL9016)
Net Weight (each) 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket

随附配件

U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
装配硬件 Included wall-mount bracket.
