คุณสมบัติ

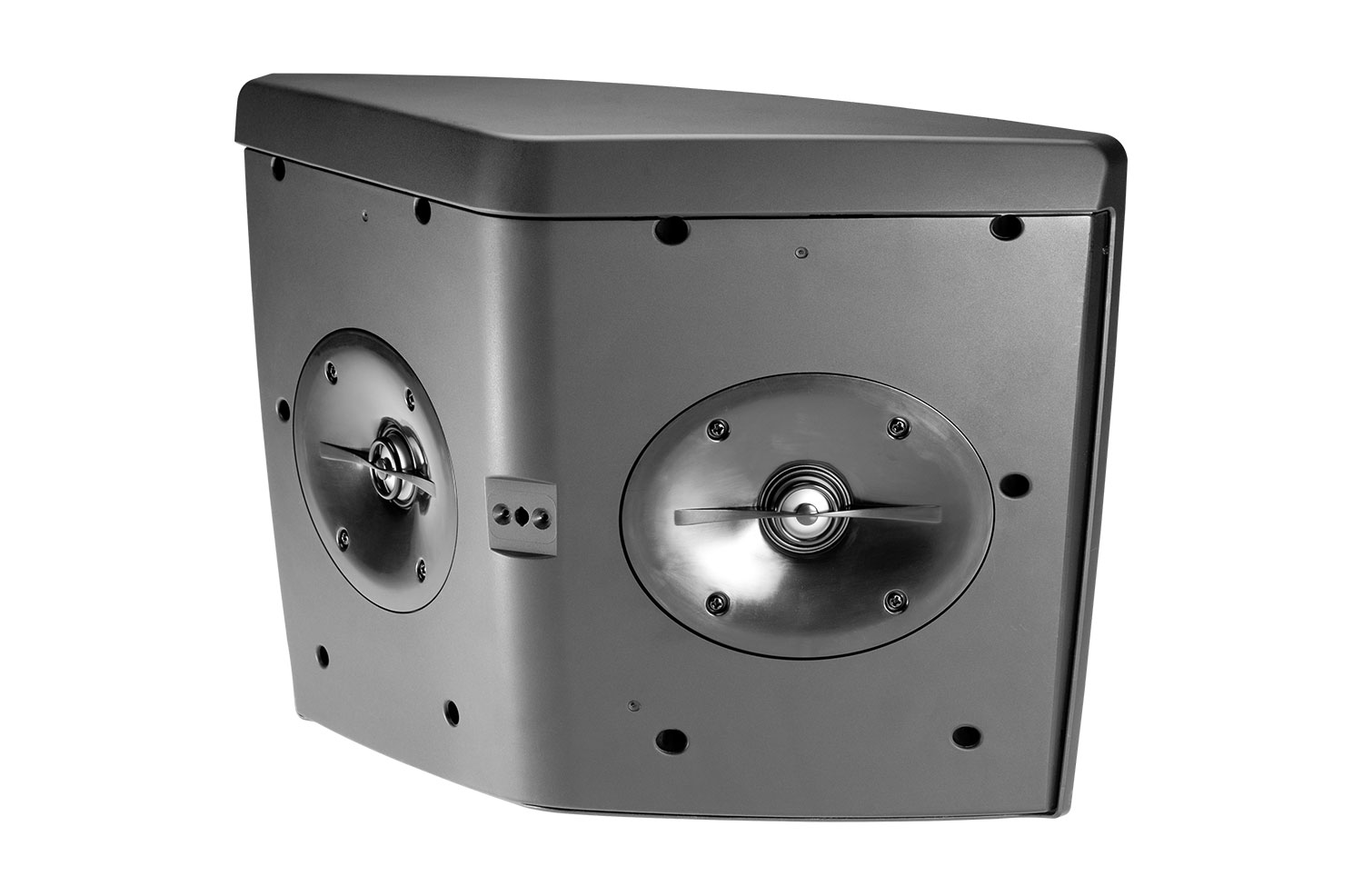

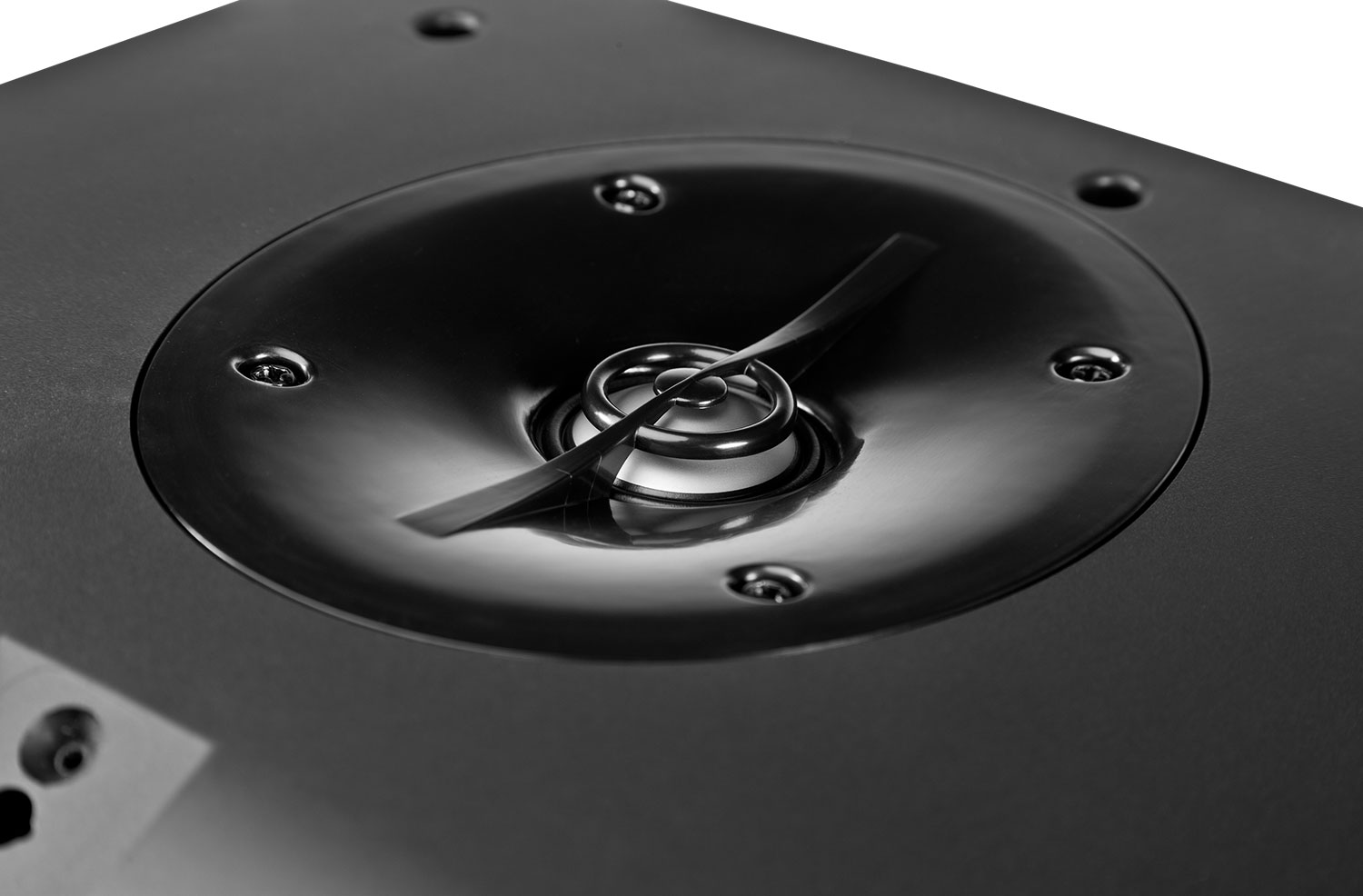

SPLAYED TWEETERS
The dual tweeters feature aluminum diaphragms with a CMMD treat, polyurethane surround, a neodymium magnet, and fluid-cooling for high output, low distortion
and humidity resistance.

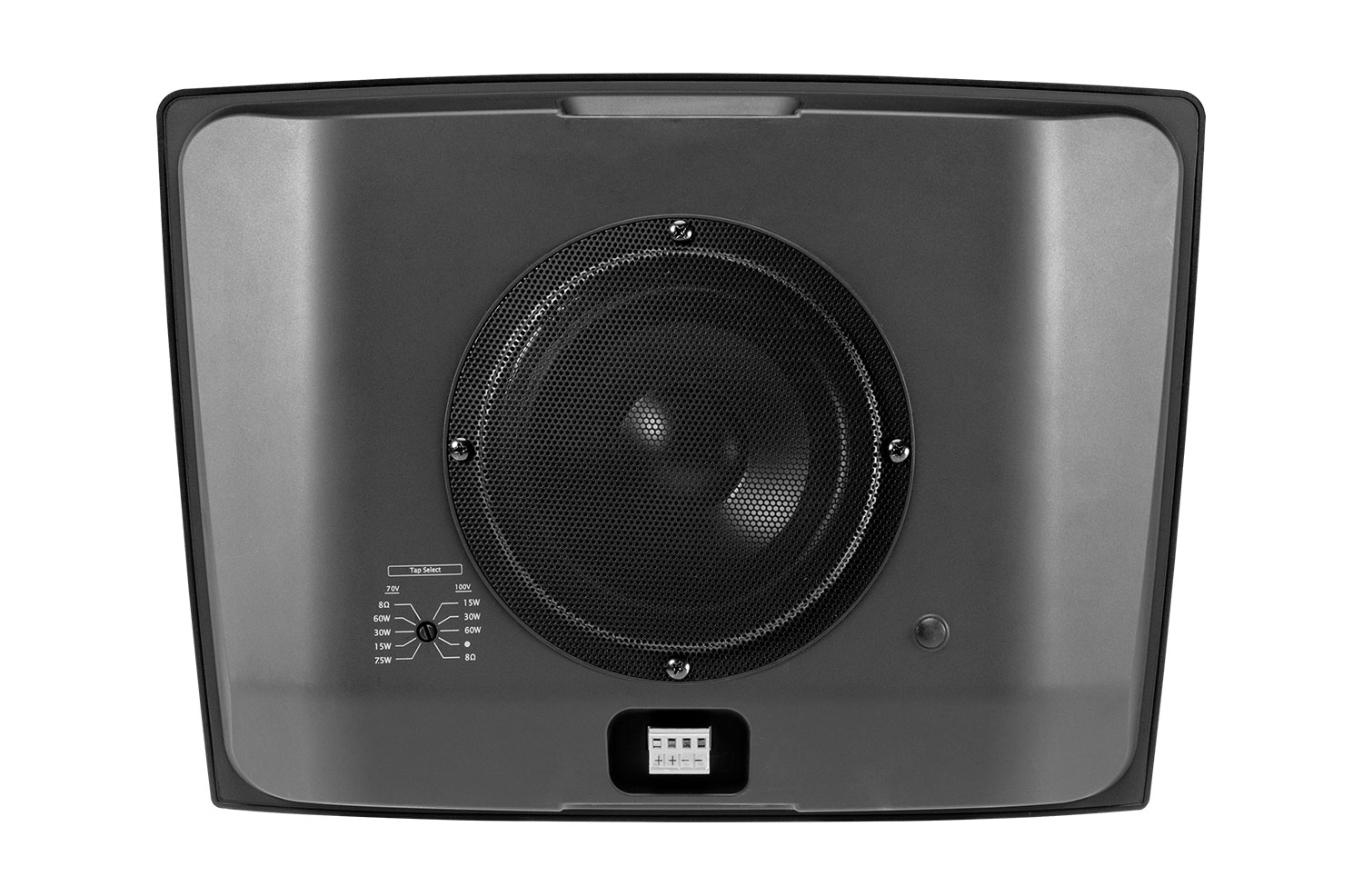

WALL FACING WOOFER
The well-damped woofer incorporates a CMMD ceramic metal matrix diaphragm for a very high stiffness-to-weight ratio, high output, resistance to humidity
and long-term durability.
CONTROLLED SOUND
Engineered noise cancelling allows Control HST to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.
รายละเอียดเพิ่มเติม
ELIMINATION OF WALL REFLECTION
The patent-pending design includes a wall-facing woofer, two horizontally splayed tweeters, a wall bracket that spaces the speaker the required distance from the wall, and a tapered cabinet that provides proper loading and dispersion of the sound. With most on-wall (surface-mount) speakers, the baffle of the speaker is some distance from the wall. It is the nature of low and low-mid frequency sound waves to wrap around the speaker, where they reflect back out from the wall, recombining with the original sound. When this occurs, some frequencies add coherently to the original sound and other frequencies cancel, causing peaks and dips in the resulting frequency response and inconsistencies from location to location within the listening space. By substantially reducing this occurrence, Control HST is able to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.
การดาวน์โหลด
Specifications
| ขนาด | |
|
|
1.83 เมกะไบต์ |
Brochures
| ขนาด | |
|
|
14 เมกะไบต์ |
|
|
23 เมกะไบต์ |
|
|
21 เมกะไบต์ |
เวอร์ชัน D,
อัปเดต: ก.พ. 2024
CAD Drawings
| ขนาด | |
|
|
1.19 เมกะไบต์ |
|
|
53.5 กิโลไบต์ |
BIM Objects
| ขนาด | |
|
|
Compliances
| ขนาด | |
|
|
131 กิโลไบต์ |
|
|
179 กิโลไบต์ |
Simulation Data
| ขนาด | |
|
|
21 เมกะไบต์ |
|
|
24 เมกะไบต์ |
Ease Data
| ขนาด | |
|
|
374 กิโลไบต์ |
|
|
283 กิโลไบต์ |
Speaker Tunings
| ขนาด | |
|
|
557 กิโลไบต์ |
Images
| ขนาด | |
|
|
167 กิโลไบต์ |
|
|
246 กิโลไบต์ |
|
|
940 กิโลไบต์ |
|
|
108 กิโลไบต์ |
|
|
186 กิโลไบต์ |
|
|
92.1 กิโลไบต์ |
หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ
อะไหล่และบริการ
ข้อมูลจำเพาะ
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Frequency Response (±3 dB) | 68 Hz – 18 kHz |
| Coverage Angle | 180°H x160°V |
| Directivity Factor (Q) | 5.4 (1 k – 16 kHz) |
| Directivity Index (DI) | 7.2 dB (1 k – 16 kHz) |
| System Power Rating (IEC) | 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs. |
| Sensitivity | 88 dB (Ave. 80 Hz – 20 kHz) |
| Maximum SPL (1m) | Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W |
| Crossover Network | 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF |
| Impedance | 8 ohms |

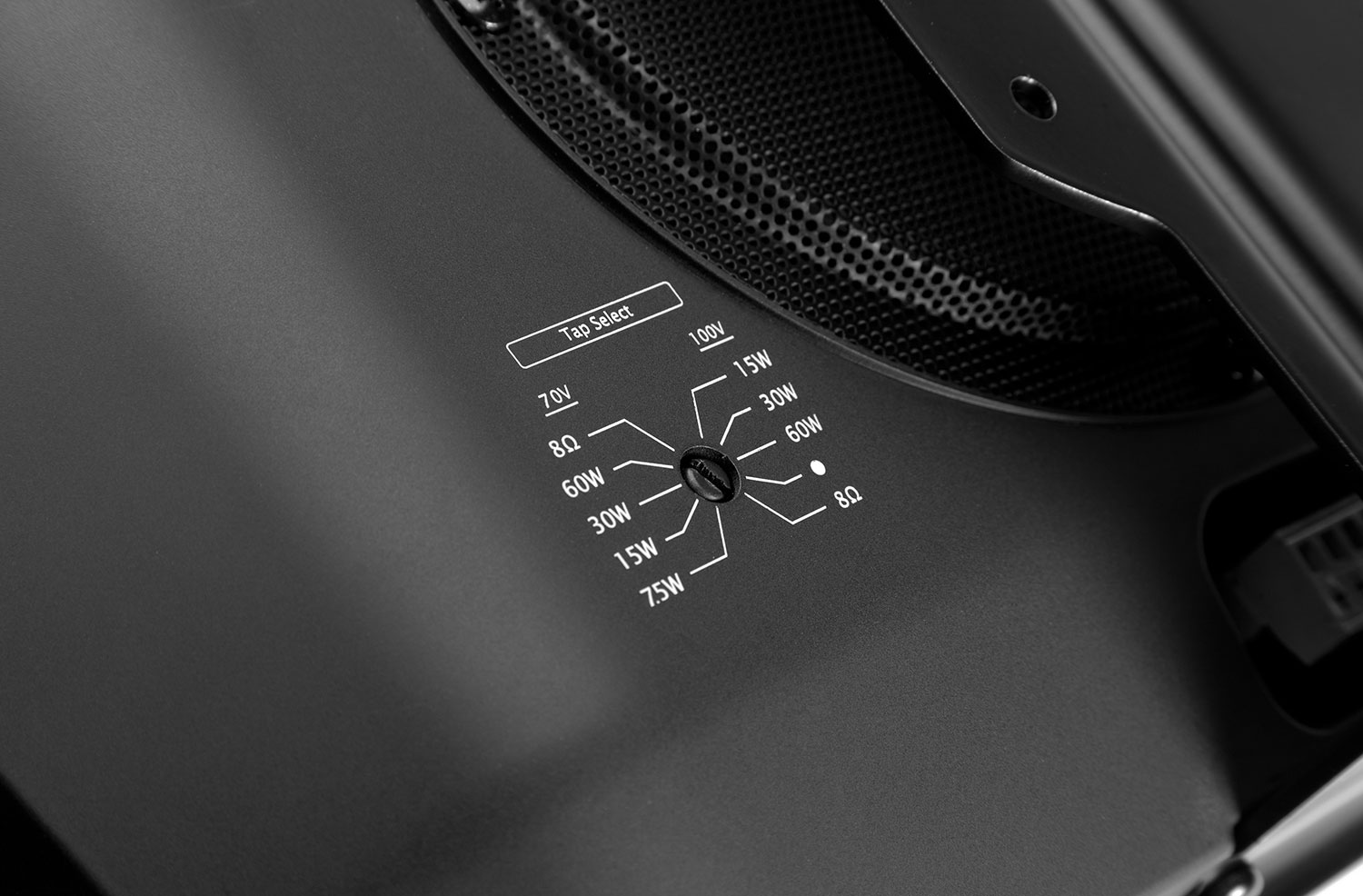

| Transformer Taps | 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W |
| Drivers | LF: CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil. HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling. |
| Enclosure | Fiberglass-reinforced ABS |
| Attachment | Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole. |
| Grille | Aluminum grille, painted to match cabinet color. |
| Input Connectors | Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2). |
| Outdoor Capability | IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray. |
| Dimensions (H x W x D) | 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket. |

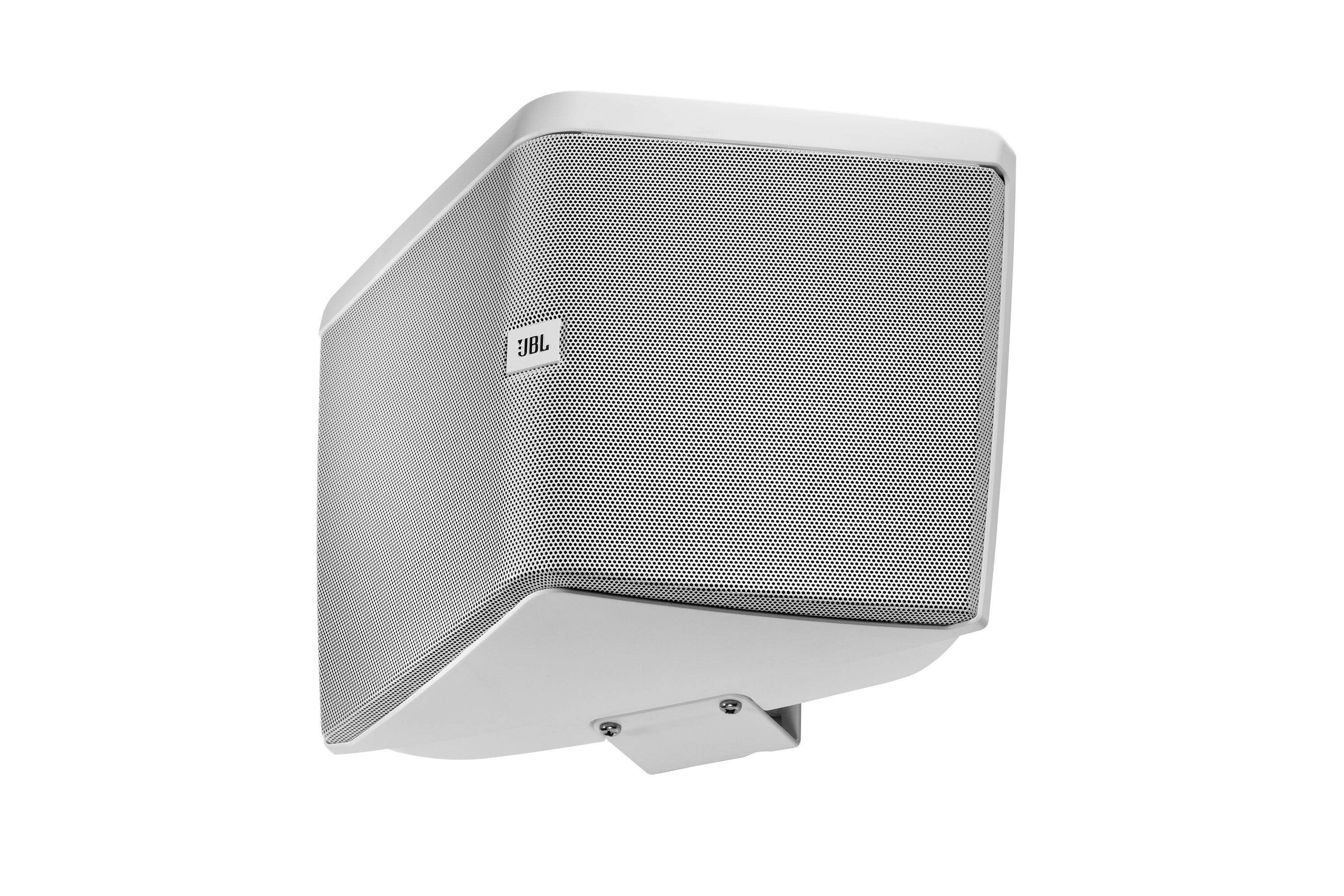

| Colors | Available in black (RAL9004) and white (-WH, RAL9016) |
| Net Weight (each) | 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket |
| Included Accessories | U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel. |
| Mounting Hardware | Included wall-mount bracket. |
