Control HST

អាចារ្យប្ដេជ្រើសរើសលក្ខណៈទូលំទូលាយ ដែលមាន LF ៥-១/៤" ស្វ័យគតិទ្វេ និងបច្ចេកវិទ្យា HST Technology™

Control HST
រូបភាពធំជាង

អាចផ្សាយលើមុំធំទូលាយដែលមាន LF ៥-១/៤ អ៊ីញ មីក្រូហ្វូនពីរ និងបច្ចេកវិទ្យា HST Technology™

លក្ខណៈពិសេស

ឧបករណ៍ធ្វើឱ្យស៊ីសង្វាក់គ្នាលាយពីរ

ឧបករណ៍ធ្វើឱ្យស៊ីសង្វាក់គ្នាលាយពីរមាន​膜ដែលបង្កើតពីលោហៈ អាលុយមីញ៉ូម ដែលមានរង្វាល់ CMMD សម្រាប់ការការពារ កោស៉ូវលើស ម៉ាញេទិច neodymium និងប្រព័ន្ធ​ត្រជាក់លម្អិត ដើម្បីផ្តល់នូវលទ្ធផលលម្អិត ការបង្ហាប់ទាប និងភាពធន់ទ្រាំលើសំណើម។

ឧបករណ៍ស្វើងសម្រាប់ជញ្ជាំង

ឧបករណ៍ស្វើងដែលគ្រប់គ្រងបានល្អ រួមបញ្ចូលនូវម៉ាស៊ីនដែលបង្កើតពីលោហៈ CMMD សម្រាប់សមរភូមិរឹងលម្អិត ដែលមានលទ្ធផលលម្អិត ភាពធន់ទ្រាំលើសំណើម និងភាពរឹងមាំរយៈពេលវែង។

សម្លេងគ្រប់គ្រង

បច្ចេកវិទ្យាលុបបំបាត់សម្លេងរំខាន ធានាឱ្យ Control HST ផ្តល់នូវការឆ្លើយតប្របង់ប្រេកង់ដែលស្មើគ្នាកាន់តែច្រើន រួមជាមួយលក្ខណៈសម្លេងដែលមានភាពស៊ីសង្វាក់គ្នាកាន់តែច្រើននៅទូទាំងបន្ទប់។

ព័ត៌មានលម្អិត

ការលុបបំបាត់ការឆ្លុះបញ្ចាំងពី벽ដ

ការរចនាដែលមានលិខិតបង្ហាញឯកសិទ្ធិរង់ចាប់ অন্তর্ভুক্ត woofer ឈានទៅមុខជញ្ជាំង tweeters ពីរដែលបែងចែកក្នុងលក្ខណៈផ្ដេក ដង្កៀបលើប្រដាប់ដែលដក់ឃ្លាយលម្នាក់ដែលដាក់ធម្មតាចម្ងាយពីខាងមុខ ហើយឧបករណ៍ក្រឡាប់ដែលមាននិងរាងសាយដែលផ្តល់នូវការផ្ទុក និងការបង្ហាញដល់សូរស័ព្ទ។ ក្នុងលក្ខណៈស្ទើរតែលើ (surface-mount) ឧបករណ៍រើង គ្រាប់របស់ឧបករណ៍គឺនៅចម្ងាយខ្លះពីខាងមុខ។ វាជាលក្ខណៈនៃរលកសូរស័ព្ទប្រេកង់ទាប និងប្រេកង់ទាប-មិនមែន ដែលរុំជុំវិញឧបករណ៍ ដែលវាឆ្លុះបញ្ចាំងពីខាងក្រោយលេចចេញពីខាងមុខ ដែលបង្រួមបញ្ចូលគ្នាទៅនឹងសូរស័ព្ទដើម។ នៅពេលដែលនេះកើតឡើង ប្រេកង់មួយចំនួនបន្ថែមថាមពលស៊ីសង្វាក់ទៅនឹងសូរស័ព្ទដើម ខណៈពេលដែលប្រេកង់ផ្សេងទៀតលុបចោល ដែលបង្កើតកំពូល និងដាច់ចូលក្នុងលទ្ធផលលក្ខណៈឆ្លើយតប ហើយភាពមិនស៊ីសង្វាក់គ្នាពីកន្លែងទៅកន្លែងក្នុងលក្ខខណ្ឌស្តាប់ឮ។ ដោយបង្រួមបង្ហាប់បាតុលក្ខណៈនេះយ៉ាងខ្លាំង Control HST គឺបានផ្តល់នូវលក្ខណៈឆ្លើយតបលទ្ធផលនៃលក្ខណៈរាបស្មើ ក៏ដូចជាលក្ខណៈសូរស័ព្ទស៊ីសង្វាក់គ្នាលម្អិតបន្ថែមទៀតលើគ្រាប់។

ការទាញយក

Specifications
  ទំហំ បានផ្ទុកឡើង
file type icon Control HST Spec Sheet
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
1.83 MB តុលា 2020
Brochures
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon Control Contractor Brochure (2024)
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2024
en  14 MB កុម្ភៈ 2024
file type icon Control Contractor Brochure (2025)
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  23 MB មិនា 2026
file type icon Control Contractor Brochure (2026)
en បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
  en  21 MB មិនា 2026
CAD Drawings
  ទំហំ បានផ្ទុកឡើង
file type icon Control HST - DWG's
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
1.19 MB តុលា 2020
file type icon Control HST PDF
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
53.5 KB តុលា 2020
BIM Objects
  ទំហំ បានផ្ទុកឡើង
file type icon CONTROL HST BIM Object
បានធ្វើបច្ចុប្បន្នភាព: សីហា 2019
សីហា 2019
Compliances
  ទំហំ បានផ្ទុកឡើង
file type icon Control Contractor Series Declaration of Conformity
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
131 KB តុលា 2019
file type icon JBL Control Series Passive Speakers DoC
បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2019
179 KB ធ្នូ 2019
Simulation Data
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Ease SPK/DLL Files - Full JBL Pro Line
បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2024
  21 MB ឧសភា 2024
file type icon JBL Pro ALL CLF Files
កំណែ 12-10-21, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2023
12-10-21  24 MB ឧសភា 2023
Ease Data
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Ease GLL Files
កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
374 KB កុម្ភៈ 2026
file type icon Control HST Ease Data
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
  283 KB តុលា 2020
Speaker Tunings
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Commercial, CBT, and AWC Tunings 220616
កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2023
557 KB ឧសភា 2023
Images
  ទំហំ បានផ្ទុកឡើង
file type icon Control HST - Detail 2
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
167 KB តុលា 2020

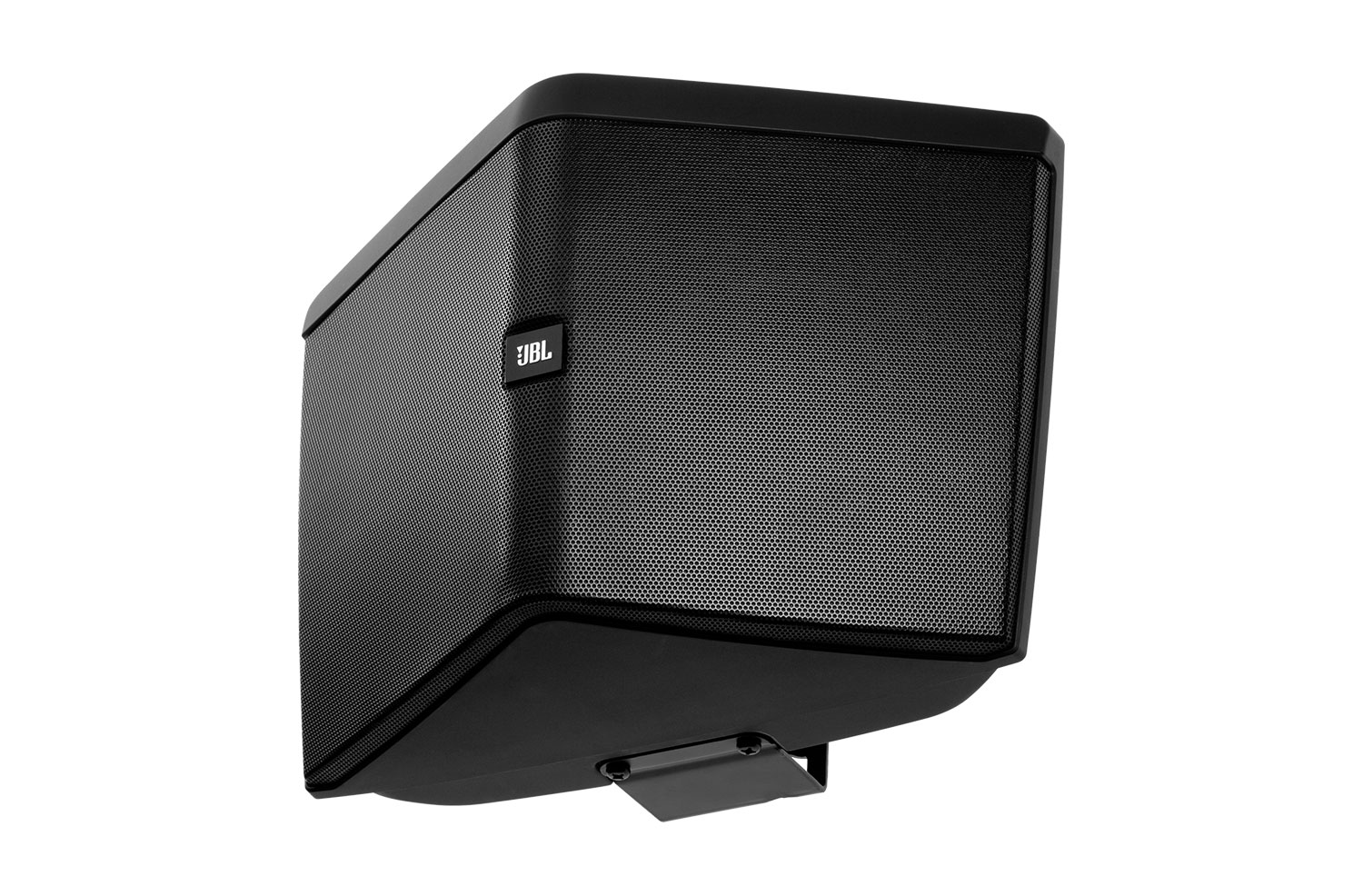

file type icon Control HST - Front
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
246 KB តុលា 2020

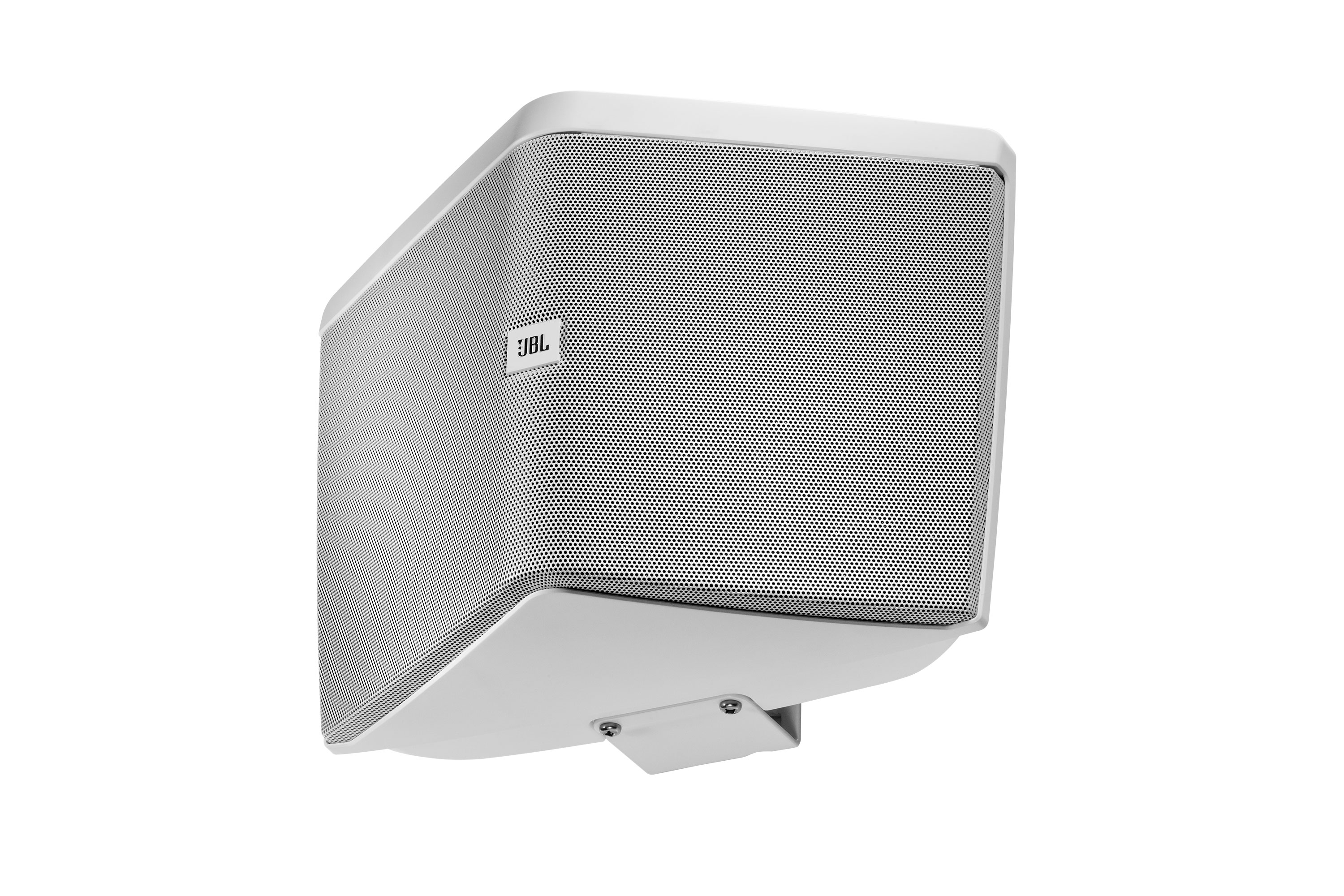

file type icon Control HST White
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
940 KB តុលា 2020

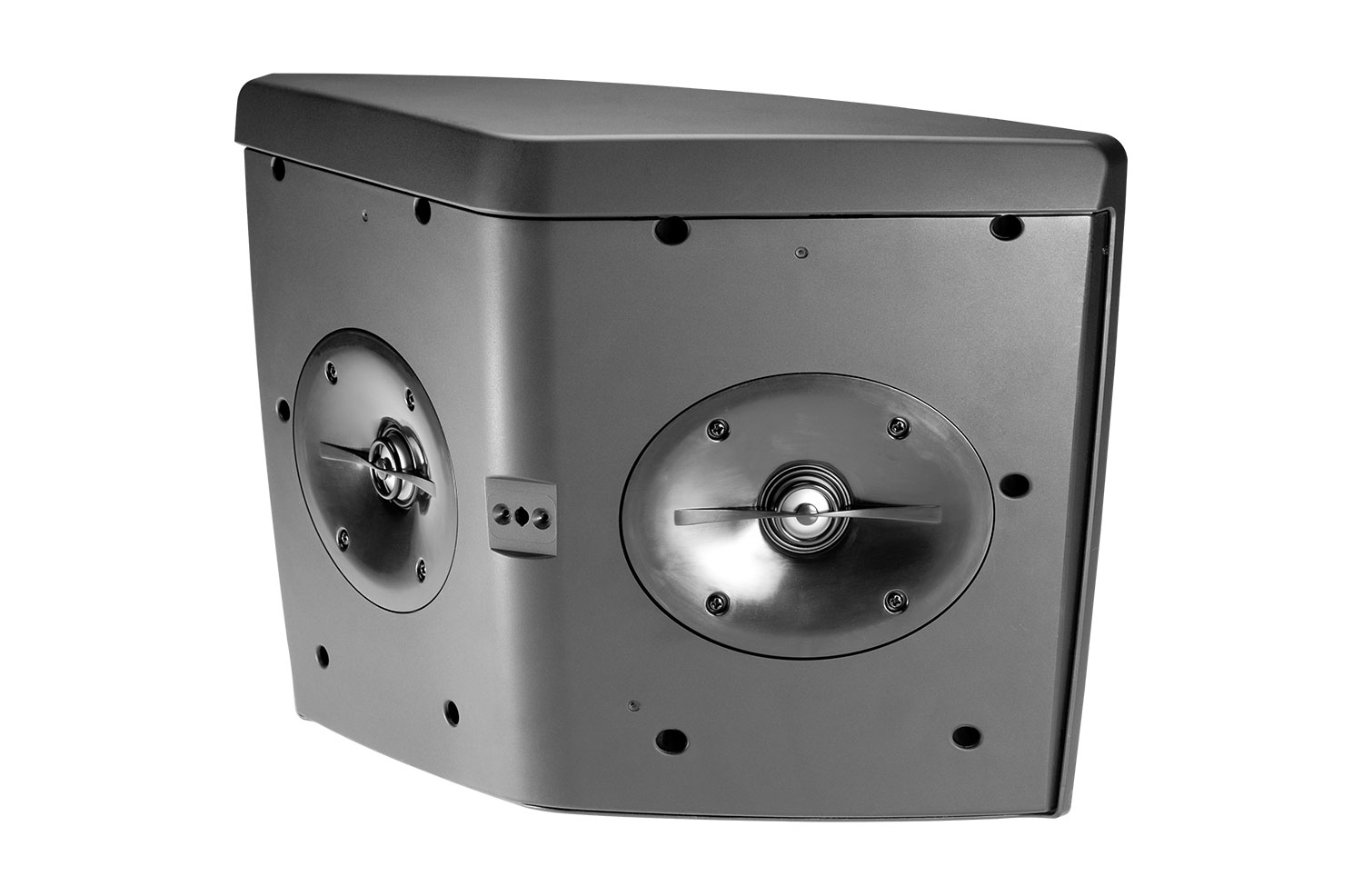

file type icon Control HST - No Grill
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
108 KB តុលា 2020

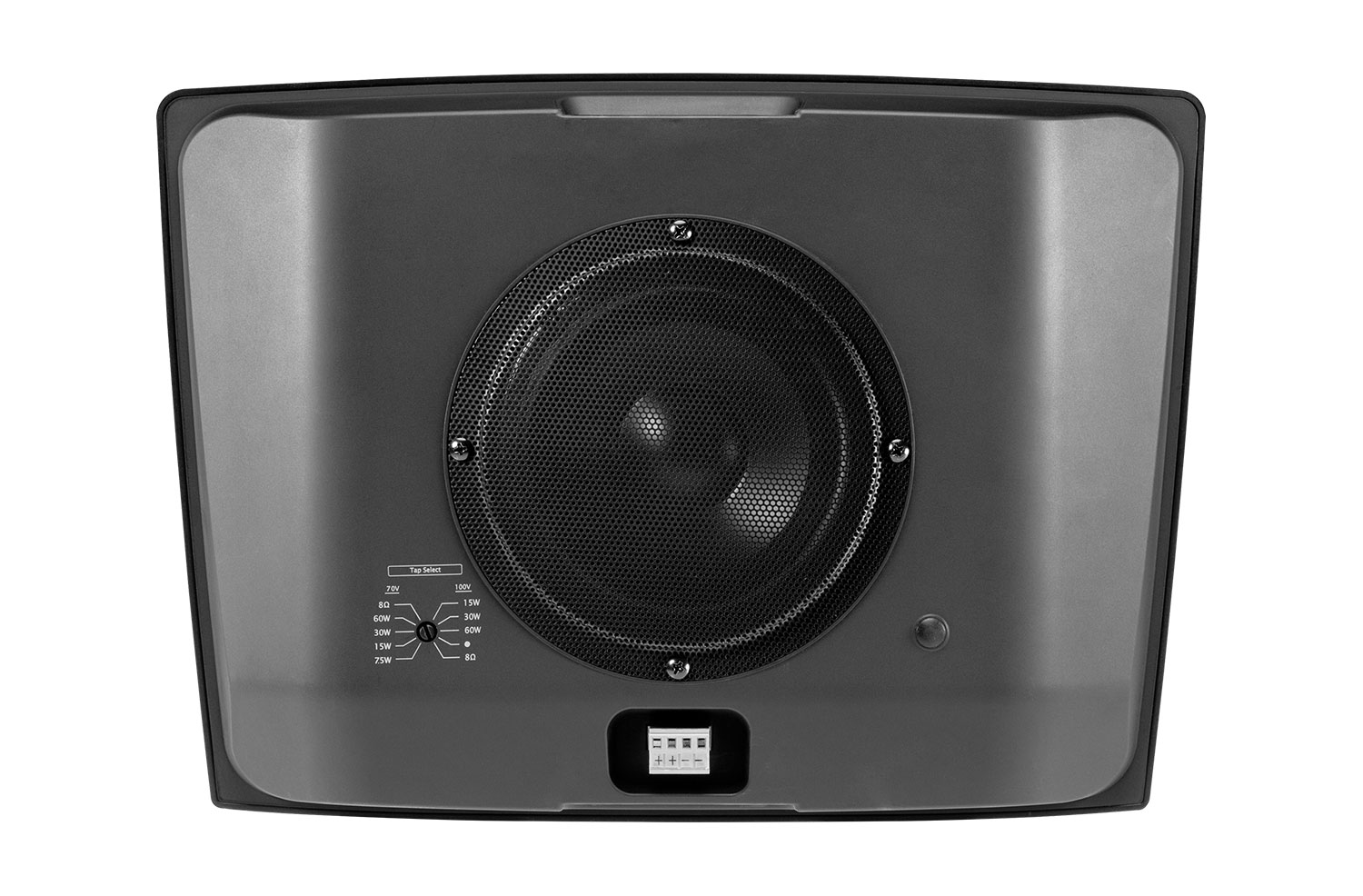

file type icon Control HST - Back
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
186 KB តុលា 2020

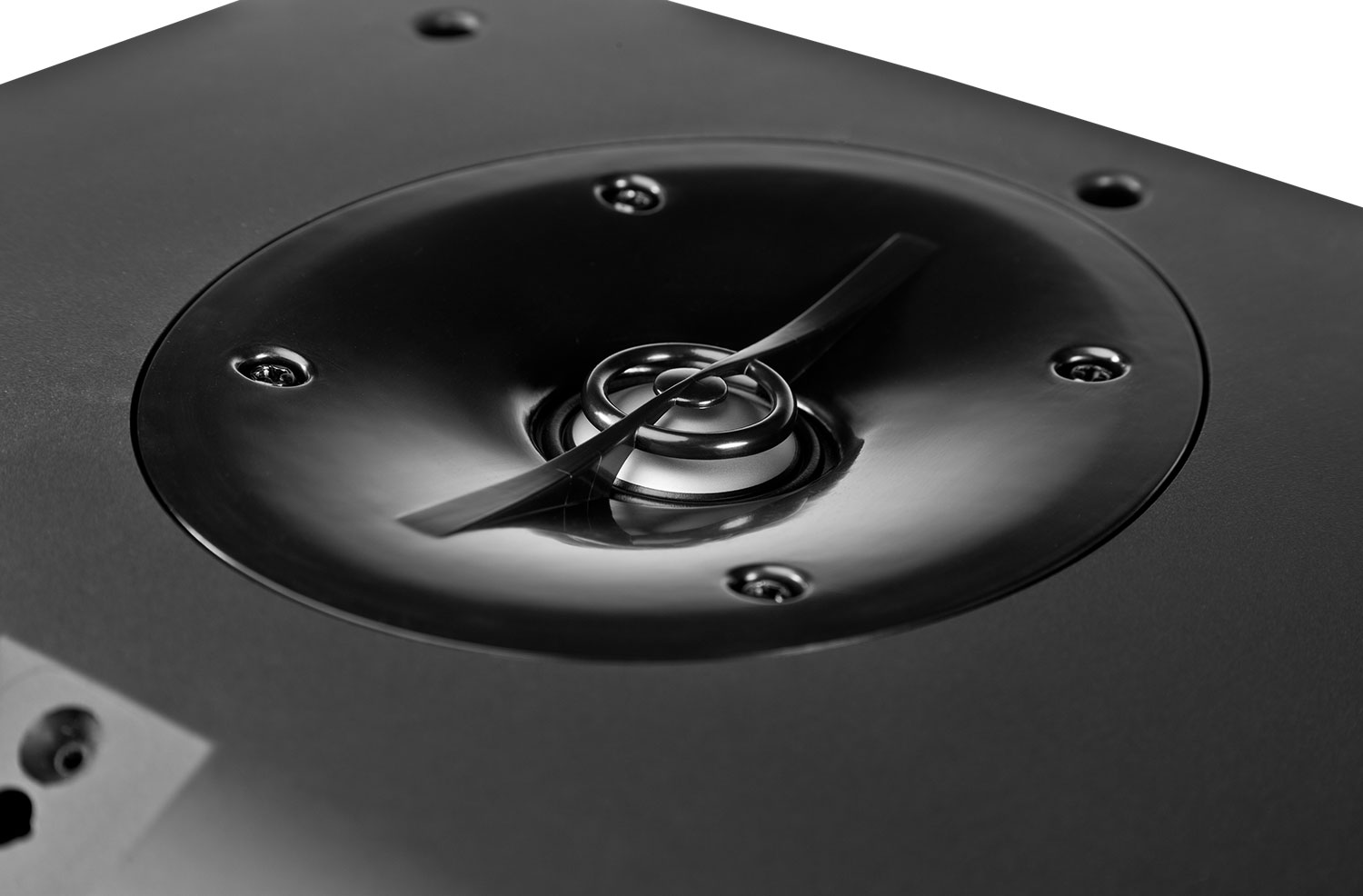

file type icon Control HST - Detail 1
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
92.1 KB តុលា 2020

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (-10dB) 50 Hz – 20 kHz
Frequency Response (±3 dB) 68 Hz – 18 kHz
Coverage Angle 180°H x160°V
Directivity Factor (Q) 5.4 (1 k – 16 kHz)
Directivity Index (DI) 7.2 dB (1 k – 16 kHz)
System Power Rating (IEC) 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
Sensitivity 88 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL (1m) Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W
Crossover Network 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
Drivers LF: CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil.
HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
Enclosure Fiberglass-reinforced ABS
Attachment Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
Grille Aluminum grille, painted to match cabinet color.
Input Connectors Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
Outdoor Capability IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
Dimensions (H x W x D) 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
Colors Available in black (RAL9004) and white (-WH, RAL9016)
Net Weight (each) 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
Included Accessories U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
Mounting Hardware Included wall-mount bracket.
