JBL Professional JRX225

Hình ảnh lớn hơn

Dual 15" Two-Way Sound Reinforcement Loudspeaker System

The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

Tính năng

Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Non-resonant, all-steel handles are used.
Attractive 18-gauge perforated, steel grille protects components from damage.

Tải xuống

Specifications

	Kích thước	Đã tải lên
JRX225 Spec Sheet cập nhật: Thg 4 2019	400 KB	Thg 4 2019

Brochures

	Phiên bản	Ngôn ngữ	Kích thước	Đã tải lên
Portable Sound Full Line 2015 Catalog cập nhật: Thg 10 2020			3 MB	Thg 10 2020
JBL 2025 PPA Brochure phiên bản B, cập nhật: Thg 8 2025	B		8 MB	Thg 8 2025

Compliances

	Kích thước	Đã tải lên
JRX200 Series Declaration of Conformity cập nhật: Thg 10 2020	100 KB	Thg 10 2020

Images

	Kích thước	Đã tải lên

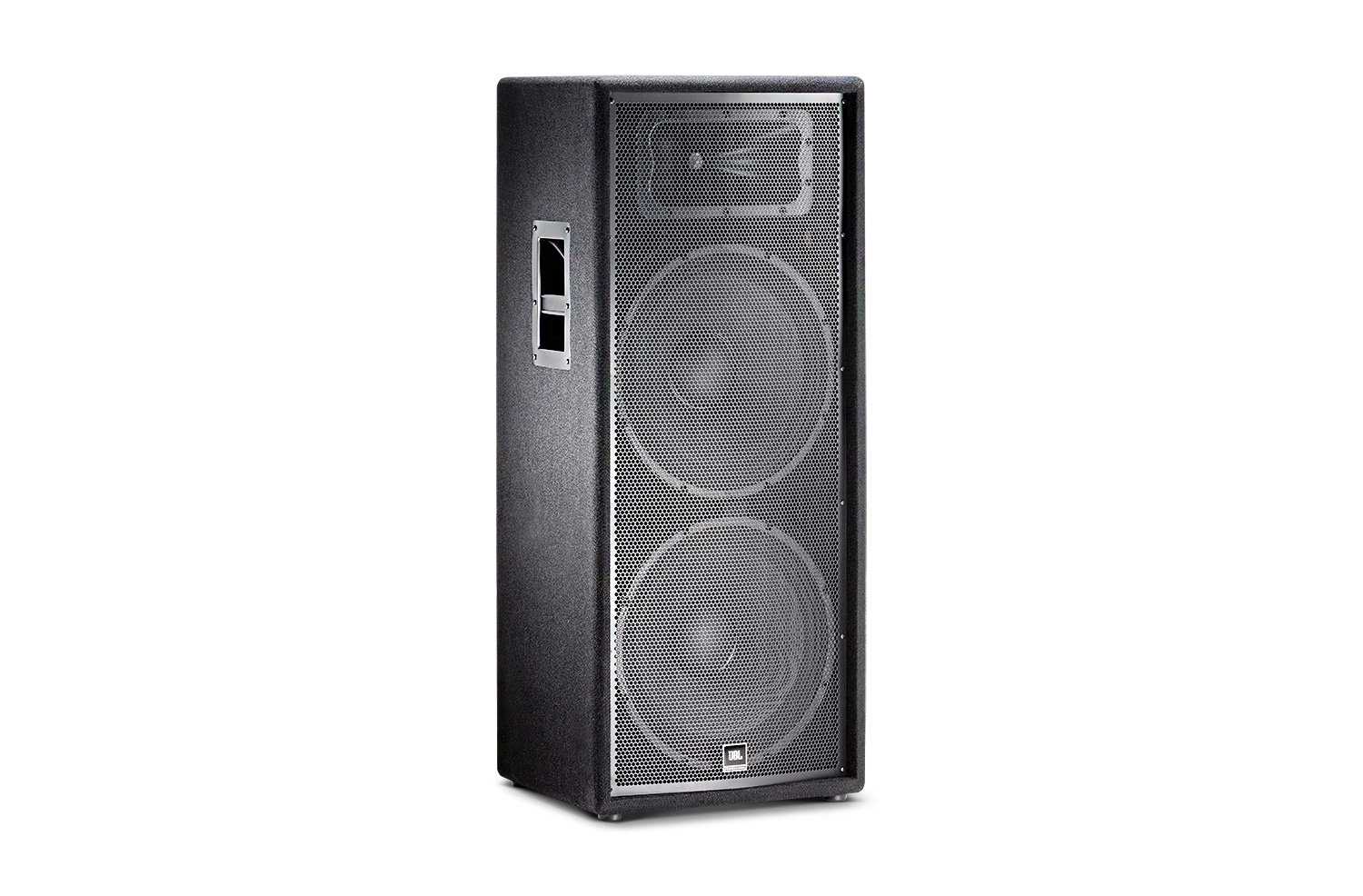

JRX225 Front Angle cập nhật: Thg 4 2019	300 KB	Thg 4 2019

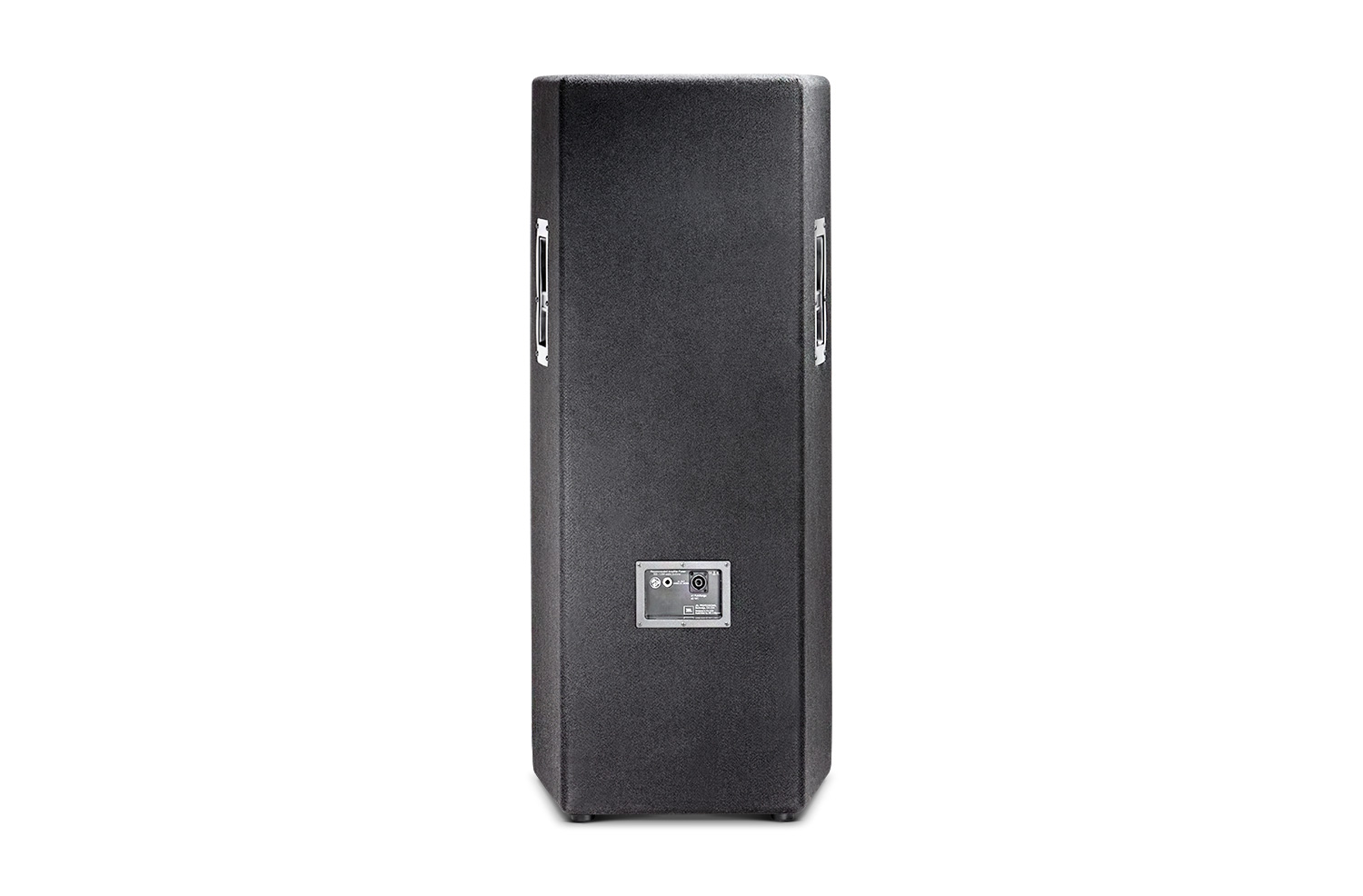

JRX225 Back cập nhật: Thg 4 2019	200 KB	Thg 4 2019

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Phụ tùng & Dịch vụ

Thông số kỹ thuật

Power Rating	500 W / 2000 W
Frequency Range (-10dB)	42 Hz - 18 kHz
Frequency Response (±3 dB)	62 Hz - 13 kHz
Sensitivity (@1m)	100 dB SPL (1w/1m)
Nominal Impedance	4 ohms
Recommended Amplifier Power	500 W to 1000 W into 4 ohms
Maximum SPL (1m)	133 dB
Nominal Dispersion	90º x 50º
Crossover Frequency	2.2 kHz
Dimensions (H x W x D)	1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)
Weight	42.6 kg (94 lb)
HF Driver	JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver	JBL M115-8A x 2
Inputs	Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
Enclosure	MDF (Medium Density Fiberboard) covered in black carpet.
