JBL Professional JRX225

صور أكبر

Dual 15" Two-Way Sound Reinforcement Loudspeaker System

The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

الميزات

Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Non-resonant, all-steel handles are used.
Attractive 18-gauge perforated, steel grille protects components from damage.

التنزيلات

Specifications

	الحجم	تاريخ التحميل
JRX225 Spec Sheet تم التحديث: أبريل 2019	382 KB	أبريل 2019

Brochures

	الإصدار	اللغة	الحجم	تاريخ التحميل
Portable Sound Full Line 2015 Catalog تم التحديث: أكتوبر 2020			2.54 MB	أكتوبر 2020
JBL 2025 PPA Brochure الإصدار B, تم التحديث: أغسطس 2025	B		8.45 MB	أغسطس 2025

Compliances

	الحجم	تاريخ التحميل
JRX200 Series Declaration of Conformity تم التحديث: أكتوبر 2020	119 KB	أكتوبر 2020

Images

	الحجم	تاريخ التحميل

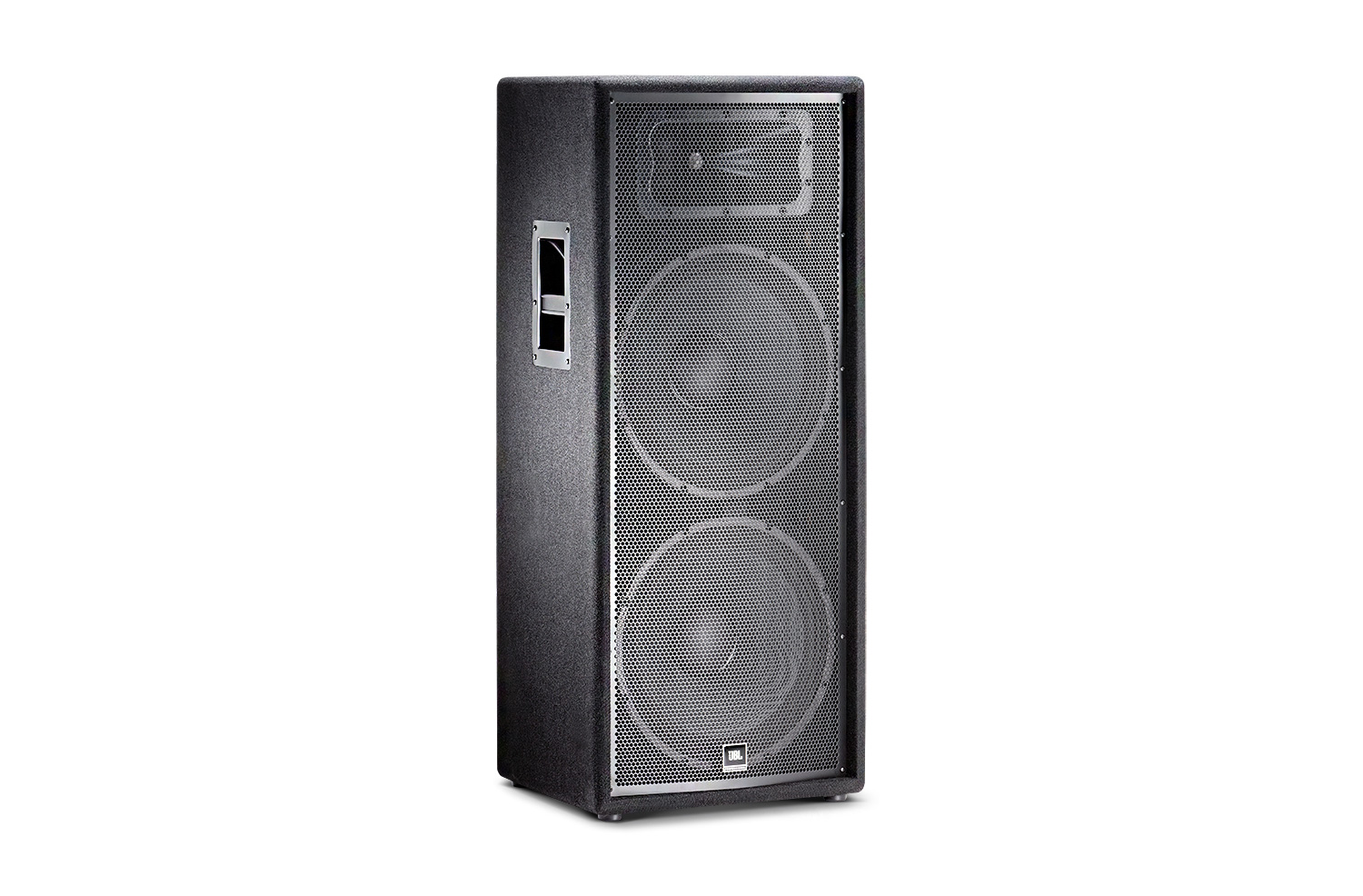

JRX225 Front Angle تم التحديث: أبريل 2019	252 KB	أبريل 2019

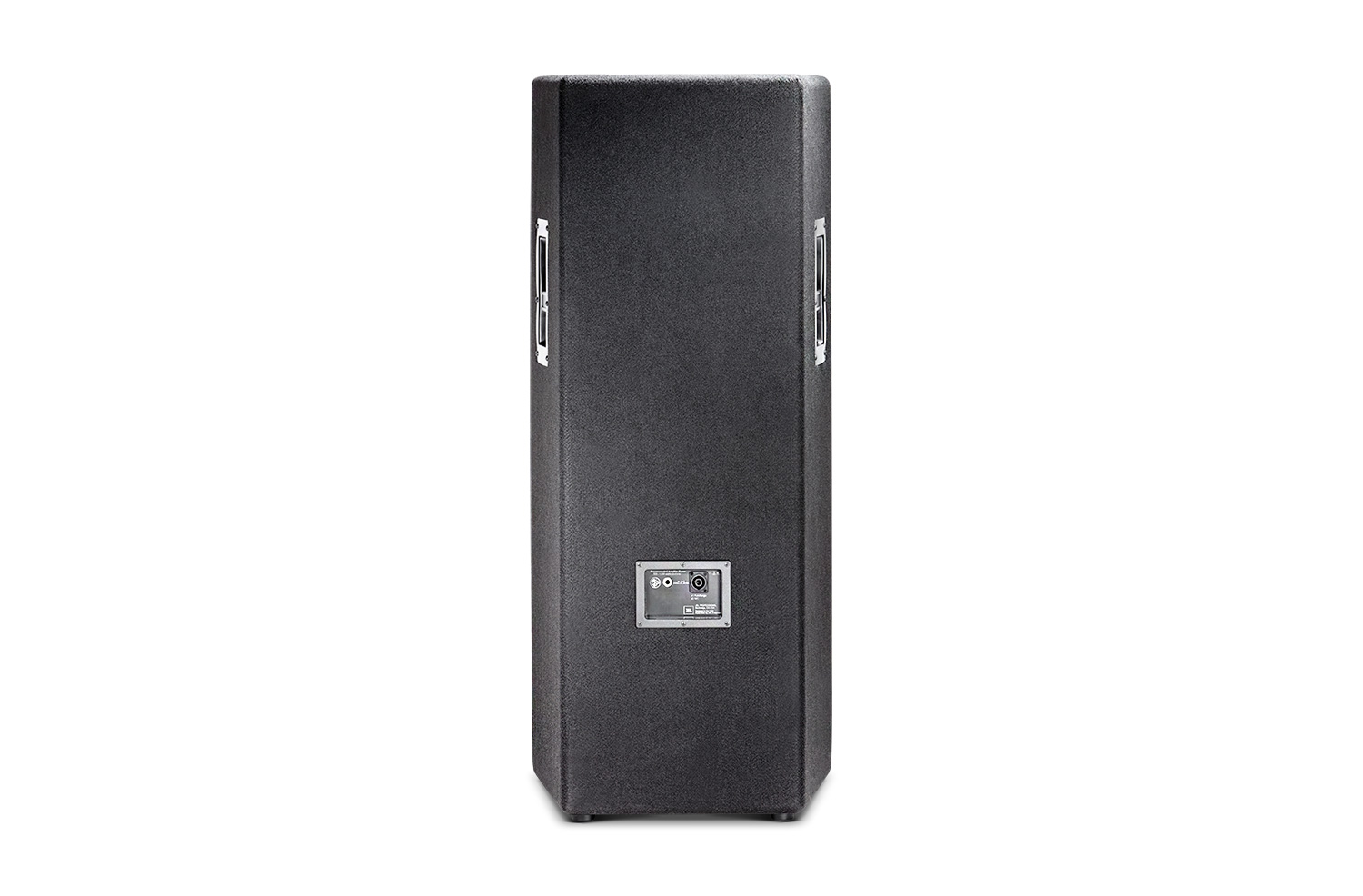

JRX225 Back تم التحديث: أبريل 2019	150 KB	أبريل 2019

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Power Rating	500 W / 2000 W
Frequency Range (-10dB)	42 Hz - 18 kHz
Frequency Response (±3 dB)	62 Hz - 13 kHz
Sensitivity (@1m)	100 dB SPL (1w/1m)
Nominal Impedance	4 ohms
Recommended Amplifier Power	500 W to 1000 W into 4 ohms
Maximum SPL (1m)	133 dB
Nominal Dispersion	90º x 50º
Crossover Frequency	2.2 kHz
Dimensions (H x W x D)	1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)
Weight	42.6 kg (94 lb)
HF Driver	JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver	JBL M115-8A x 2
Inputs	Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
Enclosure	MDF (Medium Density Fiberboard) covered in black carpet.
