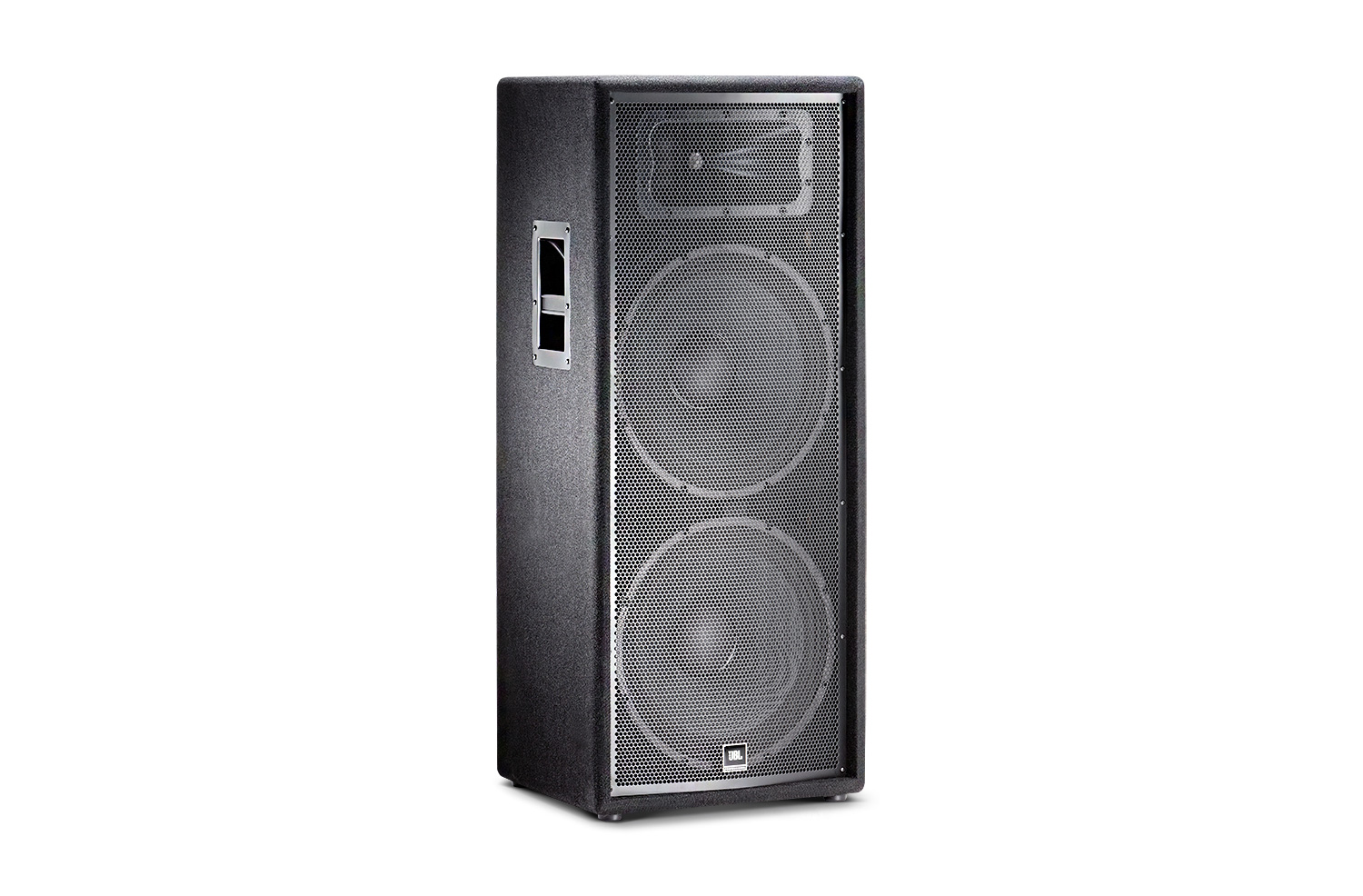

Dual 15" Two-Way Sound Reinforcement Loudspeaker System
The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.
Grandes images
Caractéristiques
- Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
- A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge perforated, steel grille protects components from damage.
Téléchargements
Specifications
| Taille | |
|
|
382 ko |
Brochures
| Taille | |
|
|
2,54 Mo |
|
|
8,45 Mo |
version B,
mis à jour : août 2025
Compliances
| Taille | |
|
|
119 ko |
Images
| Taille | |
|
|
252 ko |
|
|
150 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Power Rating | 500 W / 2000 W |
| Frequency Range (-10dB) | 42 Hz - 18 kHz |
| Frequency Response (±3 dB) | 62 Hz - 13 kHz |
| Sensitivity (@1m) | 100 dB SPL (1w/1m) |
| Nominal Impedance | 4 ohms |
| Recommended Amplifier Power | 500 W to 1000 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Nominal Dispersion | 90º x 50º |
| Crossover Frequency | 2.2 kHz |
| Dimensions (H x W x D) | 1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in) |
| Weight | 42.6 kg (94 lb) |
| HF Driver | JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide |
| LF Driver | JBL M115-8A x 2 |

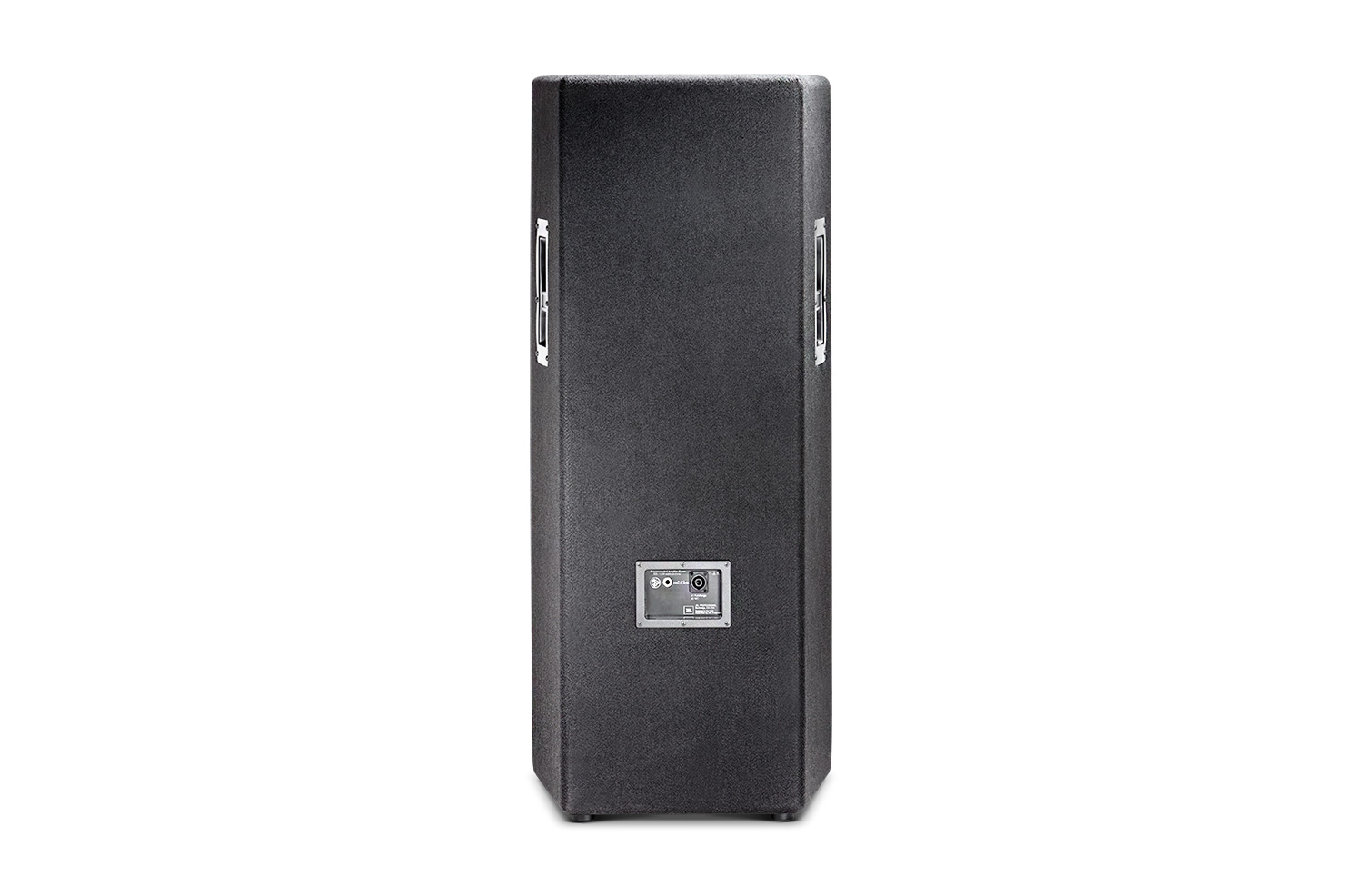

| Inputs | Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
Accessoires
JRX225-CVR-CX | Convertible Cover for JRX225
Grandes images
Convertible Cover for JRX225. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Grandes images
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Documentation
-
JBLTRIPOD-GA Data Sheet
[231 ko]
-
JBL Tripod Gas Assist Closed
[36,2 ko]
-
JBL Tripod Gas Assist Closed Extended
[30,5 ko]
-
JBL Tripod Gas Assist Open
[41,7 ko]
-
JBL Tripod Manual Adjust Open
[39,5 ko]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Grandes images
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Documentation
-
JBLTRIPOD-MA Data Sheet
[228 ko]
JBLPOLE-GA | JBL Gas Assist Speaker Pole
Grandes images
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Documentation
-
JBL pole Gas Assist
[41,6 ko]
-
JBL pole Gas Assist detail
[70,2 ko]
-
JBLPOLE-GA Data Sheet
[314 ko]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Grandes images
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Documentation
-
JBLPOLE-MA Data Sheet
[258 ko]
-
JBL pole Manual Adjust
[40,7 ko]
-
JBL pole Manual Adjust Detail
[87,7 ko]
