JBL Professional JRX225

រូបភាពធំជាង

ប្រព័ន្ធឌុយអាល់ 15" ឧបករណ៍ពង្រឹងសម្លេងពីរផ្លូវ

JRX225 គឺជាប្រព័ន្ធឌុយអាល់រាលដាលដែលមាន្រឹង្គោលដប់ប្រាំនិង្ចូលចេញពីរផ្លូវដែលរចនាឡើងដោយឧទ្ទេសផ្នែកសម្រាប់ការប្រើប្រាស់ក្នុងការលេងតន្ត្រីផ្ទាល់ខ្លួន និងការចាក់តន្ត្រី។

លក្ខណៈពិសេស

Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Non-resonant, all-steel handles are used.
Attractive 18-gauge perforated, steel grille protects components from damage.

ការទាញយក

Specifications

	ទំហំ	បានផ្ទុកឡើង
JRX225 Spec Sheet បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	382 KB	មេសា 2019

Brochures

	កំណែ	ភាសា	ទំហំ	បានផ្ទុកឡើង
Portable Sound Full Line 2015 Catalog បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020			2.54 MB	តុលា 2020
JBL 2025 PPA Brochure កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: សីហា 2025	B		8.45 MB	សីហា 2025

Compliances

	ទំហំ	បានផ្ទុកឡើង
JRX200 Series Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	119 KB	តុលា 2020

Images

	ទំហំ	បានផ្ទុកឡើង

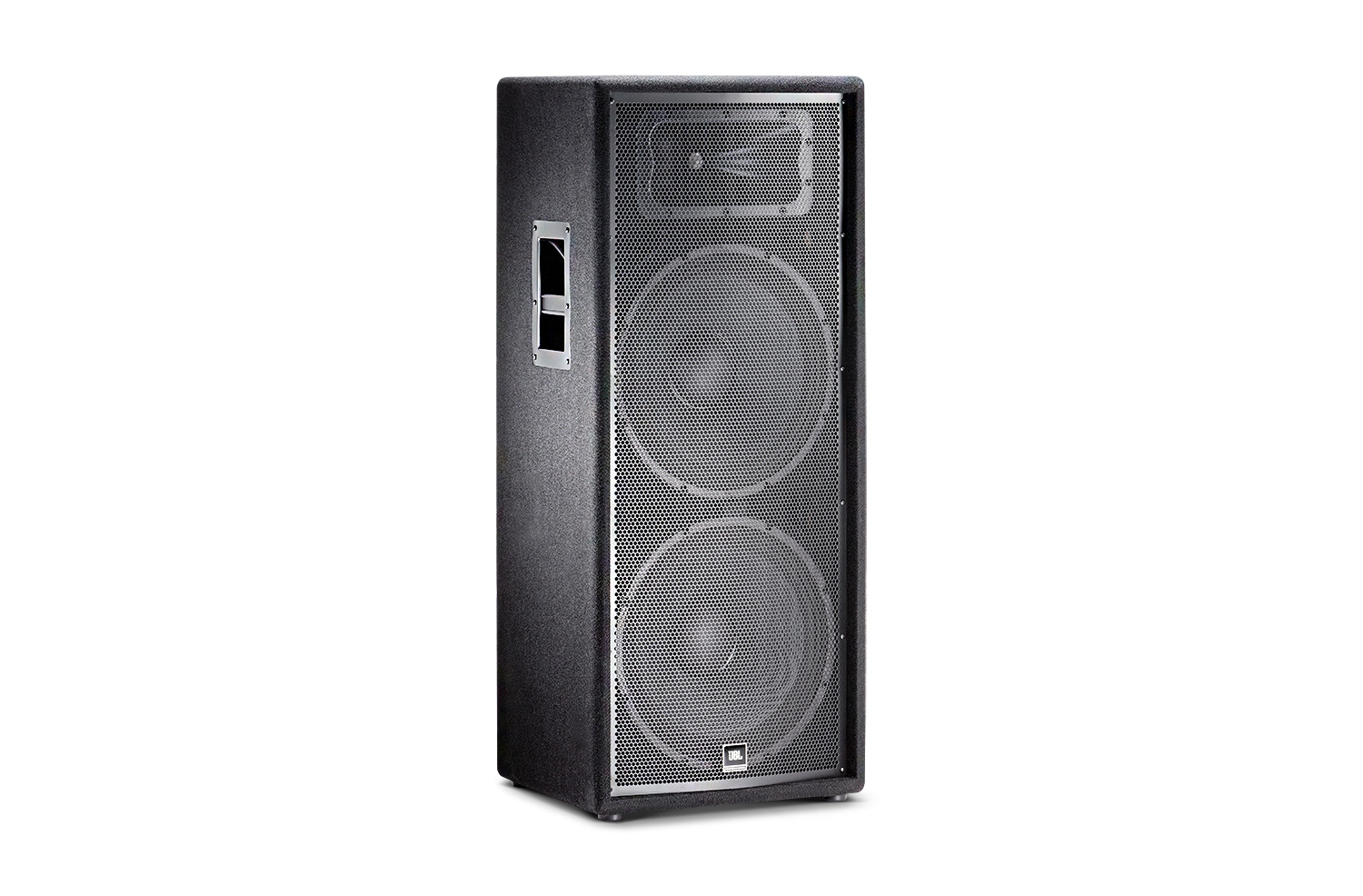

JRX225 Front Angle បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	252 KB	មេសា 2019

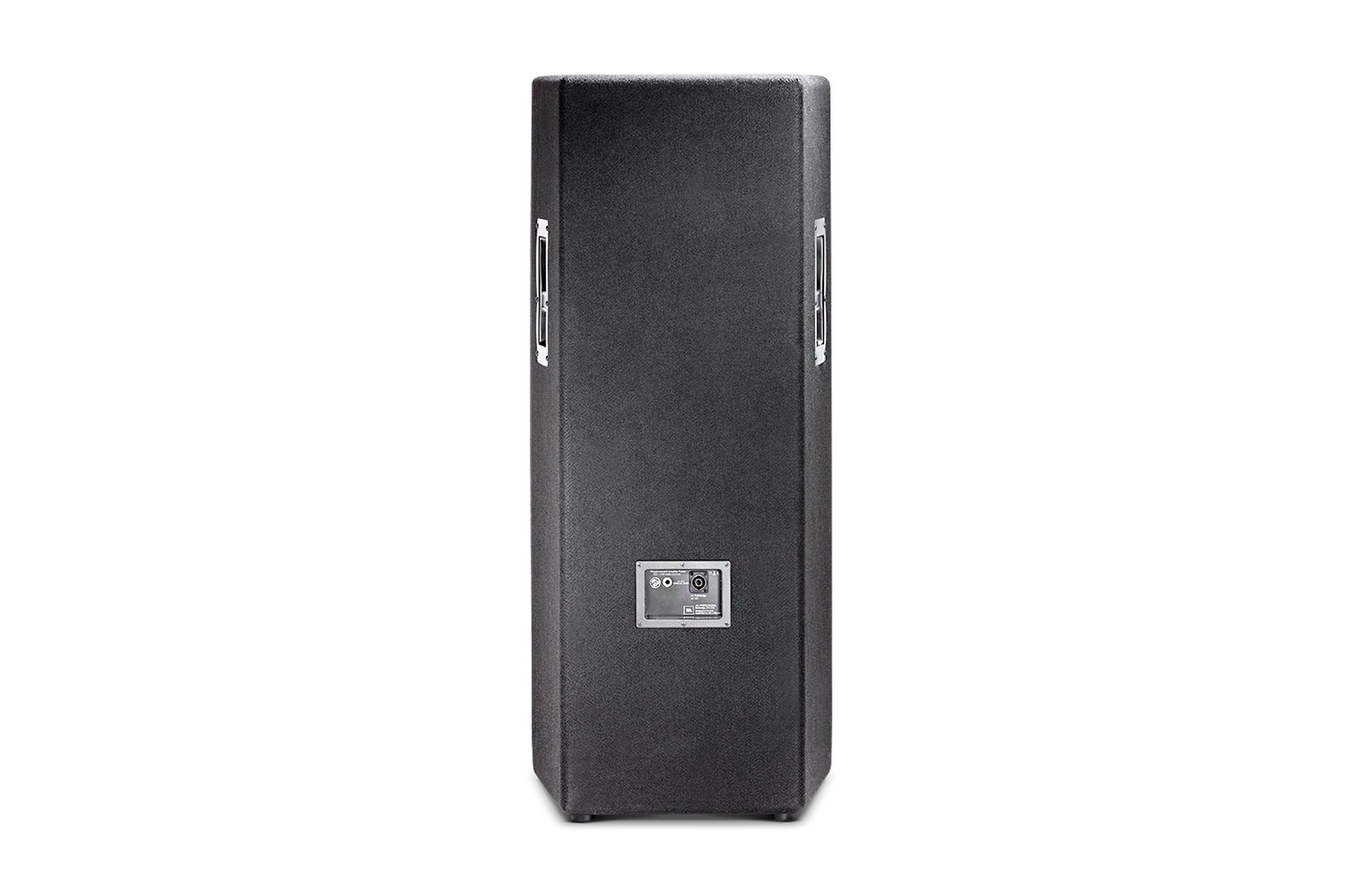

JRX225 Back បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	150 KB	មេសា 2019

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Power Rating	500 W / 2000 W
Frequency Range (-10dB)	42 Hz - 18 kHz
Frequency Response (±3 dB)	62 Hz - 13 kHz
Sensitivity (@1m)	100 dB SPL (1w/1m)
Nominal Impedance	4 ohms
Recommended Amplifier Power	500 W to 1000 W into 4 ohms
Maximum SPL (1m)	133 dB
Nominal Dispersion	90º x 50º
Crossover Frequency	2.2 kHz
Dimensions (H x W x D)	1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)
Weight	42.6 kg (94 lb)
HF Driver	JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver	JBL M115-8A x 2
Inputs	Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
Enclosure	MDF (Medium Density Fiberboard) covered in black carpet.
