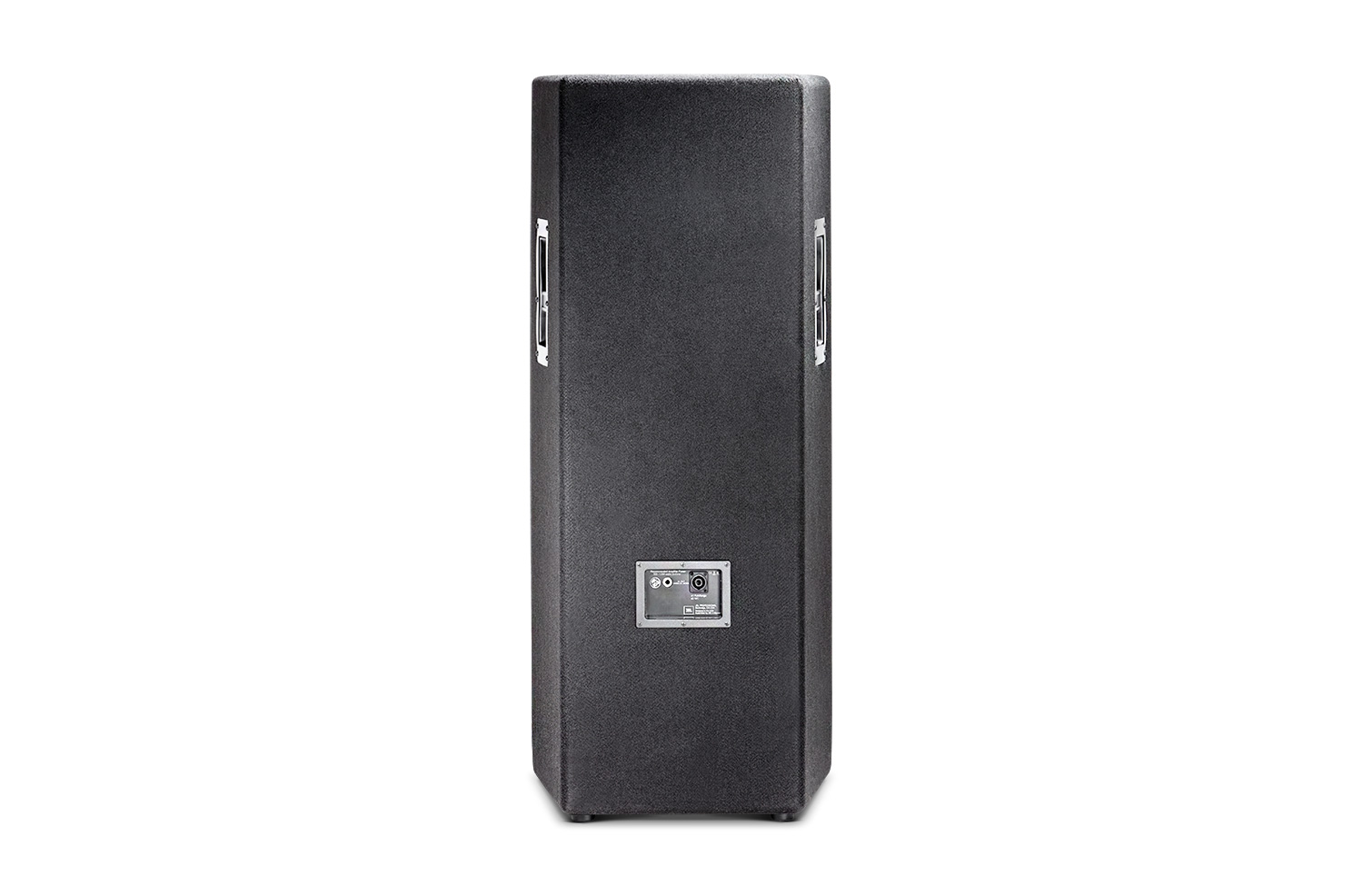

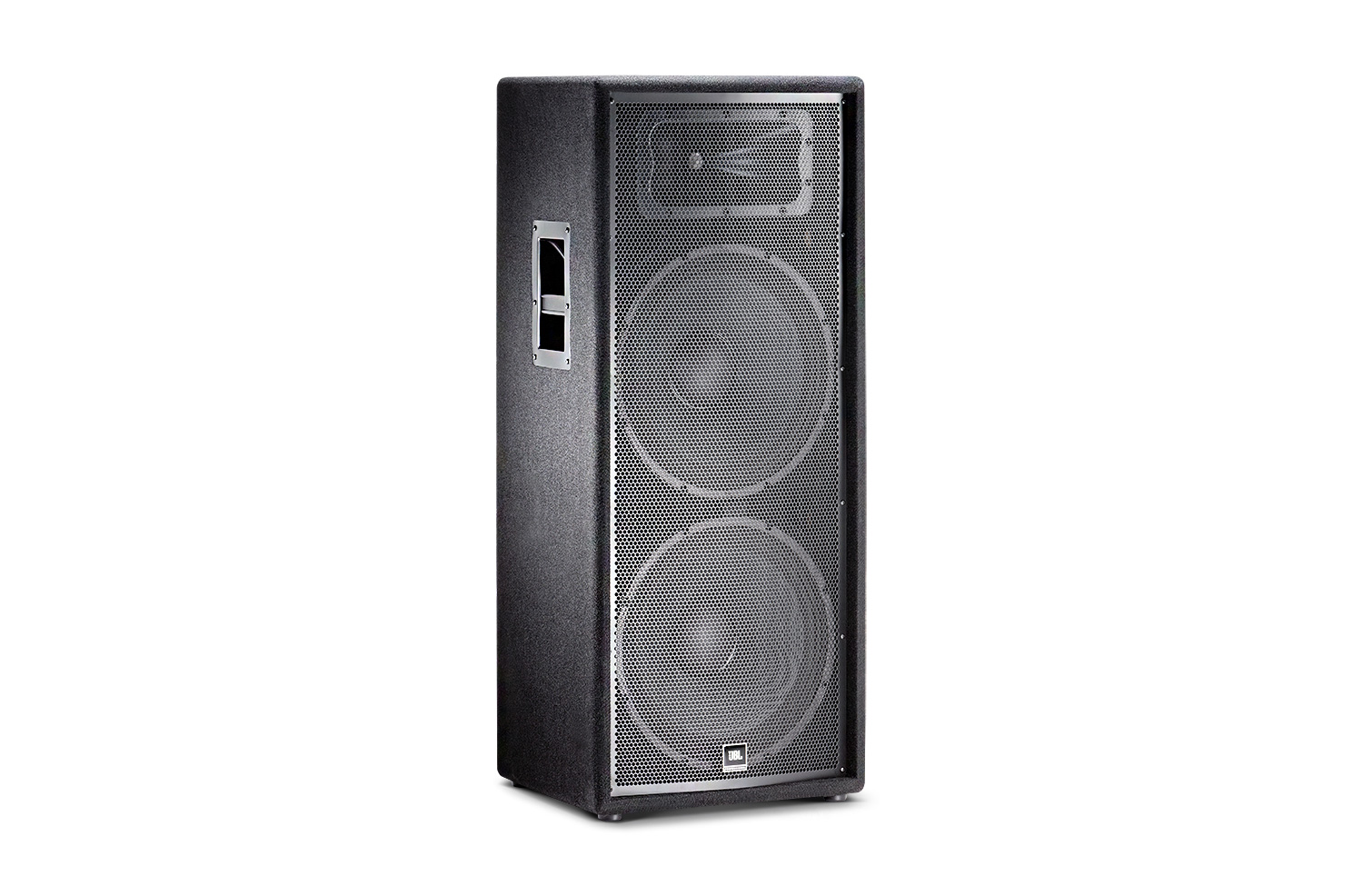

Dual 15" Two-Way Sound Reinforcement Loudspeaker System
The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.
Större bilder
Funktioner
- Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
- A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge perforated, steel grille protects components from damage.
Nedladdningar
Specifications
| Storlek | |
|
|
382 KB |
Brochures
| Storlek | |
|
|
2,54 MB |
|
|
8,45 MB |
version B,
uppdaterad: aug 2025
Compliances
| Storlek | |
|
|
119 KB |
Images
| Storlek | |
|
|
252 KB |
|
|
150 KB |
Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.
Reservdelar och service
Specifikationer
| Power Rating | 500 W / 2000 W |
| Frequency Range (-10dB) | 42 Hz - 18 kHz |
| Frequency Response (±3 dB) | 62 Hz - 13 kHz |
| Sensitivity (@1m) | 100 dB SPL (1w/1m) |
| Nominal Impedance | 4 ohms |
| Recommended Amplifier Power | 500 W to 1000 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Nominal Dispersion | 90º x 50º |
| Crossover Frequency | 2.2 kHz |
| Dimensions (H x W x D) | 1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in) |
| Weight | 42.6 kg (94 lb) |
| HF Driver | JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide |
| LF Driver | JBL M115-8A x 2 |
| Inputs | Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
Tillbehör
JRX225-CVR-CX | Konvertibelt skyddsöverdrag för JRX225
Större bilder
Convertible Cover for JRX225. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Större bilder
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentation
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36,2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30,5 KB]
-

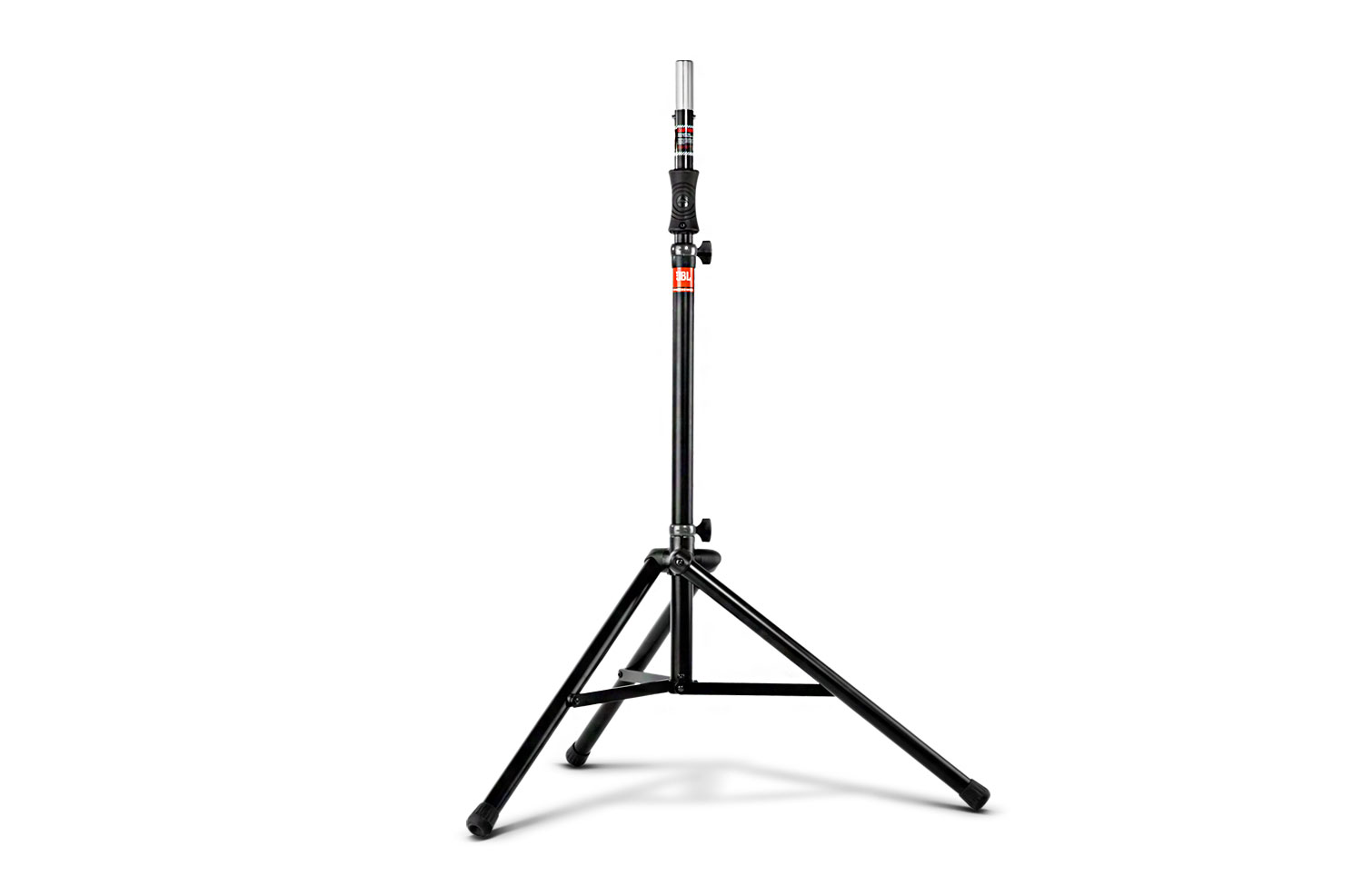

JBL Tripod Gas Assist Open
[41,7 KB]
-
JBL Tripod Manual Adjust Open
[39,5 KB]
JBLTRIPOD-MA | JBL manuellt justerbar högtalartripod
Större bilder
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentation
-
JBLTRIPOD-MA Data Sheet
[228 KB]
JBLPOLE-GA | JBL gasassisterat högtalarstativ
Större bilder
Gaskompenserad högtalarstång med M20-gängad nedre ände, 38 mm stång och 35 mm adapter. JBLPOLE-GA är det enklaste högtalarstativet att använda tack vare den inbyggda pneumatiska gasfjädern som bokstavligt talat lyfter högtalaren åt dig. Stativets inbyggda gasfjäder lyfter enkelt högtalare som väger 35 lbs eller mindre utan någon ansträngning från användaren.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentation
-

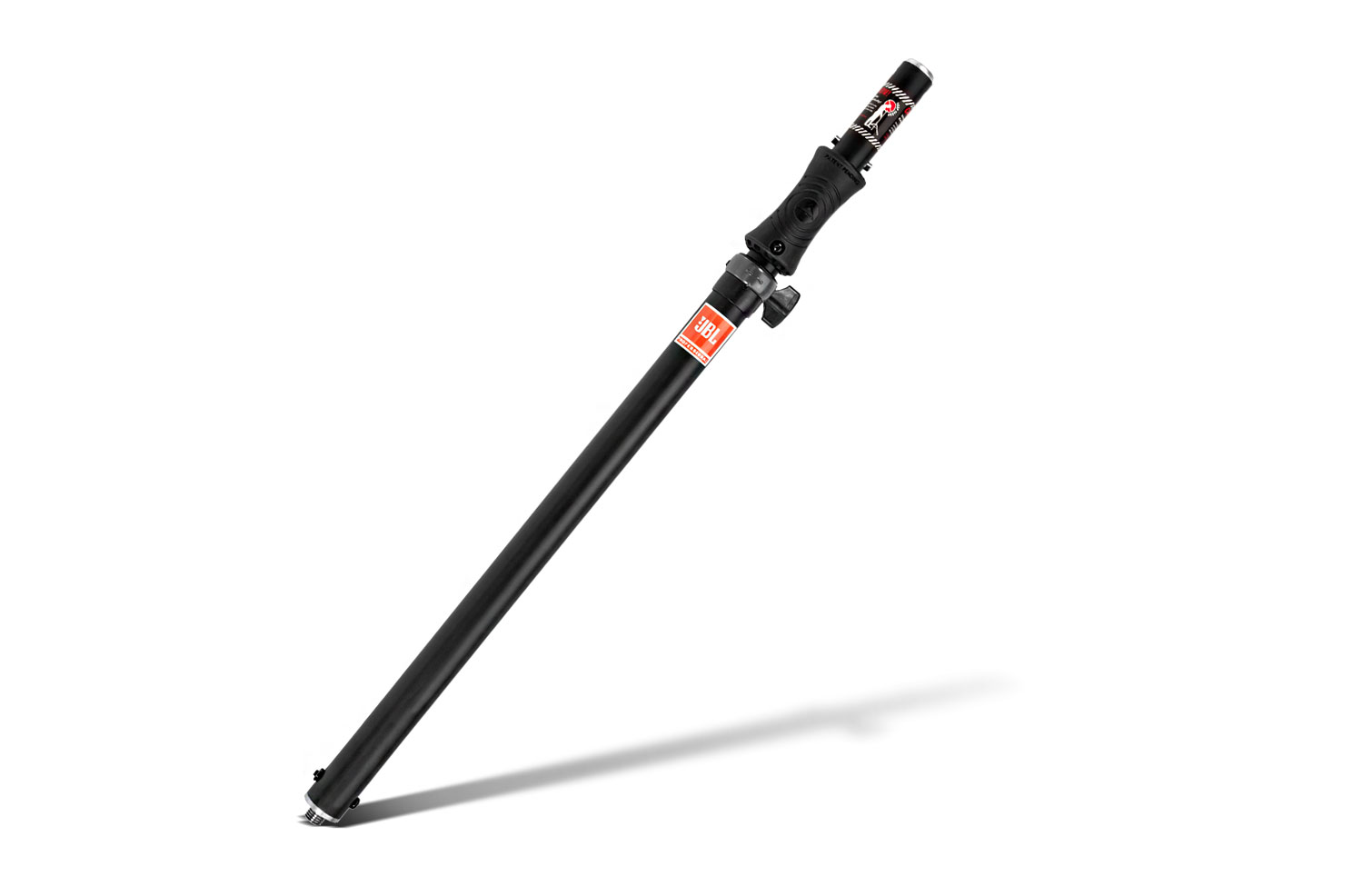

JBL pole Gas Assist
[41,6 KB]
-

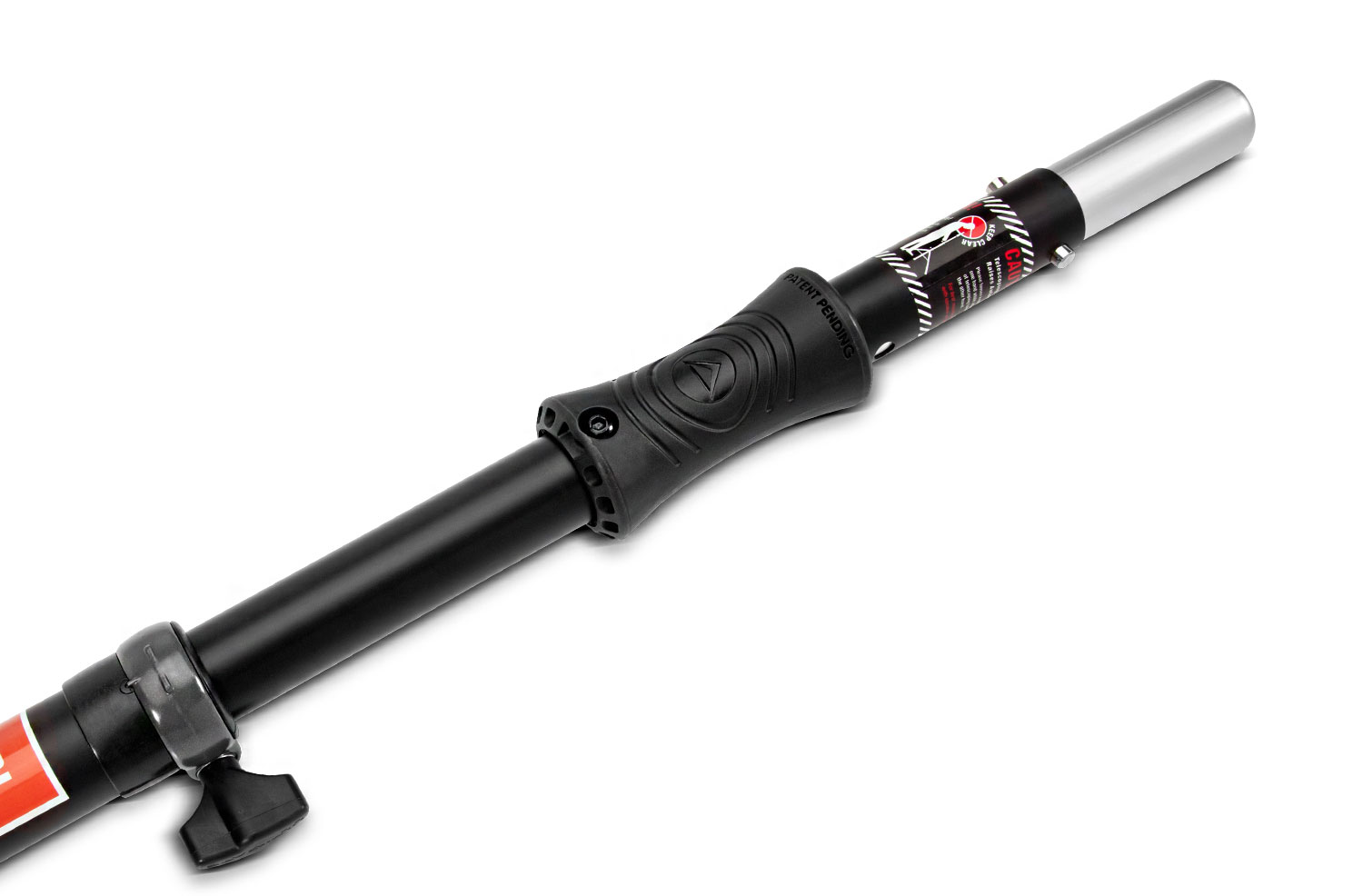

JBL pole Gas Assist detail
[70,2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Större bilder
Manuellt justerbart högtalarstativ med M20-gängad nedre ände, 38 mm stativ och 35 mm. JBLPOLE-MA har en imponerande höjdjusteringskrage med ett ergonomiskt "Z"-vred som ger bekväm justering. Det starkaste fäste som tillverkats – höjdjusteringskragen förhindrar för hård åtdragning och de brottsproblem som är förknippade med konstruktioner helt i plast.
- Lätt
- Kragar i gjuten metall
- M20-gängat uttag
- Passar alla subwoofrar med standardgängning M20 för stativstång (JBL PRX, VRX, STX och SRX818) – kontrollera respektive produkt för att bekräfta
Dokumentation
-
JBLPOLE-MA Data Sheet
[258 KB]
-

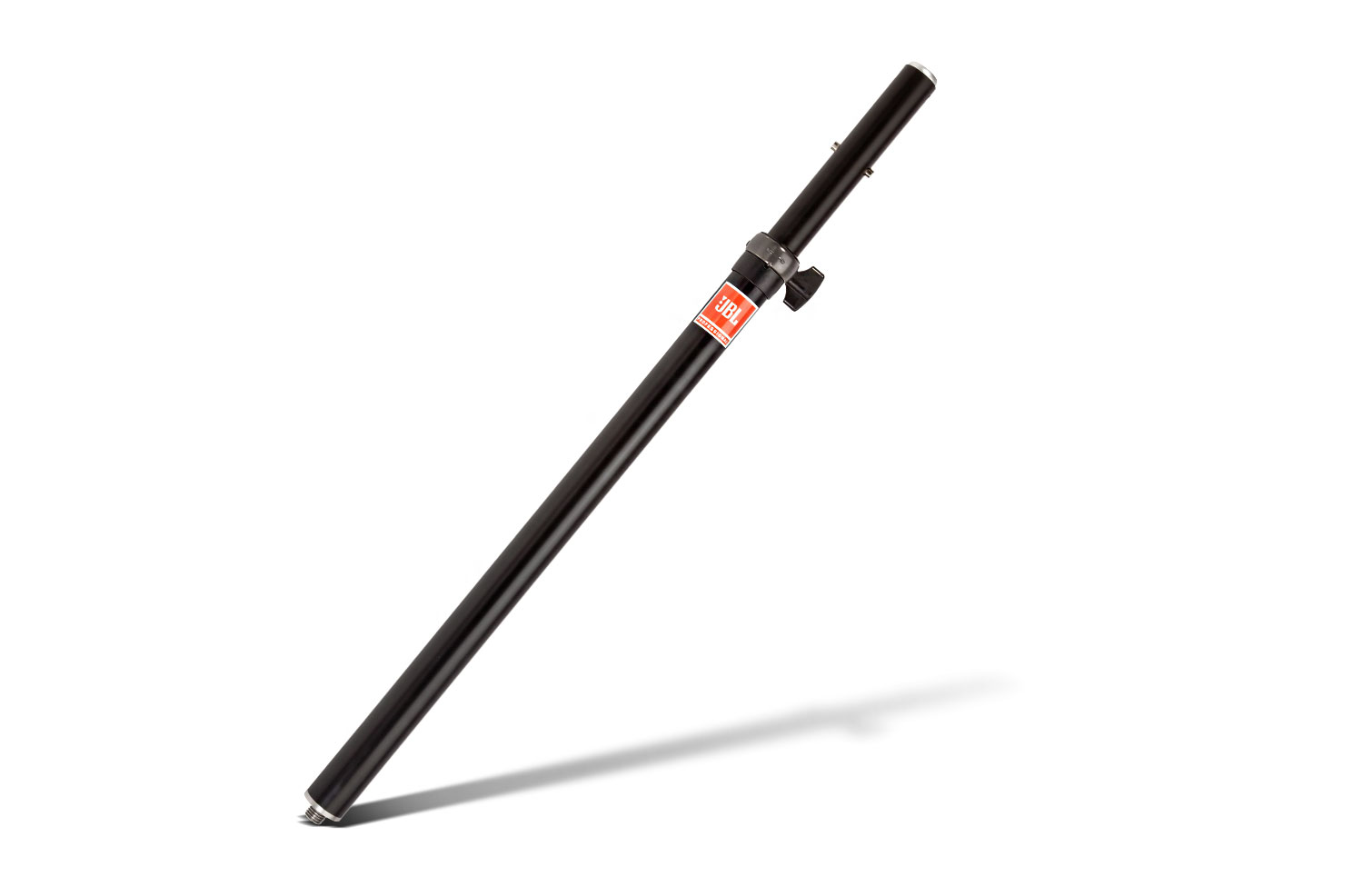

JBL pole Manual Adjust
[40,7 KB]
-

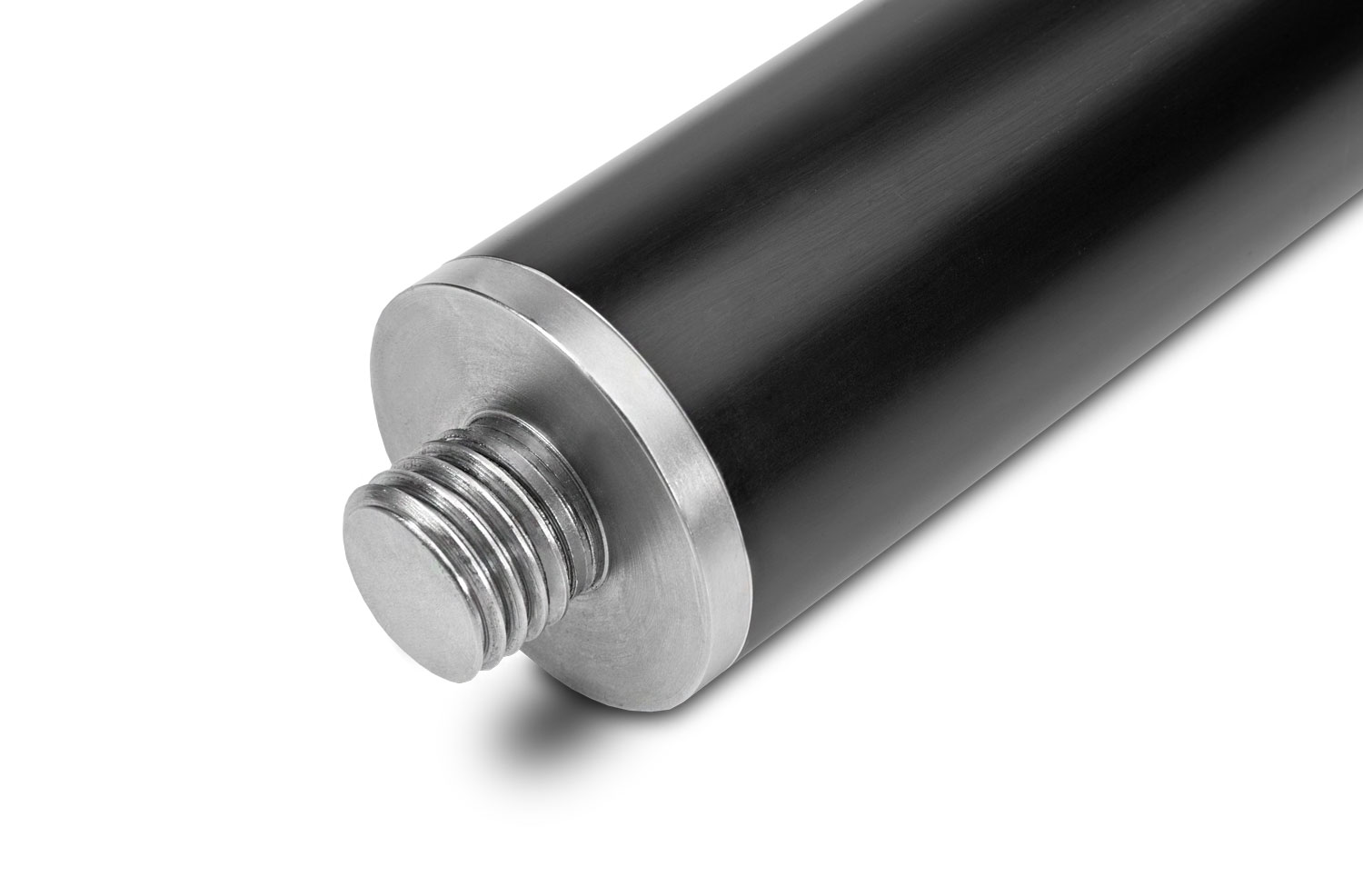

JBL pole Manual Adjust Detail
[87,7 KB]
