JBL Professional JRX225

큰 이미지

Dual 15" Two-Way Sound Reinforcement Loudspeaker System

The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

특징

Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Non-resonant, all-steel handles are used.
Attractive 18-gauge perforated, steel grille protects components from damage.

다운로드

Specifications

	크기	업로드 날짜
JRX225 Spec Sheet 업데이트: 2019년 4월	382KB	2019년 4월

Brochures

	버전	언어	크기	업로드 날짜
Portable Sound Full Line 2015 Catalog 업데이트: 2020년 10월			2.54MB	2020년 10월
JBL 2025 PPA Brochure 버전 B, 업데이트: 2025년 8월	B		8.45MB	2025년 8월

Compliances

	크기	업로드 날짜
JRX200 Series Declaration of Conformity 업데이트: 2020년 10월	119KB	2020년 10월

Images

	크기	업로드 날짜

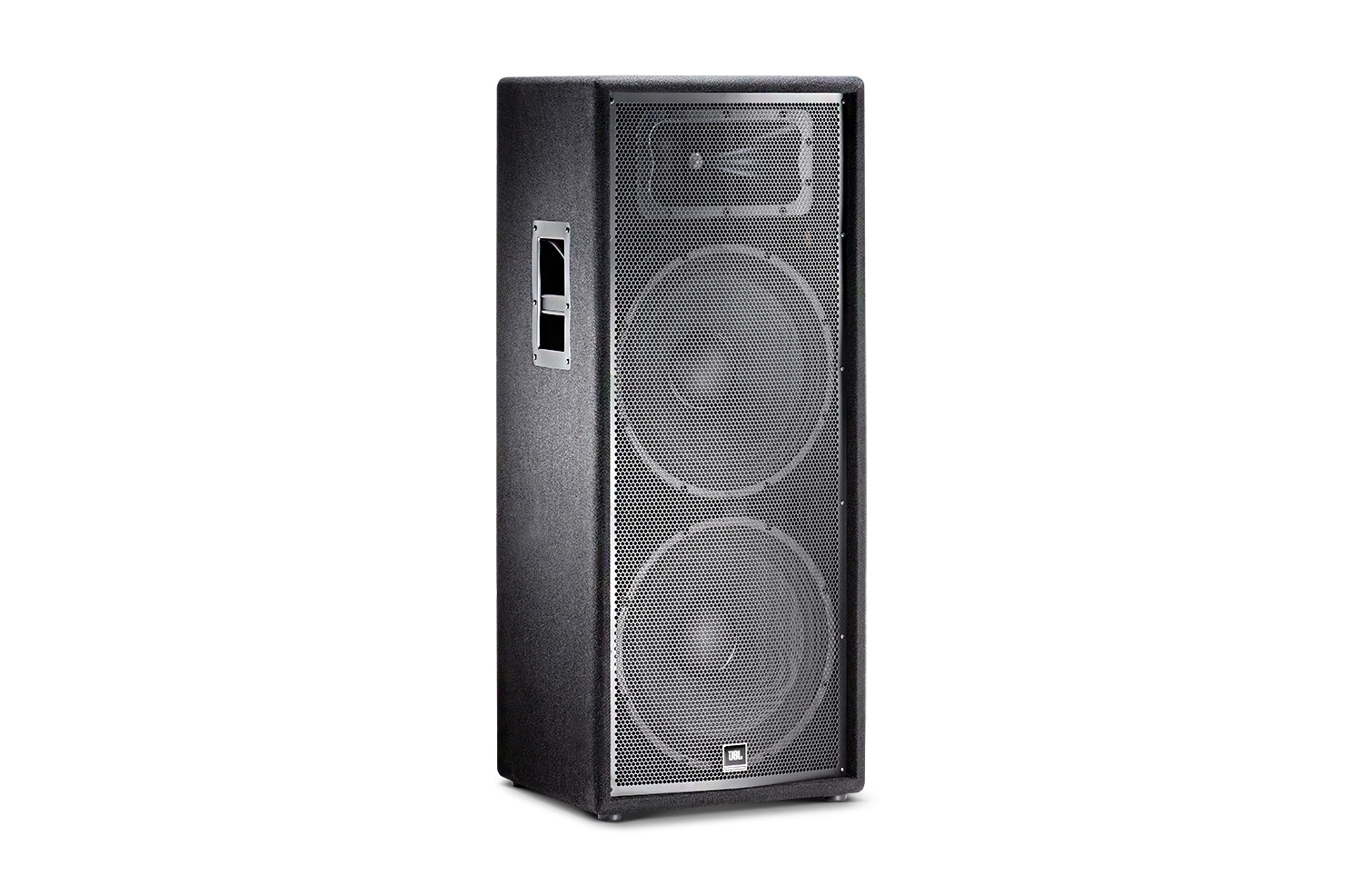

JRX225 Front Angle 업데이트: 2019년 4월	252KB	2019년 4월

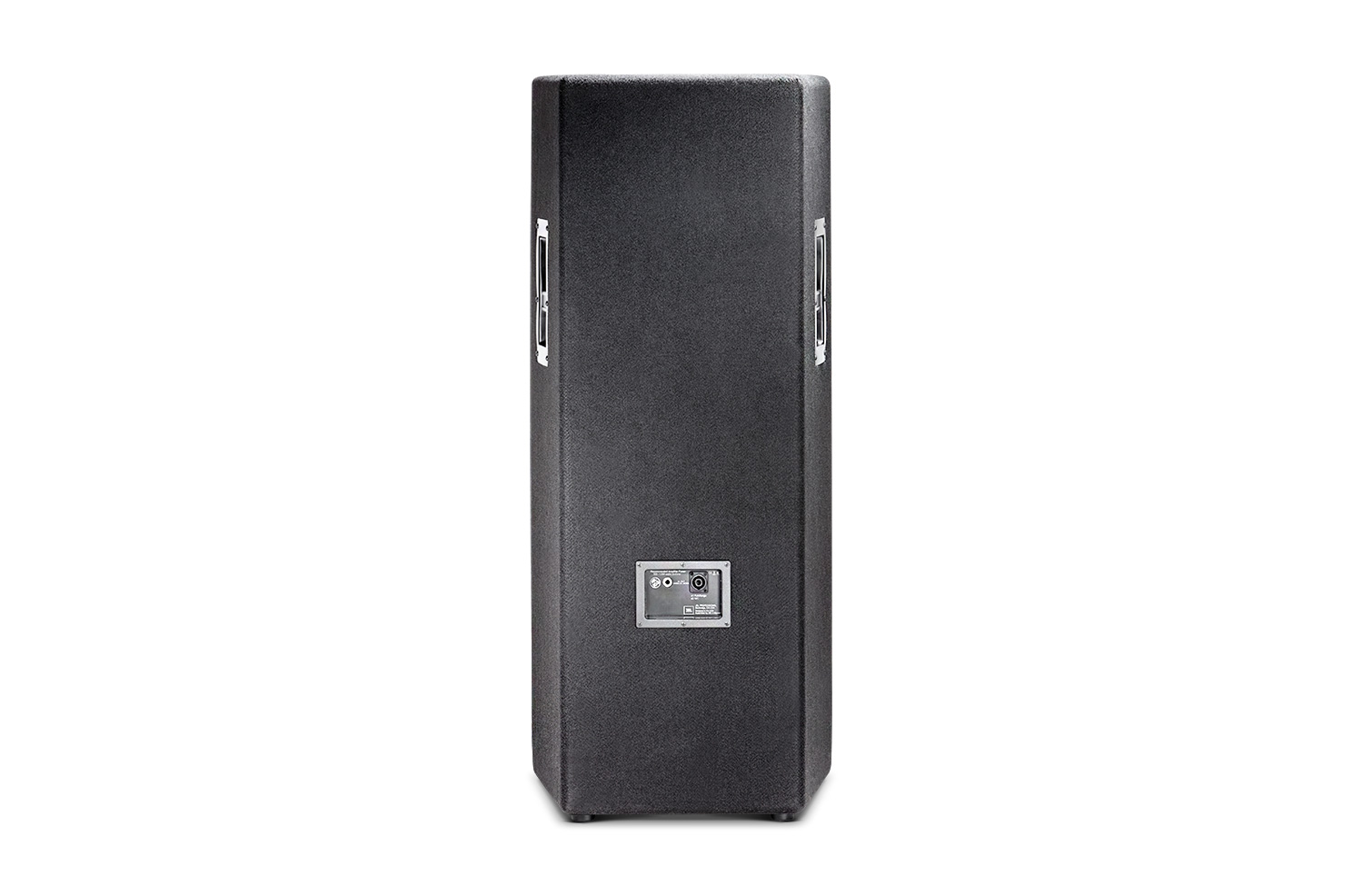

JRX225 Back 업데이트: 2019년 4월	150KB	2019년 4월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

부품 및 서비스

사양

Power Rating	500 W / 2000 W
Frequency Range (-10dB)	42 Hz - 18 kHz
Frequency Response (±3 dB)	62 Hz - 13 kHz
Sensitivity (@1m)	100 dB SPL (1w/1m)
Nominal Impedance	4 ohms
Recommended Amplifier Power	500 W to 1000 W into 4 ohms
Maximum SPL (1m)	133 dB
Nominal Dispersion	90º x 50º
Crossover Frequency	2.2 kHz
Dimensions (H x W x D)	1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)
Weight	42.6 kg (94 lb)
HF Driver	JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver	JBL M115-8A x 2
Inputs	Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
Enclosure	MDF (Medium Density Fiberboard) covered in black carpet.
