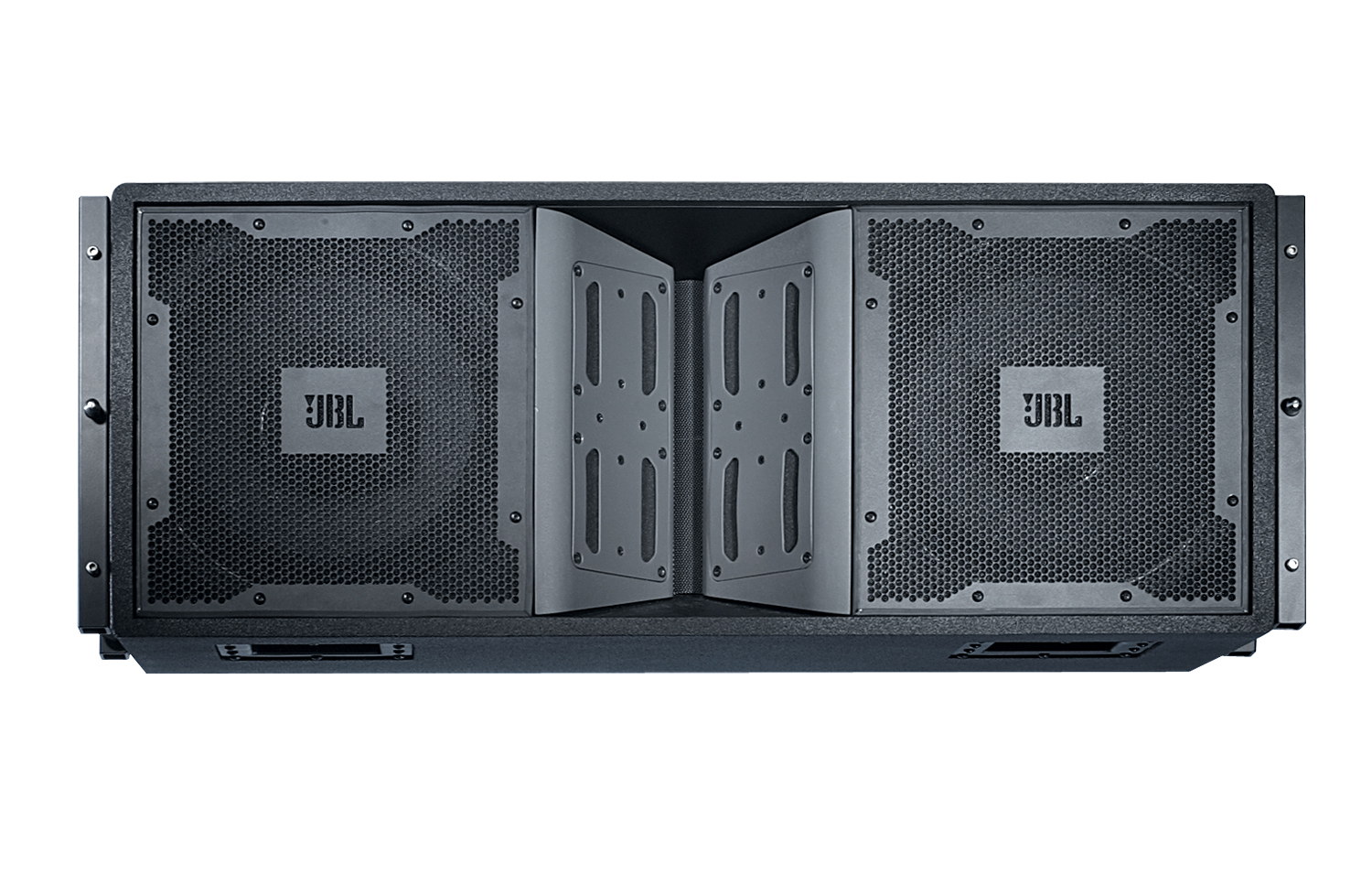

VT4888 (discontinued)

Midsize Tri-Amplified 3-Way High Directivity Line Array Element

VT4888
Larger Images

Midsize Tri-Amplified 3-Way High Directivity Line Array Element

The VT4888 is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.



Features

  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled cone transducers for low weight and high output.
  • Direct Cooled™ cone transducers for low weight and high output.
  • HF Waveguide units couple to create precision vertical slot aperture.
  • Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
  • Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction.
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
  • Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
  • For use in stand-alone arrays or in combination with other VERTEC® system models.


Downloads

  Version Language Size Uploaded
Specifications
file type icon VT4888 Spec Sheet
updated: 22 ต.ค.
    1.2 เมกะไบต์ 22 ต.ค.
Manuals
file type icon VerTec Array Application Manual
updated: 18 ต.ค.
    971 กิโลไบต์ 18 ต.ค.
file type icon VerTec/I-Tech System Configuration Manual
updated: 18 ต.ค.
    1.39 เมกะไบต์ 18 ต.ค.
Brochures
file type icon VerTec Line Brochure
updated: 22 ต.ค.
    2.09 เมกะไบต์ 22 ต.ค.
CAD Drawings
file type icon VT4888 3D DXF
updated: 22 ต.ค.
    286 กิโลไบต์ 22 ต.ค.
file type icon VT4888 2D DXF
updated: 22 ต.ค.
    811 กิโลไบต์ 22 ต.ค.
file type icon VT4888 2D PDF
updated: 22 ต.ค.
    136 กิโลไบต์ 22 ต.ค.
Compliances
file type icon VerTec Series Declaration of Conformity
updated: 18 ต.ค.
    144 กิโลไบต์ 18 ต.ค.
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 23 ม.ค.
1.3.1     18 เมกะไบต์ 23 ม.ค.
platform icon PerformanceManager
version 2.9.1.5, updated: 02 ธ.ค.
2.9.1.5     117 เมกะไบต์ 02 ธ.ค.
Speaker Tunings
file type icon V5 DPDA DrivePack VT4888
updated: 18 ต.ค.
    421 กิโลไบต์ 18 ต.ค.
file type icon V4 DSP XTA4_All_Libraries
updated: 05 ต.ค.
    1.92 เมกะไบต์ 05 ต.ค.
file type icon V4 DSP XTA_DP226_VT4888
updated: 05 ต.ค.
    1.83 เมกะไบต์ 05 ต.ค.
file type icon V4 DSP XTA_DP226_All_Libraries
updated: 05 ต.ค.
    1.89 เมกะไบต์ 05 ต.ค.
file type icon V4 DSP DLP_Lake Contour_VT4888
updated: 18 ต.ค.
    740 กิโลไบต์ 18 ต.ค.
file type icon V4 DSP DLP_Lake Contour_All_Libraries
updated: 18 ต.ค.
    1.26 เมกะไบต์ 18 ต.ค.
file type icon BSS Soundweb London All Libraries
updated: 31 ต.ค.
    35.1 เมกะไบต์ 31 ต.ค.
file type icon V5 DSP Crown I-TECH HD V5 All Libraries
updated: 22 ต.ค.
    2.97 เมกะไบต์ 22 ต.ค.
file type icon V5 DSP Crown IT4x3500HD VT4888
updated: 22 ต.ค.
    1.08 เมกะไบต์ 22 ต.ค.
file type icon V5 DSP Crown IT4x3500HD All Libraries
updated: 22 ต.ค.
    3.11 เมกะไบต์ 22 ต.ค.
file type icon V4 DSP Crown_I-TECH_VT4888
updated: 22 ต.ค.
    1.59 เมกะไบต์ 22 ต.ค.
file type icon V4 DSP Crown I-TECH HD VT4888
updated: 22 ต.ค.
    1.54 เมกะไบต์ 22 ต.ค.
file type icon V4 DSP BSS_Soundweb_London_VT4888
updated: 22 ต.ค.
    3.88 เมกะไบต์ 22 ต.ค.
file type icon V4 DSP BSS_FDS366T_VT4888
updated: 22 ต.ค.
    888 กิโลไบต์ 22 ต.ค.
file type icon V4 Crown I-Tech Library
updated: 22 ต.ค.
    3.93 เมกะไบต์ 22 ต.ค.
file type icon V4 DSP dbx_4800_VT4888
updated: 18 ต.ค.
    953 กิโลไบต์ 18 ต.ค.
file type icon DBX 4800 All Libraries
updated: 24 ก.พ.
    3.46 เมกะไบต์ 24 ก.พ.
file type icon BSS 366 All Libraries
updated: 23 ต.ค.
    4.9 เมกะไบต์ 23 ต.ค.
file type icon VT4888 All DSP Platforms
updated: 22 ต.ค.
    15.2 เมกะไบต์ 22 ต.ค.
file type icon Vertec All DSP Platforms
updated: 22 ต.ค.
    96.3 เมกะไบต์ 22 ต.ค.
file type icon V5 DSP Crown I-TECH HD V5 VT4888
updated: 22 ต.ค.
    1.09 เมกะไบต์ 22 ต.ค.
Helpful Links
file type icon AES Journal Article: Analysis of Line Arrays
updated: 22 ต.ค.
    856 กิโลไบต์ 22 ต.ค.
file type icon High Frequency Components for High Output Line Arrays
updated: 22 ต.ค.
    2.94 เมกะไบต์ 22 ต.ค.
file type icon AES Paper: Pressure Response of Line Source
updated: 22 ต.ค.
    388 กิโลไบต์ 22 ต.ค.
file type icon Considerations for Deployment of Line Arrays
updated: 22 ต.ค.
    518 กิโลไบต์ 22 ต.ค.
file type icon AES Paper: J and Spiral Arrays
updated: 22 ต.ค.
    324 กิโลไบต์ 22 ต.ค.
file type icon Directional Radiation Characteristics - Line Array
updated: 22 ต.ค.
    1.12 เมกะไบต์ 22 ต.ค.
Ease Data
file type icon VerTec EASE DLL
version 3.0, updated: 04 ธ.ค.
3.0    1.19 เมกะไบต์ 04 ธ.ค.
User Guides
file type icon VerTec DP Midsize User’s Guide
updated: 22 ต.ค.
    2.13 เมกะไบต์ 22 ต.ค.
Images
file type icon VT4888 photo
updated: 22 ต.ค.
    658 กิโลไบต์ 22 ต.ค.
Accessories
file type icon VT Midsize Array Frame and Adapter CAD
updated: 22 ต.ค.
    4.04 เมกะไบต์ 22 ต.ค.

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 48 Hz - 18 kHz (-10dB)
Frequency Response 60 Hz - 16 kHz (± 3 dB)
Continuous Power Rating 2000W LF, 600W MF, 150W HF
Sensitivity 98 dB LF, 102 dB MF, 114 dB HF (1W/1m)
Nominal Impedances 2 x 8 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage 90 degrees nominal, 250 Hz - 16 kHz (-6dB)
Dimensions (w x h x d) 990.6 mm x 355.6 mm x 508 m (39 in x 14 in x 20 in)
Weight 51.3 kg (113 lb)
