VT4888
Utgått

Mellanstort tri-ampsforstärkat 3-vägs höggradigt riktningsverkan linjekälla-element

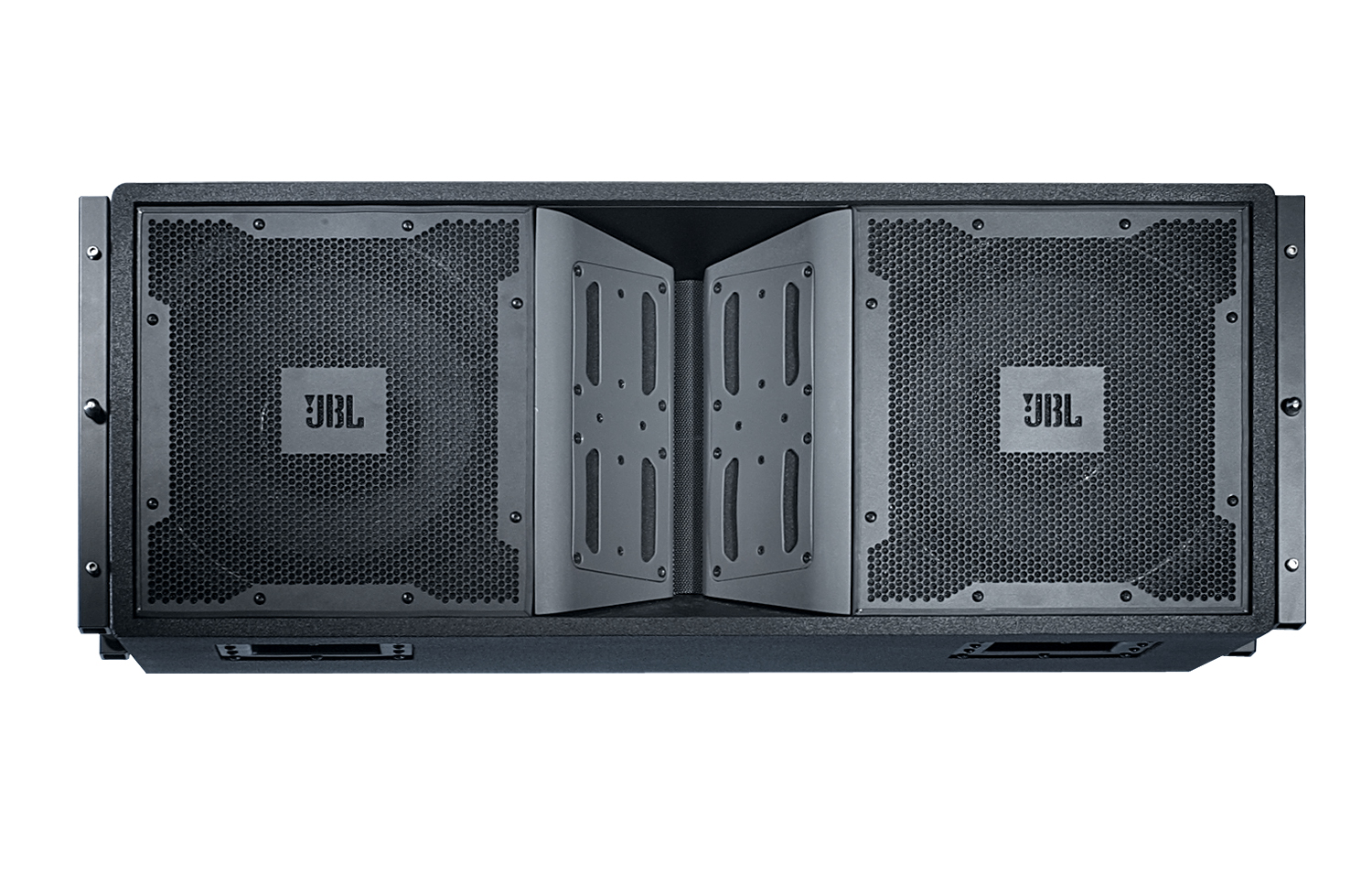

VT4888
Större bilder

Midsize Tri-Amplified 3-Way High Directivity Line Array Element

The VT4888 is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.



Funktioner

  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled cone transducers for low weight and high output.
  • Direct Cooled™ cone transducers for low weight and high output.
  • HF Waveguide units couple to create precision vertical slot aperture.
  • Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
  • Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction.
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
  • Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
  • For use in stand-alone arrays or in combination with other VERTEC® system models.


Nedladdningar

Specifications
  Storlek Uppladdat
file type icon VT4888 Spec Sheet
uppdaterad: okt 2020
1,2 MB okt 2020
Manuals
  Storlek Uppladdat
file type icon VerTec Array Application Manual
uppdaterad: okt 2019
971 KB okt 2019
1,39 MB okt 2019
Brochures
  Storlek Uppladdat
file type icon VerTec Line Brochure
uppdaterad: okt 2020
2,09 MB okt 2020
CAD Drawings
  Storlek Uppladdat
file type icon VT4888 3D DXF
uppdaterad: okt 2020
286 KB okt 2020
file type icon VT4888 2D DXF
uppdaterad: okt 2020
811 KB okt 2020
file type icon VT4888 2D PDF
uppdaterad: okt 2020
136 KB okt 2020
Compliances
  Storlek Uppladdat
144 KB okt 2019
Software
  Version Storlek Uppladdat
Windows download icon PerformanceManager
version 3.2.0, uppdaterad: sep 2025
3.2.0   134 MB sep 2025
Windows download icon Vertec Line Array Calculator
version 1.3.1, släppt: aug 2023
1.3.1   18 MB aug 2023
Speaker Tunings
  Storlek Uppladdat
file type icon V5 DPDA DrivePack VT4888
uppdaterad: okt 2019
421 KB okt 2019
file type icon V4 DSP XTA4_All_Libraries
uppdaterad: okt 2020
1,92 MB okt 2020
file type icon V4 DSP XTA_DP226_VT4888
uppdaterad: okt 2020
1,83 MB okt 2020
file type icon V4 DSP XTA_DP226_All_Libraries
uppdaterad: okt 2020
1,89 MB okt 2020
file type icon V4 DSP DLP_Lake Contour_VT4888
uppdaterad: okt 2019
740 KB okt 2019
1,26 MB okt 2019
file type icon BSS Soundweb London All Libraries
uppdaterad: okt 2019
35,1 MB okt 2019
2,97 MB okt 2020
file type icon V5 DSP Crown IT4x3500HD VT4888
uppdaterad: okt 2020
1,08 MB okt 2020
3,11 MB okt 2020
file type icon V4 DSP Crown_I-TECH_VT4888
uppdaterad: okt 2020
1,59 MB okt 2020
file type icon V4 DSP Crown I-TECH HD VT4888
uppdaterad: okt 2020
1,54 MB okt 2020
file type icon V4 DSP BSS_Soundweb_London_VT4888
uppdaterad: okt 2020
3,88 MB okt 2020
file type icon V4 DSP BSS_FDS366T_VT4888
uppdaterad: okt 2020
888 KB okt 2020
file type icon V4 Crown I-Tech Library
uppdaterad: okt 2020
3,93 MB okt 2020
file type icon V4 DSP dbx_4800_VT4888
uppdaterad: okt 2019
953 KB okt 2019
file type icon DBX 4800 All Libraries
uppdaterad: feb 2020
3,46 MB feb 2020
file type icon BSS 366 All Libraries
uppdaterad: okt 2020
4,9 MB okt 2020
file type icon VT4888 All DSP Platforms
uppdaterad: okt 2020
15,2 MB okt 2020
file type icon Vertec All DSP Platforms
uppdaterad: okt 2020
96,3 MB okt 2020
file type icon V5 DSP Crown I-TECH HD V5 VT4888
uppdaterad: okt 2020
1,09 MB okt 2020
Helpful Links
  Storlek Uppladdat
856 KB okt 2020
2,94 MB okt 2020
388 KB okt 2020
518 KB okt 2020
file type icon AES Paper: J and Spiral Arrays
uppdaterad: okt 2020
324 KB okt 2020
1,12 MB okt 2020
Ease Data
  Version Storlek Uppladdat
file type icon VerTec EASE DLL
version 3.0, uppdaterad: dec 2020
3.0  1,19 MB dec 2020
User Guides
  Storlek Uppladdat
file type icon VerTec DP Midsize User’s Guide
uppdaterad: okt 2020
2,13 MB okt 2020
Images
  Storlek Uppladdat
file type icon VT4888 photo
uppdaterad: okt 2020
658 KB okt 2020
Accessories
  Storlek Uppladdat
4,04 MB okt 2020

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range 48 Hz - 18 kHz (-10dB)
Frequency Response 60 Hz - 16 kHz (± 3 dB)
Continuous Power Rating 2000W LF, 600W MF, 150W HF
Sensitivity 98 dB LF, 102 dB MF, 114 dB HF (1W/1m)
Nominal Impedances 2 x 8 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage 90 degrees nominal, 250 Hz - 16 kHz (-6dB)
Dimensions (w x h x d) 990.6 mm x 355.6 mm x 508 m (39 in x 14 in x 20 in)
Weight 51.3 kg (113 lb)
