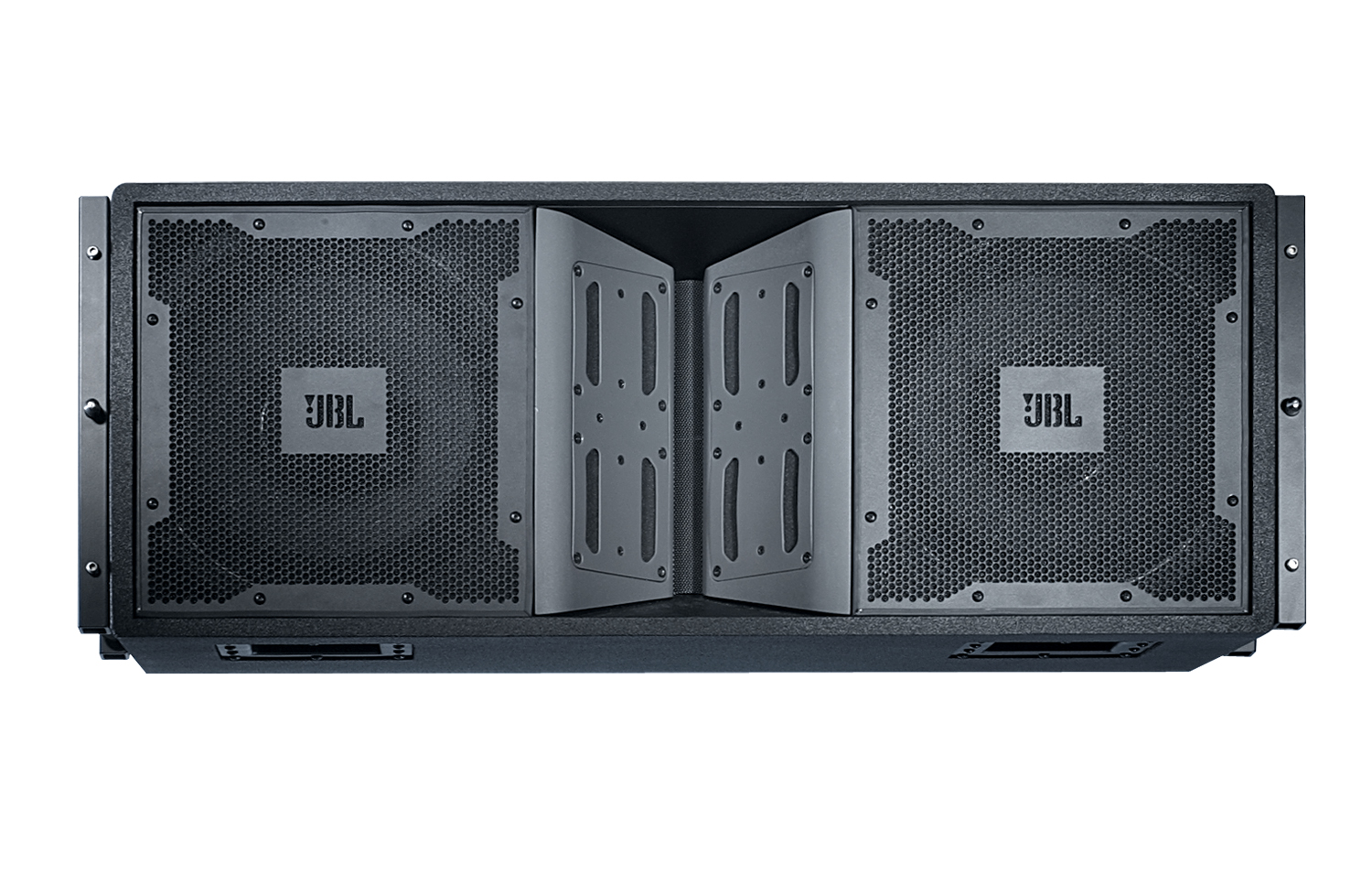

Midsize Tri-Amplified 3-Way High Directivity Line Array Element
The VT4888 is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled cone transducers for low weight and high output.
- Direct Cooled™ cone transducers for low weight and high output.
- HF Waveguide units couple to create precision vertical slot aperture.
- Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
- Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction.
- Rugged DuraFlex™ exterior finish; weatherized components.
- Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
- Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
- For use in stand-alone arrays or in combination with other VERTEC® system models.
Λήψεις
Specifications
| Μέγεθος | |
|
|
1 MB |
Manuals
| Μέγεθος | |
|
|
1000 KB |
|
|
1 MB |
Brochures
| Μέγεθος | |
|
|
2 MB |
CAD Drawings
| Μέγεθος | |
|
|
300 KB |
|
|
800 KB |
|
|
100 KB |
Compliances
| Μέγεθος | |
|
|
100 KB |
Software
| Μέγεθος | |
|
|
100 MB |
|
|
20 MB |
Speaker Tunings
| Μέγεθος | |
|
|
400 KB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
700 KB |
|
|
1 MB |
|
|
40 MB |
|
|
3 MB |
|
|
1 MB |
|
|
3 MB |
|
|
2 MB |
|
|
2 MB |
|
|
4 MB |
|
|
900 KB |
|
|
4 MB |
|
|
1000 KB |
|
|
3 MB |
|
|
5 MB |
|
|
20 MB |
|
|
100 MB |
|
|
1 MB |
Helpful Links
| Μέγεθος | |
|
|
900 KB |
|
|
3 MB |
|
|
400 KB |
|
|
500 KB |
|
|
300 KB |
|
|
1 MB |
Ease Data
| Μέγεθος | |
|
|
1 MB |
User Guides
| Μέγεθος | |
|
|
2 MB |
Images
| Μέγεθος | |
|
|
700 KB |
Accessories
| Μέγεθος | |
|
|
4 MB |
Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.
Ανταλλακτικά και σέρβις
Προδιαγραφές
| Frequency Range | 48 Hz - 18 kHz (-10dB) |
| Frequency Response | 60 Hz - 16 kHz (± 3 dB) |
| Continuous Power Rating | 2000W LF, 600W MF, 150W HF |
| Sensitivity | 98 dB LF, 102 dB MF, 114 dB HF (1W/1m) |
| Nominal Impedances | 2 x 8 ohm LF, 8 ohm MF, 16 ohm HF |
| Horizontal Coverage | 90 degrees nominal, 250 Hz - 16 kHz (-6dB) |
| Dimensions (w x h x d) | 990.6 mm x 355.6 mm x 508 m (39 in x 14 in x 20 in) |
| Weight | 51.3 kg (113 lb) |
