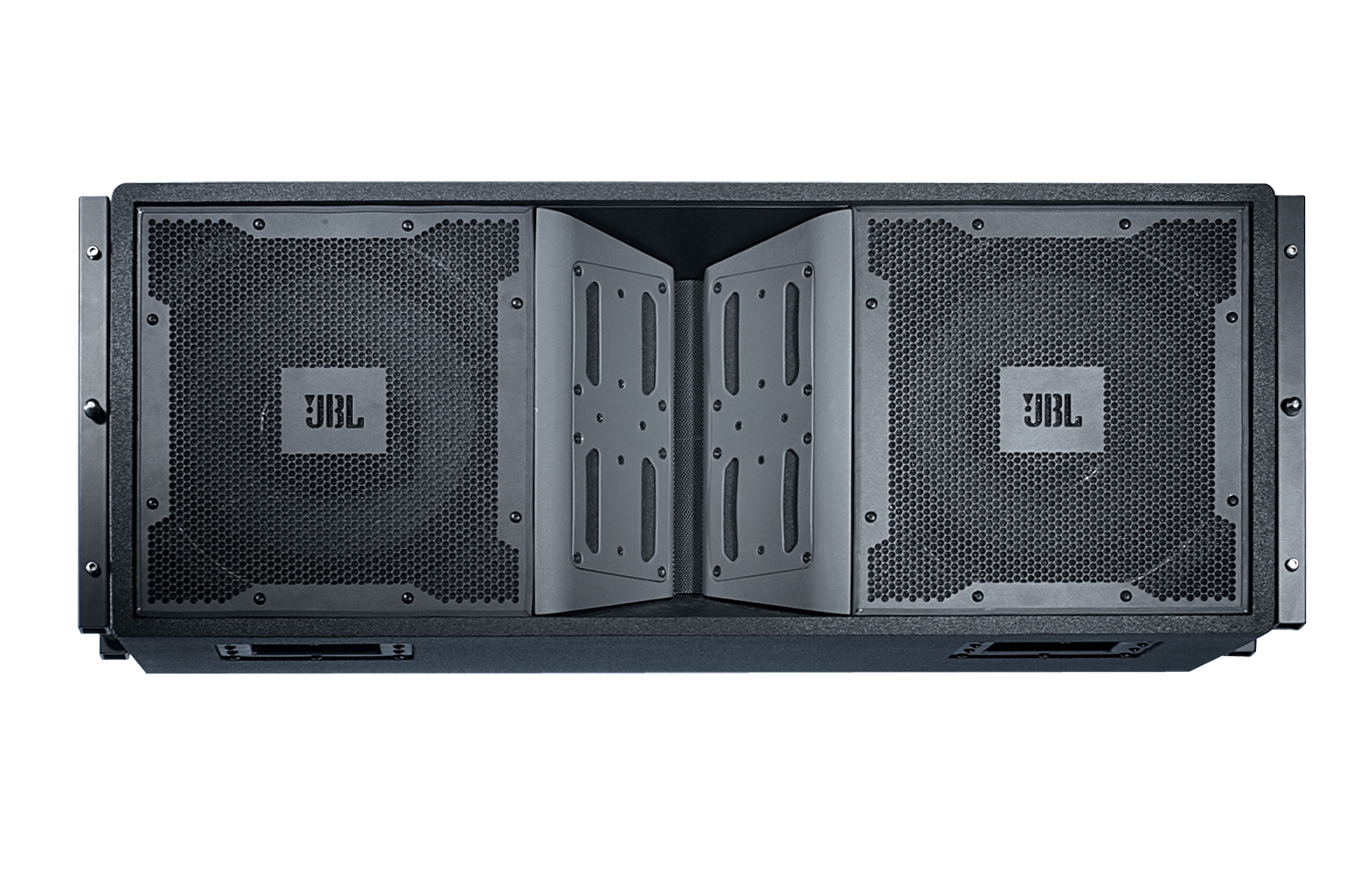

Midsize Tri-Amplified 3-Way High Directivity Line Array Element
The VT4888 is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.
Larger Images
Features
- Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled cone transducers for low weight and high output.
- Direct Cooled™ cone transducers for low weight and high output.
- HF Waveguide units couple to create precision vertical slot aperture.
- Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
- Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction.
- Rugged DuraFlex™ exterior finish; weatherized components.
- Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
- Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
- For use in stand-alone arrays or in combination with other VERTEC® system models.
Downloads
| Size | ||||
Specifications | ||||
VT4888 Spec Sheet
updated: 22.10.2020
|
1,2 MB | |||
Manuals | ||||
|
VerTec Array Application Manual
updated: 18.10.2019
|
971 KB | |||
|
VerTec/I-Tech System Configuration Manual
updated: 18.10.2019
|
1,39 MB | |||
Brochures | ||||
|
VerTec Line Brochure
updated: 22.10.2020
|
2,09 MB | |||
CAD Drawings | ||||
VT4888 3D DXF
updated: 22.10.2020
|
286 KB | |||
|
VT4888 2D DXF
updated: 22.10.2020
|
811 KB | |||
|
VT4888 2D PDF
updated: 22.10.2020
|
136 KB | |||
Compliances | ||||
|
VerTec Series Declaration of Conformity
updated: 18.10.2019
|
144 KB | |||
Software | ||||
Vertec Line Array Calculator
version 1.3.1,
updated: 23.01.2020
|
18 MB | |||
|
PerformanceManager
version 2.9.1.5,
updated: 02.12.2022
|
117 MB | |||
Speaker Tunings | ||||
|
V5 DPDA DrivePack VT4888
updated: 18.10.2019
|
421 KB | |||
|
V4 DSP XTA4_All_Libraries
updated: 05.10.2020
|
1,92 MB | |||
|
V4 DSP XTA_DP226_VT4888
updated: 05.10.2020
|
1,83 MB | |||
|
V4 DSP XTA_DP226_All_Libraries
updated: 05.10.2020
|
1,89 MB | |||
|
V4 DSP DLP_Lake Contour_VT4888
updated: 18.10.2019
|
740 KB | |||
|
V4 DSP DLP_Lake Contour_All_Libraries
updated: 18.10.2019
|
1,26 MB | |||
|
BSS Soundweb London All Libraries
updated: 31.10.2019
|
35,1 MB | |||
|
V5 DSP Crown I-TECH HD V5 All Libraries
updated: 22.10.2020
|
2,97 MB | |||
|
V5 DSP Crown IT4x3500HD VT4888
updated: 22.10.2020
|
1,08 MB | |||
|
V5 DSP Crown IT4x3500HD All Libraries
updated: 22.10.2020
|
3,11 MB | |||
|
V4 DSP Crown_I-TECH_VT4888
updated: 22.10.2020
|
1,59 MB | |||
|
V4 DSP Crown I-TECH HD VT4888
updated: 22.10.2020
|
1,54 MB | |||
|
V4 DSP BSS_Soundweb_London_VT4888
updated: 22.10.2020
|
3,88 MB | |||
|
V4 DSP BSS_FDS366T_VT4888
updated: 22.10.2020
|
888 KB | |||
|
V4 Crown I-Tech Library
updated: 22.10.2020
|
3,93 MB | |||
|
V4 DSP dbx_4800_VT4888
updated: 18.10.2019
|
953 KB | |||
|
DBX 4800 All Libraries
updated: 24.02.2020
|
3,46 MB | |||
|
BSS 366 All Libraries
updated: 23.10.2020
|
4,9 MB | |||
|
VT4888 All DSP Platforms
updated: 22.10.2020
|
15,2 MB | |||
|
Vertec All DSP Platforms
updated: 22.10.2020
|
96,3 MB | |||
|
V5 DSP Crown I-TECH HD V5 VT4888
updated: 22.10.2020
|
1,09 MB | |||
Helpful Links | ||||
|
AES Journal Article: Analysis of Line Arrays
updated: 22.10.2020
|
856 KB | |||
|
High Frequency Components for High Output Line Arrays
updated: 22.10.2020
|
2,94 MB | |||
|
AES Paper: Pressure Response of Line Source
updated: 22.10.2020
|
388 KB | |||
|
Considerations for Deployment of Line Arrays
updated: 22.10.2020
|
518 KB | |||
|
AES Paper: J and Spiral Arrays
updated: 22.10.2020
|
324 KB | |||
|
Directional Radiation Characteristics - Line Array
updated: 22.10.2020
|
1,12 MB | |||
Ease Data | ||||
|
VerTec EASE DLL
version 3.0,
updated: 04.12.2020
|
1,19 MB | |||
User Guides | ||||
|
VerTec DP Midsize User’s Guide
updated: 22.10.2020
|
2,13 MB | |||
Images | ||||
|
VT4888 photo
updated: 22.10.2020
|
658 KB | |||
Accessories | ||||
|
VT Midsize Array Frame and Adapter CAD
updated: 22.10.2020
|
4,04 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Range | 48 Hz - 18 kHz (-10dB) |
| Frequency Response | 60 Hz - 16 kHz (± 3 dB) |
| Continuous Power Rating | 2000W LF, 600W MF, 150W HF |
| Sensitivity | 98 dB LF, 102 dB MF, 114 dB HF (1W/1m) |
| Nominal Impedances | 2 x 8 ohm LF, 8 ohm MF, 16 ohm HF |
| Horizontal Coverage | 90 degrees nominal, 250 Hz - 16 kHz (-6dB) |
| Dimensions (w x h x d) | 990.6 mm x 355.6 mm x 508 m (39 in x 14 in x 20 in) |
| Weight | 51.3 kg (113 lb) |
