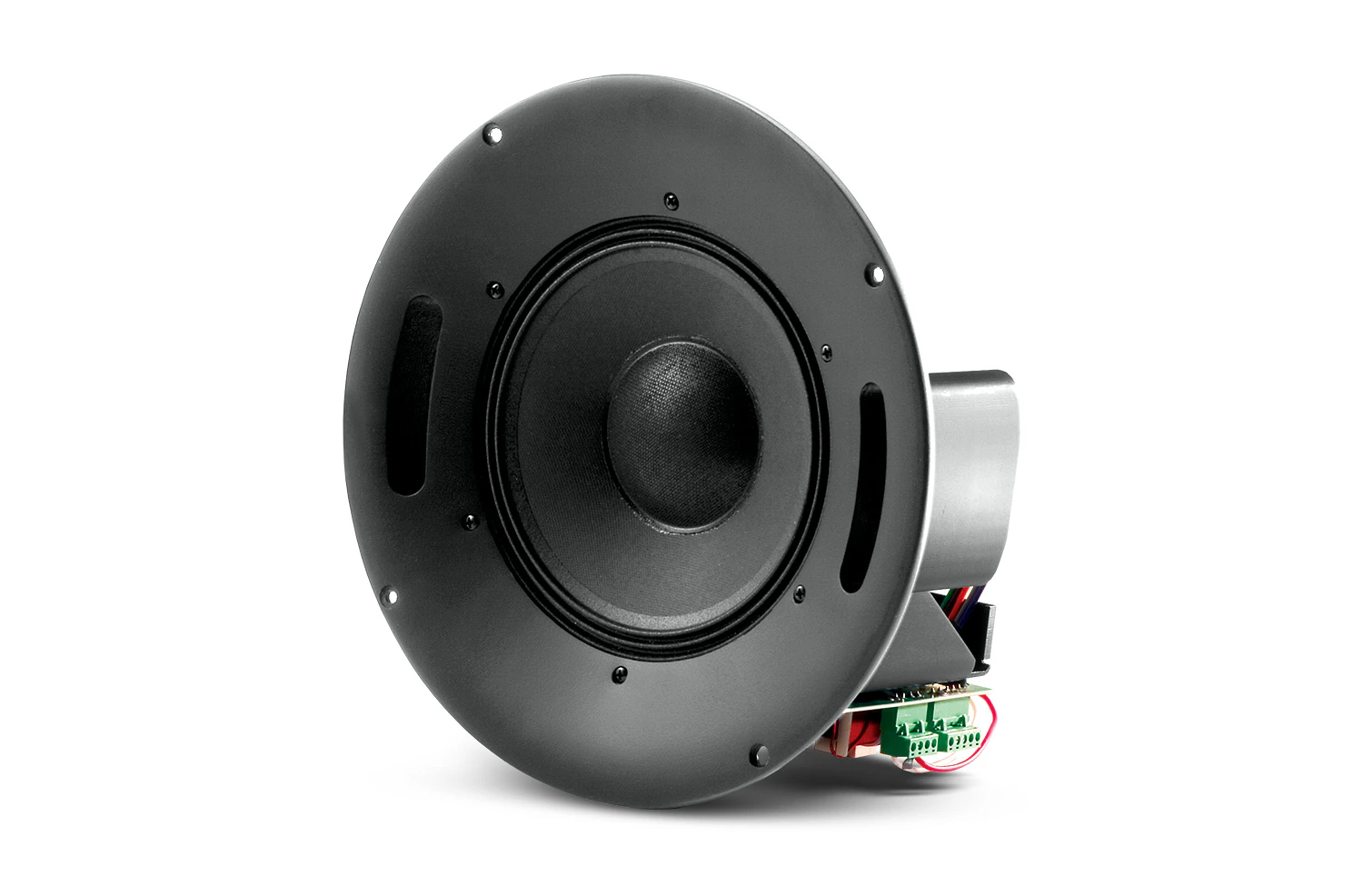

8" Coaxial Ceiling Loudspeaker with HF Compression Driver
Control 328C has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
รูปภาพขนาดใหญ่
คุณสมบัติ
- Consistent 120° broadband pattern control covers an extremely large area.
- Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
- Components
• 200 mm (8 in) woofer with Kevlarre inforced cone and 50 mm (2 in) voice-coil.
• 25 mm (1" exit) compression driver. - Extraordinary clarity for speech and vocals with extended frequency response for music.
- 250 Watt power handling with very high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
การดาวน์โหลด
Specifications
| ขนาด | |
|
|
720 กิโลไบต์ |
Manuals
| ขนาด | |
|
|
128 กิโลไบต์ |
Brochures
| ขนาด | |
|
|
23 เมกะไบต์ |
|
|
14 เมกะไบต์ |
|
|
2.9 เมกะไบต์ |
|
|
21 เมกะไบต์ |
เวอร์ชัน A,
อัปเดต: มี.ค. 2026
CAD Drawings
| ขนาด | |
|
|
1.39 เมกะไบต์ |
Compliances
| ขนาด | |
|
|
179 กิโลไบต์ |
|
|
92.7 กิโลไบต์ |
Software
| ขนาด | |
|
|
612 กิโลไบต์ |
Simulation Data
| ขนาด | |
|
|
21 เมกะไบต์ |
EASE Files
| ขนาด | |
|
|
1.08 เมกะไบต์ |
User Guides
| ขนาด | |
|
|
2.02 เมกะไบต์ |
Accessories
| ขนาด | |
|
|
570 กิโลไบต์ |
Speaker Tunings
| ขนาด | |
|
|
557 กิโลไบต์ |
Install Guides
| ขนาด | |
|
|
539 กิโลไบต์ |
หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ
อะไหล่และบริการ
ข้อมูลจำเพาะ
| Frequency Range (-10dB) | 45 Hz – 18 kHz |
| Power Rating | IEC Long-Term System Power Rating: 250 W continuous pink noise (1000 W peak), 2 hrs 150 W continuous pink noise (600 W peak), 100 hrs |
| Sensitivity | 93 dB (1 kHz - 16 kHz) |
| Frequency Response (±3 dB) | 60Hz – 16 kHz |
| Coverage Angle | 120° conical, constant directivity |
| Directivity Factor (Q) | 7.0 (Avg 1k - 16kHz) |
| Directivity Index (DI) | 8.5dB (Avg 1k - 16kHz) |
| Maximum SPL (1m) | 118 dB (124 dB peak) |
| Crossover Network | 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF |
| Impedance | 8 ohms |
| Dimensions (H x W x D) | 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 160 mm (6.3in) |
| Input Connectors | Screw locking barrier strip for bare wire |
| Drivers | LF Driver: 200 mm (8 in) HF Driver: compression driver, 25 mm (1 inch) coil |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (wood-lined; accessory) |
| Baffle/Rim | Metal, round, driver pre-mounted to baffle, ported. |
| Ceiling Cutout Size | 310 mm (12.2 in) diameter (for MTC-300BB8 backcan) |
| Optional Accessories | MTC-RG6/8 Grille, round contoured, white. MTC-SG6/8 Grille, square, contoured, white. MTC-300BB8 Backbox, 25 liters (1 cubic feet) |
| Plenum Usage | Yes, with accessory backcan |
อุปกรณ์เสริม
MTC-RG6/8 | Round Grille for Control 200 and Control 300 Series
รูปภาพขนาดใหญ่
Round Grille for Control 200 and Control 300 Series
- Rugged 19 gauge metal construction for enduring reliability.
- Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
- Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
- Powder coat final finish minimizes scratching and can easily be repainted to match any room color.
เอกสารประกอบ
-
MTC-RG6/8 Spec Sheet
[79.8 กิโลไบต์]
-
Control 227C Install Sheet
[590 กิโลไบต์]
-
MTC-RG6/8 Hi Res Photo
[212 กิโลไบต์]
-
Brackets Declaration of Conformity
[141 กิโลไบต์]
MTC-SG6/8 | Square Grille for Control 200 and Control 300 Series
รูปภาพขนาดใหญ่
Square Grille for Control 200 and Control 300 Series
- Rugged 19 gauge metal construction for enduring reliability.
- Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
- Zinc plating provides a rust and scratch resistant surface for years of maintenance free wear.
- Powder coated paint finish minimizes scratching and can easily be repainted to match any room color.
เอกสารประกอบ
-
MTC-SG6/8 Spec Sheet
[557 กิโลไบต์]
-
MTC-SG6/8 Hi Res
[337 กิโลไบต์]
MTC-TB6/8 | Tile Bridge for Control 200 and Control 300 Series
รูปภาพขนาดใหญ่
Tile Bridge for Control 200 and Control 300 Series
- Robust 18-gauge steel construction with an epoxy based powdercoat finish.
- Over-The-Grid design reduces sound transmission to ceiling grid thereby minimizing rattle.
- 310 mm (12.2 inch) opening accommodating both Control 328C/CT and Control 227C/CT models.
- Fits 610 mm (24 inch) and 600 mm (23.6 inch) tile grids.
เอกสารประกอบ
-
MTC-TB6/8 Spec Sheet
[530 กิโลไบต์]

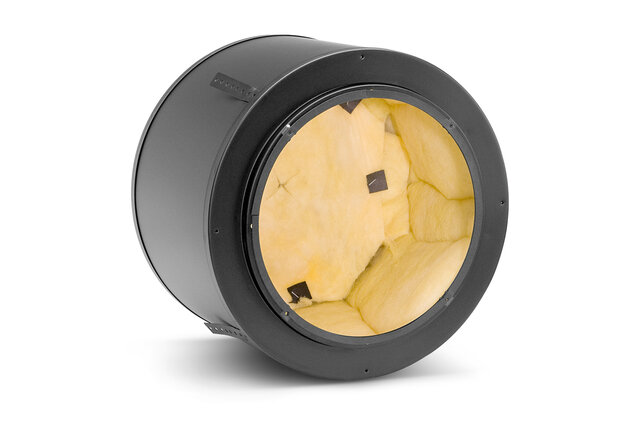

MTC-300BB8 | 1 Cubic Ft. Backcan for Control 300 Series 8 in. Drivers
