VTX A12W

Altifalante em Matriz Linear Dual de 12 polegadas | Dispersão de 120 graus

Dual 12” Line Array Loudspeaker with 120-degree Dispersion

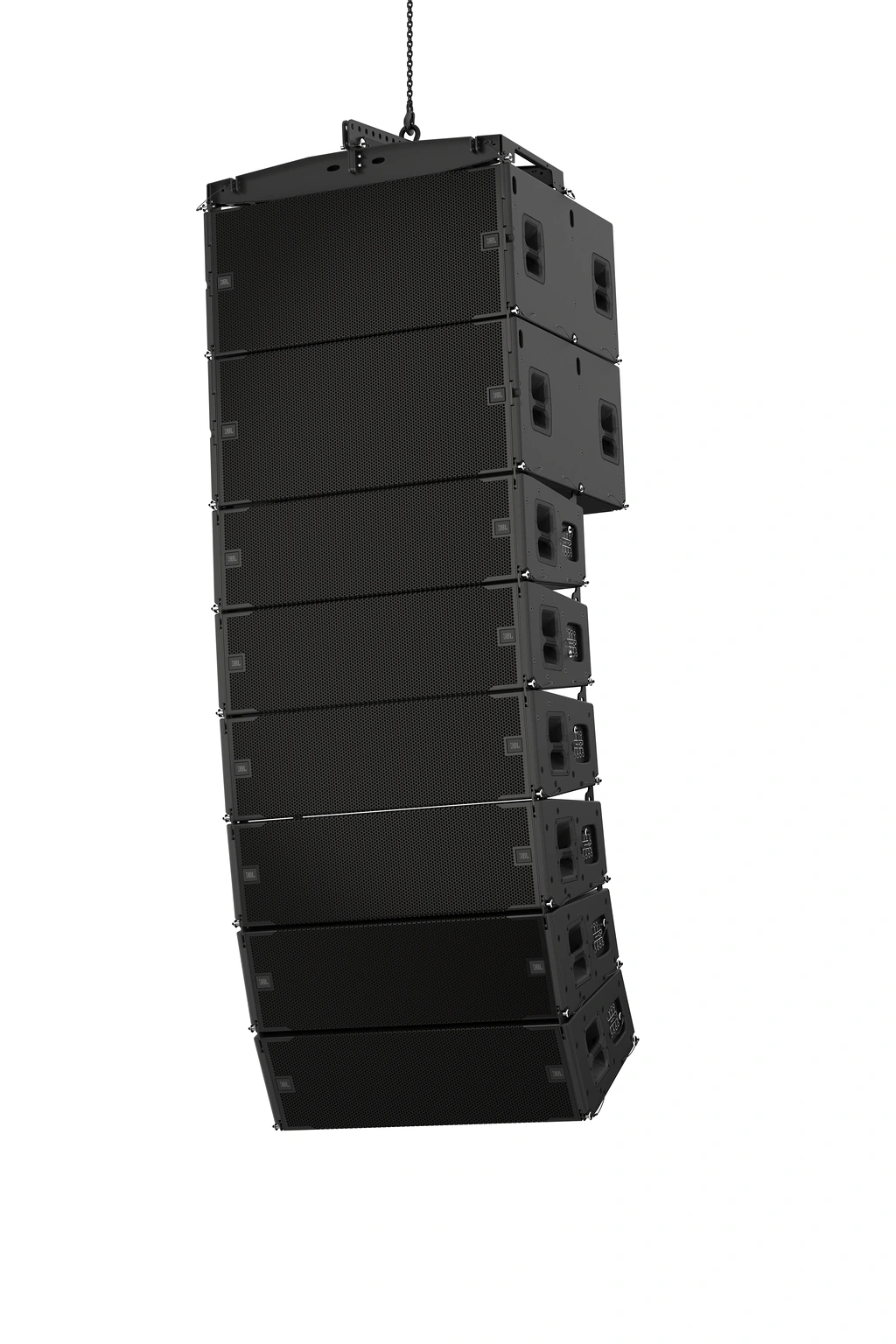

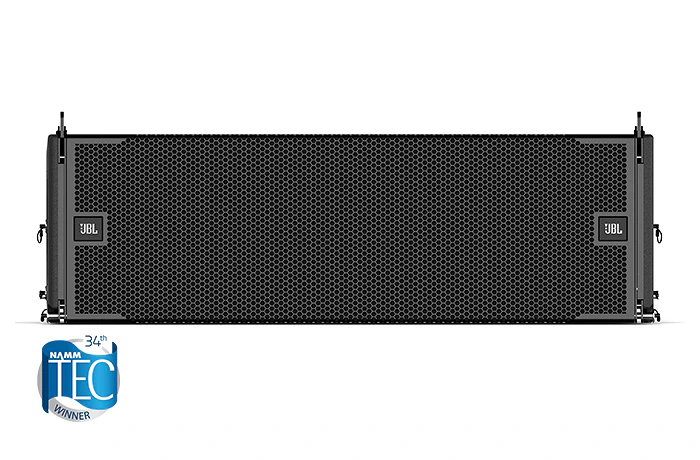

The JBL A Series is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. JBL VTX A12W was designed to address the requests from rental companies, FOH engineers and tour sound production crews who appreciated the advances introduced in the VTX A12, but needed wider horizontal coverage for their applications. Like the VTX A12, next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage—and now a 120-degree dispersion pattern ensures coverage for a variety of applications. VTX A12W features the same patented JBL rigging mechanism and redesigned suspension system to streamline deployment and setup, and can be flown independently or in mixed configurations with the VTX A12. Plus, VTX A12W retains the same physical design, compact size and reduced weight found in the original A12. The JBL A Series isn’t just a superior line array—it’s a completely new way to approach tour sound.



Características

  • Padrão de dispersão de 120 graus para cobertura horizontal ampla
  • Novos e melhorados transdutores JBL para a melhor potência por peso
  • Secção HF inovadora que integra o plug de fase e o guia de onda para elevada sensibilidade e linearidade mesmo em níveis de potência elevados
  • Radiation Boundary Integrator® (RBI) redesenhado para reduzir a difração nas extremidades da corneta, melhorar a sensibilidade LF, reduzir a distorção e assegurar cobertura de 120 graus até 250 Hz
  • Secção LF de nova geração, incluindo woofers Differential Drive que definem a indústria, com design de duplo íman e dupla bobina de voz para excursão linear estendida
  • Rigging de classe superior para implementação simplificada e rápida
  • Grelha de face completa para melhor proteção contra intempéries e estética refinada
  • Novo carro de transporte e estrutura para transporte e configuração simplificados
  • Otimizações em todo o design para eficiência de espaço e redução de peso, melhorando simultaneamente o desempenho
  • Integração completa com software de controlo e previsão de sistemas JBL
  • Design leve
  • Totalmente compatível com VTX A12


Descarregamentos

Specifications
  Versão Idioma Tamanho Carregado
file type icon VTX A12W Spec Sheet
en versão D, atualizado: dez 2020
en  500 KB dez 2020
Manuals
  Versão Idioma Tamanho Carregado
file type icon VTX A12 User Manual
en versão D, atualizado: jul 2023
en  8 MB jul 2023
file type icon VTX A12 Rigging Manual
en versão D, atualizado: jul 2023
en  50 MB jul 2023
Brochures
  Versão Idioma Tamanho Carregado
file type icon VTX A12 System Brochure
en versão 1.0, atualizado: dez 2020
1.0  en  10 MB dez 2020
CAD Drawings
  Versão Tamanho Carregado
file type icon VTX A12 Customer Drawings
versão 1.0, atualizado: dez 2020
1.0  700 KB dez 2020
file type icon VTX A12/B35 Revit/BIM Files
versão 3.0, atualizado: ago 2026
3.0  50 MB ago 2026
file type icon VTX A12/B35 SketchUp File
versão 3.0, atualizado: ago 2026
3.0  5 MB ago 2026
Software
  Tamanho Carregado
download icon for Venue Synthesis Venue Synthesis
publicado: jul 2026
jul 2026
download icon for ArrayLink ArrayLink
publicado: jan 2025
jan 2025
download icon for Performance Manager 3 Performance Manager 3
publicado: jul 2024
jul 2024
Simulation Data
  Versão Idioma Tamanho Carregado
file type icon VTX A12/B35 EASE GLL
en versão 2.0, atualizado: jul 2026
2.0  en  10 MB jul 2026
Preset Libraries
  Versão Tamanho Carregado
file type icon VTX A12 iTech HD Preset Library
versão 1.2, atualizado: jul 2024
1.2  2 MB jul 2024
Service Notes
  Versão Idioma Tamanho Carregado
file type icon VTX A12 Spare Parts
en versão C, atualizado: abr 2026
en  70 KB abr 2026

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range (-10dB) 46 Hz - 19k Hz (Preset: VTX A12W)
Horizontal Coverage (-6 dB) 120 degrees nominal (250 Hz - 18k Hz)
Max. SPL

146 dB (Preset: VTX A12W)

System Amplification Crown Audio I-Tech HD
Nominal Impedance LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms
LF Driver (2) JBL 2264H 12-inch Neodymium Differential Drive® woofer
MF Driver (4) JBL 2165H 5.5-inch Neodymium Differential Drive® woofer
HF Driver (3) JBL 2423K 2-inch annular diaphragm compression driver
Enclosure Finnish birch plywood, Black DuraFlex finish, integral recessed handles
IP Rating IP55 EN (60529)
Suspension / Mounting High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles
Inter-enclosure Angle 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 8 | 10
Dimensions (H x W x D) 330 mm x 1118 mm x 495 mm
13 in x 44 in x 19.5 in
Net Weight (each) 60.8 kg (134.0 lb)

Acessórios

VTX A12 AF MKII | Array Frame for VTX A12 and VTX B35
VTX A12 AF MKII Main photo
Imagens maiores
VTX A12 AF MKII detail thumbnail #1 VTX A12 AF MKII detail thumbnail #2 VTX A12 AF MKII detail thumbnail #3 VTX A12 AF MKII detail thumbnail #4

Highlights:

  • Compatible with VTX A12 and VTX B35
  • One Extension Bar included
  • Integrated storage for up to two Extension Bars
  • Supports single-point, dual-point, and quad-point suspension
  • High-resolution single-point shackle positioning
  • Laser attachment bracket included

Included:

  • (1) VTX A12 AF MKII
  • (1) VTX A12 AF EB MKII
  • (3) 5/8-inch Shackles
  • (1) Laser Bracket

Documentação
VTX A12 AF EB MKII | Barra de Extensão para Estrutura de Array VTX A12
VTX A12 AF EB MKII Main photo
Imagens maiores
VTX A12 AF EB MKII detail thumbnail #1 VTX A12 AF EB MKII detail thumbnail #2 VTX A12 AF EB MKII detail thumbnail #3 VTX A12 AF EB MKII detail thumbnail #4

Highlights:

  • Extension Bar for use with the A12 Array Frame
  • Lightweight design
  • Includes brackets and hardware for side-by-side suspension
  • Compatible with the original VTX A12 AF

Included:

  • (1) VTX A12 AF EB MKII
  • (4) Attachment Bracket Sets and Hardware
  • (3) 5/8-inch Shackles

Documentação
VTX A12 SB | Suspension Bar for VTX A12 and VTX B35
VTX A12 SB Main photo
Imagens maiores
VTX A12 SB detail thumbnail #1 VTX A12 SB detail thumbnail #2 VTX A12 SB detail thumbnail #3 VTX A12 SB detail thumbnail #4
Highlights:
  • Compatible with VTX A12 and VTX B35
  • Attaches to the top or bottom enclosure of an array
  • Supports pull-back applications
  • Can be used as a compact array frame for VTX A12
  • Supports standalone suspension of VTX B35 arrays
  • Lightweight design
Included:
  • (1) Suspension Bar
  • (1) 5/8 in Shackle

Documentação
VTX A12 AF CASE | Road Case for VTX A12 Array Frame MKII
VTX A12 AF CASE Main photo
Imagens maiores
VTX A12 AF CASE detail thumbnail #1 VTX A12 AF CASE detail thumbnail #2 VTX A12 AF CASE detail thumbnail #3 VTX A12 AF CASE detail thumbnail #4

Destaques:

  • Road case para acessórios de rigging VTX A12 e VTX B35
  • Otimizado para embalagem em camião juntamente com os transportadores VTX A12 VT e VTX B35 VT
  • Armazenamento dedicado para Array Frames, Extension Bars, Suspension Bars e Delta Plates
  • Design com acesso lateral para acesso rápido aos componentes individuais
  • Acabamento JBL DuraFlex™ preto
  • Rodízios de grau profissional de uso intensivo

Capacidade:

  • (2) VTX A12 AF MKII
  • (4) VTX A12 AF EB MKII
  • (4) VTX A12 AB
  • (2) VTX DELTA
  • Inclui espaço para acessórios de rigging auxiliares, tais como manilhas, correntes e cabos de aço

Incluído:

  • JBL-P3644MX (vazio):
    • (1) VTX A12 AF CASE
  • JBL-P3647MX (completo):
    • (1) VTX A12 AF CASE
    • (1) VTX A12 AF CASE
    • (2) VTX A12 AF MKII
    • (2) VTX A12 AF EB MKII
    • (2) VTX A12 SB
    • (2) VTX DELTA
    • (12) Manilhas de 5/8 polegada

Notas:

  • Não é compatível com o Array Frame VTX A12 original

Documentação
VTX DELTA | Delta Plate
VTX DELTA Main photo
Imagens maiores
VTX DELTA detail thumbnail #1 VTX DELTA detail thumbnail #2 VTX DELTA detail thumbnail #3 VTX DELTA detail thumbnail #4

Highlights:

  • High-quality universal delta plate accessory
  • Support for up to (24) JBL Line Array enclosures
  • Allows for up to +/- 10-degrees of horizontal adjustment
  • Lightweight design
  • Recommended point spacing: 1 meter (3.3 ft)
Included:
  • (1) VTX Delta
  • (3) 5/8 in Shackles

Documentação
VTX A12 VT | Transportador Vertical
VTX A12 VT Main photo
Imagens maiores
VTX A12 VT detail thumbnail #1 VTX A12 VT detail thumbnail #2 VTX A12 VT detail thumbnail #3 VTX A12 VT detail thumbnail #4
Highlights:
  • Vertical transport cart for (4) VTX A12 enclosures
  • Truck-friendly dimensions
  • Includes a hard top for easy stacking
  • Built-in stacking features for easy storage
  • Support for ground stacking
  • Lightweight design
  • Heavy-duty casters
Included:
  • (1) Vertical Transporter
  • (1) VT-TOP

Documentação
VTX A12 VT CVR | Vertical Transporter Cover
VTX A12 VT CVR Main photo
Imagens maiores
VTX A12 VT CVR detail thumbnail #1 VTX A12 VT CVR detail thumbnail #2 VTX A12 VT CVR detail thumbnail #3 VTX A12 VT CVR detail thumbnail #4
Destaques:
  • Capa de proteção robusta para caixas VTX A12
  • Cobre (4) caixas VTX A12 num VTX A12 VT
  • Inclui abas de painel de entrada para testes
  • Bolsa transparente para etiquetas de envio
  • Recortes de pegas para transporte fácil
  • Dobra e armazena no VTX A12 VT
  • Zíperes de qualidade industrial pesada
Incluído:
  • (1) VTX A12 VT CVR

Documentação
VTX A12 VT GND | Vertical Transporter Ground Stack
VTX A12 VT GND Main photo
Imagens maiores
VTX A12 VT GND detail thumbnail #1 VTX A12 VT GND detail thumbnail #2 VTX A12 VT GND detail thumbnail #3 VTX A12 VT GND detail thumbnail #4
Highlights:
  • Outrigger system for VTX A12 VT, VTX B28 VT and other compatible Vertical Transporters
  • Four screw jacks included for height adjustment
  • Innovative spring-based angle-set mechanism
  • Compact and lightweight design
  • Range: -15 to +5 degree
  • Vertical Transporter not included
Included:
(1) VTX A12 VT GND

Documentação
VTX A12 BP | Placa de Base para VTX A12
VTX A12 BP Main photo
Imagens maiores
VTX A12 BP detail thumbnail #1 VTX A12 BP detail thumbnail #2 VTX A12 BP detail thumbnail #3 VTX A12 BP detail thumbnail #4

Destaques:

  • Permite empilhamento em terra de matrizes VTX A12
  • Suporte de poste roscado M20 universal
  • Ligação direta ao enclosure de subwoofer VTX B28
  • Ângulos de matriz selecionáveis entre -15 graus e +5 graus
  • Design leve em duas partes

Incluído:

  • (2) VTX A12 BP Base Plate (Esquerda / Direita)

Documentação
