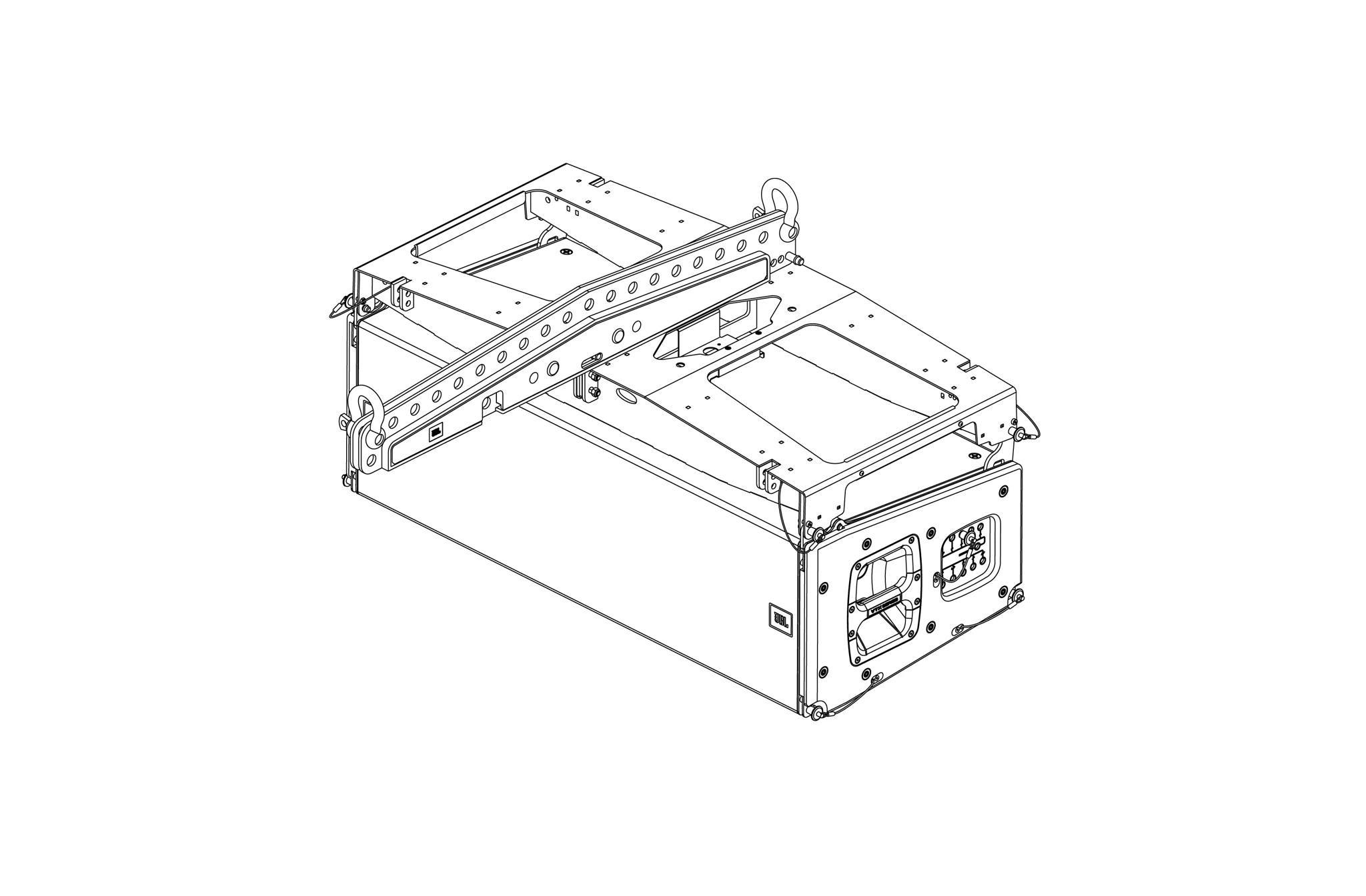

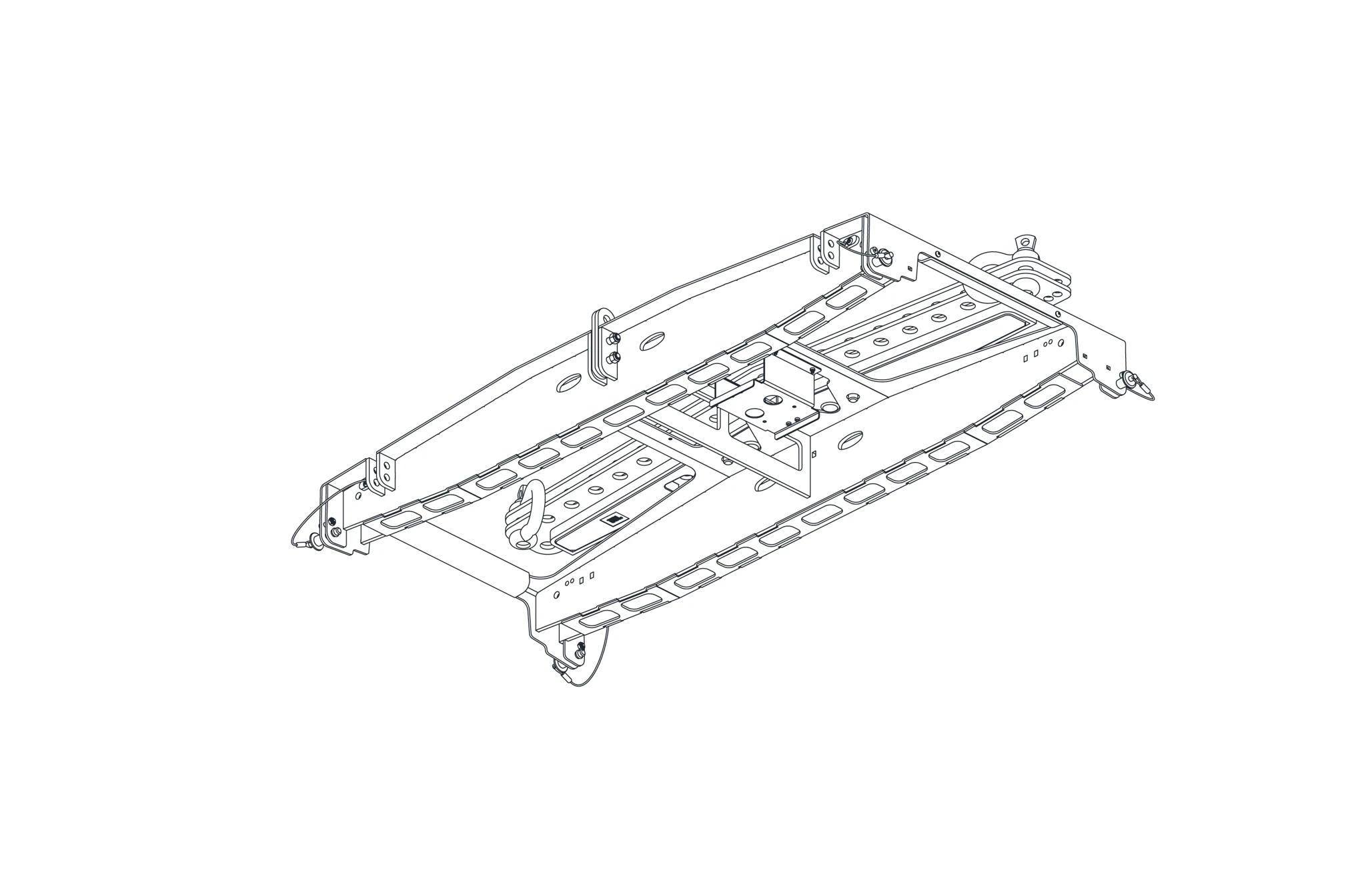

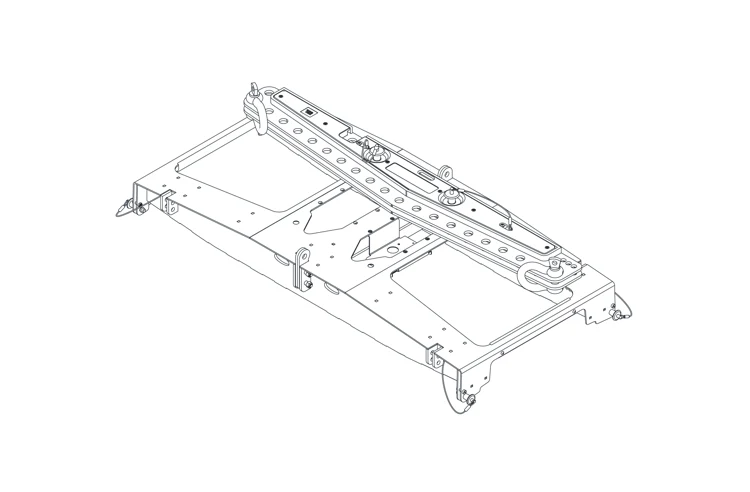

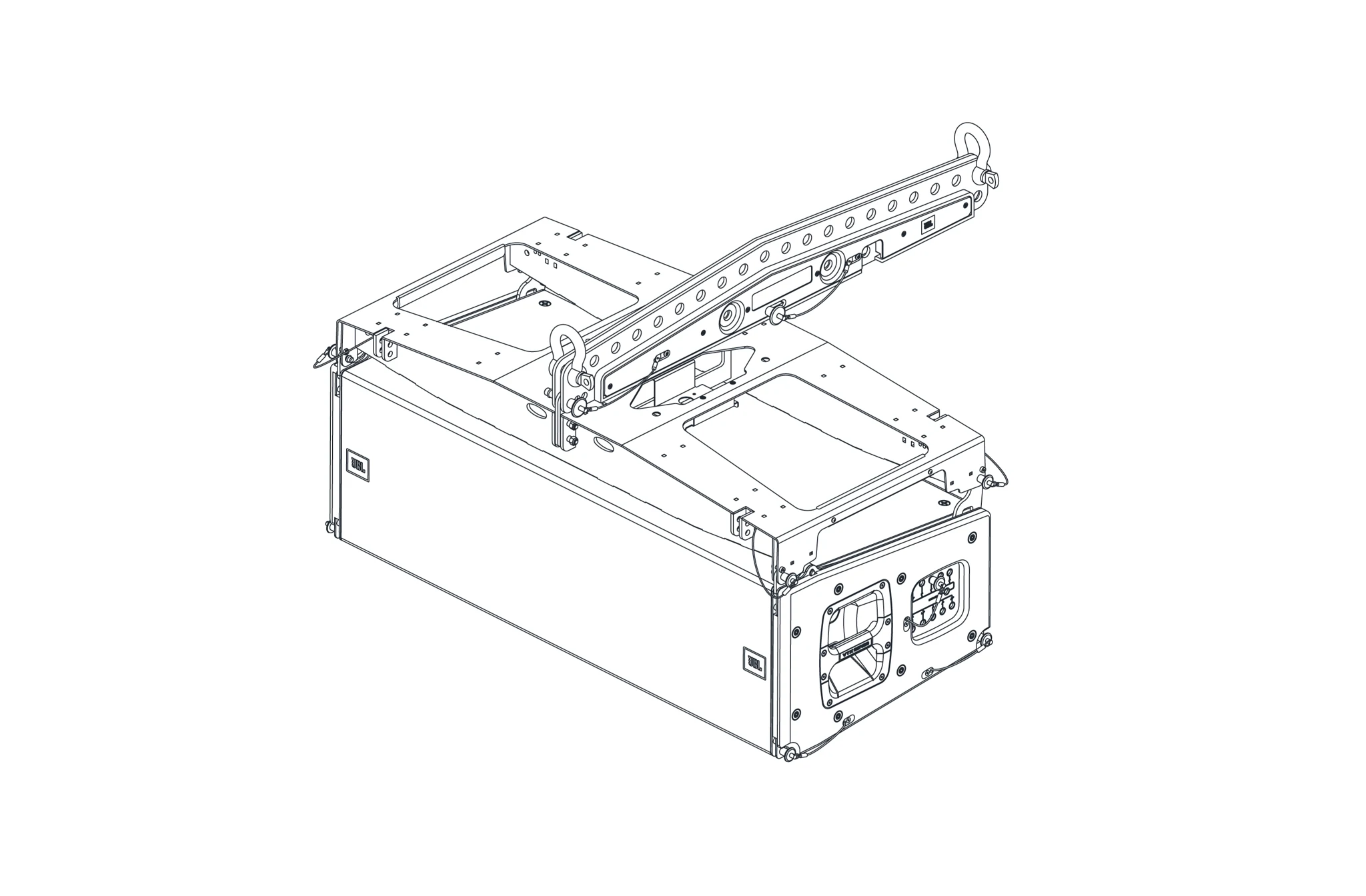

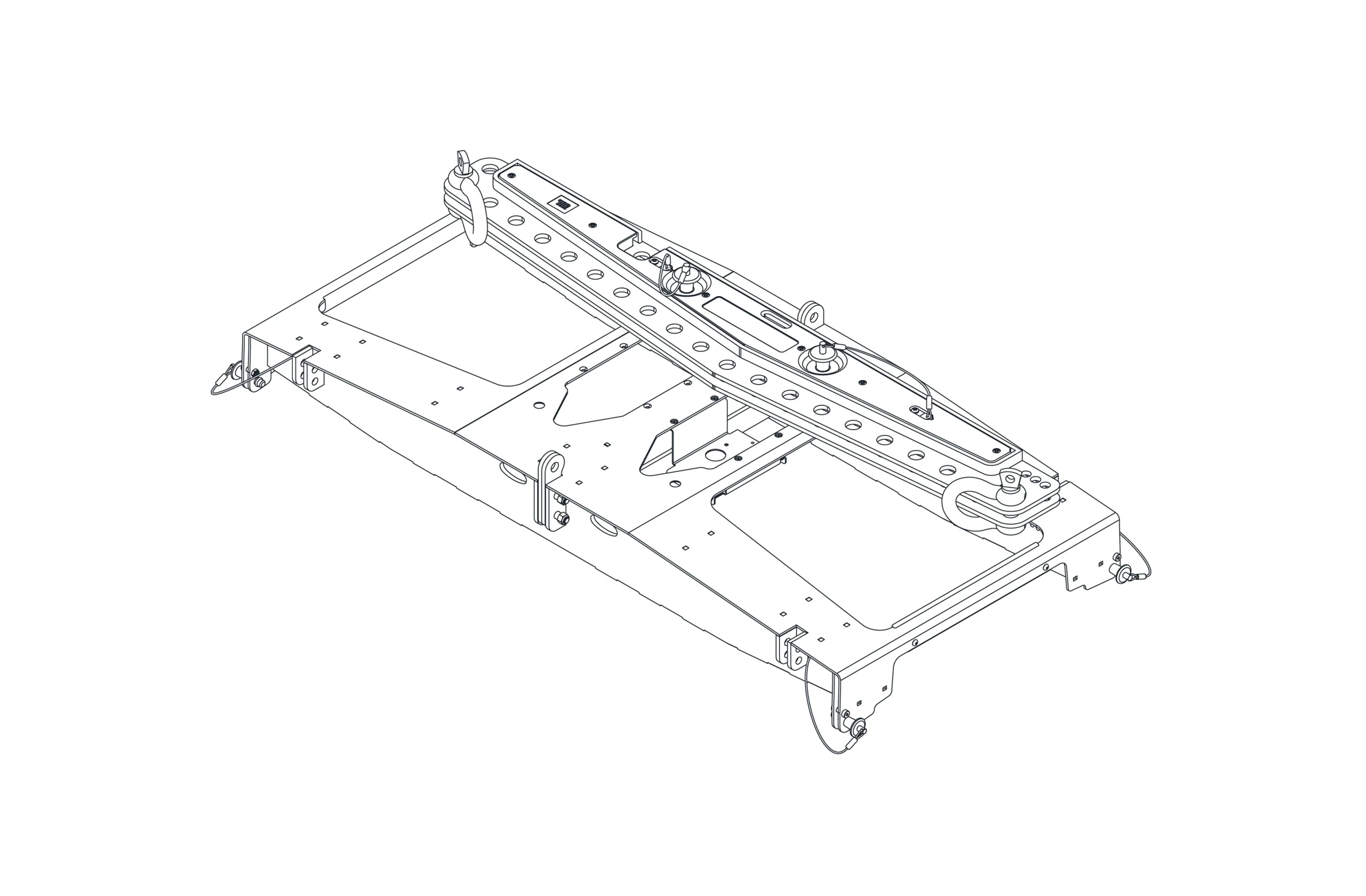

VTX A12 AF MKII

Array Frame for VTX A12 and VTX B35

Imagens maiores

Highlights:

  • Compatible with VTX A12 and VTX B35
  • One Extension Bar included
  • Integrated storage for up to two Extension Bars
  • Supports single-point, dual-point, and quad-point suspension
  • High-resolution single-point shackle positioning
  • Laser attachment bracket included

Included:

  • (1) VTX A12 AF MKII
  • (1) VTX A12 AF EB MKII
  • (3) 5/8-inch Shackles
  • (1) Laser Bracket

Descarregamentos

Specifications
  Versão Idioma Tamanho Carregado
file type icon VTX A12 AF MKII Spec Sheet
en versão A, atualizado: jun 2026
en  500 KB jun 2026
CAD Drawings
  Versão Tamanho Carregado
file type icon VTX A12 AF MKII Customer Drawings
versão A, atualizado: jun 2026
2 MB jun 2026
file type icon VTX A12/B35 Revit/BIM Files
versão 3.0, atualizado: ago 2026
3.0  50 MB ago 2026
file type icon VTX A12/B35 SketchUp File
versão 3.0, atualizado: ago 2026
3.0  5 MB ago 2026
