JBL Professional MD7

Imagens maiores

Ultra Long Excursion High Power Dual 18" Subwoofer

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market.The MD7, dual 18" subwoofer system is fitted with two JBL 2269H Differential Drive, Vented Gap Cooling capable of generating frequency response to 25 Hz in a sonically superior and visually imposing dance floor system. The MD7 is intended to be used in conjunction with the MD1 super tweeter, MD2 mid-high system, and MD3 low-frequency system. When all elements are combined they complete a high energy five-way dance system with unprecedented fidelity, clarity, and breathtaking purity.

Características

Dual JBL 2269H 4" dual voice coil – dual magnetic gap Differential Drive® woofers with Vented Gap Cooling™
4000 watts continuous program power handling
Horn-loaded enclosure for low distortion
Ultra low-frequency response with true sub-bass extension

Applications

Sophisticated dance clubs
Anywhere high energy dance music is required

Descarregamentos

Documentos

	Idioma	Tamanho	Carregado
Marquis Dance Brochure atualizado: abr 2026		500 KB	abr 2026
MD7 Spec Sheet atualizado: abr 2026		500 KB	abr 2026

Data Sheets

	Tamanho	Carregado
MD7 Spec Sheet atualizado: out 2019	500 KB	out 2019

Specifications

	Tamanho	Carregado
Marquis Dance Club Series Spec Sheets atualizado: jul 2019	4 MB	jul 2019

Brochures

	Tamanho	Carregado
Marquis Dance Club Series Brochure atualizado: jul 2019	500 KB	jul 2019

CAD Drawings

	Tamanho	Carregado
Marquis Dance Series Customer Drawings PDF atualizado: out 2019	200 KB	out 2019
Marquis Dance Series 3D DXF Drawings atualizado: out 2019	10 MB	out 2019
Marquis Dance Series 2D DXF Drawings atualizado: out 2019	600 KB	out 2019

Compliances

	Tamanho	Carregado
Marquis Dance Club Series Declaration of Conformity atualizado: out 2019	100 KB	out 2019

Speaker Tunings

	Tamanho	Carregado
Marquis Dance Club Series Tunings atualizado: out 2019	1 MB	out 2019

Images

	Tamanho	Carregado

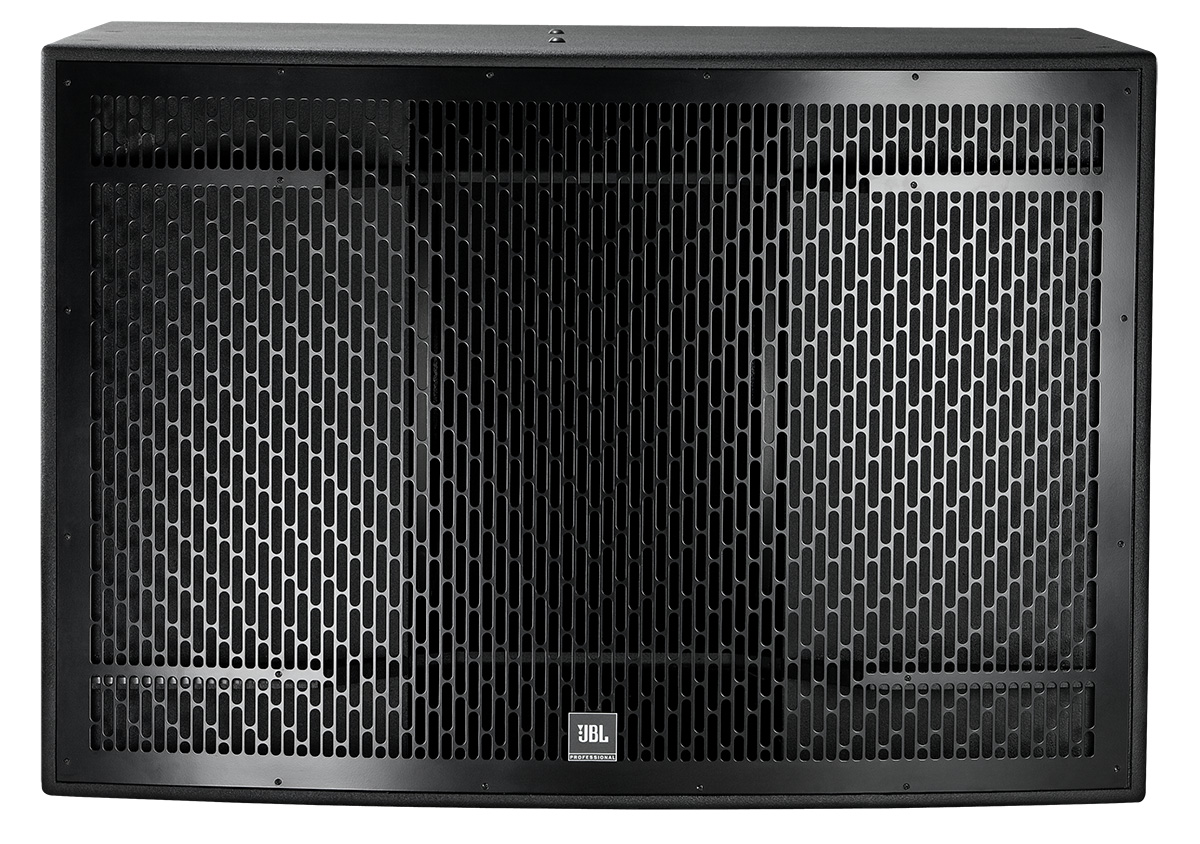

MD7 Hi-Res Image 2 atualizado: jul 2019	400 KB	jul 2019

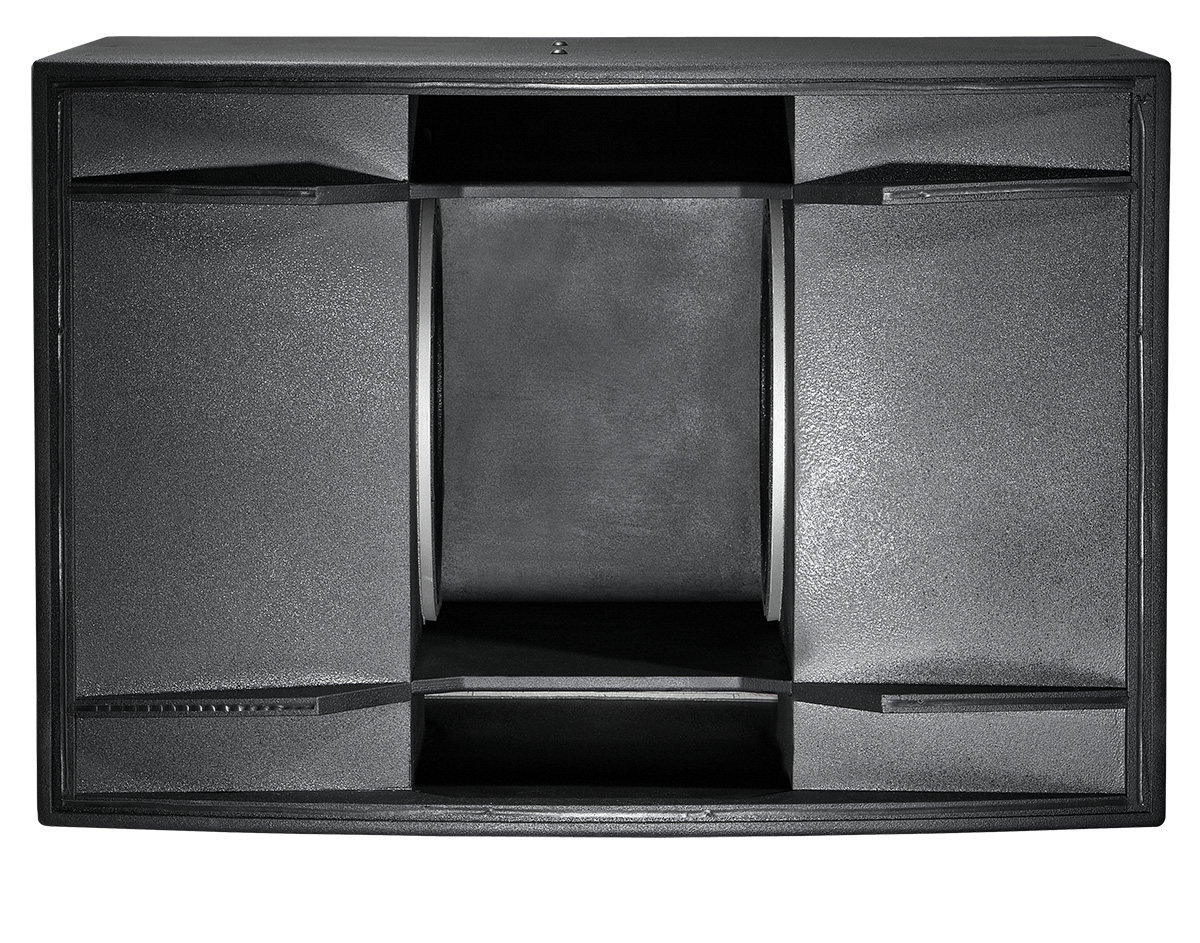

MD7 Hi-Res Image atualizado: jul 2019	500 KB	jul 2019

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range (-10dB)	22 - 240 Hz
Power Rating	4000 W (16000 W peak), 2 hrs
Input Modes	Drivers Parallel / Drivers Discrete
Frequency Response (±3 dB)	25 - 120 Hz
Maximum SPL (1m)	135 dB-SPL cont. avg. (141 dB peak)
System Sensitivity	112 dB SPLk 2.83V (2W) @ 1m (3.3 ft)
Nominal Impedance	4 ohms in parallel-drive mode2 x 8 ohms in discrete-drive mode
LF Driver	2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive®, VGC™ drivers
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	18 points (5 top, 5 bottom, 4 each side) M10 threaded hardware.
Finish	Black DuraFlex™ finish.
Grille	Powder coated 14 gauge perforated steel.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Dimensions (H x W x D in vertical orientation)	762.0 x 1121.7 x 965.7 mm (30.0 x 44.2 x 38.0 in)
Net Weight	108 kg (238 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
