JBL Professional Control 85M

큰 이미지

Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.

특징

Components:
• 5¼” highly weather-resistant driver
• ¾” soft-dome highly weather-resistant tweeter
80W Pink Noise Power Handling (160W program) in direct 8Ώ setting, plus built-in 30W 70V/100V multi-tap transformer
Tough polyethylene highly weather resistant enclosure
Fully isolated center chamber for wiring protection
High fidelity sound character with broad frequency range of 55Hz - 18kHz

다운로드

Specifications

	크기	업로드 날짜
Control 85M Spec Sheet 업데이트: 2019년 4월	522KB	2019년 4월

Brochures

	버전	언어	크기	업로드 날짜
Control Contractor Brochure (2025) 버전 A, 업데이트: 2026년 3월	A		23MB	2026년 3월
Control Contractor Brochure (2024) 버전 D, 업데이트: 2024년 2월	D		14MB	2024년 2월
Control Contractor Brochure (2026) 업데이트: 2026년 3월			21MB	2026년 3월

CAD Drawings

	크기	업로드 날짜
Control 85M Drawing 업데이트: 2019년 10월	2.24MB	2019년 10월

Compliances

	크기	업로드 날짜
JBL Control Series Passive Speakers DoC 업데이트: 2019년 12월	179KB	2019년 12월
Control 80 Series - Declaration of Conformity 업데이트: 2019년 10월	139KB	2019년 10월

Install Guides

	버전	크기	업로드 날짜
Control 80 Series Landscape Speakers Install Guide 버전 B, 업데이트: 2022년 7월	B	8.95MB	2022년 7월

CLF Files

	크기	업로드 날짜
Control 85M & 88M CLF Files 업데이트: 2020년 10월	239KB	2020년 10월

Speaker Tunings

	버전	크기	업로드 날짜
Commercial, CBT, and AWC Tunings 220616 버전 A, 업데이트: 2023년 5월	A	557KB	2023년 5월

Images

	크기	업로드 날짜

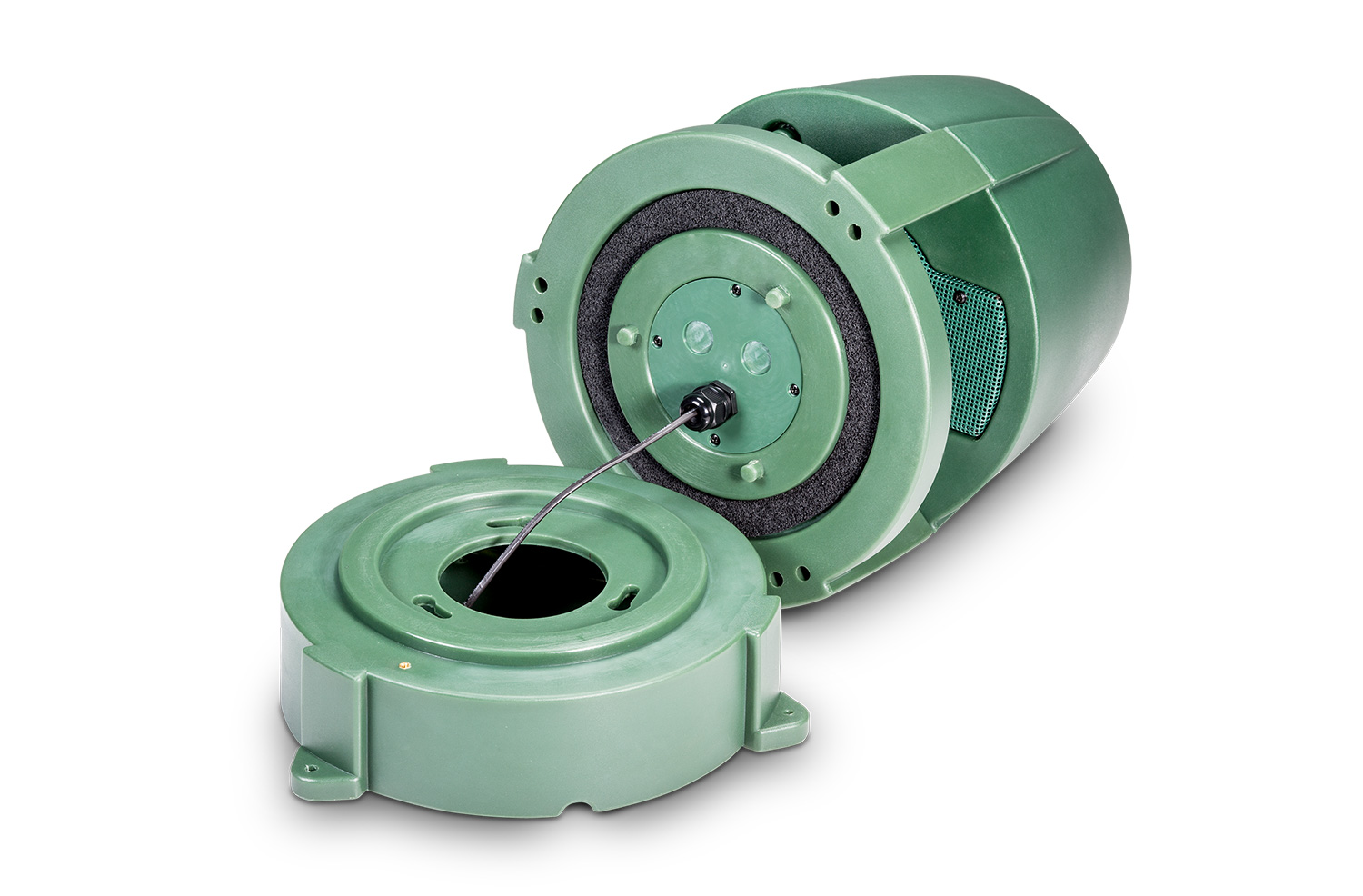

Control 85M Open 업데이트: 2019년 4월	220KB	2019년 4월

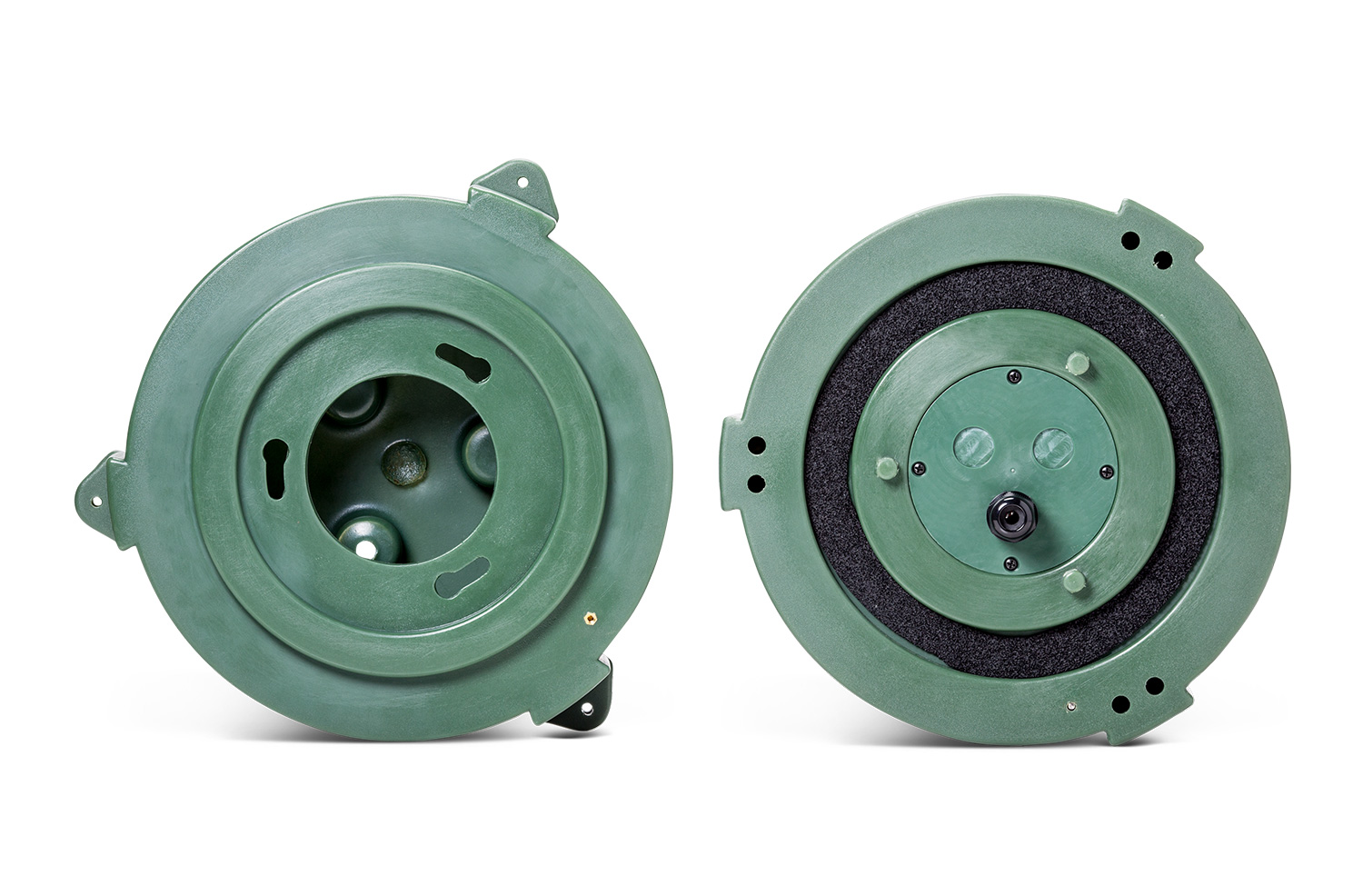

control 85M Bottom 업데이트: 2019년 4월	288KB	2019년 4월

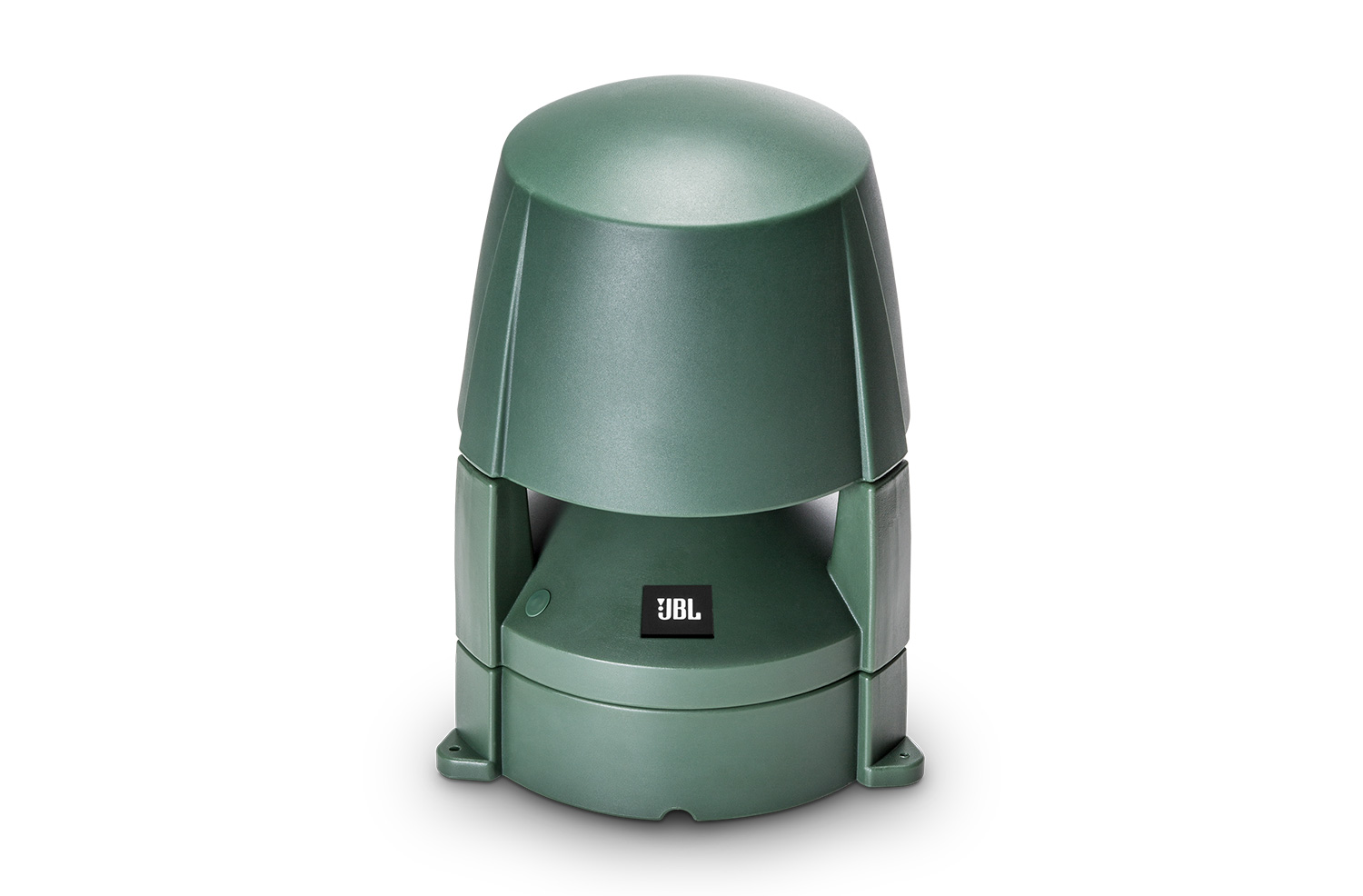

Control 85M Angle 업데이트: 2019년 4월	144KB	2019년 4월

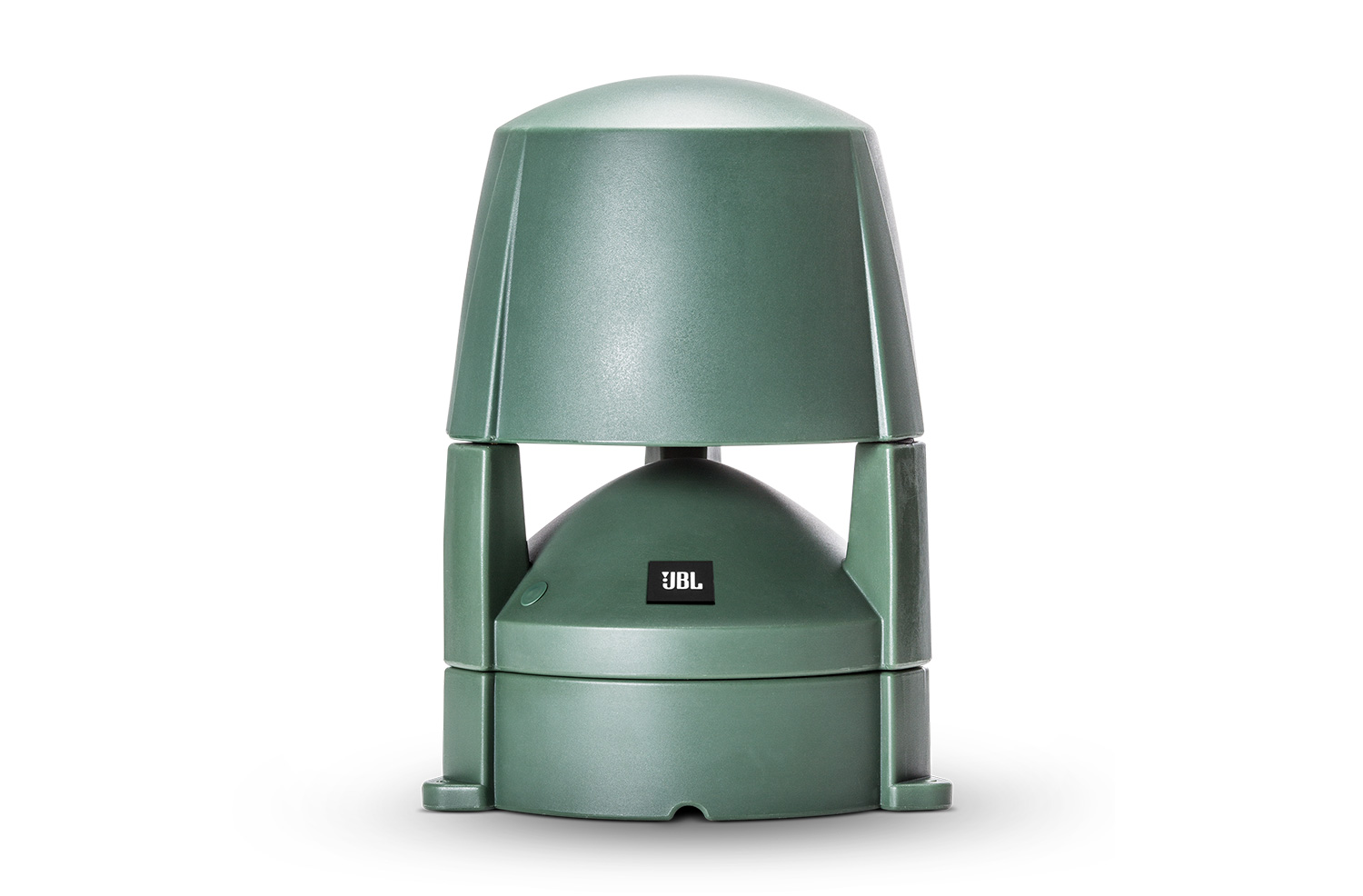

Control 85M Front 업데이트: 2019년 4월	163KB	2019년 4월

Ease Data

	크기	업로드 날짜
Control 85M EASE/GLL File 업데이트: 2019년 4월	430KB	2019년 4월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

부품 및 서비스

사양

Frequency Range (-10dB)	55 Hz – 18 kHz
Power Rating	160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs)
Transformer Taps	70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W
Frequency Response (±3 dB)	65Hz - 16 kHz
Maximum Input Voltage	23.3 V
Sensitivity	86 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Coverage Pattern	360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q)	2.2
Directivity Index (DI)	3.4 dB
Maximum SPL (1m)	105 dB
Impedance	8Ω (at 8Ω setting)
Insertion Loss	<1.0 dB at any tap setting
Thru Setting	8Ω nominal
Crossover Type	2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass	65 Hz for 8Ω operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
LF Driver	LF: 135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround. HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure	LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille	Powder coated stainless steel.
Outdoor Capability	IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency	UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors	Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section).
Wiring	Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS).
Colors	Hunter Green, RAL6018
Dimensions (H x W x D)	432 x 291 x 291mm (17 x 11.5 x 11.5 in.)
Net Weight (each)	5.5 kg (12 lb)
Shipping Weight	7.3 kg (16 lb)
Included Accessories	(2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools	22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories	22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
