Control 85M

Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker

Control 85M
صور أكبر

Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.

الميزات

  • Components:
    • 5¼” highly weather-resistant driver
    • ¾” soft-dome highly weather-resistant tweeter
  • 80W Pink Noise Power Handling (160W program) in direct 8Ώ setting, plus built-in 30W 70V/100V multi-tap transformer
  • Tough polyethylene highly weather resistant enclosure
  • Fully isolated center chamber for wiring protection
  • High fidelity sound character with broad frequency range of 55Hz - 18kHz

التنزيلات

Specifications
  الحجم تاريخ التحميل
file type icon Control 85M Spec Sheet
تم التحديث: أبريل 2019
522 KB أبريل 2019
Brochures
  الإصدار اللغة الحجم تاريخ التحميل
file type icon Control Contractor Brochure (2025)
en الإصدار A, تم التحديث: مارس 2026
en  23 MB مارس 2026
file type icon Control Contractor Brochure (2024)
en الإصدار D, تم التحديث: فبراير 2024
en  14 MB فبراير 2024
file type icon Control Contractor Brochure (2026)
en تم التحديث: مارس 2026
  en  21 MB مارس 2026
CAD Drawings
  الحجم تاريخ التحميل
file type icon Control 85M Drawing
تم التحديث: أكتوبر 2019
2.24 MB أكتوبر 2019
Compliances
  الحجم تاريخ التحميل
file type icon JBL Control Series Passive Speakers DoC
تم التحديث: ديسمبر 2019
179 KB ديسمبر 2019
file type icon Control 80 Series - Declaration of Conformity
تم التحديث: أكتوبر 2019
139 KB أكتوبر 2019
Install Guides
  الإصدار الحجم تاريخ التحميل
file type icon Control 80 Series Landscape Speakers Install Guide
الإصدار B, تم التحديث: يوليو 2022
8.95 MB يوليو 2022
CLF Files
  الحجم تاريخ التحميل
file type icon Control 85M & 88M CLF Files
تم التحديث: أكتوبر 2020
239 KB أكتوبر 2020
Speaker Tunings
  الإصدار الحجم تاريخ التحميل
file type icon Commercial, CBT, and AWC Tunings 220616
الإصدار A, تم التحديث: مايو 2023
557 KB مايو 2023
Images
  الحجم تاريخ التحميل
file type icon Control 85M Open
تم التحديث: أبريل 2019
220 KB أبريل 2019

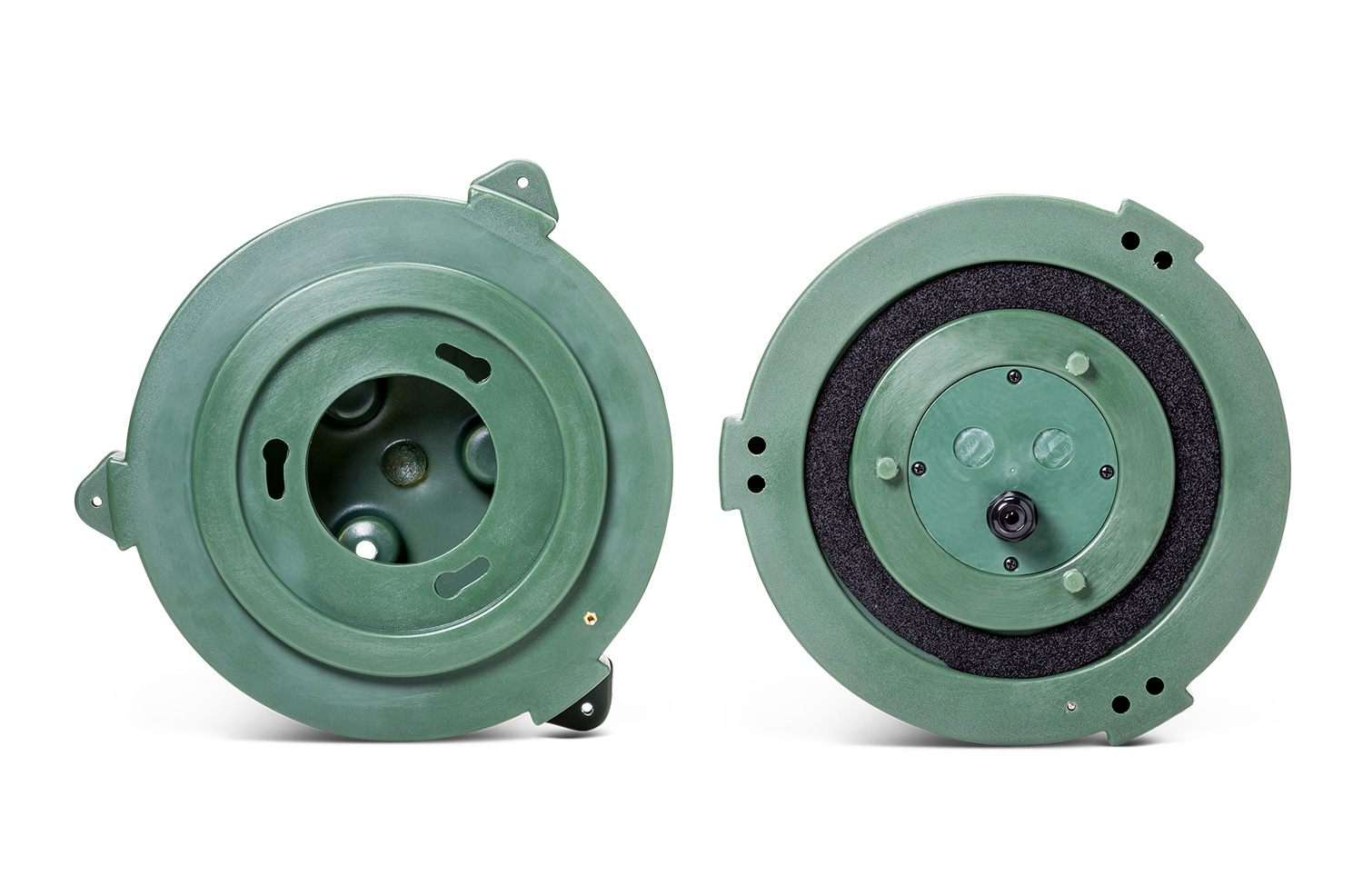

file type icon control 85M Bottom
تم التحديث: أبريل 2019
288 KB أبريل 2019

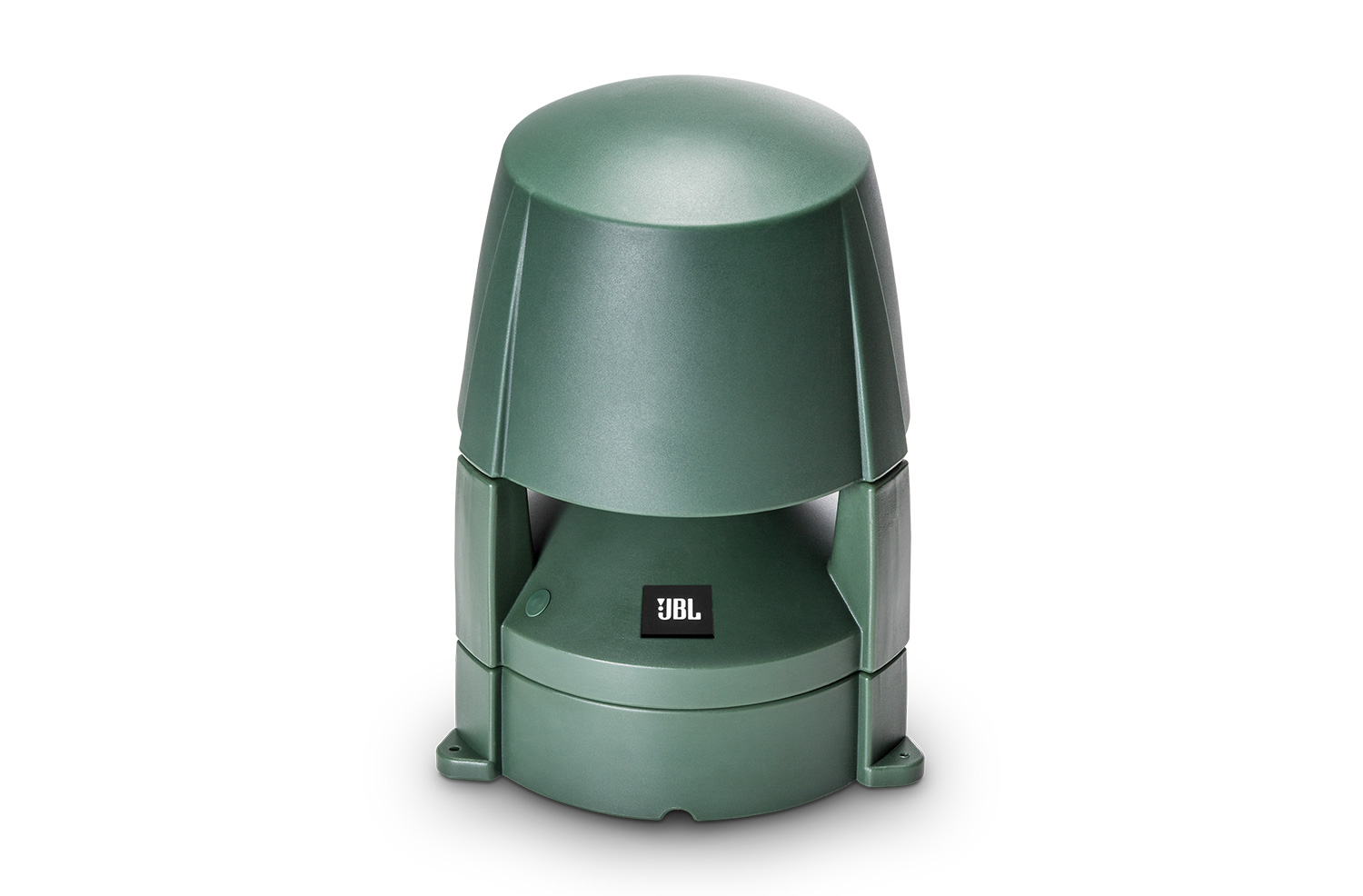

file type icon Control 85M Angle
تم التحديث: أبريل 2019
144 KB أبريل 2019

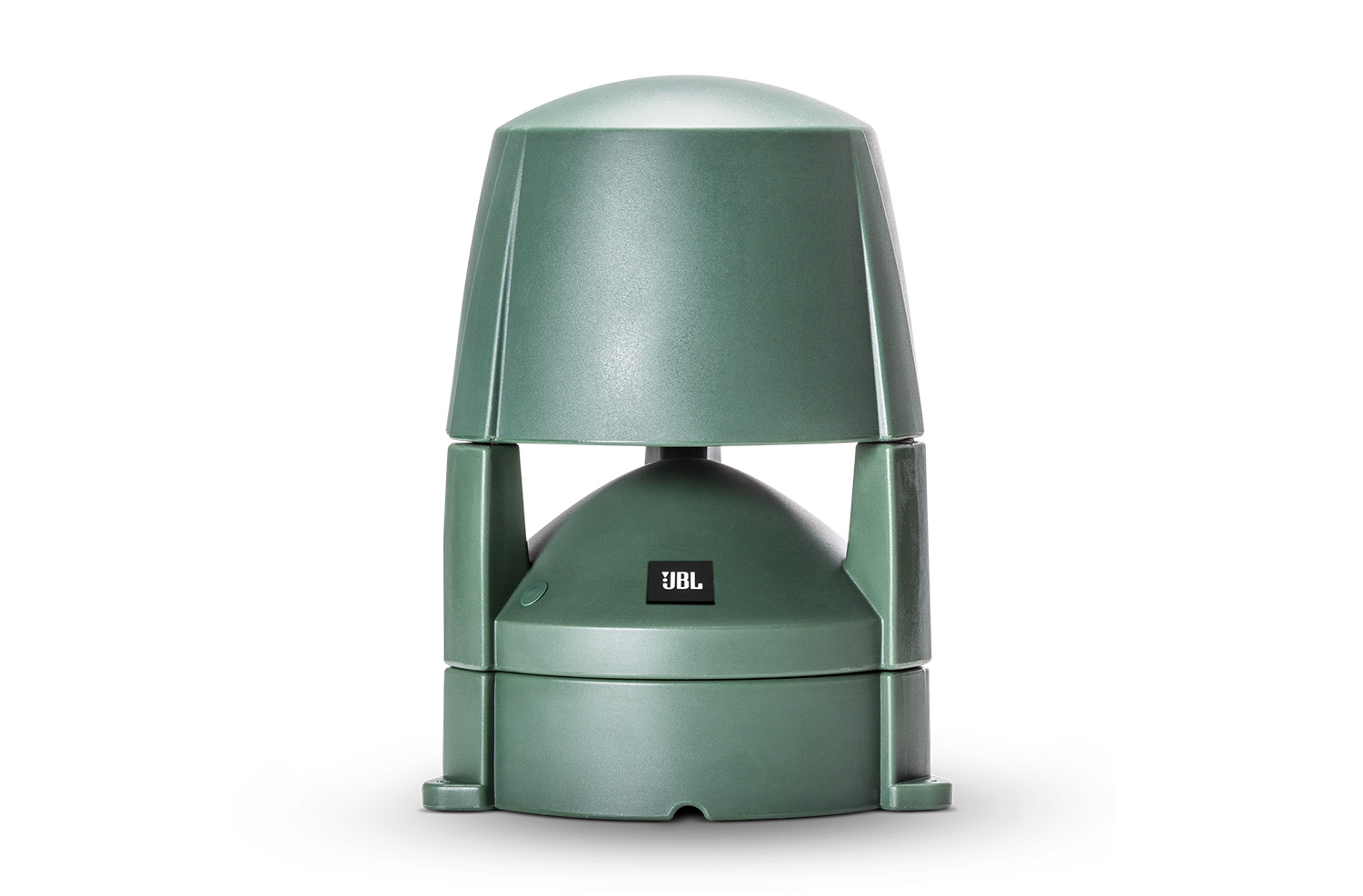

file type icon Control 85M Front
تم التحديث: أبريل 2019
163 KB أبريل 2019
Ease Data
  الحجم تاريخ التحميل
file type icon Control 85M EASE/GLL File
تم التحديث: أبريل 2019
430 KB أبريل 2019

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Frequency Range (-10dB) 55 Hz – 18 kHz
Power Rating 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs)
Transformer Taps 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W
Frequency Response (±3 dB) 65Hz - 16 kHz
Maximum Input Voltage 23.3 V
Sensitivity 86 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Coverage Pattern 360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q) 2.2
Directivity Index (DI) 3.4 dB
Maximum SPL (1m) 105 dB
Impedance 8Ω (at 8Ω setting)
Insertion Loss <1.0 dB at any tap setting
Thru Setting 8Ω nominal
Crossover Type 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass 65 Hz for 8Ω operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
LF Driver LF: 135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround.
HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille Powder coated stainless steel.
Outdoor Capability IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section).
Wiring Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS).
Colors Hunter Green, RAL6018
Dimensions (H x W x D) 432 x 291 x 291mm (17 x 11.5 x 11.5 in.)
Net Weight (each) 5.5 kg (12 lb)
Shipping Weight 7.3 kg (16 lb)
Included Accessories (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
