Control 85M

Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker

Control 85M
较大的图像

Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.

特点

  • Components:
    • 5¼” highly weather-resistant driver
    • ¾” soft-dome highly weather-resistant tweeter
  • 80W Pink Noise Power Handling (160W program) in direct 8Ώ setting, plus built-in 30W 70V/100V multi-tap transformer
  • Tough polyethylene highly weather resistant enclosure
  • Fully isolated center chamber for wiring protection
  • High fidelity sound character with broad frequency range of 55Hz - 18kHz

下载

  Version Language Size Uploaded
Specifications
file type icon Control 85M Spec Sheet
updated: 4月 2019
    521.5 KB 4月 2019
Brochures
file type icon Control Contractor Brochure (2024)
en version E, updated: 3月 2024
en  14.2 MB 3月 2024
CAD Drawings
file type icon Control 85M Drawing
updated: 10月 2019
    2.2 MB 10月 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: 12月 2019
    179.3 KB 12月 2019
file type icon Control 80 Series - Declaration of Conformity
updated: 10月 2019
    139.3 KB 10月 2019
Install Guides
file type icon Control 80 Series Landscape Speakers Install Guide
version B, updated: 7月 2022
  9.0 MB 7月 2022
CLF Files
file type icon Control 85M & 88M CLF Files
updated: 10月 2020
    239.4 KB 10月 2020
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Images

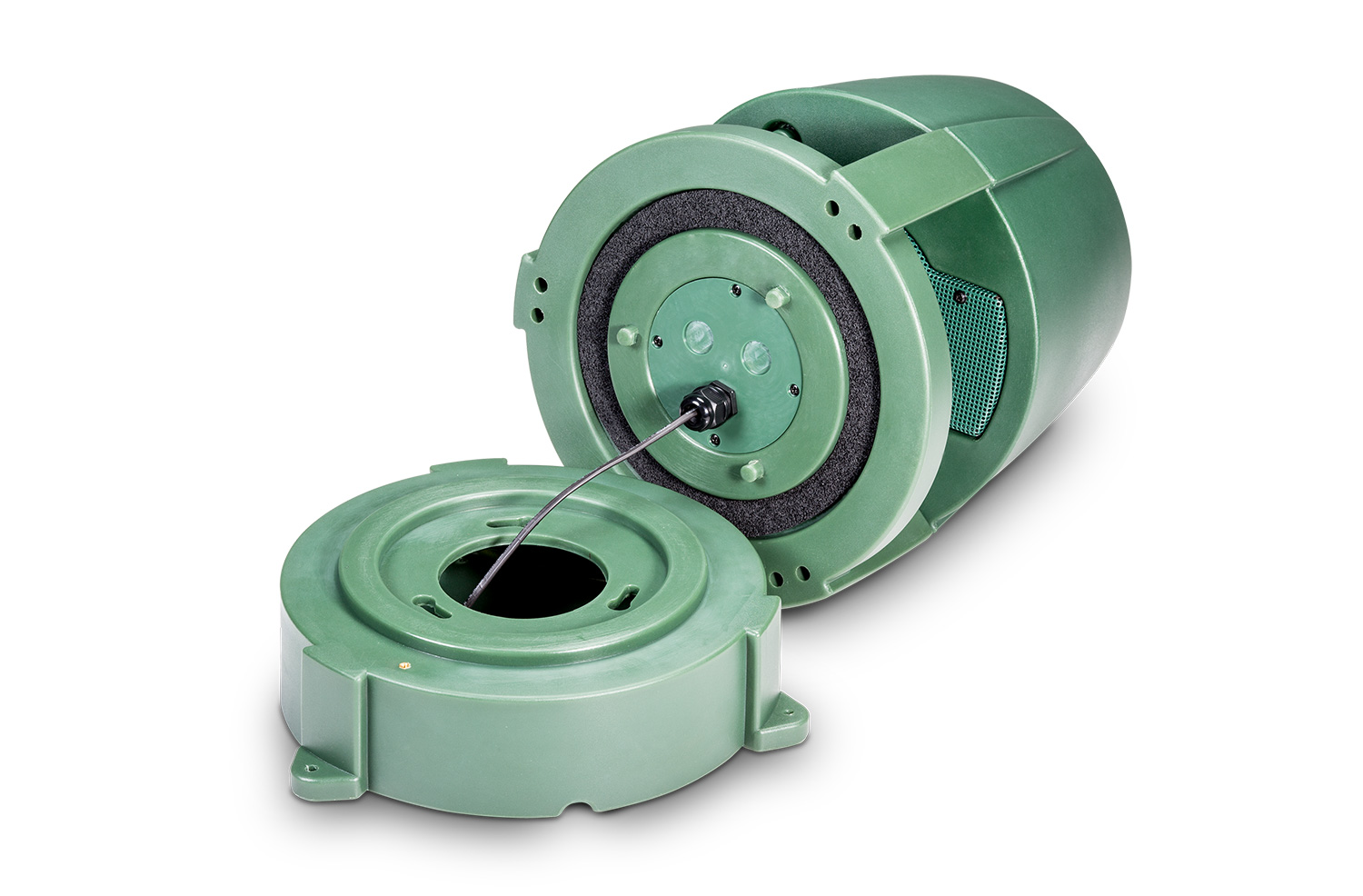

file type icon Control 85M Open
updated: 4月 2019
    219.6 KB 4月 2019

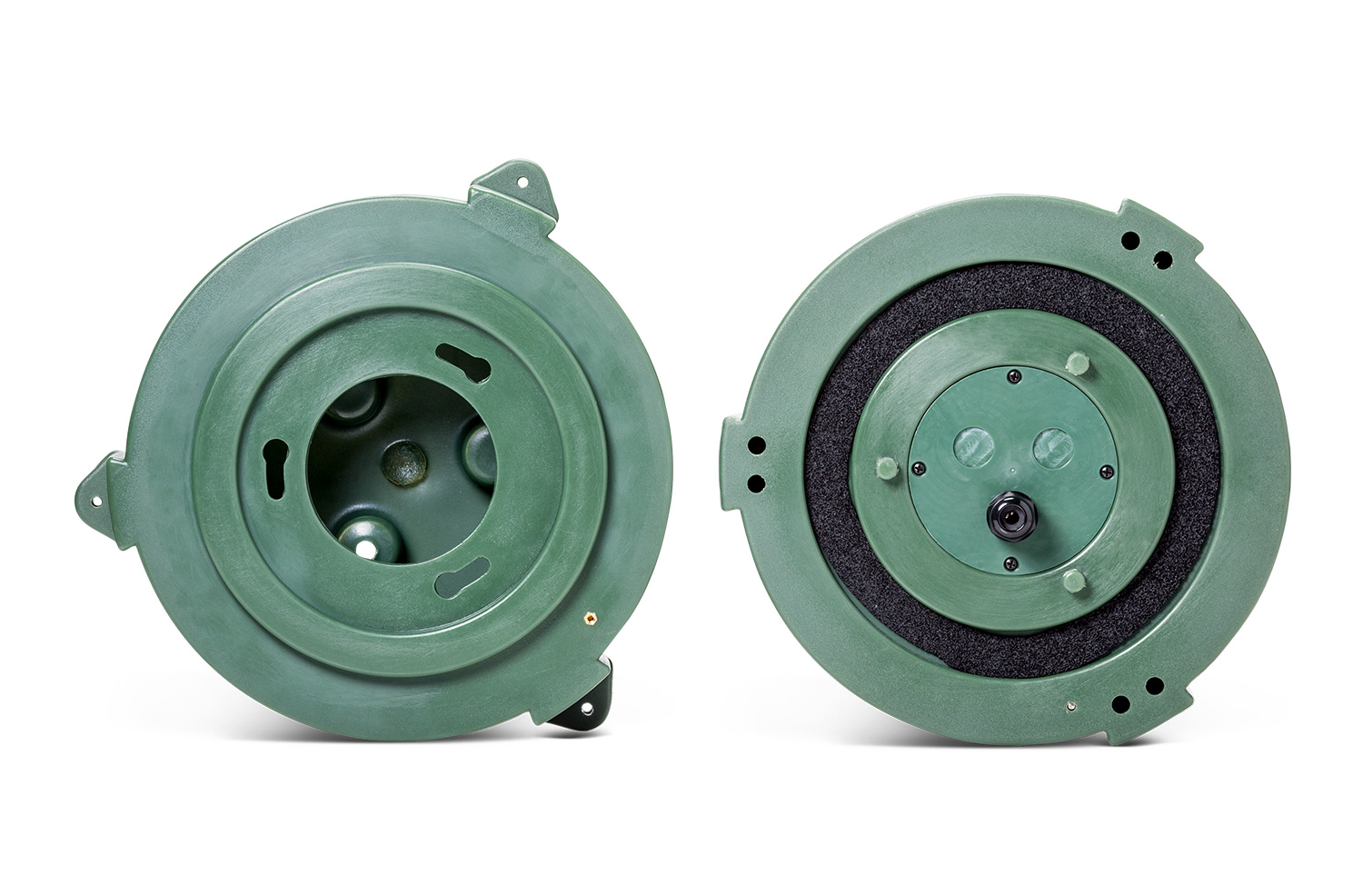

file type icon control 85M Bottom
updated: 4月 2019
    287.9 KB 4月 2019

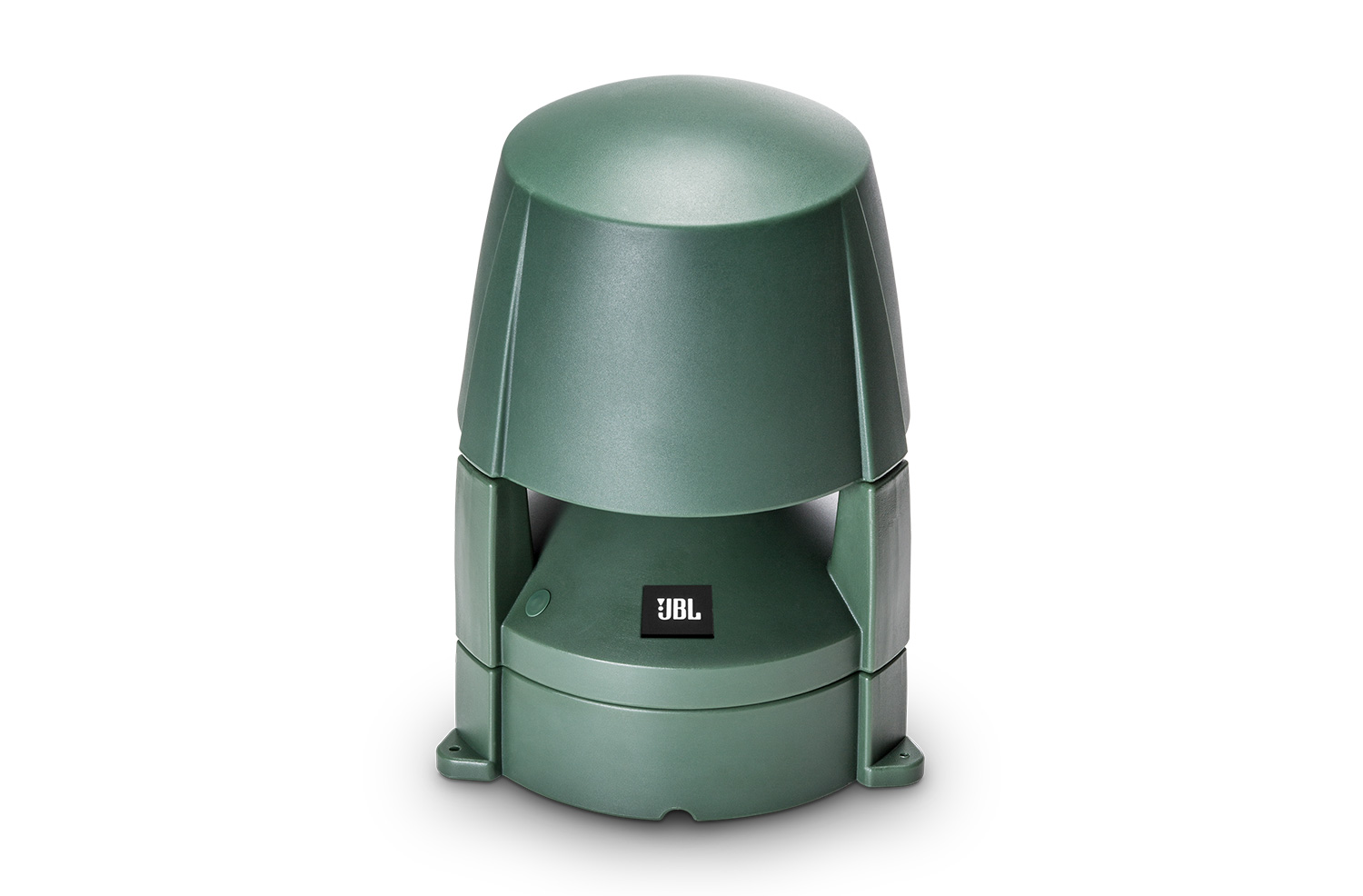

file type icon Control 85M Angle
updated: 4月 2019
    144.2 KB 4月 2019

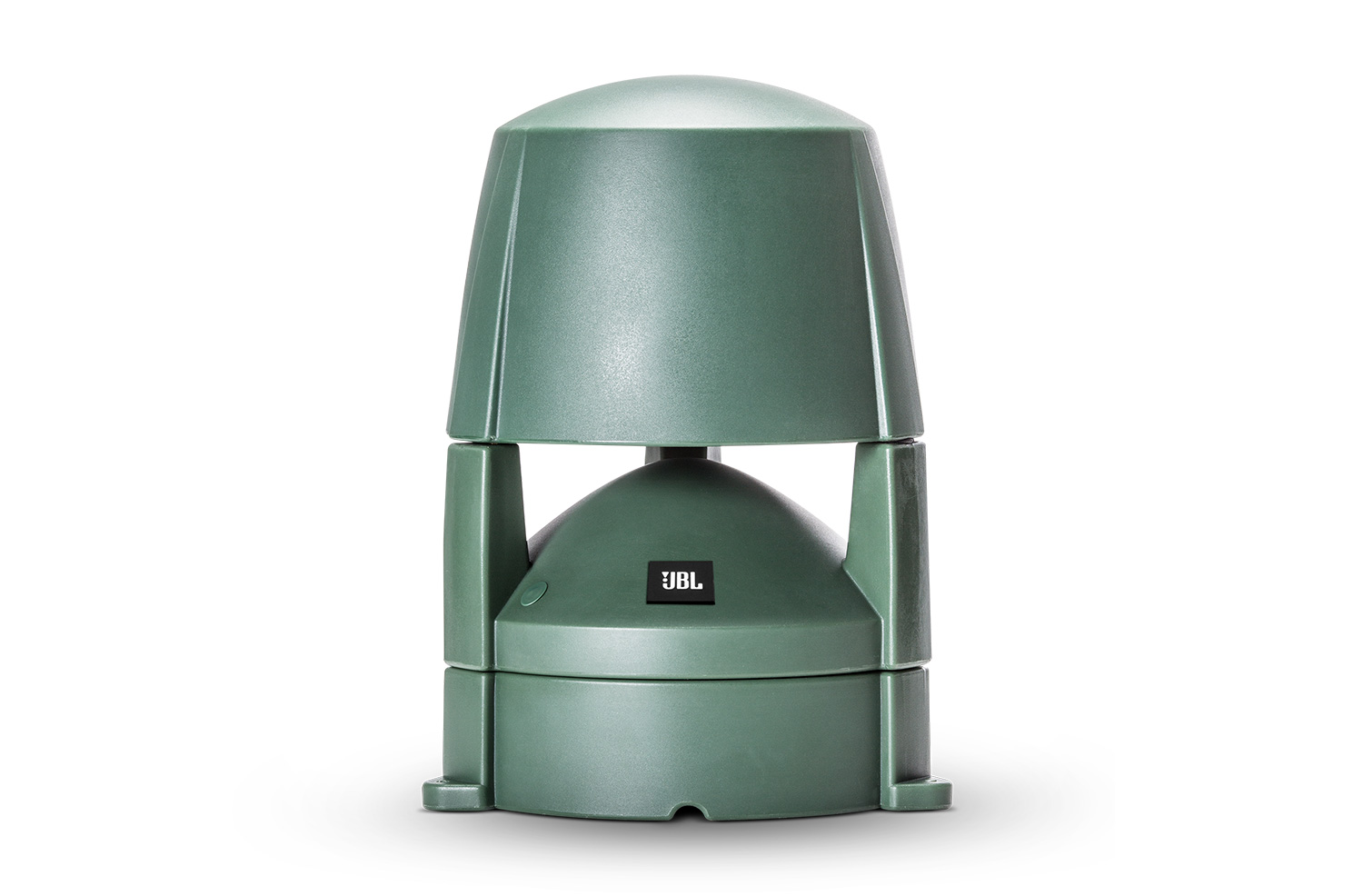

file type icon Control 85M Front
updated: 4月 2019
    163.2 KB 4月 2019
Ease Data
file type icon Control 85M EASE/GLL File
updated: 4月 2019
    429.9 KB 4月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 55 Hz – 18 kHz
额定功率 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs)
变压器抽头 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W
Frequency Response (±3 dB) 65Hz - 16 kHz
Maximum Input Voltage 23.3 V

灵敏度

86 dB, 1W @ 1m (ave. 80Hz - 16kHz)
覆盖范围 360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q) 2.2
Directivity Index (DI) 3.4 dB
Maximum SPL (1m) 105 dB
阻抗 8Ω (at 8Ω setting)

插入损耗

<1.0 dB at any tap setting
Thru Setting 8Ω nominal
Crossover Type 2nd Order LPF on LF and 2nd Order HPF on HF
建议的保护高通 65 Hz for 8Ω operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
低频驱动单元 LF: 135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround.
HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
网罩 Powder coated stainless steel.
Outdoor Capability IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
输入接口 Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section).
Wiring Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS).
Colors Hunter Green, RAL6018
尺寸(高 x 宽 x 厚) 432 x 291 x 291mm (17 x 11.5 x 11.5 in.)
Net Weight (each) 5.5 kg (12 lb)

运输重量

7.3 kg (16 lb)

随附配件

(2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
