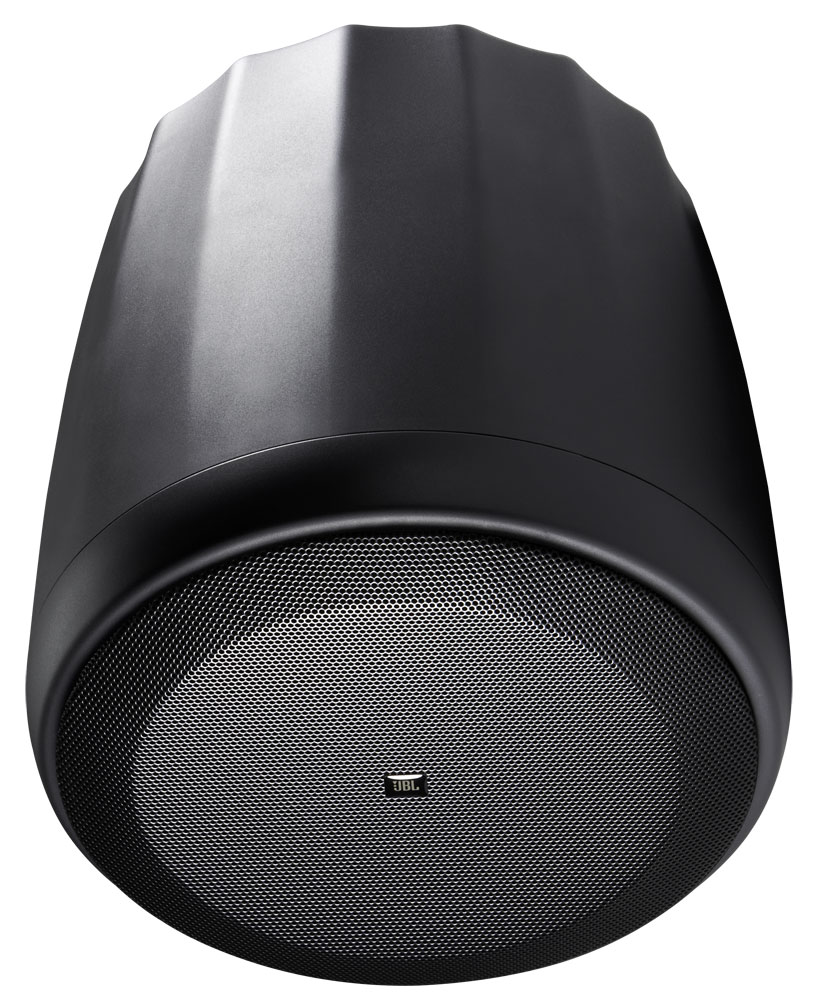

វិសាលភាពគ្របដណ្តប់ចង្អៀតដែលត្រូវបានគ្រប់គ្រងយ៉ាងល្អរបស់ Control 67HC គឺល្អបំផុតសម្រាប់បង្កើនភាពច្បាស់នៃសំឡេងនិយាយ និងភាពច្បាស់លាស់នៃតន្ត្រី នៅក្នុងទីកន្លែងដែលមានពិដានខ្ពស់ ឬក្នុងបន្ទប់ដែលមានលក្ខណៈអាកូស្ទិកលំបាក ដូចជាមជ្ឈមណ្ឌលសន្និបាត មជ្ឈមណ្ឌលដឹកជញ្ជូនសាធារណៈ ទីកន្លែងតាំងពិព័រណ៍ និងតំបន់ atrium របស់សណ្ឋាគារ។
| ទំហំ | |
|
|
997 KB |
| ទំហំ | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
|
|
267 KB |
| ទំហំ | |
|
|
4.14 MB |
| ទំហំ | |
|
|
| ទំហំ | |
|
|
987 KB |
| ទំហំ | |
|
|
612 KB |
| ទំហំ | |
|
|
146 KB |
|
|
886 KB |
| ទំហំ | |
|
|
77.2 KB |
|
|
170 KB |
| ទំហំ | |
|
|
557 KB |
| ទំហំ | |
|
|
710 KB |
| ទំហំ | |
|
|
962 KB |
| ទំហំ | |
|
|
377 KB |
| ទំហំ | |
|
|
337 KB |
ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។
| Frequency Range (-10dB) | 75 Hz – 17 kHz |
| Frequency Range (±3 dB) | 110 Hz – 16 kHz |
| Power Rating | 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power |
| Nominal Sensitivity | 93 dB |
| Coverage Angle | 75° conical |
| Directivity Factor (Q) | 10.4 |
| Directivity Index (DI) | 9.8 dB |
| Maximum SPL (1m) | 112 dB continuous pink noise, 118 dB peak |
| Impedance | 8 ohms |
| Transformer Taps | 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W |
| Transformer Insertion Loss | 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W |
| Drivers | LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former |
| Enclosure | High impact polystyrene |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. |
| Input Connectors | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Suspension | Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
| Safety Agency | Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. |
| Dimensions (H x W x D) | 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket. |
| Net Weight (each) | 5.9 kg (13 lbs) |
| Shipping Weight (pair) | 14.1 kg (31 lbs) |
| Included Accessories | Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. |
| Optional Accessories | MTC-PC60HC top panel / terminal cover |
| Colors | Available in black or white (-WH). Paintable. |
