SRX818S

18-inch Passive Subwoofer

Acquista ora
SRX818S
Immagini più grandi

18-inch Passive Subwoofer

SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



Caratteristiche

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
  • Frequency Response: 45Hz-150Hz
  • Max SPL: 129dB (Peak)
  • Amplification options: Passive
  • 2279 LF 8 Ohm 18” Woofer

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Ulteriori dettagli

DESIGN INTENZIONALE

Ogni dettaglio della Serie SRX800 è stato progettato intenzionalmente e sviluppato con piena considerazione del suo uso previsto. Le maniglie ergonomiche supportano una presa facile e non affaticante per una movimentazione semplificata. I punti di sospensione M10, i piedini indicizzati e i supporti per asta/treppiede supportano un'ampia e flessibile gamma di configurazioni.

TECNOLOGIA DEI TRASDUTTORI

La Tecnologia Differential Drive® brevettata da JBL con driver in ferrite incorpora bobine vocali da 3" con magneti in ferrite a bassa massa per ridotto peso, maggiore gestione della potenza, distorsione eccezionalmente bassa e risposta in bassa frequenza estesa. Il 2432H di JBL è l'unico driver di compressione con bobina vocale da 3" in neodimio di questa classe, offrendo livelli di potenza molto elevati e un suono liscio e cristallino.

Download

Specifications
  Versione Dimensione Caricato
file type icon SRX818S Spec Sheet
versione 11_11_19, aggiornato: dic 2019
11_11_19  627 KB dic 2019
Brochures
  Versione Lingua Dimensione Caricato
file type icon JBL 2025 PPA Brochure
en versione B, aggiornato: ago 2025
B  en  8,45 MB ago 2025
Compliances
  Dimensione Caricato
file type icon SRX800 Passive Series Compliance
aggiornato: ott 2020
139 KB ott 2020
Software
  Dimensione Caricato
file type icon Audio Architect
aggiornato: apr 2019
9,96 KB apr 2019
Android download icon SRX Connect
rilasciato: ago 2023
ago 2023
Windows download icon HiQnet Audio Architect
rilasciato: nov 2020
nov 2020
iOS download icon SRX Connect
rilasciato: ago 2023
ago 2023
Speaker Tunings
  Dimensione Caricato
file type icon SRX800 Passive I-Tech HD Tunings
aggiornato: ott 2020
23,7 KB ott 2020
file type icon SRX800 Passive I-Tech 4x3500HD Tunings
aggiornato: ott 2020
41,3 KB ott 2020
file type icon SRX Passive Bi-amp tunings Table
aggiornato: ott 2020
2,69 MB ott 2020
Images
  Dimensione Caricato
file type icon SRX800 Driver
aggiornato: apr 2019
158 KB apr 2019
file type icon SRX800 Handle
aggiornato: apr 2019
208 KB apr 2019

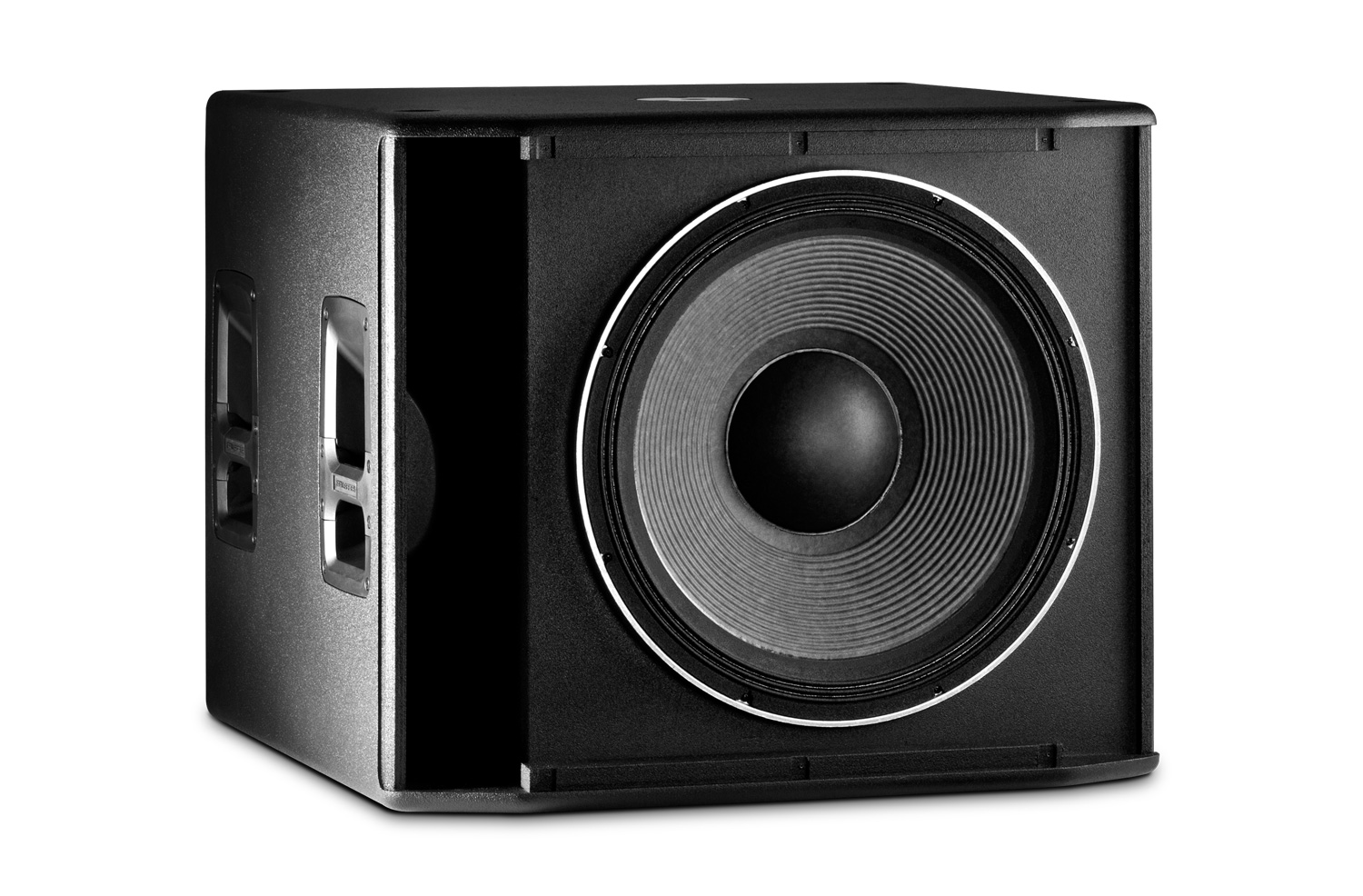

file type icon SRX818S Angle No-Grill
aggiornato: lug 2019
314 KB lug 2019

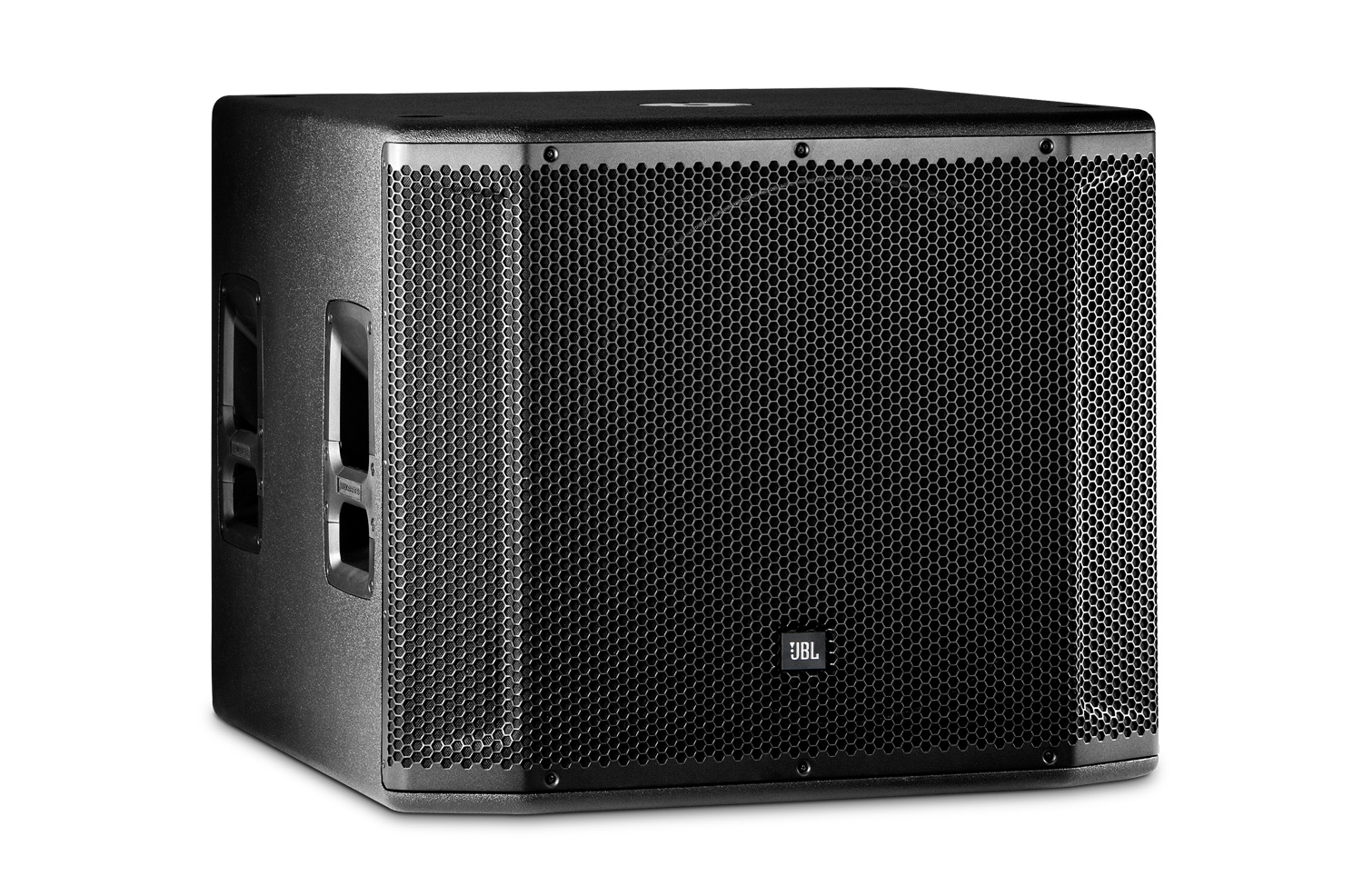

file type icon SRX818S Angle
aggiornato: lug 2019
498 KB lug 2019

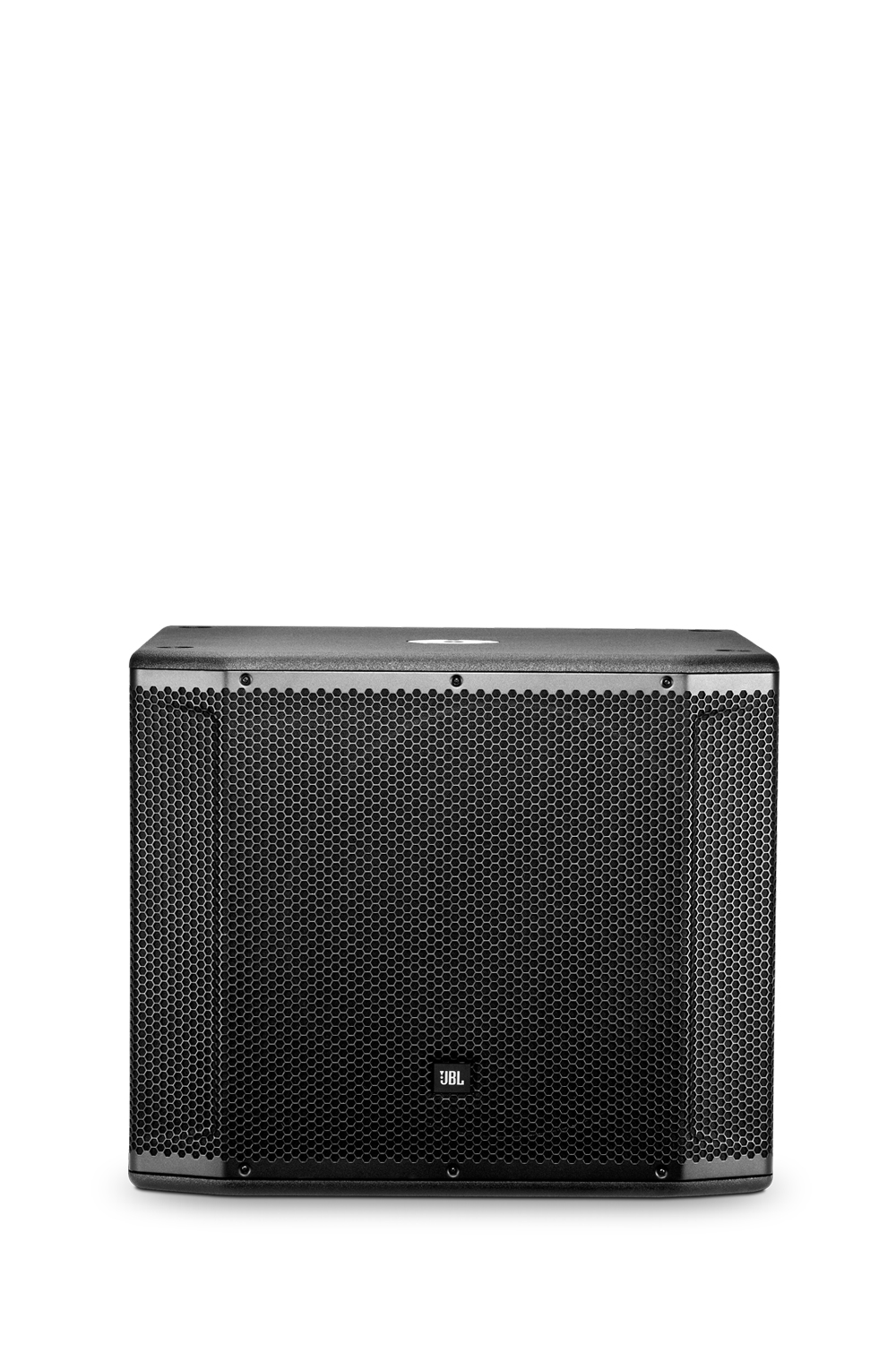

file type icon SRX818S Front
aggiornato: lug 2019
429 KB lug 2019

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

System Type Passive 18”, subwoofer system
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB) 28hz - 150hz
Frequency Response (-3 dB) 45hz - 150hz
Sensitivity 95dB
System Power Rating 2400W Peak , 1200W Program, 600W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive
LF Driver JBL 2279H
Crossover Frequency 80hz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting M20 Threaded Pole Mount
Casters Accepts JBL WK-4S Kit
Handles 4
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
Weight 78.0 lbs (35.4kg)
Shipping Weight 88 lbs (40.2kg)

Accessori

SRX818SP-CVR-DLX | Deluxe padded cover for SRX818SP
SRX818SP-CVR-DLX Main photo
Immagini più grandi
SRX818SP-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo

SRX818SP-CVR-DLX-WK4 | Deluxe padded cover for SRX818SP w/ Casters
SRX818SP-CVR-DLX-WK4 Main photo
Immagini più grandi
SRX818SP-CVR-DLX-WK4 detail thumbnail #1

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately)

JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Immagini più grandi
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Documentazione
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Immagini più grandi
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Documentazione
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Immagini più grandi
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Documentazione
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Immagini più grandi
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Documentazione
