SRX818S

18" Passive Subwoofer System

较大的图像

18" Passive Subwoofer System

SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



特点

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
  • Frequency Response: 45Hz-150Hz
  • Max SPL: 129dB (Peak)
  • Amplification options: Passive
  • 2279 LF 8 Ohm 18” Woofer

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


更多详情

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

下载

  Version Language Size Uploaded
Specifications
SRX818S Spec Sheet
version 11_11_19, updated: 12月17日
11_11_19    626.6 KB 12月17日
Compliances
SRX800 Passive Series Compliance
updated: 10月22日
    139.3 KB 10月22日
Software
Audio Architect
updated: 4月29日
    10.0 KB 4月29日
SRX Connect
updated: 10月09日
    10月09日
HiQnet Audio Architect
updated: 11月10日
    11月10日
SRX Connect
updated: 10月09日
    10月09日
Speaker Tunings
    41.3 KB 10月22日
SRX Passive Bi-amp tunings Table
updated: 10月22日
    2.7 MB 10月22日
SRX800 Passive I-Tech HD Tunings
updated: 10月22日
    23.7 KB 10月22日
Images
SRX800 Driver
updated: 4月29日
    157.9 KB 4月29日
SRX800 Handle
updated: 4月29日
    208.1 KB 4月29日

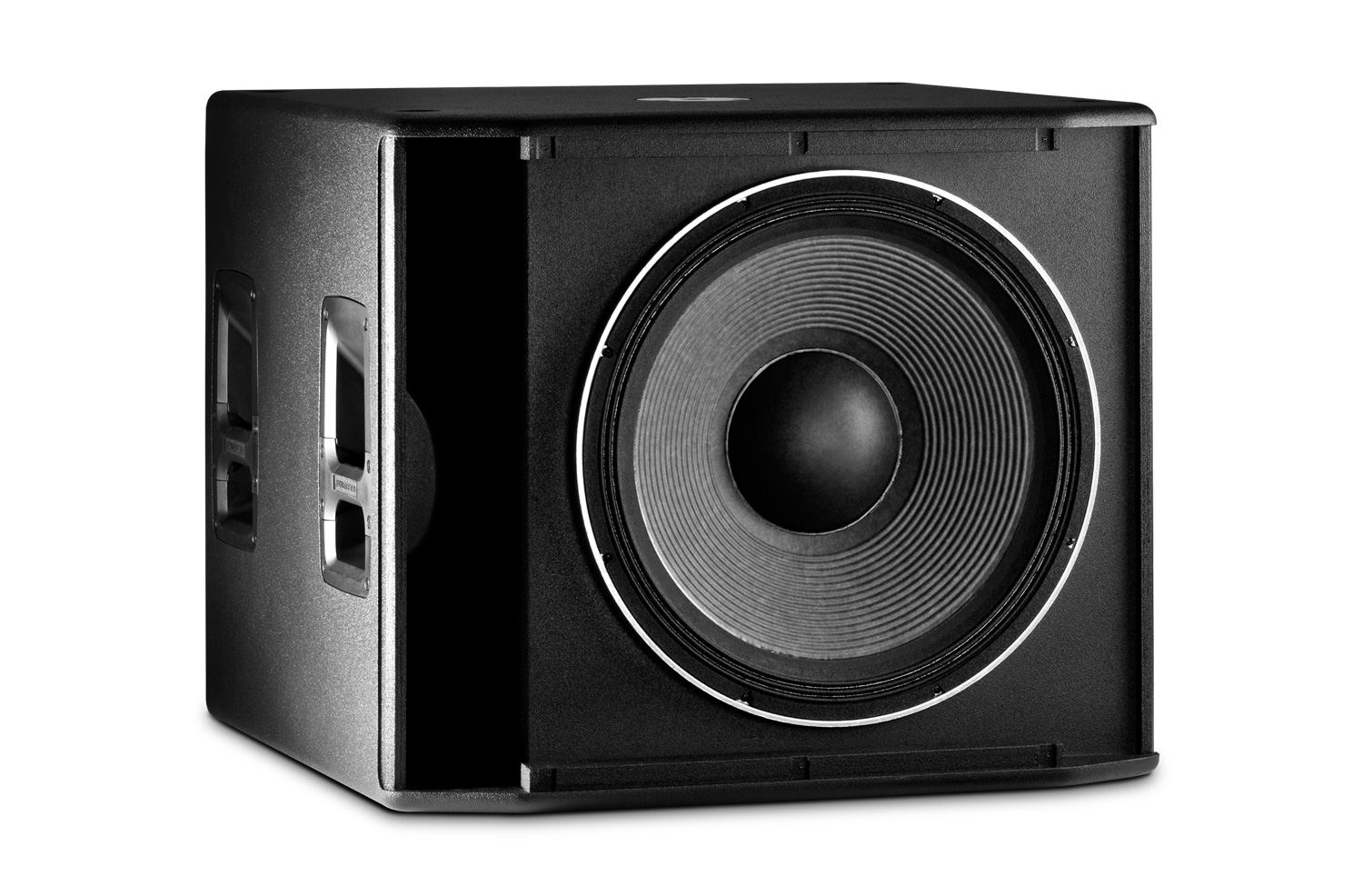

SRX818S Angle No-Grill
updated: 7月01日
    314.3 KB 7月01日

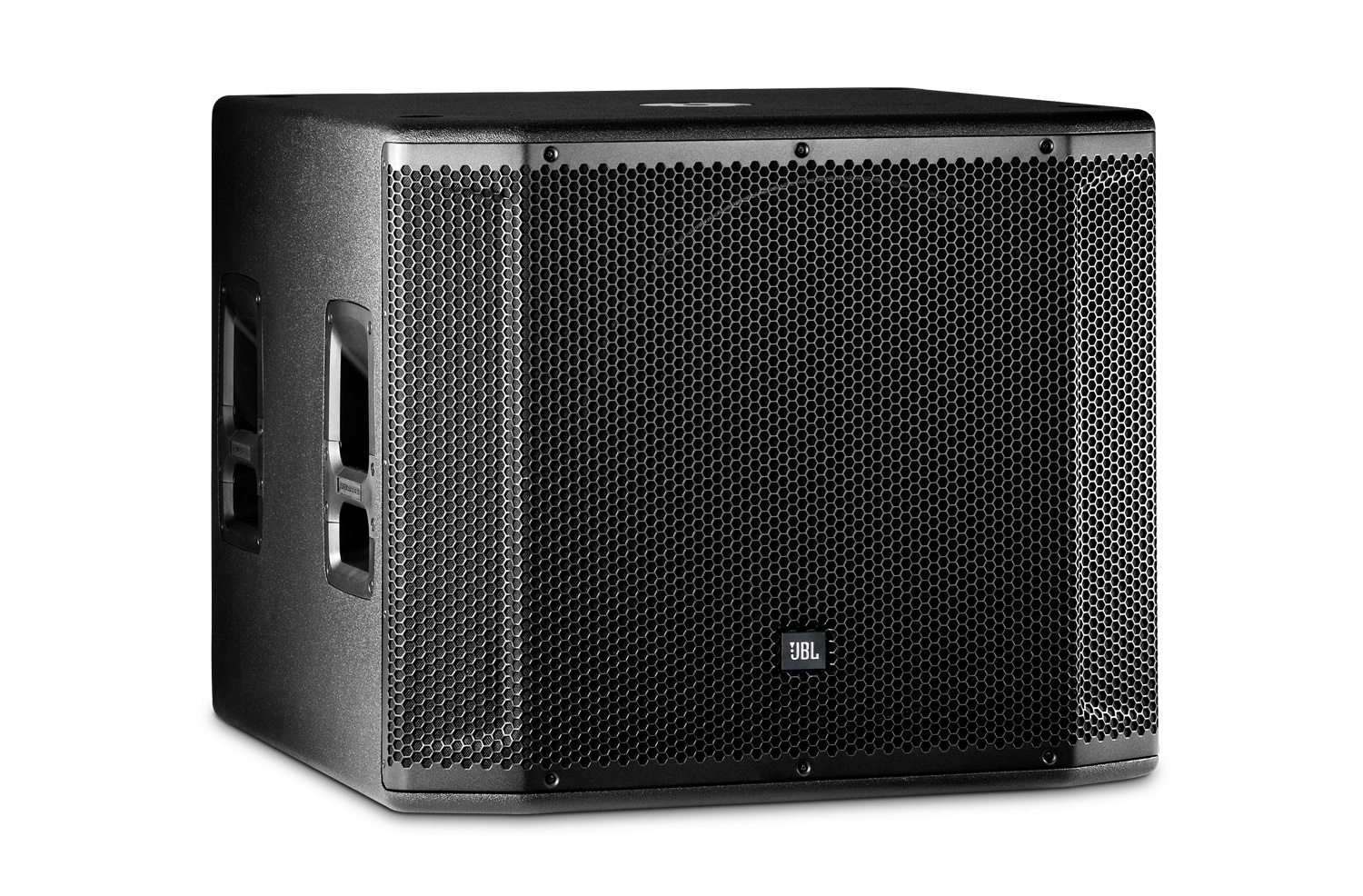

SRX818S Angle
updated: 7月01日
    497.5 KB 7月01日

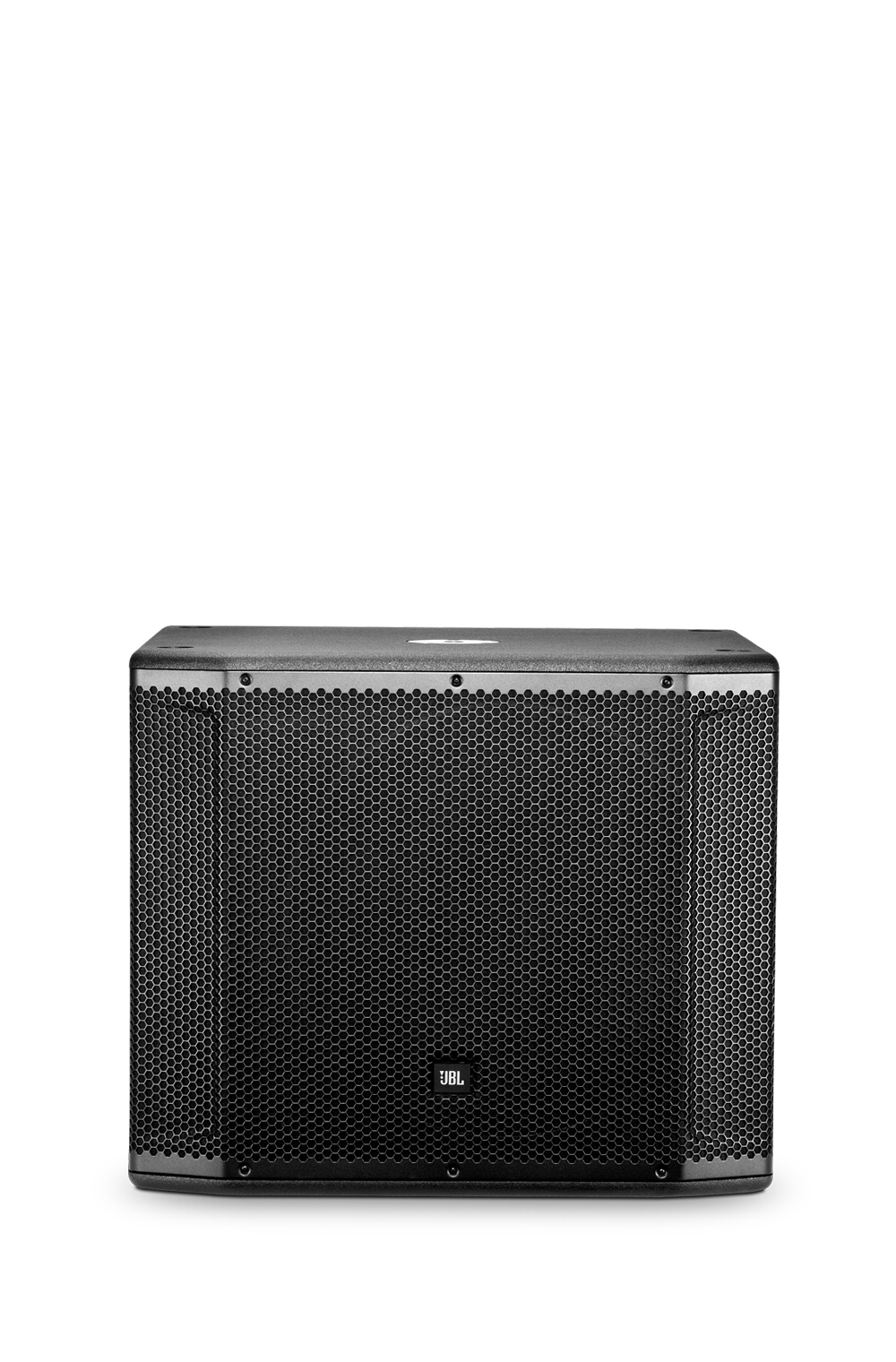

SRX818S Front
updated: 7月01日
    429.3 KB 7月01日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type Passive 18”, subwoofer system
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Response (-10dB) 28hz - 150hz
Frequency Response (-3 dB) 45hz - 150hz

灵敏度

95dB
系统额定功率 2400W Peak , 1200W Program, 600W Continuous
标称阻抗 8 Ohm
输入通道 NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive
低频驱动单元 2279H
分频频率 80hz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting M20 Threaded Pole Mount
Casters Accepts JBL WK-4S Kit
Handles 4
外观颜色 Obsidian Duraflex™ finish
网罩 Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
尺寸(高 x 宽 x 厚) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
重量 78.0 lbs (35.4kg)

运输重量

88 lbs (40.2kg)

Accessories

SRX818SP-CVR-DLX | Deluxe padded cover for SRX818SP
SRX818SP-CVR-DLX Main photo
较大的图像

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo


SRX818SP-CVR-DLX-WK4 | Deluxe padded cover for SRX818SP w/ Casters
SRX818SP-CVR-DLX-WK4 Main photo
较大的图像

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately)


JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
较大的图像

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
较大的图像

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
较大的图像
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
较大的图像

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
