SRX818S

18-tumig passiv subwoofer

Större bilder

18-inch Passive Subwoofer

SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



Funktioner

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
  • Frequency Response: 45Hz-150Hz
  • Max SPL: 129dB (Peak)
  • Amplification options: Passive
  • 2279 LF 8 Ohm 18” Woofer

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Fler detaljer

GENOMTÄNKT DESIGN

Varje detalj i SRX800-serien har utformats medvetet och genomtänkt med full hänsyn till den avsedda användningen. Ergonomiskt utformade handtag ger ett bekvämt grepp som inte tröttar ut händerna, vilket förenklar hanteringen. M10-upphängningspunkter, spårade fötter och fästen för stång/stativ möjliggör ett brett och flexibelt urval av konfigurationer.

ELEMENTTEKNIK

JBL:s ferritelement med patenterad Differential Drive®-teknik har 3-tums talspolar och ferritmagneter med lägre massa, vilket ger lägre vikt, högre effekttålighet, exceptionellt låg distorsion och utökad basåtergivning. JBL:s 2432H är det enda kompressionselementet i sin klass med 3-tums talspole av neodym, och levererar mycket höga effektnivåer och ett mjukt, kristallklart ljud.

Nedladdningar

Specifications
  Version Storlek Uppladdat
file type icon SRX818S Spec Sheet
version 11_11_19, uppdaterad: dec 2019
11_11_19  627 KB dec 2019
Brochures
  Version Språk Storlek Uppladdat
file type icon JBL 2025 PPA Brochure
en version B, uppdaterad: aug 2025
en  8,45 MB aug 2025
Compliances
  Storlek Uppladdat
file type icon SRX800 Passive Series Compliance
uppdaterad: okt 2020
139 KB okt 2020
Software
  Storlek Uppladdat
file type icon Audio Architect
uppdaterad: apr 2019
9,96 KB apr 2019
Android download icon SRX Connect
släppt: aug 2023
aug 2023
Windows download icon HiQnet Audio Architect
släppt: nov 2020
nov 2020
iOS download icon SRX Connect
släppt: aug 2023
aug 2023
Speaker Tunings
  Storlek Uppladdat
file type icon SRX800 Passive I-Tech HD Tunings
uppdaterad: okt 2020
23,7 KB okt 2020
41,3 KB okt 2020
file type icon SRX Passive Bi-amp tunings Table
uppdaterad: okt 2020
2,69 MB okt 2020
Images
  Storlek Uppladdat

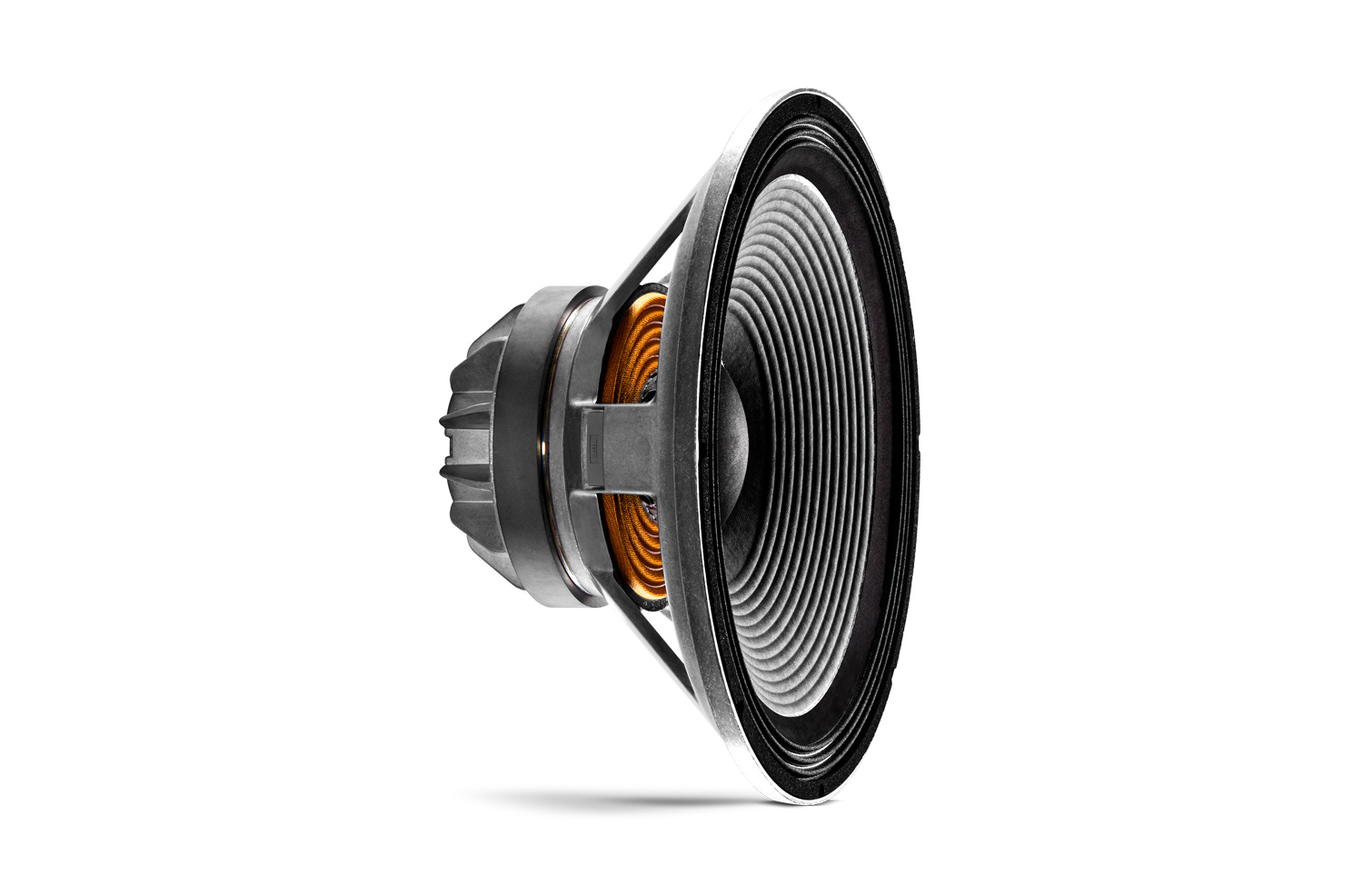

file type icon SRX800 Driver
uppdaterad: apr 2019
158 KB apr 2019

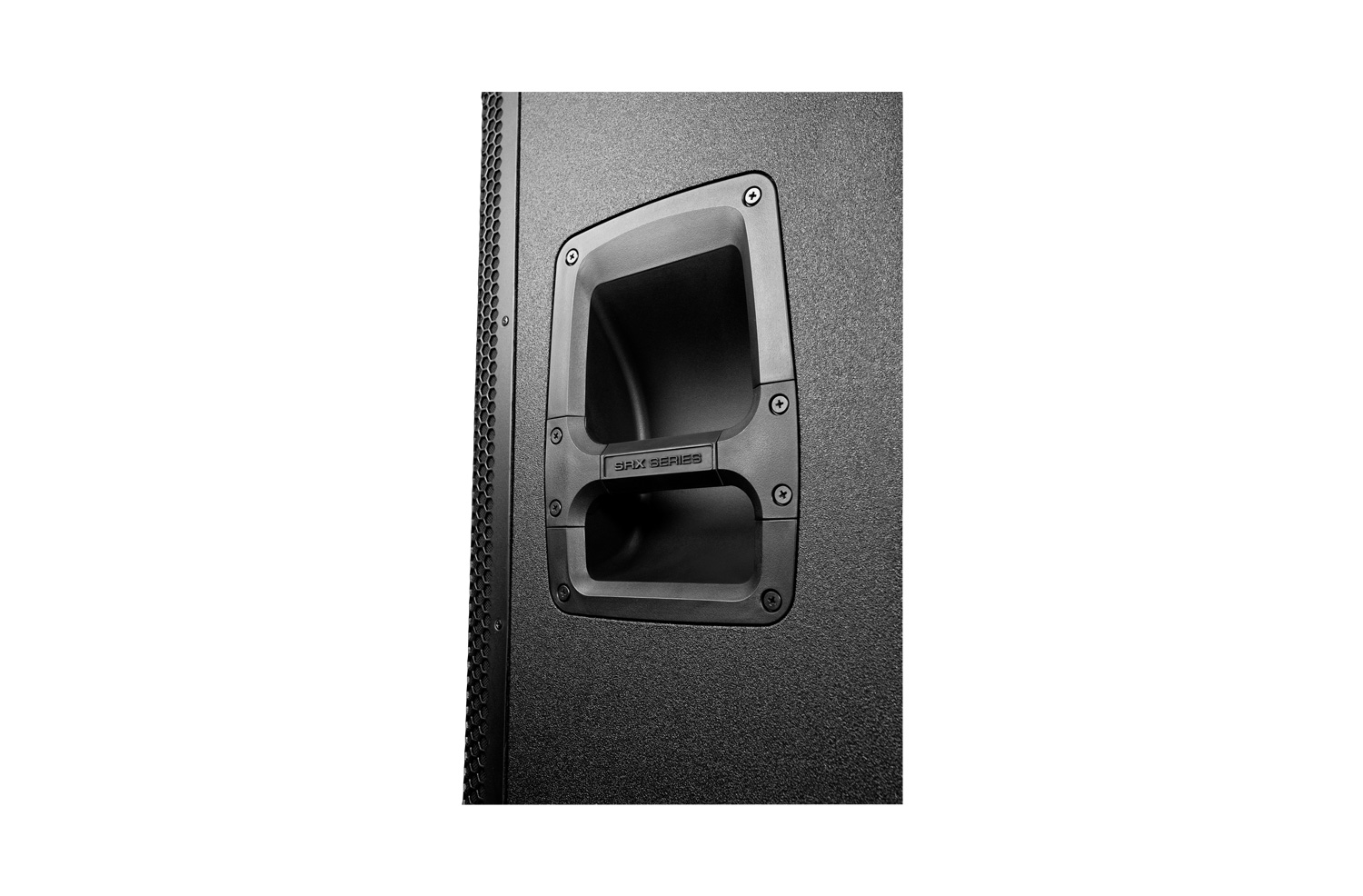

file type icon SRX800 Handle
uppdaterad: apr 2019
208 KB apr 2019

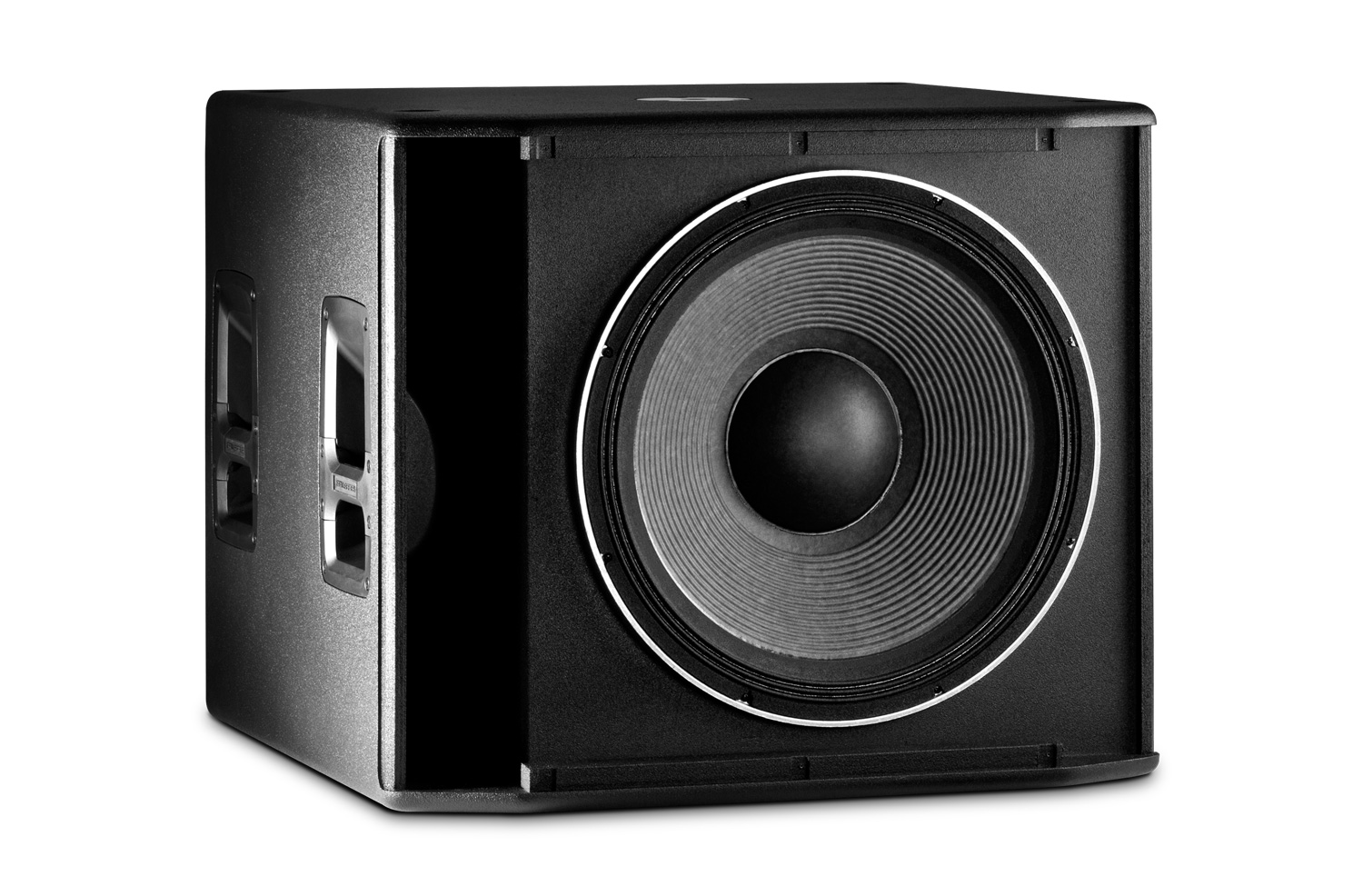

file type icon SRX818S Angle No-Grill
uppdaterad: jul 2019
314 KB jul 2019

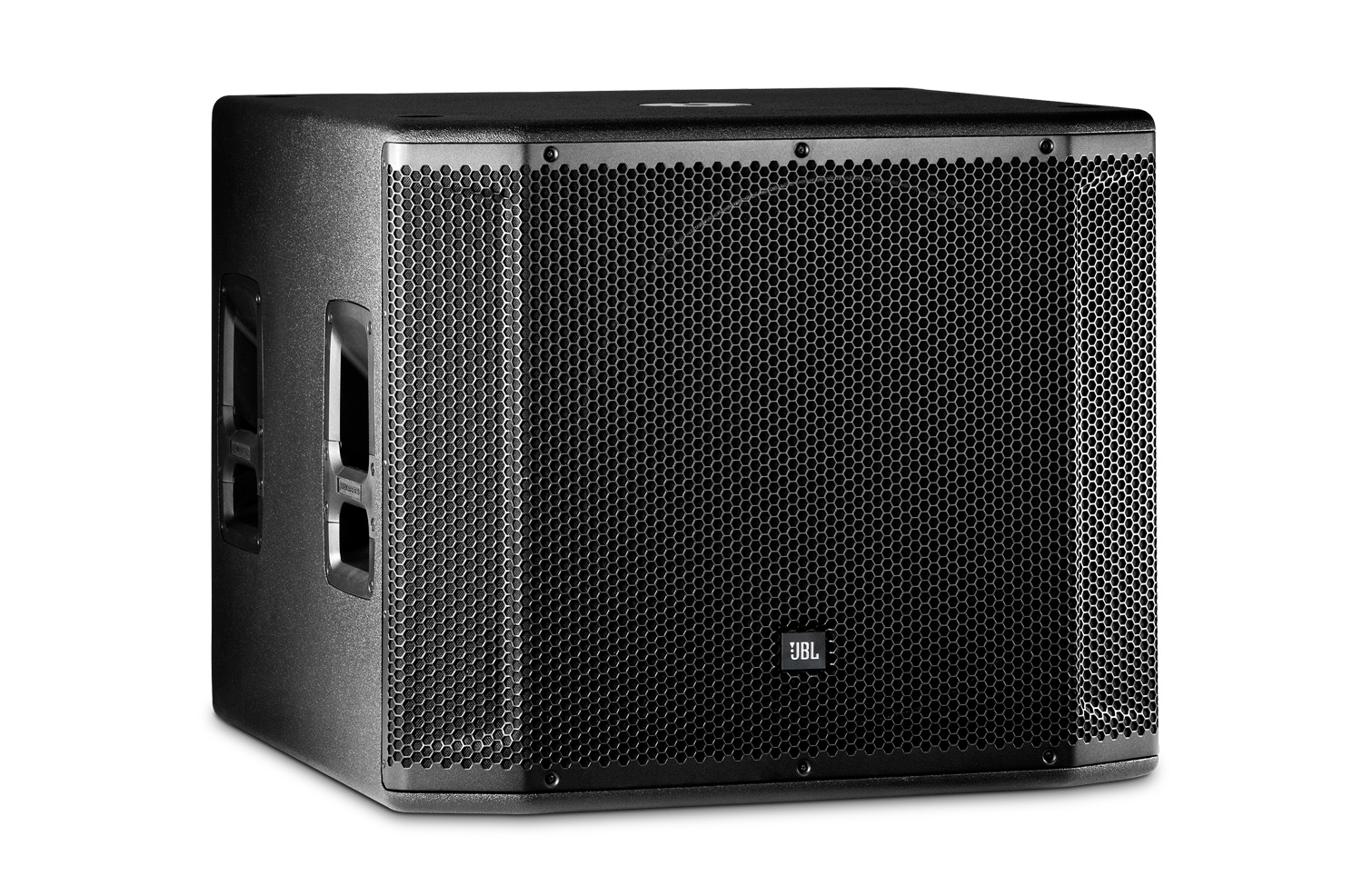

file type icon SRX818S Angle
uppdaterad: jul 2019
498 KB jul 2019

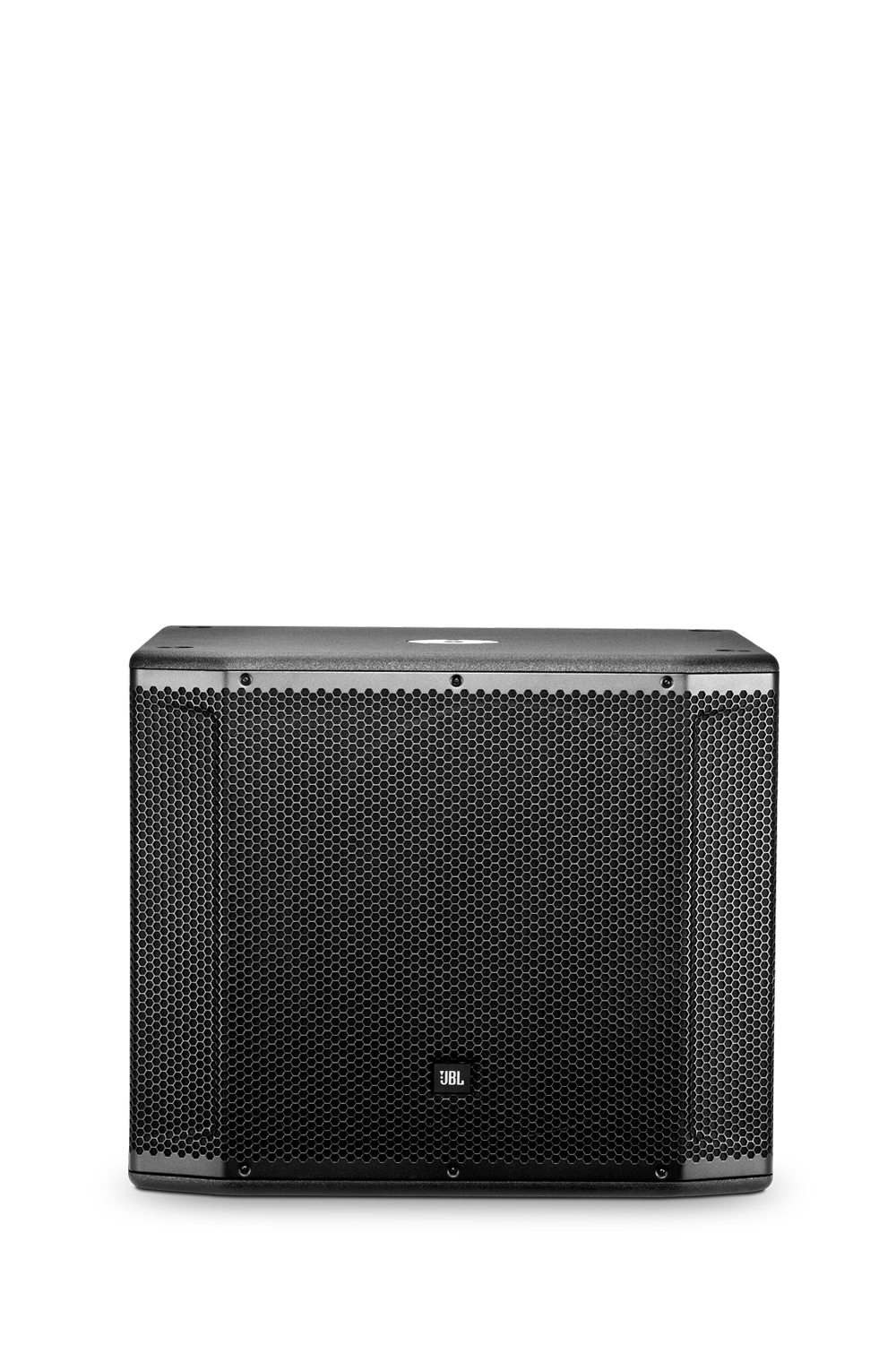

file type icon SRX818S Front
uppdaterad: jul 2019
429 KB jul 2019

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

System Type Passive 18”, subwoofer system
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB) 28hz - 150hz
Frequency Response (-3 dB) 45hz - 150hz
Sensitivity 95dB
System Power Rating 2400W Peak , 1200W Program, 600W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive
LF Driver JBL 2279H
Crossover Frequency 80hz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting M20 Threaded Pole Mount
Casters Accepts JBL WK-4S Kit
Handles 4
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
Weight 78.0 lbs (35.4kg)
Shipping Weight 88 lbs (40.2kg)

Tillbehör

SRX818SP-CVR-DLX | Lyxigt vadderat skyddshölje för SRX818SP
SRX818SP-CVR-DLX Main photo
Större bilder
SRX818SP-CVR-DLX detail thumbnail #1

Lyxigt polstrat skyddshölje för SRX818SP, vattenavvisande yttersida i svart nylon, 2,5 mm gallerskydd i polyeten, täckta handtagsöppningar med kardborrestängning, med broderad JBL-logotyp


SRX818SP-CVR-DLX-WK4 | Deluxe padded cover for SRX818SP w/ Casters
SRX818SP-CVR-DLX-WK4 Main photo
Större bilder
SRX818SP-CVR-DLX-WK4 detail thumbnail #1

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately)


JBLPOLE-GA | JBL gasassisterat högtalarstativ
JBLPOLE-GA Main photo
Större bilder
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products

Dokumentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Större bilder
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manuellt justerbart högtalarstativ med M20-gängad nedre ände, 38 mm stativ och 35 mm. JBLPOLE-MA har en imponerande höjdjusteringskrage med ett ergonomiskt "Z"-vred som ger bekväm justering. Det starkaste fäste som tillverkats – höjdjusteringskragen förhindrar för hård åtdragning och de brottsproblem som är förknippade med konstruktioner helt i plast.

  • Lätt
  • Kragar i gjuten metall
  • M20-gängat uttag
  • Passar alla subwoofrar med standardgängning M20 för stativstång (JBL PRX, VRX, STX och SRX818) – kontrollera respektive produkt för att bekräfta

Dokumentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Större bilder
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900

Dokumentation
JBLTRIPOD-MA | JBL manuellt justerbar högtalartripod
JBLTRIPOD-MA Main photo
Större bilder
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900

Dokumentation
