SRX818S

Subwoofer Passivo de 18 Polegadas

Adicione ao carrinho
SRX818S
Imagens Grandes

Subwoofer Passivo de 18 polegadas

O SRX818S é um subwoofer com um único falante de 18" para uso em concertos, turnês ou instalações fixas. Com copo para poste padrão M20 para uso com caixas de topo, pés de encaixe para empilhamento tanto na posição padrão quanto na cardioide e SPL máximo de 136 dB, o SRX818S é a solução ideal para músicos, bandas e DJs, uso em concertos, apresentações faladas ou instalações como casas de espetáculo, espaços corporativos, instituições de ensino ou casas de culto. Ajustes e predefinições estão disponíveis para o Crown ITech HD.



Recursos

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
  • Frequency Response: 45Hz-150Hz
  • Max SPL: 129dB (Peak)
  • Amplification options: Passive
  • 2279 LF 8 Ohm 18” Woofer

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Mais detalhes

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Downloads

Specifications
  Versão Tamanho Enviado
file type icon SRX818S Spec Sheet
versão 11_11_19, atualizado: dez 2019
11_11_19  627 KB dez 2019
Brochures
  Versão Idioma Tamanho Enviado
file type icon JBL 2025 PPA Brochure
en versão B, atualizado: ago 2025
B  en  8,45 MB ago 2025
Compliances
  Tamanho Enviado
file type icon SRX800 Passive Series Compliance
atualizado: out 2020
139 KB out 2020
Software
  Tamanho Enviado
file type icon Audio Architect
atualizado: abr 2019
9,96 KB abr 2019
Android download icon SRX Connect
lançado: ago 2023
ago 2023
Windows download icon HiQnet Audio Architect
lançado: nov 2020
nov 2020
iOS download icon SRX Connect
lançado: ago 2023
ago 2023
Speaker Tunings
  Tamanho Enviado
file type icon SRX800 Passive I-Tech HD Tunings
atualizado: out 2020
23,7 KB out 2020
file type icon SRX800 Passive I-Tech 4x3500HD Tunings
atualizado: out 2020
41,3 KB out 2020
file type icon SRX Passive Bi-amp tunings Table
atualizado: out 2020
2,69 MB out 2020
Images
  Tamanho Enviado
file type icon SRX800 Driver
atualizado: abr 2019
158 KB abr 2019
file type icon SRX800 Handle
atualizado: abr 2019
208 KB abr 2019

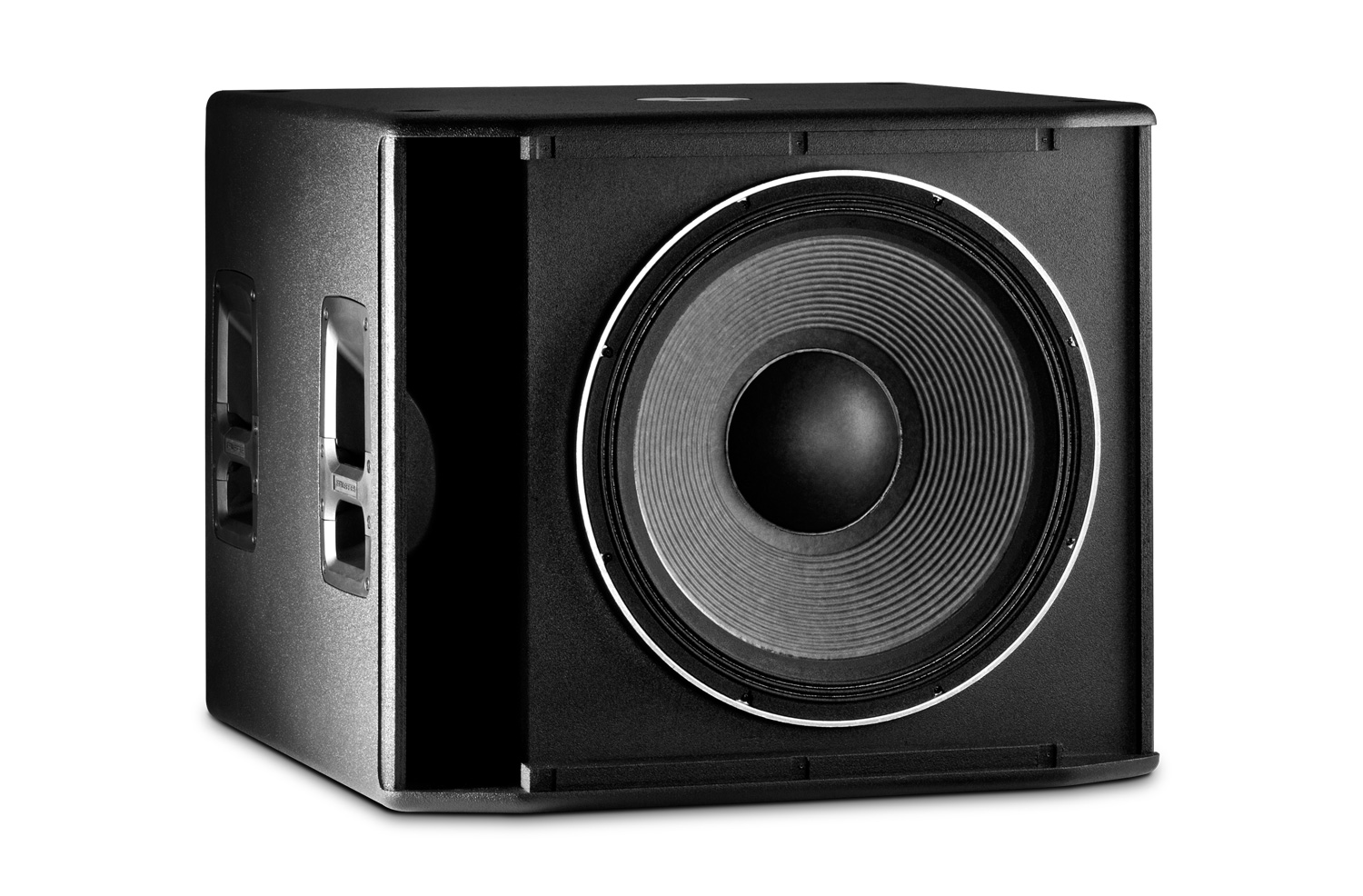

file type icon SRX818S Angle No-Grill
atualizado: jul 2019
314 KB jul 2019

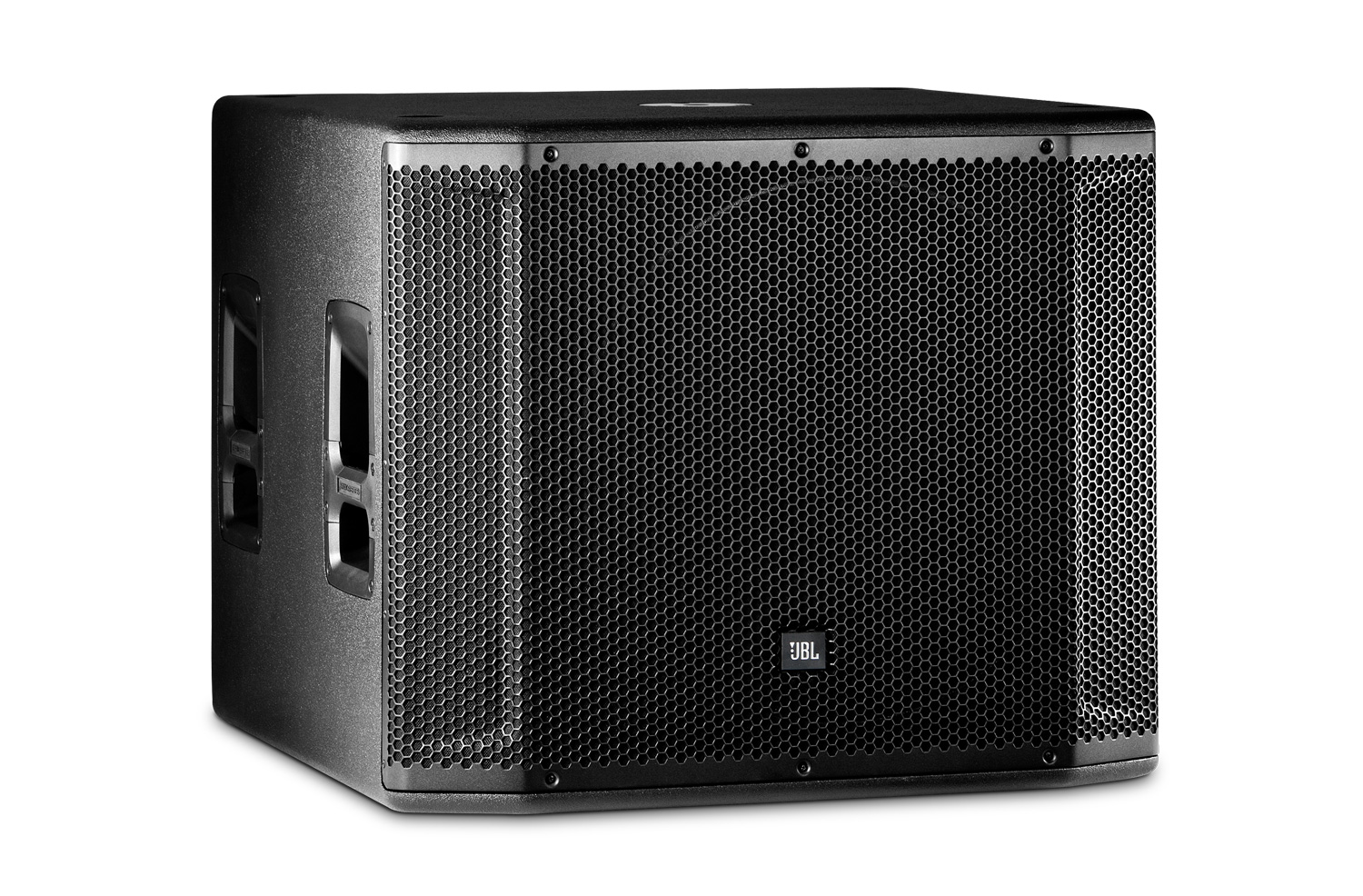

file type icon SRX818S Angle
atualizado: jul 2019
498 KB jul 2019

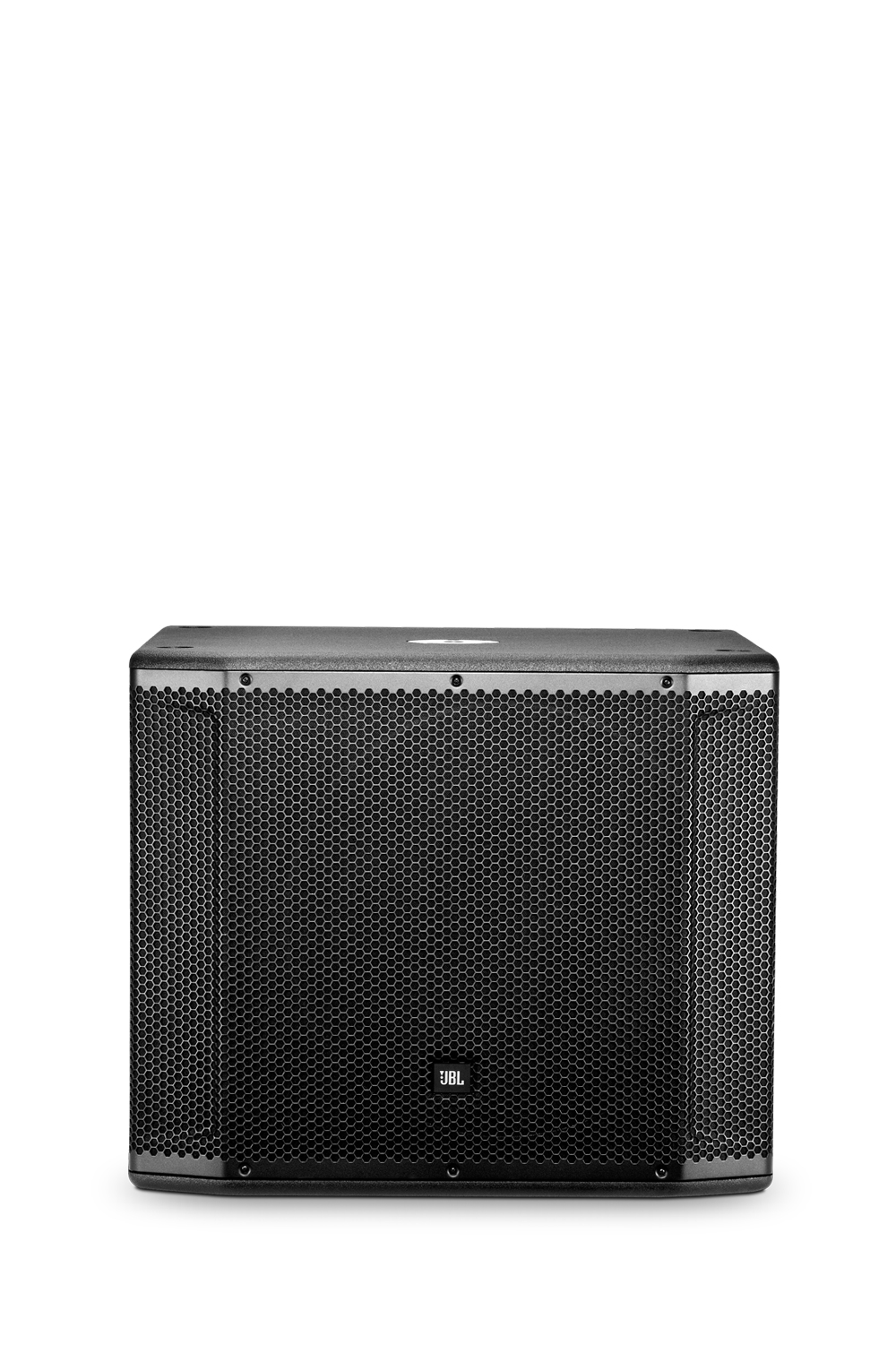

file type icon SRX818S Front
atualizado: jul 2019
429 KB jul 2019

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

TIPO DE SISTEMA Passive 18”, subwoofer system
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB) 28hz - 150hz
Resposta de frequência (-3dB) 45hz - 150hz
Sensibilidade 95dB
System Power Rating 2400W Peak , 1200W Program, 600W Continuous
Impedância nominal 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive
LF Driver JBL 2279H
Frequência de Crossover 80hz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting M20 Threaded Pole Mount
Casters Accepts JBL WK-4S Kit
Handles 4
Acabamento Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
DIMENSÕES (AxLxP) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
Peso 78.0 lbs (35.4kg)
Peso de Envio 88 lbs (40.2kg)

Acessórios

SRX818SP-CVR-DLX | Deluxe padded cover for SRX818SP
SRX818SP-CVR-DLX Main photo
Imagens Grandes
SRX818SP-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo

SRX818SP-CVR-DLX-WK4 | Deluxe padded cover for SRX818SP w/ Casters
SRX818SP-CVR-DLX-WK4 Main photo
Imagens Grandes
SRX818SP-CVR-DLX-WK4 detail thumbnail #1

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately)

JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Imagens Grandes
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Documentação
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Imagens Grandes
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Documentação
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Imagens Grandes
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Documentação
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Imagens Grandes
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Documentação
