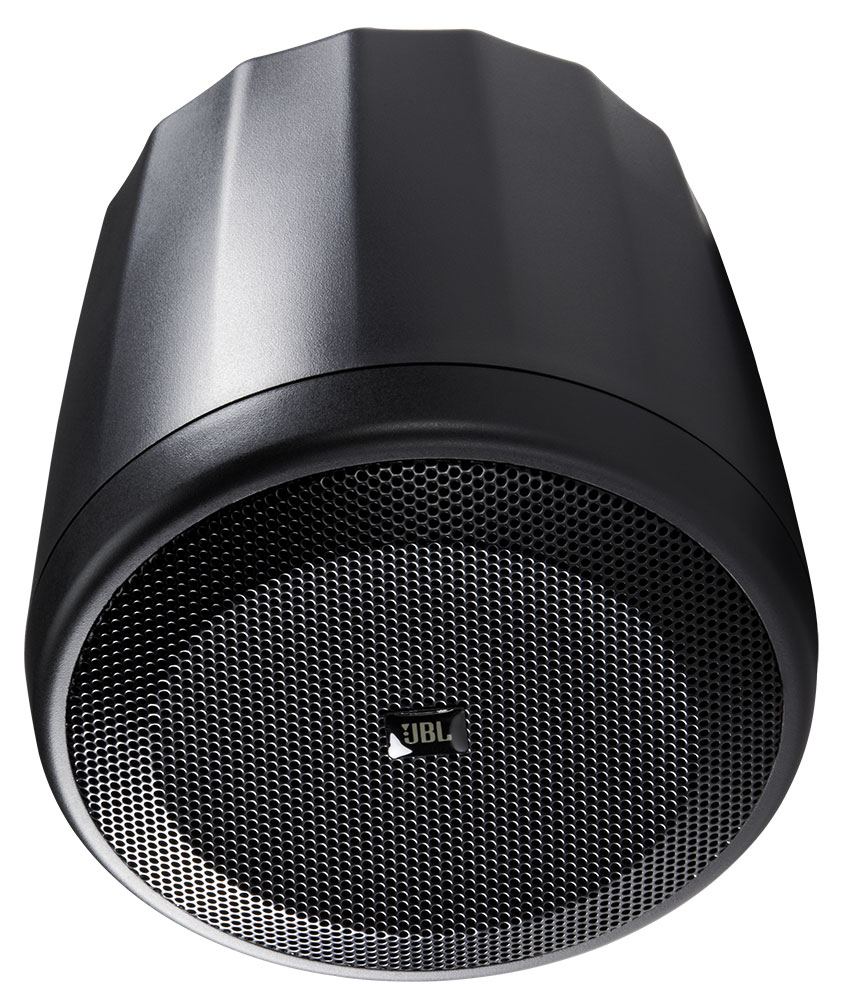

Control 62P

Ultra-Compact Mid-High Satellite Pendant Speaker

Control 62P
Larger Images

Ultra-Compact Mid-High Satellite Pendant Speaker

Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.


  • 2.5" (60 mm) driver
  • 20 Watts, 16 ohms
  • Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers
  • Black or white


  Version Language Size Uploaded
file type icon Control 62P Spec Sheet
updated: Apr 2019
    829 KB Apr 2019
file type icon Control Contractor Brochure (2024)
en version D, updated: Feb 2024
en  14 MB Feb 2024
file type icon C60 Introductory Sheet
updated: Okt 2019
    267 KB Okt 2019
CAD Drawings
file type icon C60 DXF Drawings
updated: Nov 2022
    4,14 MB Nov 2022
file type icon Control 60 Series Declaration of Conformity
updated: Okt 2019
    987 KB Okt 2019
platform icon Distributed System Design (DSD)
version 3.7, updated: Nov 2023
3.7     1,07 MB Nov 2023
Install Guides
file type icon Painting C60 Speakers
updated: Apr 2021
    146 KB Apr 2021
file type icon C60 Install Instructions
updated: Apr 2019
    886 KB Apr 2019
file type icon C60 Hi-Res Family Image
updated: Okt 2019
    77,2 KB Okt 2019
file type icon Control 62P Hi Res Images
updated: Apr 2019
    201 KB Apr 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: Mei 2023
  557 KB Mei 2023
file type icon C60 Panel Cover Instructions
updated: Mei 2021
    710 KB Mei 2021
Ease Data
file type icon C60 Ease Files
version B, updated: Jan 2023
  962 KB Jan 2023
CLF Files
file type icon Control 60 Series CLF Files
updated: Jan 2023
    377 KB Jan 2023
file type icon C60 Frequently Asked Questions
updated: Sep 2022
    337 KB Sep 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range (-10dB) 150 Hz – 20 kHz
Frequency Range (±3 dB) 200 Hz – 17 kHz
Power Rating 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity 87 dB (4.0 V, 1 W) 84 dB (2.83 V)
Coverage Angle 140° conical
Directivity Factor (Q) 4.7
Directivity Index (DI) 6.2 dB
Maximum SPL (1m) 97 dB continuous pink noise, 103 dB peak
Impedance 16 ohms (no transformer taps)
Recommended High-Pass Frequency 150 Hz
Drivers 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
Net Weight (each) 0.7 kg (1.5 lbs)
Shipping Weight (pair) 2.0 kg (4.3 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC62 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
