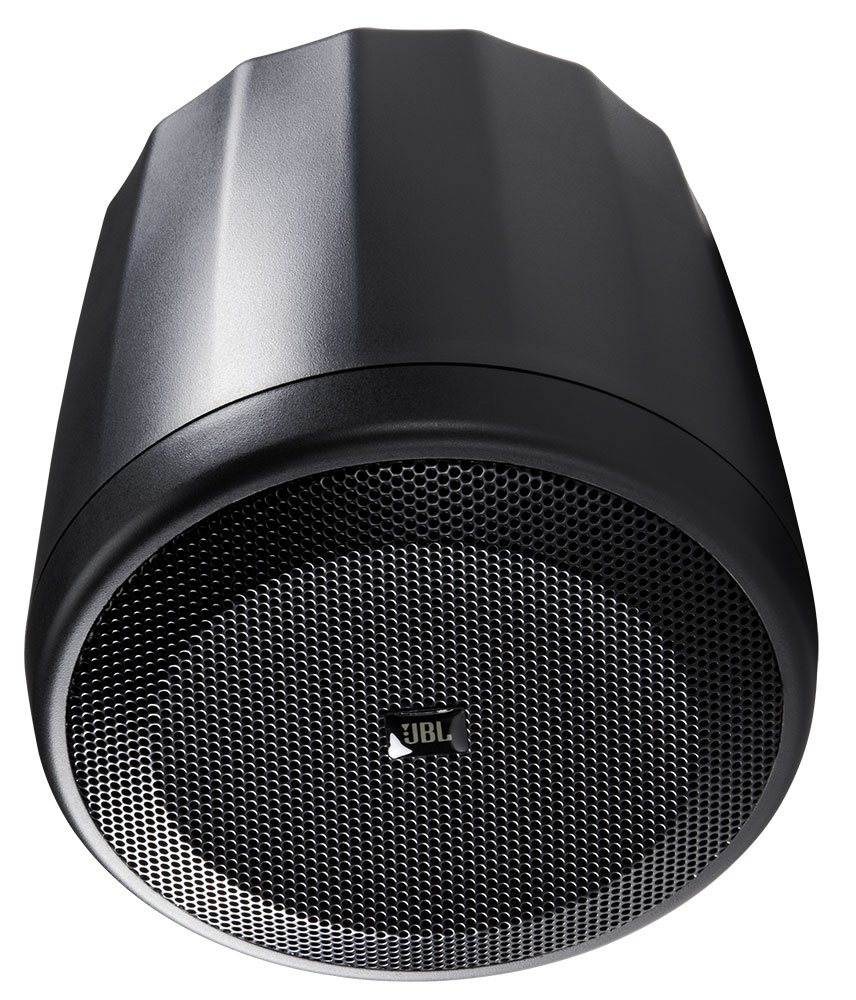

Control 62P

Ultra-Compact Mid-High Satellite Pendant Speaker

较大的图像

Ultra-Compact Mid-High Satellite Pendant Speaker

Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.

特点

  • 2" (50 mm) driver
  • 20 Watts, 16 ohms
  • Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers
  • Black or white

下载

  Version Language Size Uploaded
Specifications
Control 62P Spec Sheet
updated: 4月29日
    828.9 KB 4月29日
Brochures
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日
Commercial Sound Full Line 2015 Catalog
updated: 10月21日
    2.0 MB 10月21日
C60 Introductory Sheet
updated: 10月18日
    266.9 KB 10月18日
CAD Drawings
C60 DXF Drawings
updated: 4月29日
    704.6 KB 4月29日
Bim Objects
BIM (Revit) Files
updated: 10月03日
    12.4 MB 10月03日
Compliances
Control 60 Series Declaration of Conformity
updated: 10月18日
    987.4 KB 10月18日
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 1月14日
3.6.2     804.8 KB 1月14日
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: 7月08日
    20.5 MB 7月08日
C60 Ease Files
updated: 4月29日
    262.1 KB 4月29日
Images
C60 Hi-Res Family Image
updated: 10月18日
    77.2 KB 10月18日
Control 62P Hi Res Images
updated: 4月29日
    201.3 KB 4月29日
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: 2月24日
    557.0 KB 2月24日
Accessories
C60 Panel Cover Instructions
updated: 4月29日
    709.6 KB 4月29日
Faqs
C60 Frequently Asked Questions
updated: 4月29日
    337.2 KB 4月29日
Install Guides
C60 Install Instructions
updated: 4月29日
    886.2 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (-10dB) 150 Hz – 20 kHz
Frequency Range (±3 dB) 200 Hz – 17 kHz
额定功率 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
标称灵敏度 87 dB (4.0 V, 1 W) 84 dB (2.83 V)
覆盖角度 140° (+25°/-50°)
Directivity Factor (Q) 4.7
Directivity Index (DI) 6.2 dB
Maximum SPL (1m) 97 dB continuous pink noise, 103 dB peak
阻抗 16 ohms (no transformer taps)
Recommended High-Pass Frequency 150 Hz
Drivers 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
Enclosure High impact polystyrene
网罩 Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
输入连接器 Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
尺寸(高 x 宽 x 厚) 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
Net Weight (each) 0.7 kg (1.5 lbs)
Shipping Weight (pair) 2.0 kg (4.3 lbs)

随附配件

Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC62 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
