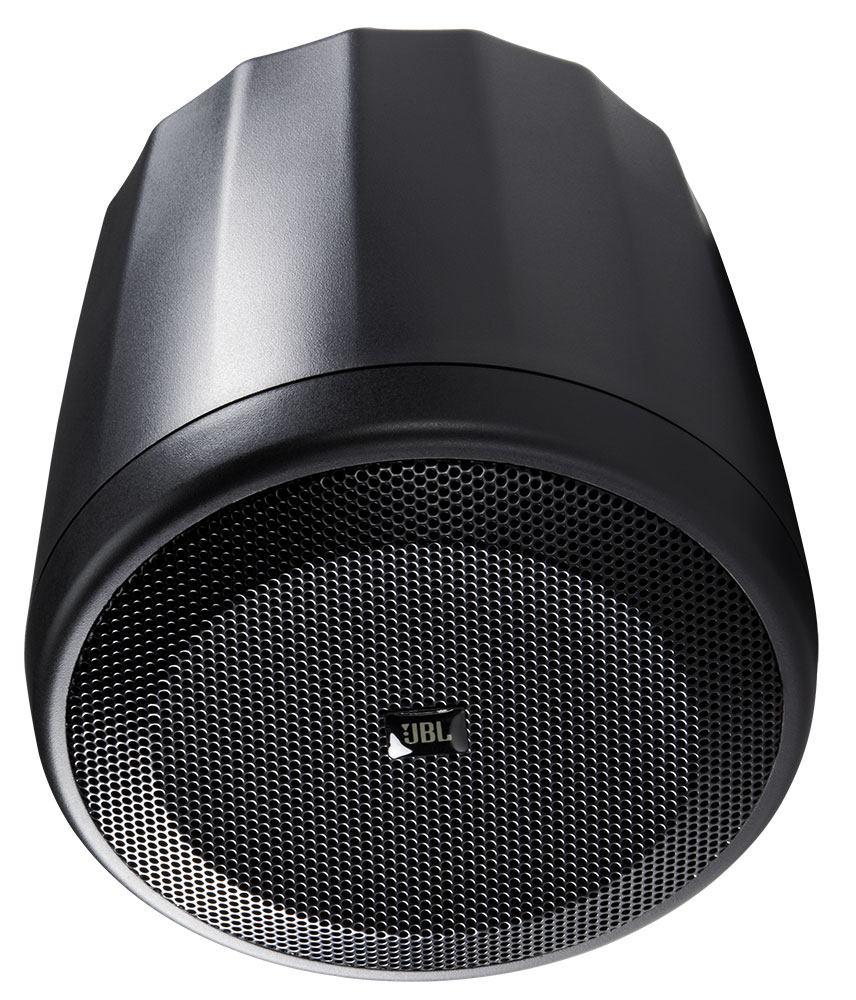

Ideal para aplicaciones donde la estética es importante, el controlador de 2" del Control 62 P es excelente para aplicaciones de voz y música de medios y altos (se requiere un filtro pasa-altos externo). Para un rendimiento de amplio rango y ancho de banda, se pueden conectar hasta 4 unidades a un subwoofer Control 50 S/T o 40 CS/T.
| Tamaño | |
|
|
829 KB |
| Tamaño | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
|
|
267 KB |
| Tamaño | |
|
|
4,14 MB |
| Tamaño | |
|
|
987 KB |
| Tamaño | |
|
|
612 KB |
| Tamaño | |
|
|
146 KB |
|
|
886 KB |
| Tamaño | |
|
|
77,2 KB |
|
|
201 KB |
| Tamaño | |
|
|
557 KB |
| Tamaño | |
|
|
710 KB |
| Tamaño | |
|
|
962 KB |
| Tamaño | |
|
|
377 KB |
| Tamaño | |
|
|
337 KB |
Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.
| Frequency Range (-10dB) | 150 Hz – 20 kHz |
| Frequency Range (±3 dB) | 200 Hz – 17 kHz |
| Power Rating | 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs) |
| Nominal Sensitivity | 87 dB (4.0 V, 1 W) 84 dB (2.83 V) |
| Coverage Angle | 140° conical |
| Directivity Factor (Q) | 4.7 |
| Directivity Index (DI) | 6.2 dB |
| Maximum SPL (1m) | 97 dB continuous pink noise, 103 dB peak |
| Impedancia | 16 ohms (no transformer taps) |
| Recommended High-Pass Frequency | 150 Hz |
| Drivers | 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former. |
| Enclosure | High impact polystyrene |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. |
| CONEXIONES DE ENTRADA | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Suspension | Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
| Safety Agency | Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. |
| Dimensions (H x W x D) | 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket. |
| Net Weight (each) | 0.7 kg (1.5 lbs) |
| Shipping Weight (pair) | 2.0 kg (4.3 lbs) |
| Included Accessories | Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. |
| Optional Accessories | MTC-PC62 top panel / terminal cover |
| Colors | Available in black or white (-WH). Paintable. |
