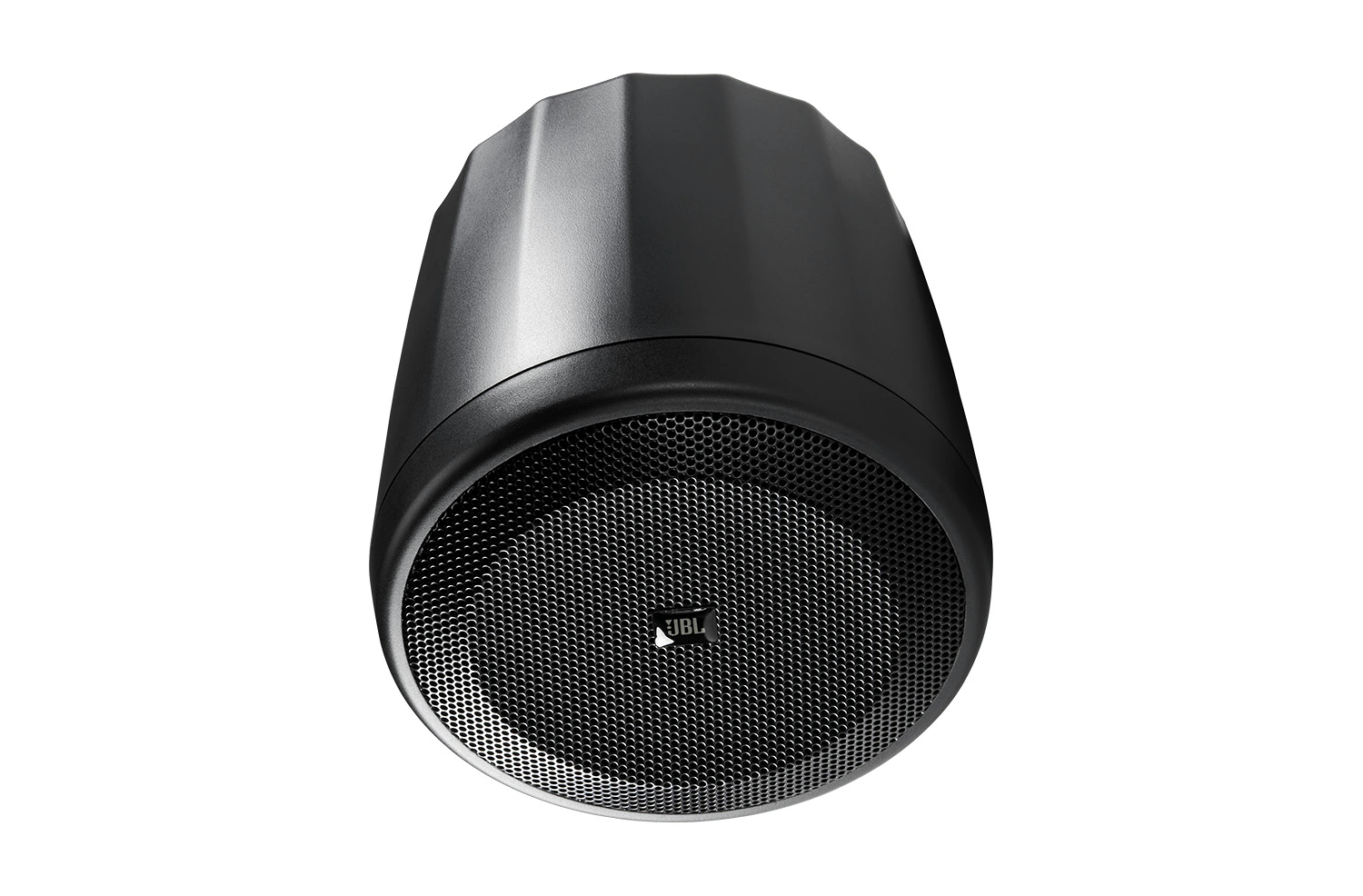

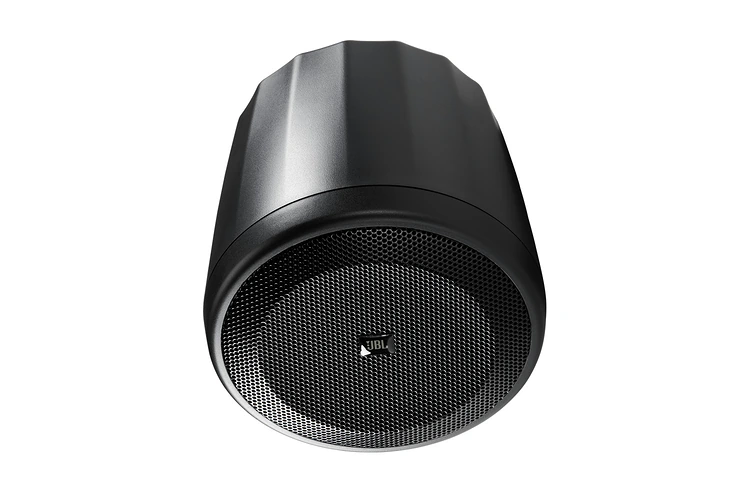

Control 62P

Ultra-Compact Mid-High Satellite Pendant Speaker

Larger Images

Ultra-Compact Mid-High Satellite Pendant Speaker

Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.

Features

  • 2" (50 mm) driver
  • 20 Watts, 16 ohms
  • Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers
  • Black or white

Downloads

  Version Language Size Uploaded
Specifications
Control 62P Spec Sheet
updated: Apr 29, 2019
    829 KB Apr 29, 2019
Brochures
C60 Introductory Sheet
updated: Oct 18, 2019
    267 KB Oct 18, 2019
CAD Drawings
C60 DXF Drawings
updated: Apr 29, 2019
    705 KB Apr 29, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
Control 60 Series Declaration of Conformity
updated: Oct 18, 2019
    987 KB Oct 18, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
C60 Ease Files
updated: Apr 29, 2019
    262 KB Apr 29, 2019
Images
C60 Hi-Res Family Image
updated: Oct 18, 2019
    77.2 KB Oct 18, 2019

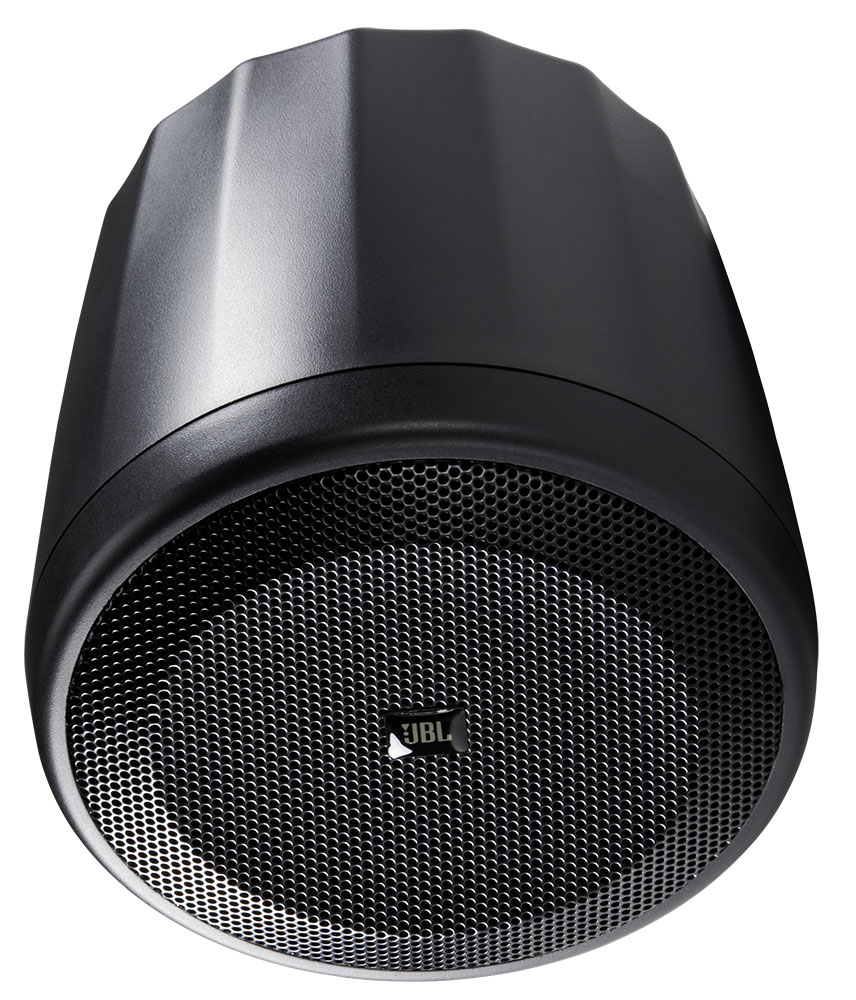

Control 62P Hi Res Images
updated: Apr 29, 2019
    201 KB Apr 29, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020
Accessories
C60 Panel Cover Instructions
updated: Apr 29, 2019
    710 KB Apr 29, 2019
Faqs
C60 Frequently Asked Questions
updated: Apr 29, 2019
    337 KB Apr 29, 2019
Install Guides
C60 Install Instructions
updated: Apr 29, 2019
    886 KB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 150 Hz – 20 kHz
Frequency Range (±3 dB) 200 Hz – 17 kHz
Power Rating 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity 87 dB (4.0 V, 1 W) 84 dB (2.83 V)
Coverage Angle 140° (+25°/-50°)
Directivity Factor (Q) 4.7
Directivity Index (DI) 6.2 dB
Maximum SPL (1m) 97 dB continuous pink noise, 103 dB peak
Impedance 16 ohms (no transformer taps)
Recommended High-Pass Frequency 150 Hz
Drivers 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
Net Weight (each) 0.7 kg (1.5 lbs)
Shipping Weight (pair) 2.0 kg (4.3 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC62 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
