JBL Professional PD5212/43 /64 /95

Grandes images

Precision Directivity Full Range Two-Way Loudspeakers

The PD5212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full range systems.

Caractéristiques

300 mm (12 in) horn-loaded LF and largeformat HF
Large PT™ Progressive Transition™ waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response.
Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation.
Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes.

Téléchargements

Data Sheets

	Taille	Téléchargé
PD5212/64 Spec Sheet mis à jour : oct. 2019	93,6 ko	oct. 2019

Specifications

	Taille	Téléchargé
PD5212/43 Spec Sheet mis à jour : juil. 2019	91,9 ko	juil. 2019
PD5212/95 Spec Sheet mis à jour : juil. 2019	117 ko	juil. 2019

Manuals

	Taille	Téléchargé
PD5000 Product Range mis à jour : oct. 2019	290 ko	oct. 2019

CAD Drawings

	Taille	Téléchargé
PD5000 Series 2D DXF Files mis à jour : oct. 2019	2,93 Mo	oct. 2019
PD5000 2D CAD mis à jour : oct. 2020	4,94 Mo	oct. 2020
PD5000 3D CAD mis à jour : oct. 2020	170 ko	oct. 2020
PD5000 2D PDF mis à jour : oct. 2020	662 ko	oct. 2020

Compliances

	Taille	Téléchargé
PD5000 Series Declaration of Conformity mis à jour : oct. 2019	91,7 ko	oct. 2019

Simulation Data

	Version	Taille	Téléchargé
JBL Pro ALL CLF Files version 12-10-21, mis à jour : mai 2023	12-10-21	24 Mo	mai 2023

Images

	Taille	Téléchargé

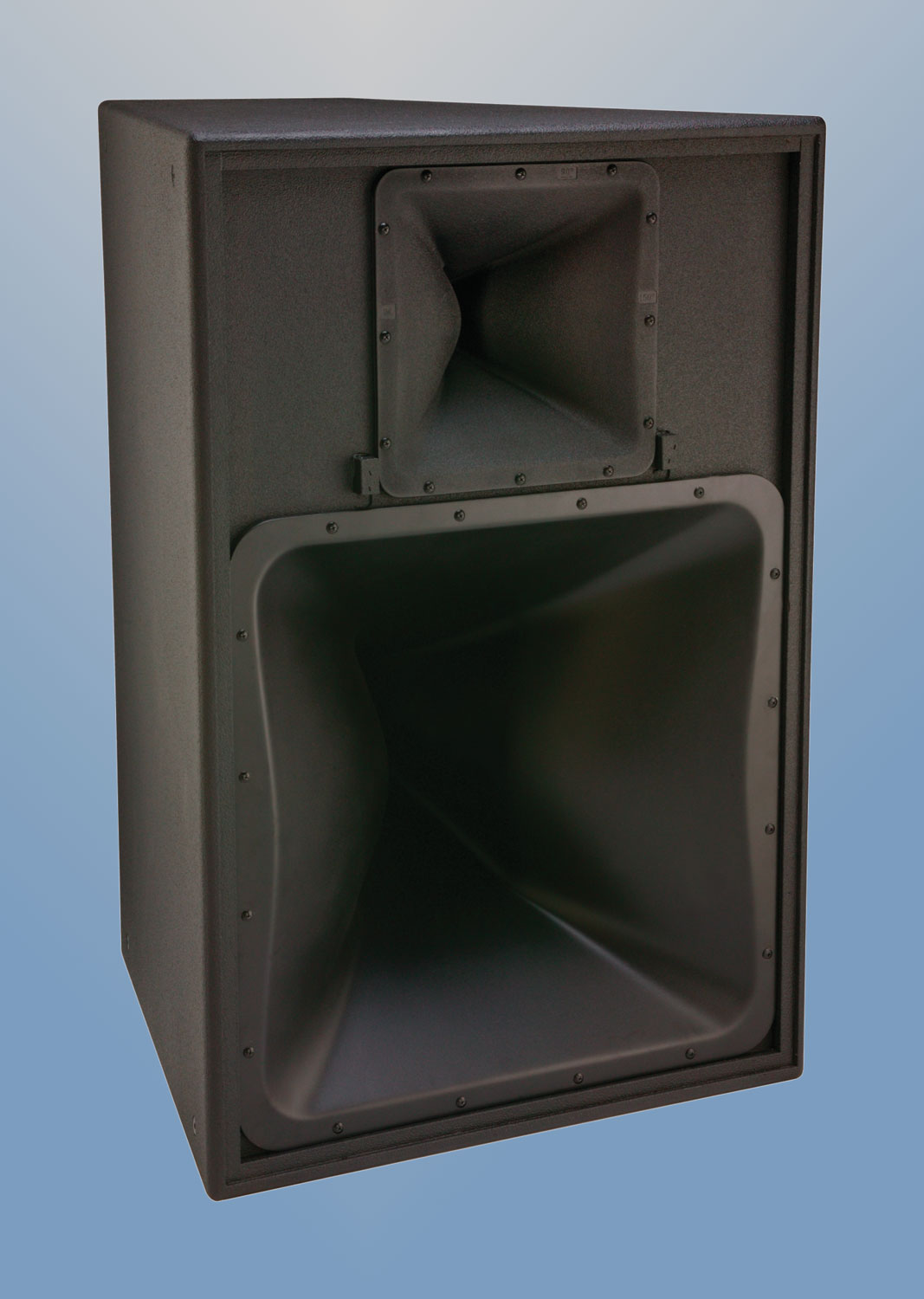

PD52xx95-Image.jpg mis à jour : oct. 2020	123 ko	oct. 2020

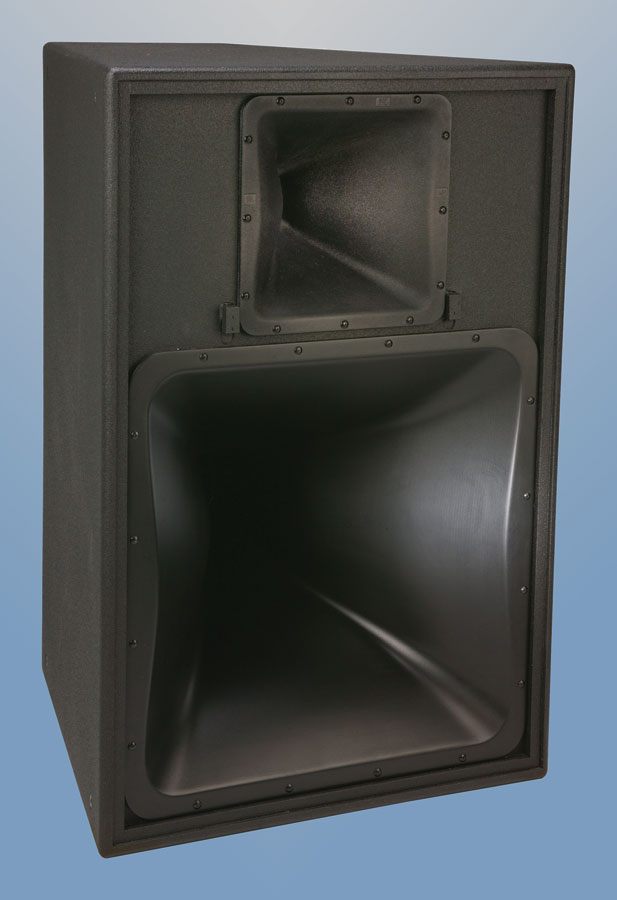

PD52xx64.jpg mis à jour : oct. 2020	47,7 ko	oct. 2020

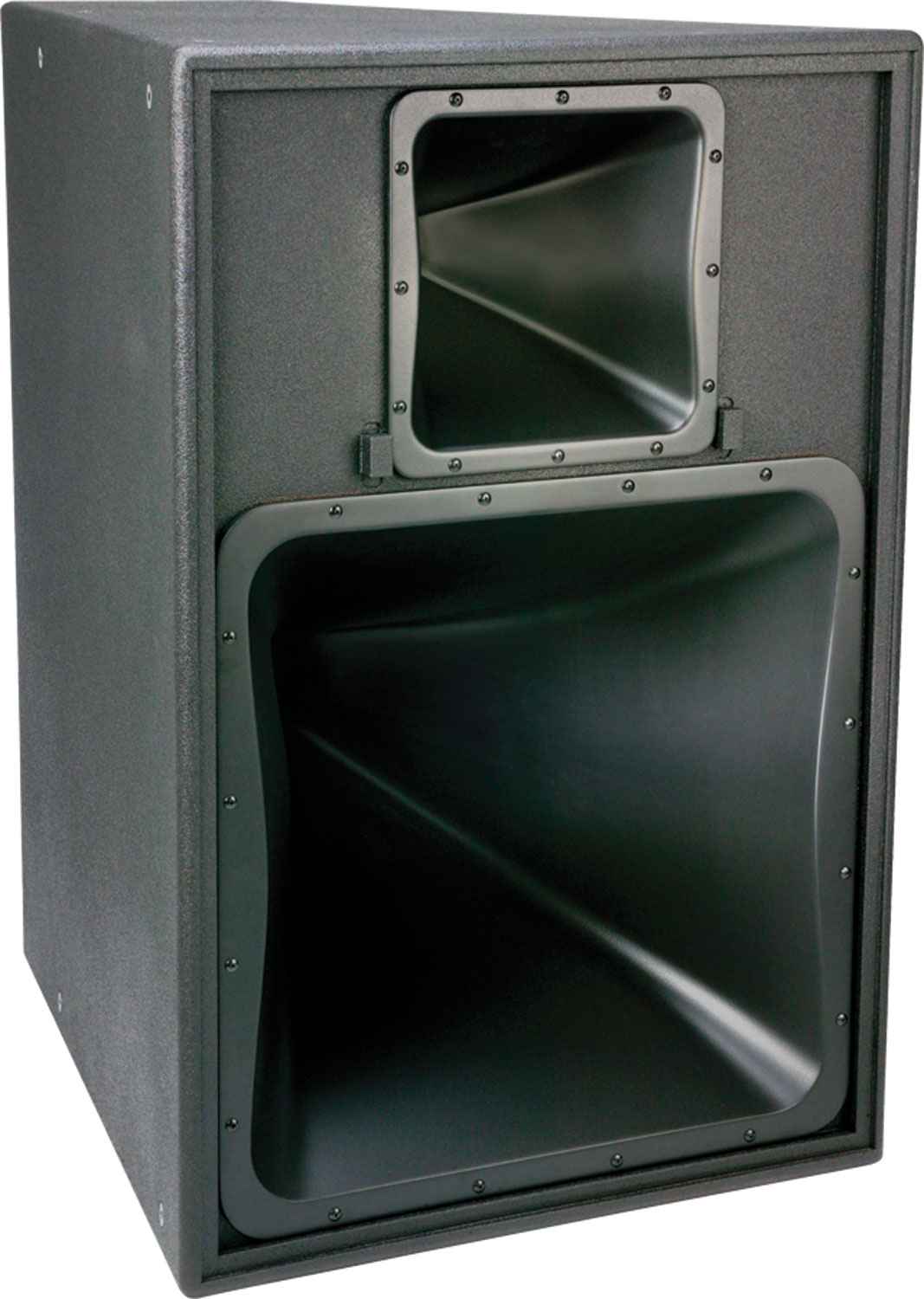

PD5212-43 mis à jour : oct. 2019	213 ko	oct. 2019
PD5212/64 Hi Res Photo mis à jour : oct. 2019	5,83 Mo	oct. 2019

Speaker Tunings

	Taille	Téléchargé
PD5000 Tunings mis à jour : mai 2023	2,35 Mo	mai 2023

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range	80 Hz to 18 kHz (-10 dB)
Frequency Response (±3 dB)	90 Hz to 16 kHz ( ± 3 dB)
Coverage Pattern	/43: 40° x 30°/64: 60° x 40°/95: 90° x 50°
Crossover Modes	Bi-amp / Passive switchable
Passive Crossover	6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating (AES)	LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
System Power Rating	Passive Mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m)	LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak)
System Sensitivity (1w @ 1m)	Passive Mode: 109 dB-SPL
LF Driver	M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil
HF Driver	2451H-1, 38 mm (1.5 in) exit
Nominal Impedance	8 ohms
Enclosure	Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
Suspension Attachment	20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish	Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions	WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
Grille	Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors	Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Specifications:	Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation)	991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Net Weight	79.5 kg (175 lb)
Optional Accessories	229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
