| Frequency Range |
80 Hz to 18 kHz (-10 dB) |
| Frequency Response (±3 dB) |
90 Hz to 16 kHz ( ± 3 dB) |
| Coverage Pattern |
/43: 40° x 30°/64: 60° x 40°/95: 90° x 50° |
| Crossover Modes |
Bi-amp / Passive switchable |
| Passive Crossover |
6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz |
| Transducer Power Rating (AES) |
LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs |
| System Power Rating |
Passive Mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) |
LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak) |
| System Sensitivity (1w @ 1m) |
Passive Mode: 109 dB-SPL |
| LF Driver |
M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil |
| HF Driver |
2451H-1, 38 mm (1.5 in) exit |
| Nominal Impedance |
8 ohms |

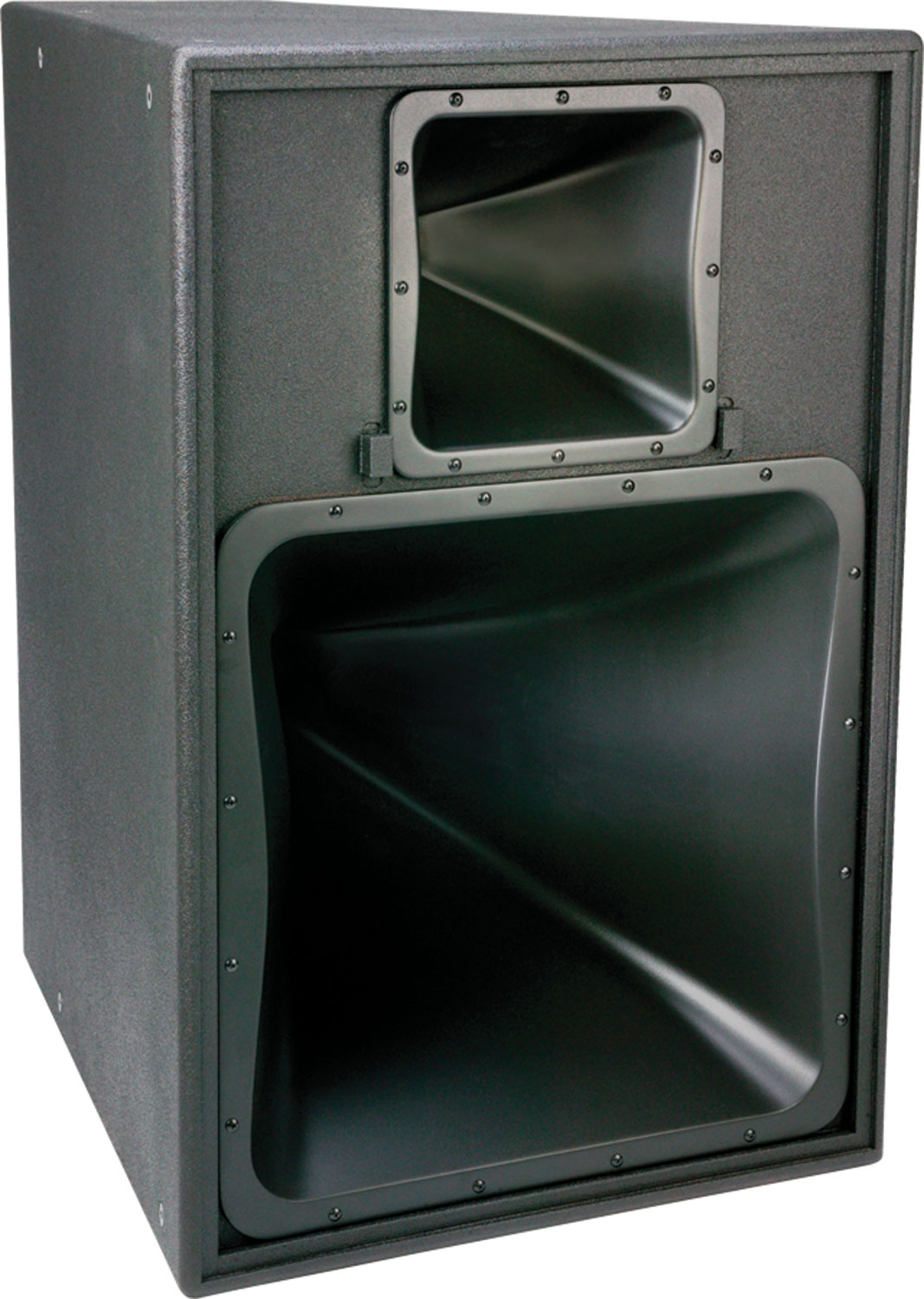

| Enclosure |
Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior |
| Suspension Attachment |
20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories). |
| Finish |
Black DuraFlex™ finish. White (-WH) available upon request. |
| Optional Weather Resistant Versions |
WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. |
| Grille |
Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units) |
| Input Connectors |
Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through. |
| Environmental Specifications: |
Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX. |
| Dimensions (H x W x D in vertical orientation) |
991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in) |
| Net Weight |
79.5 kg (175 lb) |
| Optional Accessories |
229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts. |
