PD5212/43 /64 /95 (停产)

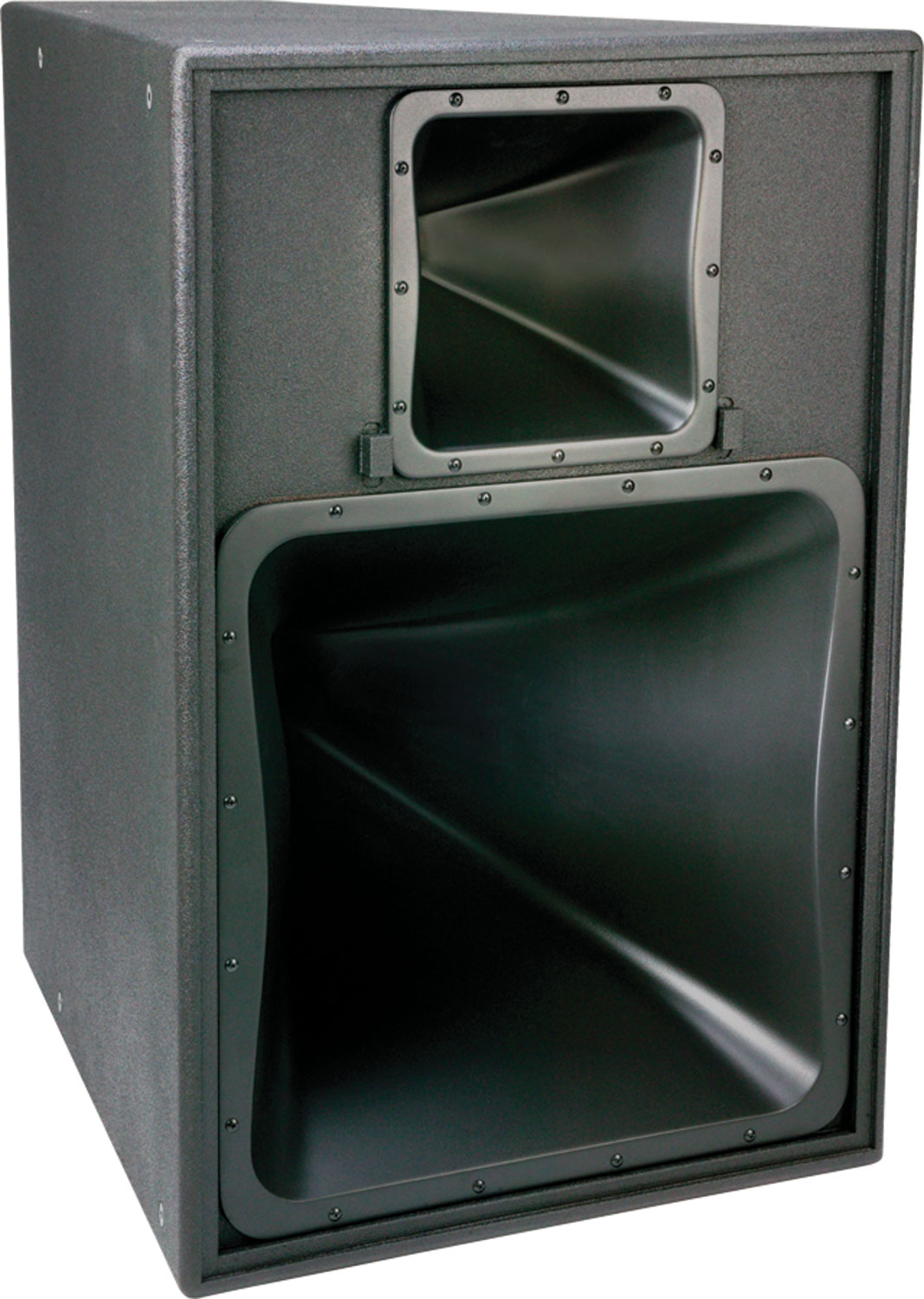

Precision DirectivityFull Range Two-Way Loudspeakers

PD5212/43 /64 /95

Precision Directivity Full Range Two-Way Loudspeakers

The PD5212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full range systems.


  • 300 mm (12 in) horn-loaded LF and largeformat HF
  • Large PT™ Progressive Transition™ waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation.
  • Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes.


  Version Language Size Uploaded
Data Sheets
file type icon PD5212/64 Spec Sheet
updated: 10月18日
    93.6 KB 10月18日
file type icon PD5212/43 Spec Sheet
updated: 7月16日
    91.9 KB 7月16日
file type icon PD5212/95 Spec Sheet
updated: 7月16日
    117.2 KB 7月16日
file type icon PD5000 Product Range
updated: 10月18日
    290.4 KB 10月18日
CAD Drawings
file type icon PD5000 Series 2D DXF Files
updated: 10月18日
    2.9 MB 10月18日
file type icon PD5000 2D CAD
updated: 10月22日
    4.9 MB 10月22日
file type icon PD5000 3D CAD
updated: 10月22日
    170.0 KB 10月22日
file type icon PD5000 2D PDF
updated: 10月22日
    662.1 KB 10月22日
file type icon PD5000 Series Declaration of Conformity
updated: 10月18日
    91.7 KB 10月18日
file type icon PD52xx95-Image.jpg
updated: 10月22日
    123.4 KB 10月22日
file type icon PD52xx64.jpg
updated: 10月22日
    47.7 KB 10月22日
file type icon PD5212-43
updated: 10月23日
    212.8 KB 10月23日
file type icon PD5212/64 Hi Res Photo
updated: 10月18日
    5.8 MB 10月18日
Speaker Tunings
file type icon PD5000 Tunings
updated: 10月18日
    2.3 MB 10月18日
CLF Files
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: 12月13日
12-10-21    24.0 MB 12月13日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


频率范围 80 Hz to 18 kHz (-10 dB)
Frequency Response (±3 dB) 90 Hz to 16 kHz ( ± 3 dB)
覆盖范围 /43: 40° x 30°/64: 60° x 40°/95: 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
系统额定功率 Passive Mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak)
System Sensitivity (1w @ 1m) Passive Mode: 109 dB-SPL
低频驱动单元 M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil
HF 驱动程序 2451H-1, 38 mm (1.5 in) exit
标称阻抗 8 ohms
Enclosure Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
外观颜色 Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
网罩 Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
输入接口 Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
净重量 79.5 kg (175 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
