PD5212/43 /64 /95 (Descontinuado)

Precision DirectivityFull Range Two-Way Loudspeakers

PD5212/43 /64 /95
Imagens Grandes

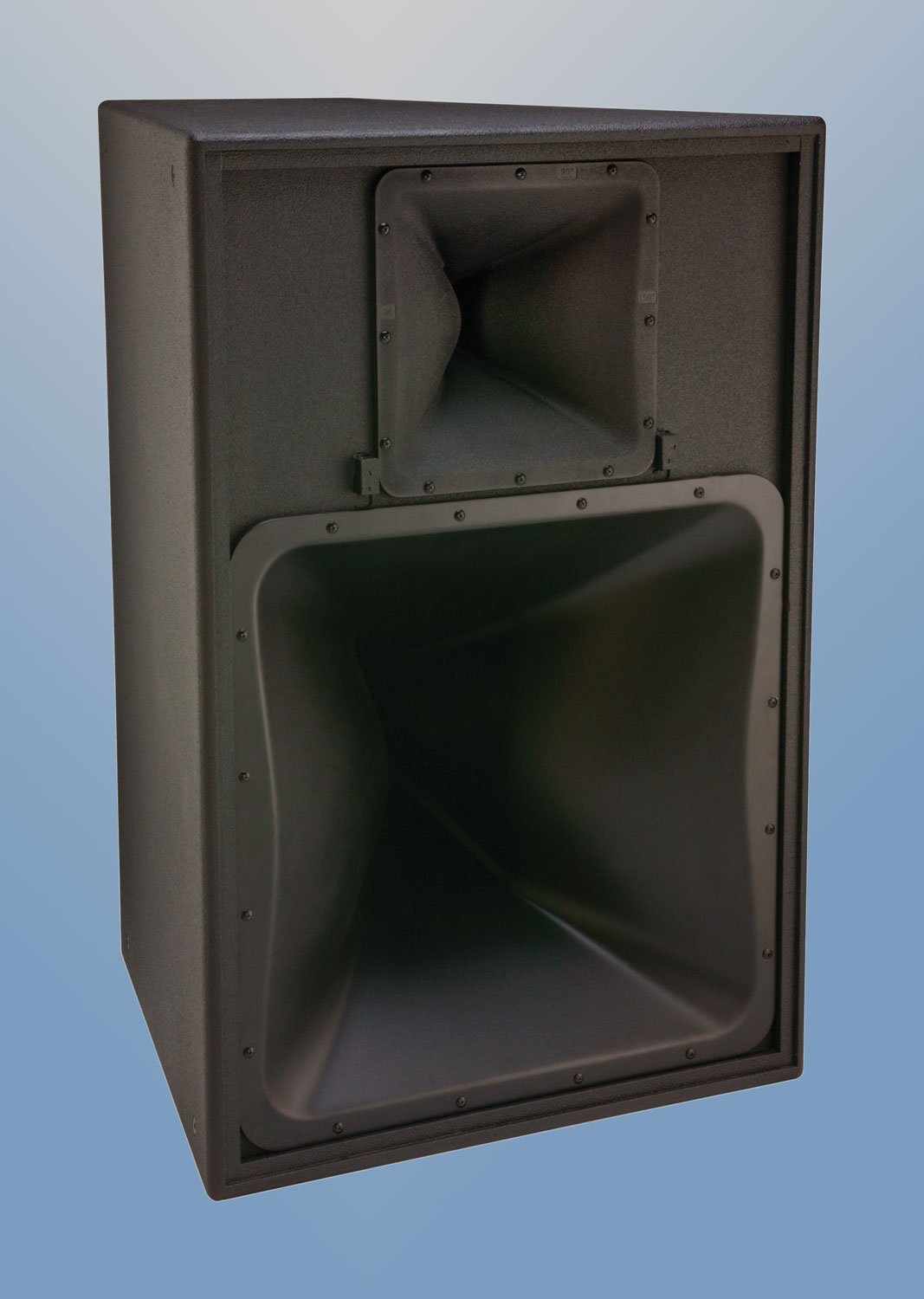

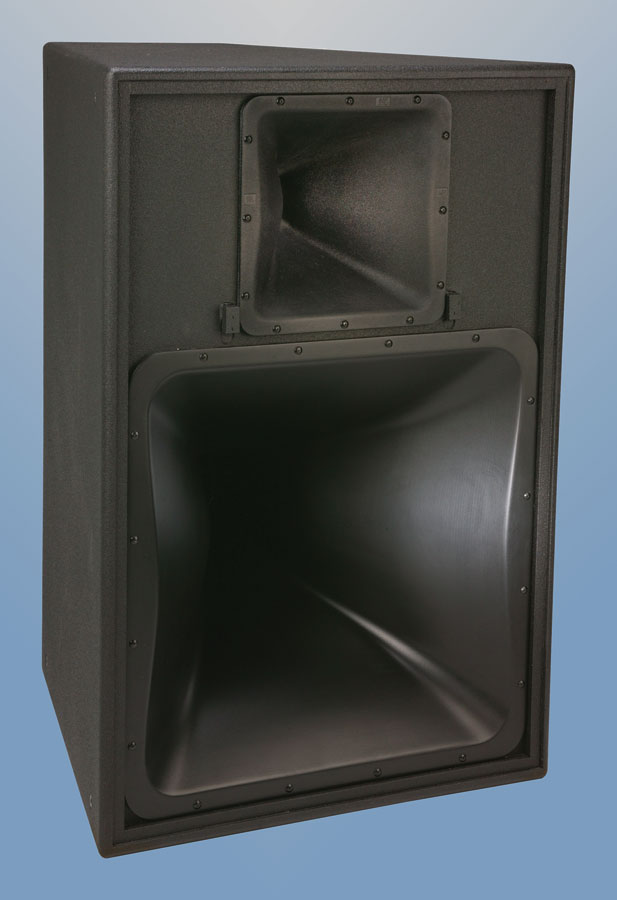

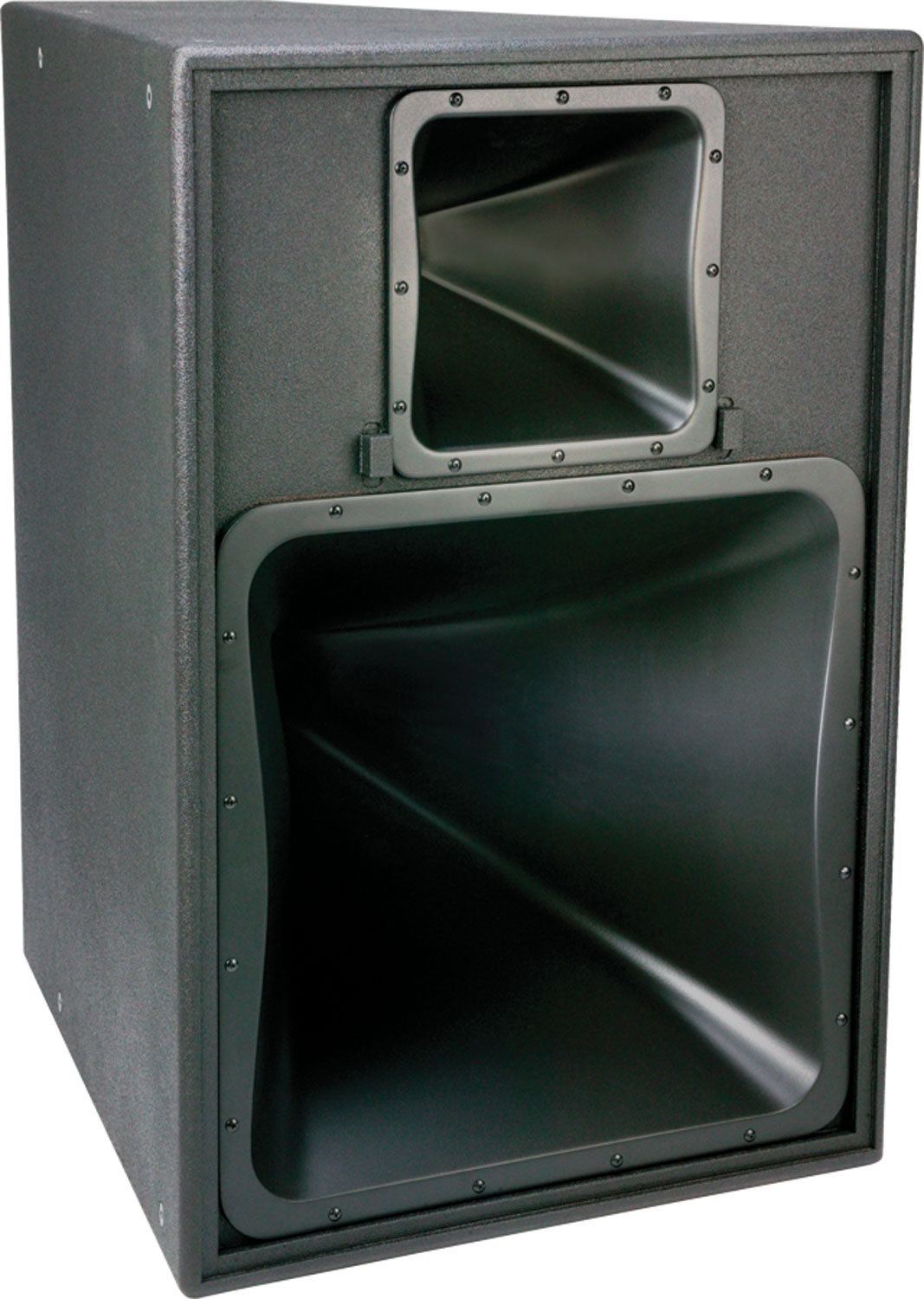

Precision Directivity Full Range Two-Way Loudspeakers

The PD5212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full range systems.

Recursos

  • 300 mm (12 in) horn-loaded LF and largeformat HF
  • Large PT™ Progressive Transition™ waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation.
  • Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes.

Downloads

  Version Language Size Uploaded
Data Sheets
file type icon PD5212/64 Spec Sheet
updated: Out 2019
    93,6 KB Out 2019
Specifications
file type icon PD5212/43 Spec Sheet
updated: Jul 2019
    91,9 KB Jul 2019
file type icon PD5212/95 Spec Sheet
updated: Jul 2019
    117 KB Jul 2019
Manuals
file type icon PD5000 Product Range
updated: Out 2019
    290 KB Out 2019
CAD Drawings
file type icon PD5000 Series 2D DXF Files
updated: Out 2019
    2,93 MB Out 2019
file type icon PD5000 2D CAD
updated: Out 2020
    4,94 MB Out 2020
file type icon PD5000 3D CAD
updated: Out 2020
    170 KB Out 2020
file type icon PD5000 2D PDF
updated: Out 2020
    662 KB Out 2020
Compliances
file type icon PD5000 Series Declaration of Conformity
updated: Out 2019
    91,7 KB Out 2019
Images
file type icon PD52xx95-Image.jpg
updated: Out 2020
    123 KB Out 2020
file type icon PD52xx64.jpg
updated: Out 2020
    47,7 KB Out 2020
file type icon PD5212-43
updated: Out 2019
    213 KB Out 2019
file type icon PD5212/64 Hi Res Photo
updated: Out 2019
    5,83 MB Out 2019
Speaker Tunings
file type icon PD5000 Tunings
updated: Mai 2023
    2,35 MB Mai 2023
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: Mai 2023
12-10-21    24 MB Mai 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Especificações

Frequency Range 80 Hz to 18 kHz (-10 dB)
Frequency Response (±3 dB) 90 Hz to 16 kHz ( ± 3 dB)
Coverage Pattern /43: 40° x 30°/64: 60° x 40°/95: 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
System Power Rating Passive Mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak)
System Sensitivity (1w @ 1m) Passive Mode: 109 dB-SPL
LF Driver M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil
HF Driver 2451H-1, 38 mm (1.5 in) exit
Nominal Impedance 8 ohms
Enclosure Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Net Weight 79.5 kg (175 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
