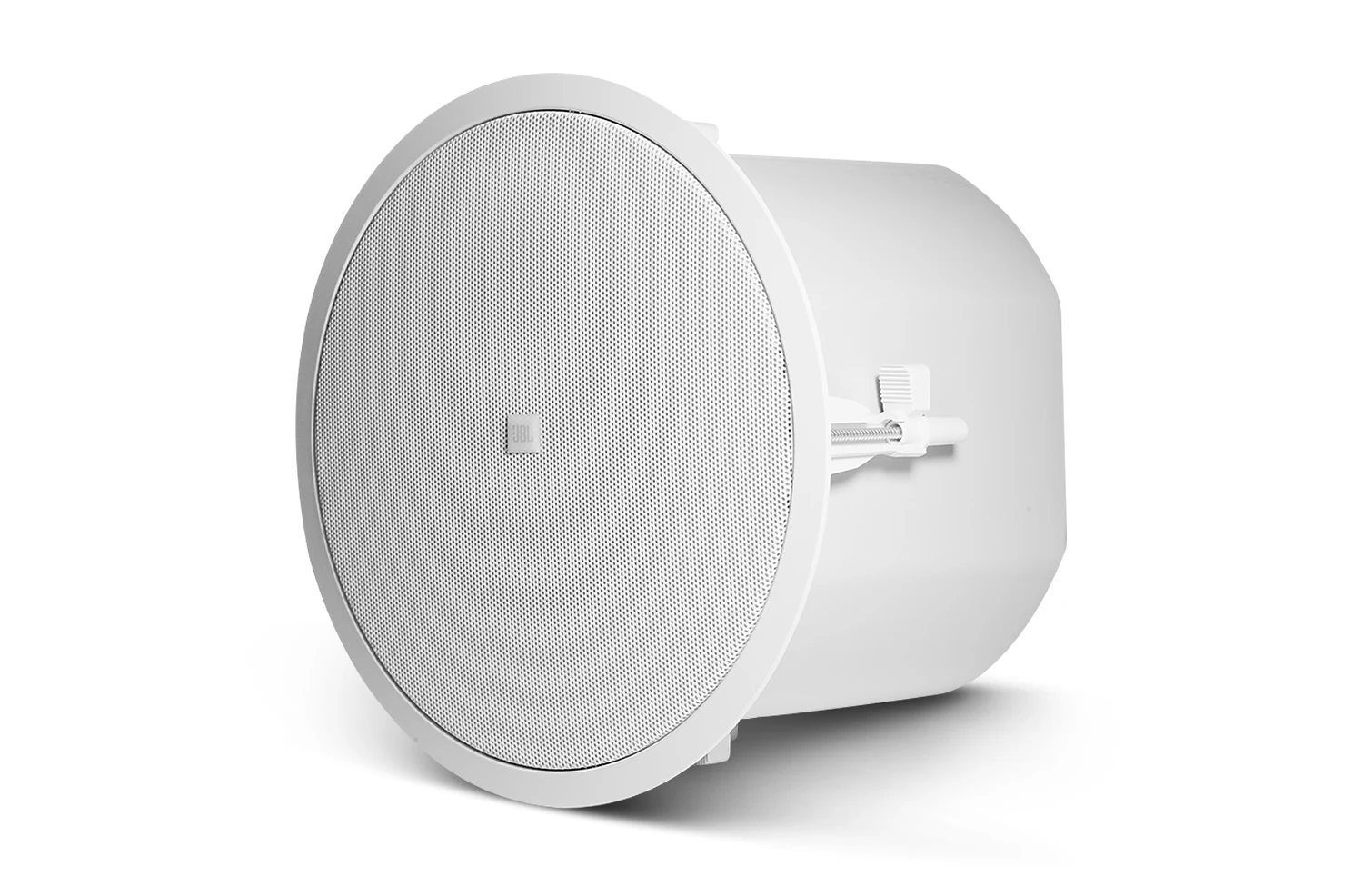

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver
The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.
Grandes images
Caractéristiques
- Consistent 120° broadband pattern control for exceptional coverage
- Coaxial design featuring:
Kevlar-reinforced 165 mm (6.5 in) woofer
25 mm (1 in) compression driver - Extraordinary clarity for speech and vocals with extended frequency response for music
- 150 Watts Power Handling
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- Integrated back can with clean, contemporary grille
Téléchargements
Specifications
| Taille | |
|
|
14,1 ko |
|
|
434 ko |
Manuals
| Taille | |
|
|
2,3 Mo |
|
|
127 ko |
Brochures
| Taille | |
|
|
21 Mo |
|
|
23 Mo |
|
|
14 Mo |
|
|
324 ko |
mis à jour : mars 2026
CAD Drawings
| Taille | |
|
|
3,45 Mo |
Compliances
| Taille | |
|
|
179 ko |
|
|
92,6 ko |
Software
| Taille | |
|
|
612 ko |
Simulation Data
| Taille | |
|
|
21 Mo |
Ease Data
| Taille | |
|
|
1,17 Mo |
|
|
11,5 Mo |
Speaker Tunings
| Taille | |
|
|
557 ko |
Owner's Manuals
| Taille | |
|
|
2,3 Mo |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Range (-10dB) | 47 Hz - 19 kHz |
| Power Rating | IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs |
| Transformer Taps | 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass |
| Sensitivity | 90 dB (1 kHz - 16 kHz) |
| Coverage Angle | 120° conical, constant directivity |
| Drivers | LF Driver: 165 mm (6.5 inch) HF Driver: compression driver, 25 mm (1 inch) coil |
| Dimensions (H x Dia) | Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in) |
| Net Weight (each) | 9.1 kg (20.0 lb) |
| Shipping Weight (pair) | 23.9 kg (52.5 lb) |
| Maximum SPL (1m) | 112 dB (low-impedance, 118 dB peak) 108 dB (top 70V/100V tap) |
| Impedance | 8 ohms (in direct/bypass setting) |
| Input Connectors | Removable locking connector with screw-down terminals. |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 307 mm (12.1 in) diameter (cardboard cutout template included) |
| Included Accessories | Press-in Grille, C-Ring, Tile Rails. |
| Optional Accessories | MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
Accessoires
MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
Grandes images
Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 is an accessory tile rail for installing many of
JBL’s ceiling loudspeakers into 4 ft by 4
ft
(1200 x 1200 mm; 48 x 48 inch)
ceiling tiles in suspended ceiling
applications.
- Can be used with any JBL ceiling
speakers having the C-ring/tile-rail
mounting system.
Includes (at product release):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list. - Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
- 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
- Multiple C-ring mounting holes. Additional hole locations drillable by installer.
- One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
Documentation
-
MTC-48TRx12 Spec Sheet (revB)
[77,2 ko]
