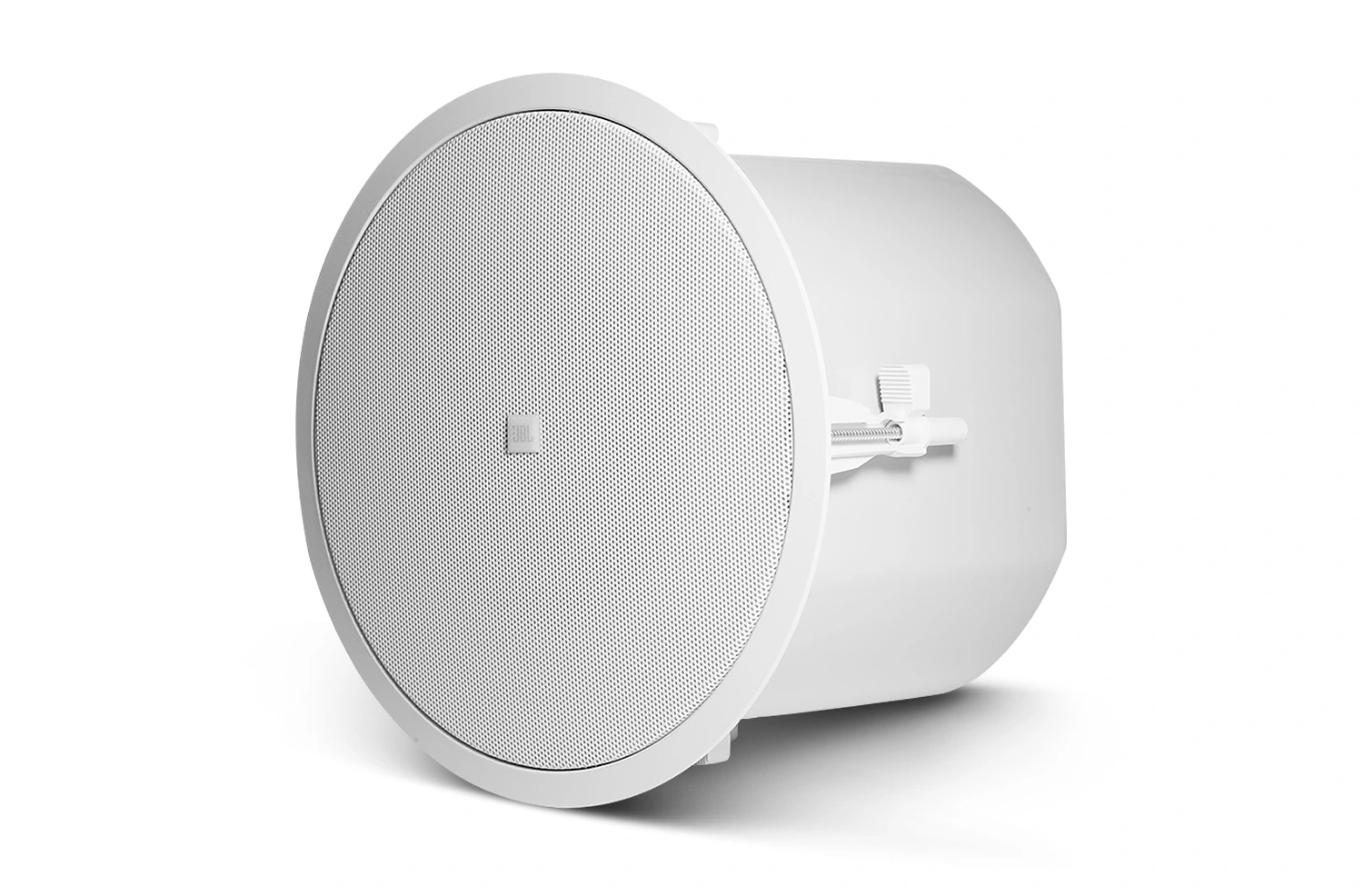

Control 226C/T

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver

Larger Images

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver

The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.

Features

  • Consistent 120° broadband pattern control for exceptional coverage
  • Coaxial design featuring:
    Kevlar-reinforced 165 mm (6.5 in) woofer
    25 mm (1 in) compression driver
  • Extraordinary clarity for speech and vocals with extended frequency response for music
  • 150 Watts Power Handling
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • Integrated back can with clean, contemporary grille

Downloads

  Version Language Size Uploaded
Specifications
Control 226C/T AE Specs
updated: Apr 29, 2019
    14.1 KB Apr 29, 2019
Control 226C/T Spec Sheet
updated: Apr 29, 2019
    434 KB Apr 29, 2019
Manuals
Control 200 User's Guide
updated: Oct 18, 2019
    2.3 MB Oct 18, 2019
Ceiling Speaker Accessory Guide
updated: Oct 18, 2019
    127 KB Oct 18, 2019
Brochures
Control 200 Brochure
updated: Apr 29, 2019
    324 KB Apr 29, 2019
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
Commercial Sound Full Line 2015 Catalog
updated: Oct 21, 2019
    2.02 MB Oct 21, 2019
CAD Drawings
CAD Drawings
updated: Apr 29, 2019
    3.45 MB Apr 29, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
Control 200 Series Declaration of Conformity
updated: Oct 18, 2019
    92.6 KB Oct 18, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Owner's Manuals
Control 226-C/T Manual
updated: Apr 29, 2019
    2.3 MB Apr 29, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range (-10 dB) 47 Hz - 19 kHz
Power Capacity 150 W on 8-ohm setting
Tap Settings 68W, 34W, 17W (plus 8.5W at 70V)
Sensitivity 90 dB95 dB computed for competitive comparison
Coverage 120 degrees
Low Frequency 165 mm (6.5 in) woofer Kevlar reinforced cone
High Frequency 25 mm (1 in) exit compression driver
Dimensions (H x Dia) Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)
Net Weight (ea) 9.1 kg (20.0 lb)
Shipping Weight (pair) 23.9 kg (52.5 lb)
