JBL Professional SRX812P

Grandes images

12-inch 2-Way Multipurpose Powered Speaker

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 12" two-way, SRX812P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

Caractéristiques

Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
JBL Premium Transducers
Drivecore Amplification By Crown
Full User Configurable DSP
Network Control
JBL Engineered Application Presets
LCD Screen and Glow in the Dark Ink on Back Panel
M10 Suspension Points
Standard 35mm Pole Cup
Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

plus de détails

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

Téléchargements

Data Sheets

	Taille	Téléchargé
SRX812P Data Sheet mis à jour : avr. 2019	1,88 Mo	avr. 2019

Specifications

	Taille	Téléchargé
SRX812P Spec Sheet mis à jour : déc. 2019	746 ko	déc. 2019

Manuals

	Taille	Téléchargé
SRX Connect Delay HelpGuide mis à jour : oct. 2020	188 ko	oct. 2020
SRX Connect EQ HelpGuide mis à jour : oct. 2020	373 ko	oct. 2020
SRX Connect Limiter HelpGuide mis à jour : oct. 2020	263 ko	oct. 2020
SRX Connect NormalView HelpGuide mis à jour : oct. 2020	427 ko	oct. 2020
SRX Connect Presets HelpGuide mis à jour : oct. 2020	286 ko	oct. 2020
SRX Connect Error Reporting HelpGuide mis à jour : oct. 2020	261 ko	oct. 2020

Brochures

	Version	Langue	Taille	Téléchargé
JBL 2025 PPA Brochure version B, mis à jour : août 2025	B		8,45 Mo	août 2025

Compliances

	Taille	Téléchargé
SRX800 Series Declaration of Conformity mis à jour : oct. 2020	154 ko	oct. 2020

Software

	Taille	Téléchargé
Software Support mis à jour : avr. 2019	114 ko	avr. 2019
SRX Connect publié : août 2023		août 2023
HiQnet Audio Architect publié : nov. 2020		nov. 2020
SRX Connect publié : août 2023		août 2023

User Guides

	Taille	Téléchargé
SRX 812P/815P/835P QuickStart Guide mis à jour : nov. 2020	1,75 Mo	nov. 2020
SRX800 User Guide mis à jour : avr. 2019	7,41 Mo	avr. 2019

Images

	Taille	Téléchargé
SRX800 Driver mis à jour : avr. 2019	158 ko	avr. 2019
SRX800 Handle mis à jour : avr. 2019	208 ko	avr. 2019

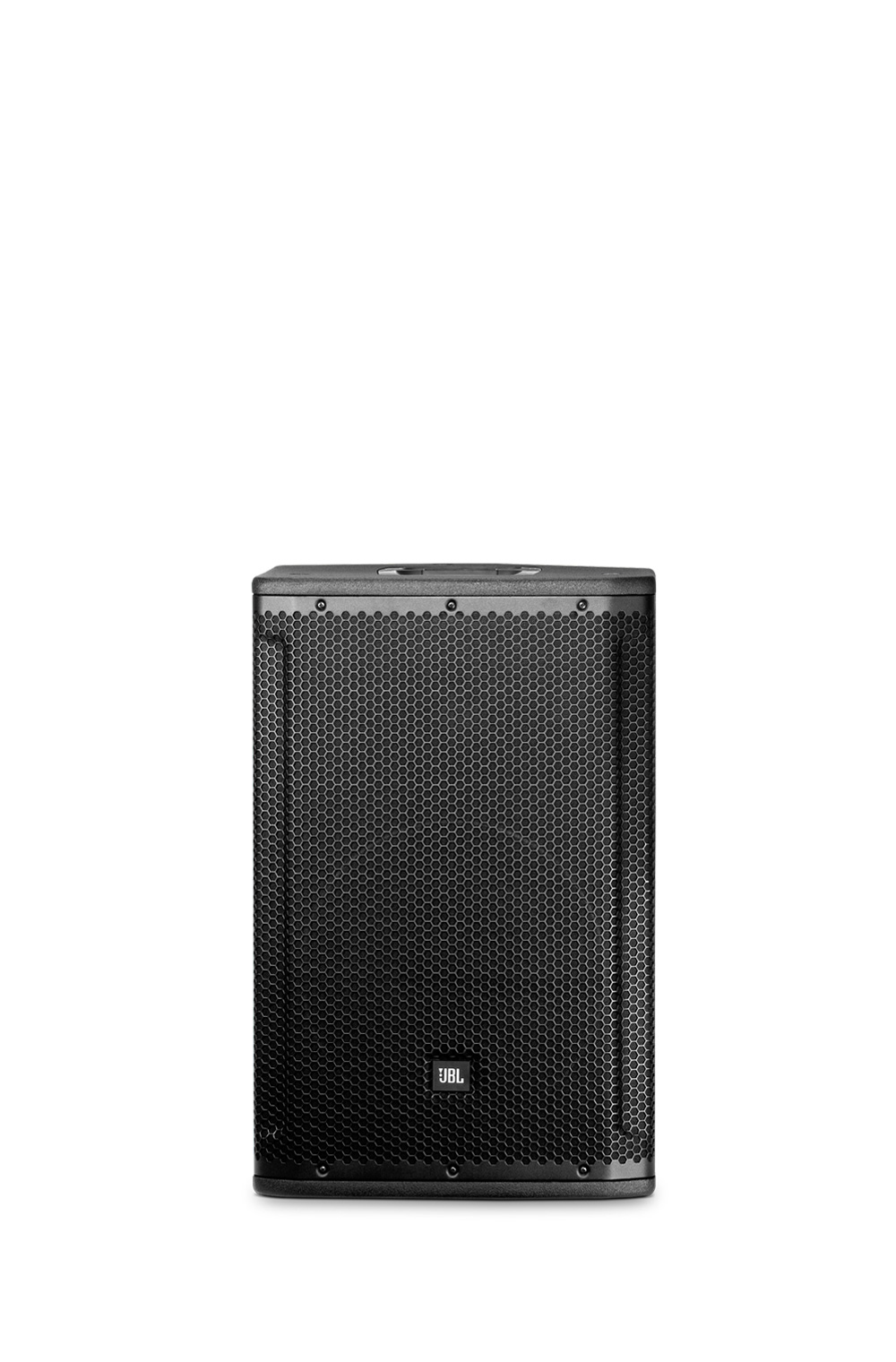

SRX812P Front mis à jour : avr. 2019	211 ko	avr. 2019

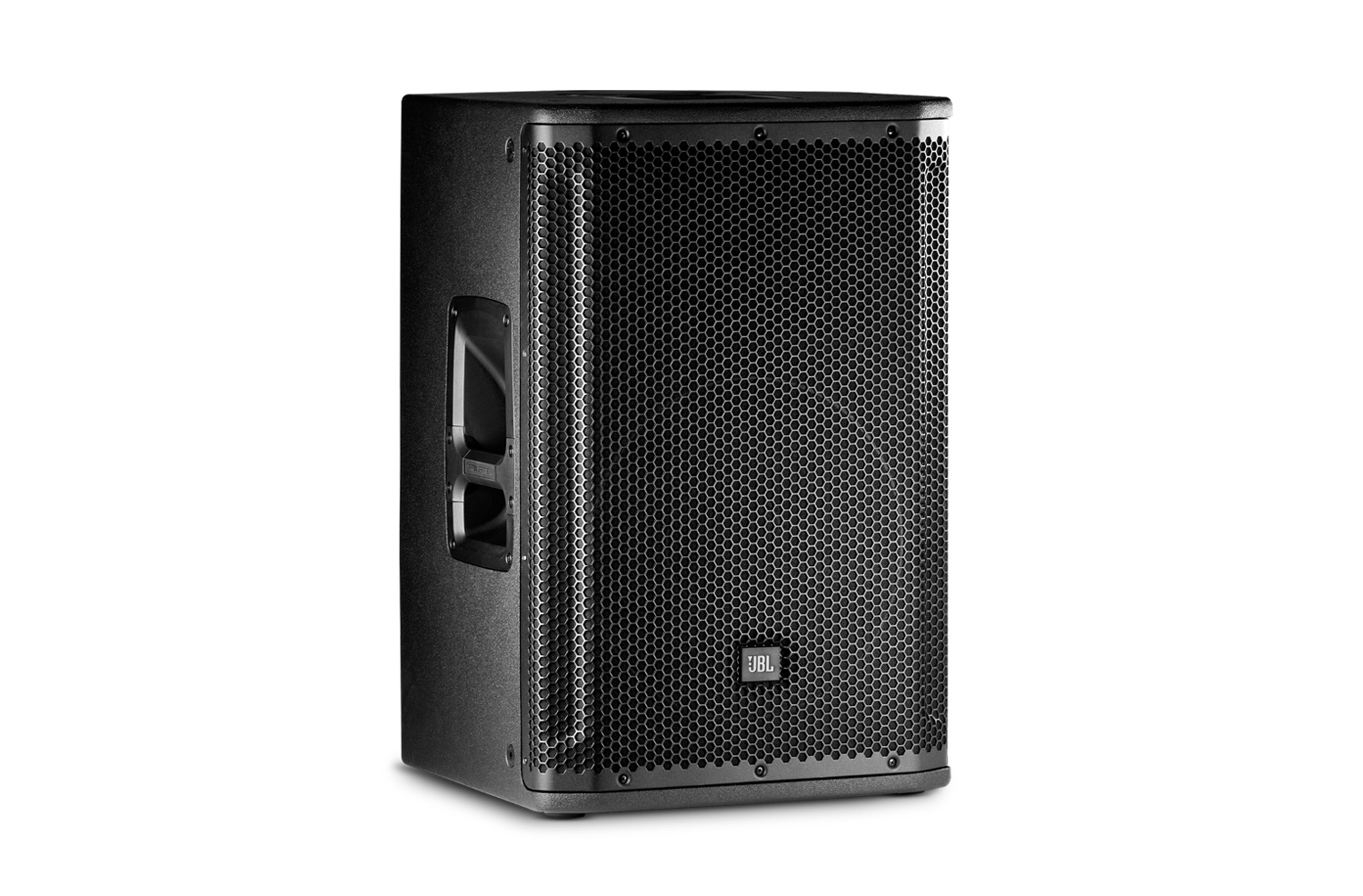

SRX812P Angle mis à jour : avr. 2019	291 ko	avr. 2019

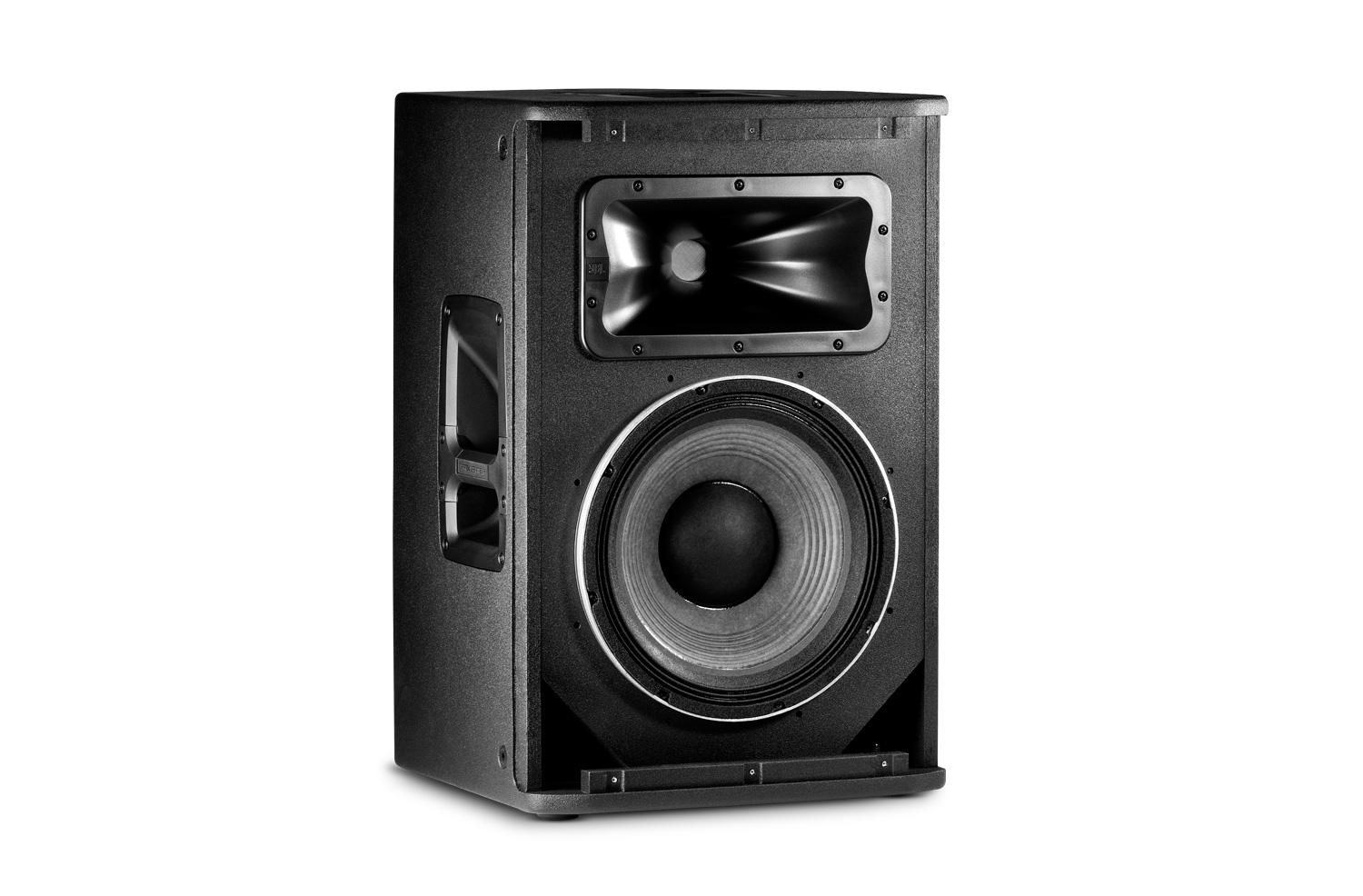

SRX812P Angle No-Grill mis à jour : avr. 2019	218 ko	avr. 2019

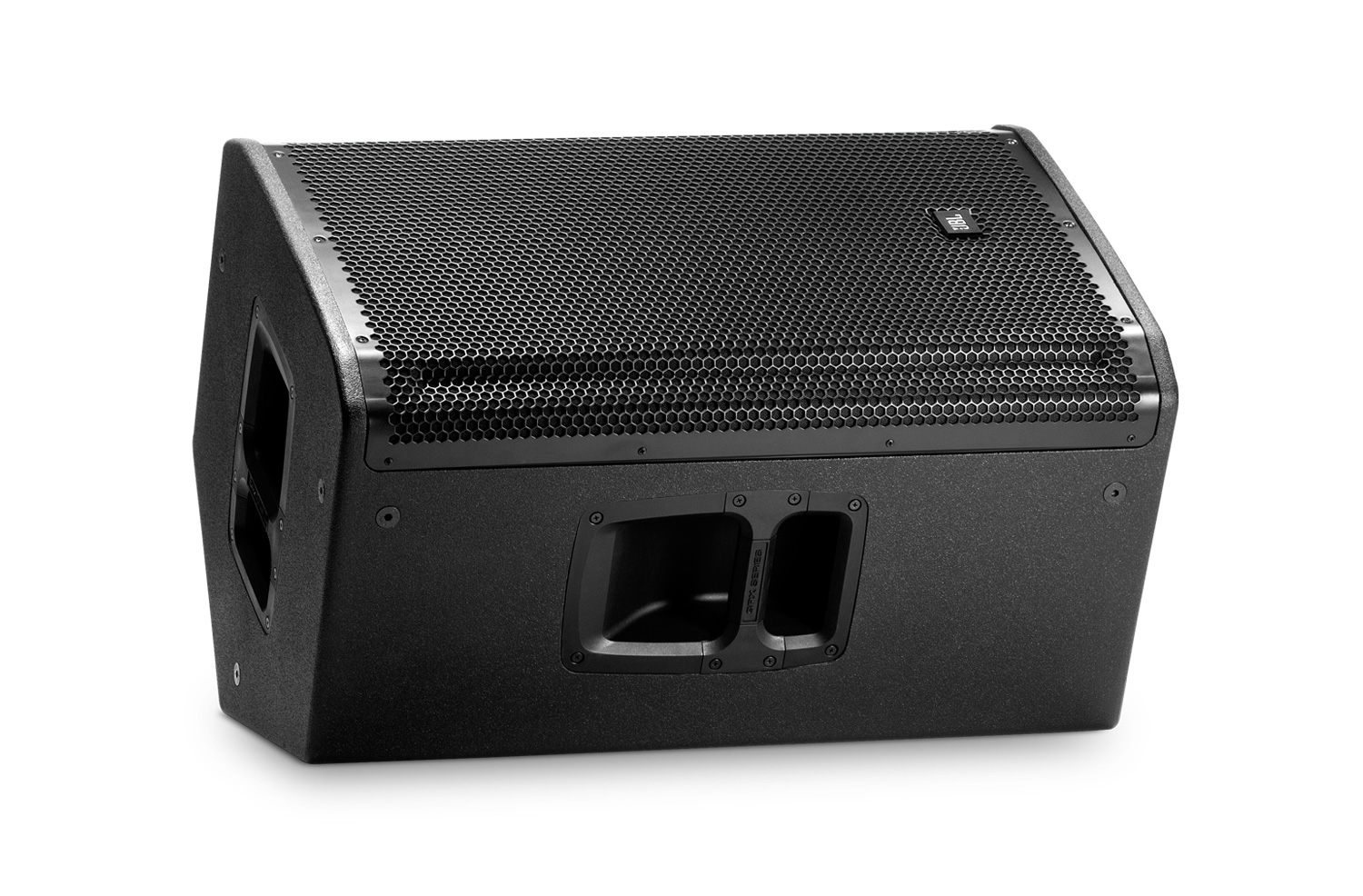

SRX812P Monitor mis à jour : avr. 2019	345 ko	avr. 2019

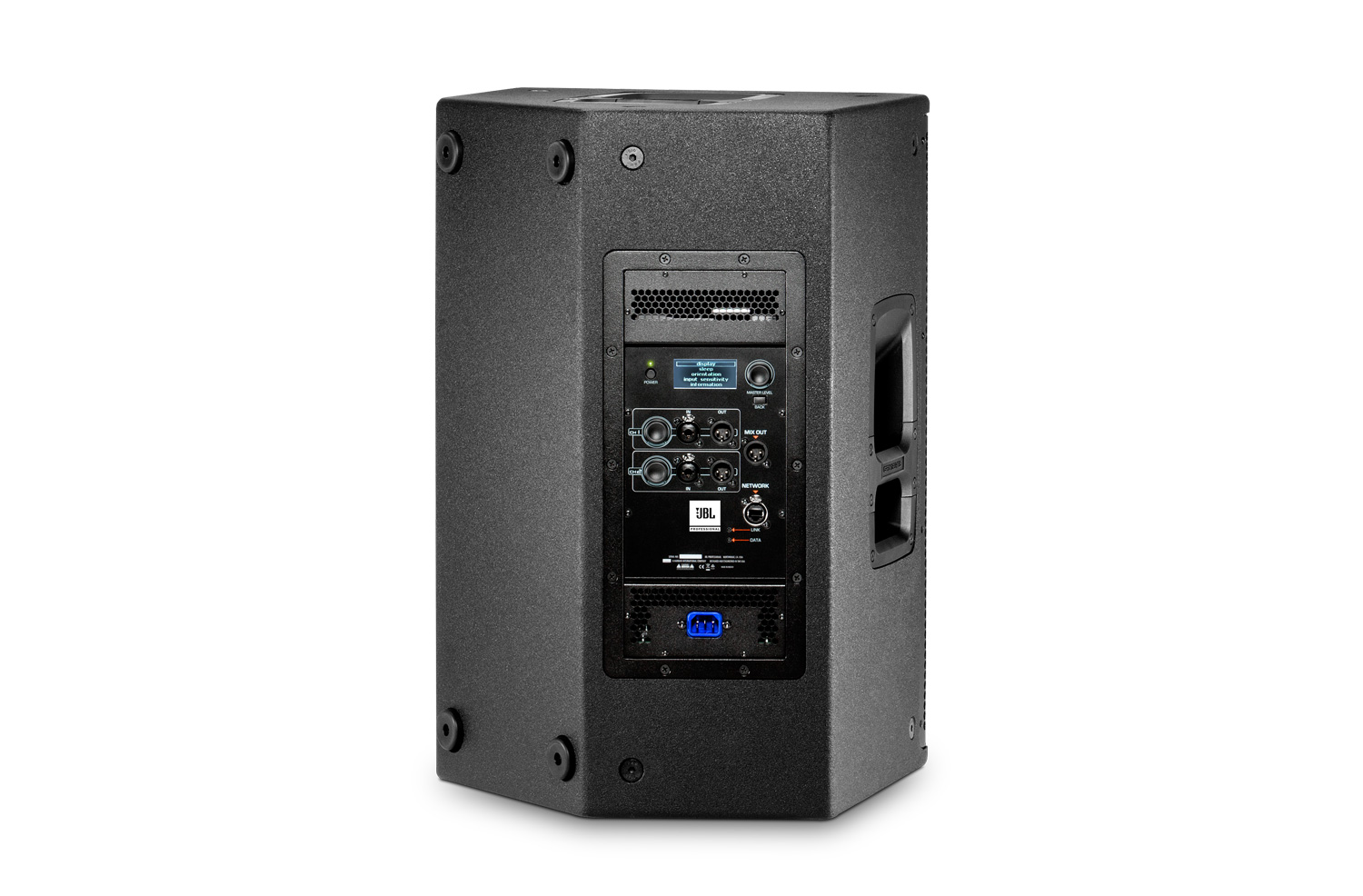

SRX812P Back mis à jour : avr. 2019	228 ko	avr. 2019

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

System Type	Self powered 12”, two-way, bass-reflex
Maximum SPL (1m)	136 dB
Frequency Range (-10dB)	40 Hz - 21 kHz
Frequency Response (±3 dB)	48 Hz - 20 kHz
Coverage Pattern	90° x 50°
Amplifier Design	Class D
Power Rating	2000 W Peak
Dimensions (H x W x D)	429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Net Weight (each)	26.4 kg (58 lb)
EQ	20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs	Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs	2 x XLR
Enclosure	18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance	NA - amplification is integrated
LF Driver	1 x 2272F, Differential Drive®, 12" diameter
HF Driver	1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting	Dual 36 mm pole socket, 12 x M10 suspension points
