SRX812P

12" Two-Way Bass Reflex Self-Powered System

较大的图像

12" Two-Way Bass Reflex Self-Powered System

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 12" two-way, SRX812P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

特点

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup
  • Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


更多详情

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

下载

  Version Language Size Uploaded
Data Sheets
SRX812P Data Sheet
updated: 4月29日
    1.9 MB 4月29日
Specifications
SRX812P Spec Sheet
updated: 12月17日
    746.1 KB 12月17日
Manuals
SRX Connect Delay HelpGuide
updated: 10月18日
    187.7 KB 10月18日
SRX Connect EQ HelpGuide
updated: 10月18日
    372.9 KB 10月18日
SRX Connect Limiter HelpGuide
updated: 10月18日
    263.3 KB 10月18日
SRX Connect NormalView HelpGuide
updated: 10月18日
    427.4 KB 10月18日
SRX Connect Presets HelpGuide
updated: 10月18日
    285.5 KB 10月18日
SRX Connect Error Reporting HelpGuide
updated: 10月31日
    260.9 KB 10月31日
Compliances
SRX800 Series Declaration of Conformity
updated: 10月18日
    154.4 KB 10月18日
Software
Software Support
updated: 4月29日
    114.5 KB 4月29日
SRX Connect
updated: 10月09日
    10月09日
HiQnet Audio Architect
updated: 1月15日
    1月15日
SRX Connect
updated: 10月09日
    10月09日
User Guides
SRX812P/815P/835P QuickStart Guide
updated: 4月29日
    1.8 MB 4月29日
SRX800 User Guide
updated: 4月29日
    7.4 MB 4月29日
Quick Start Guides
SRX Connect QuickStart Guide
updated: 10月31日
    1.2 MB 10月31日
Images
SRX800 Driver
updated: 4月29日
    157.9 KB 4月29日
SRX800 Handle
updated: 4月29日
    208.1 KB 4月29日

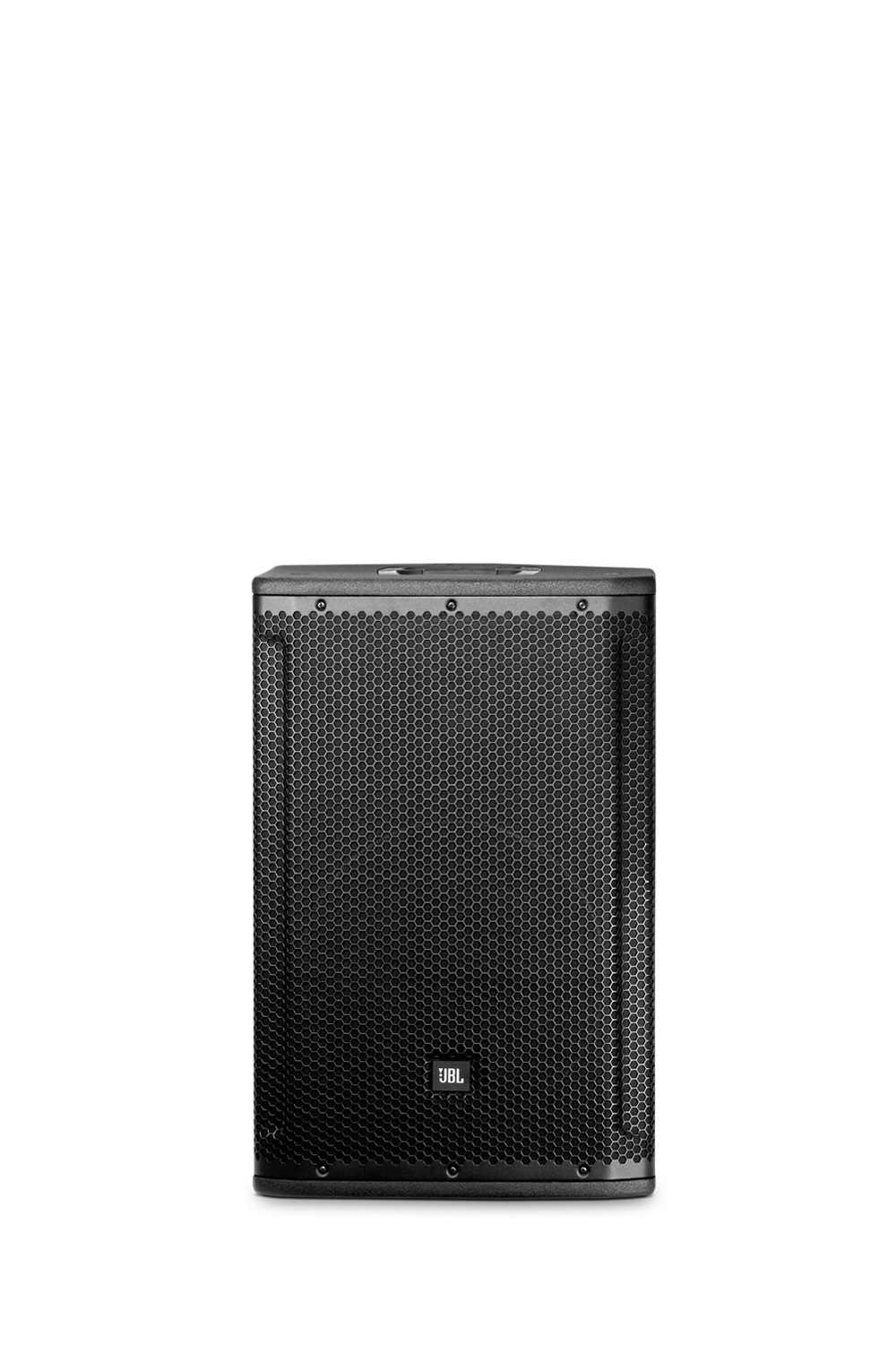

SRX812P Front
updated: 4月29日
    210.9 KB 4月29日

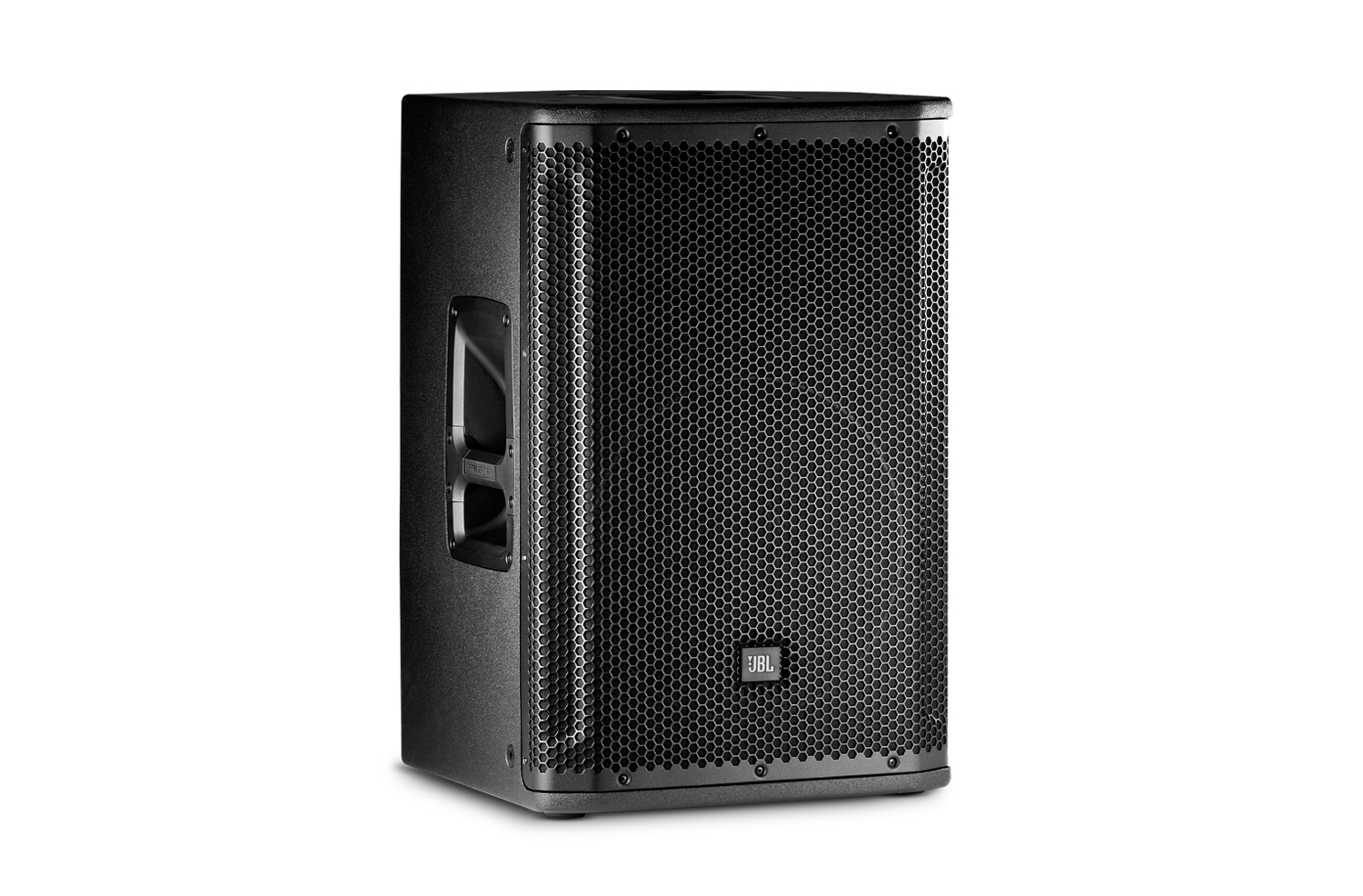

SRX812P Angle
updated: 4月29日
    291.4 KB 4月29日

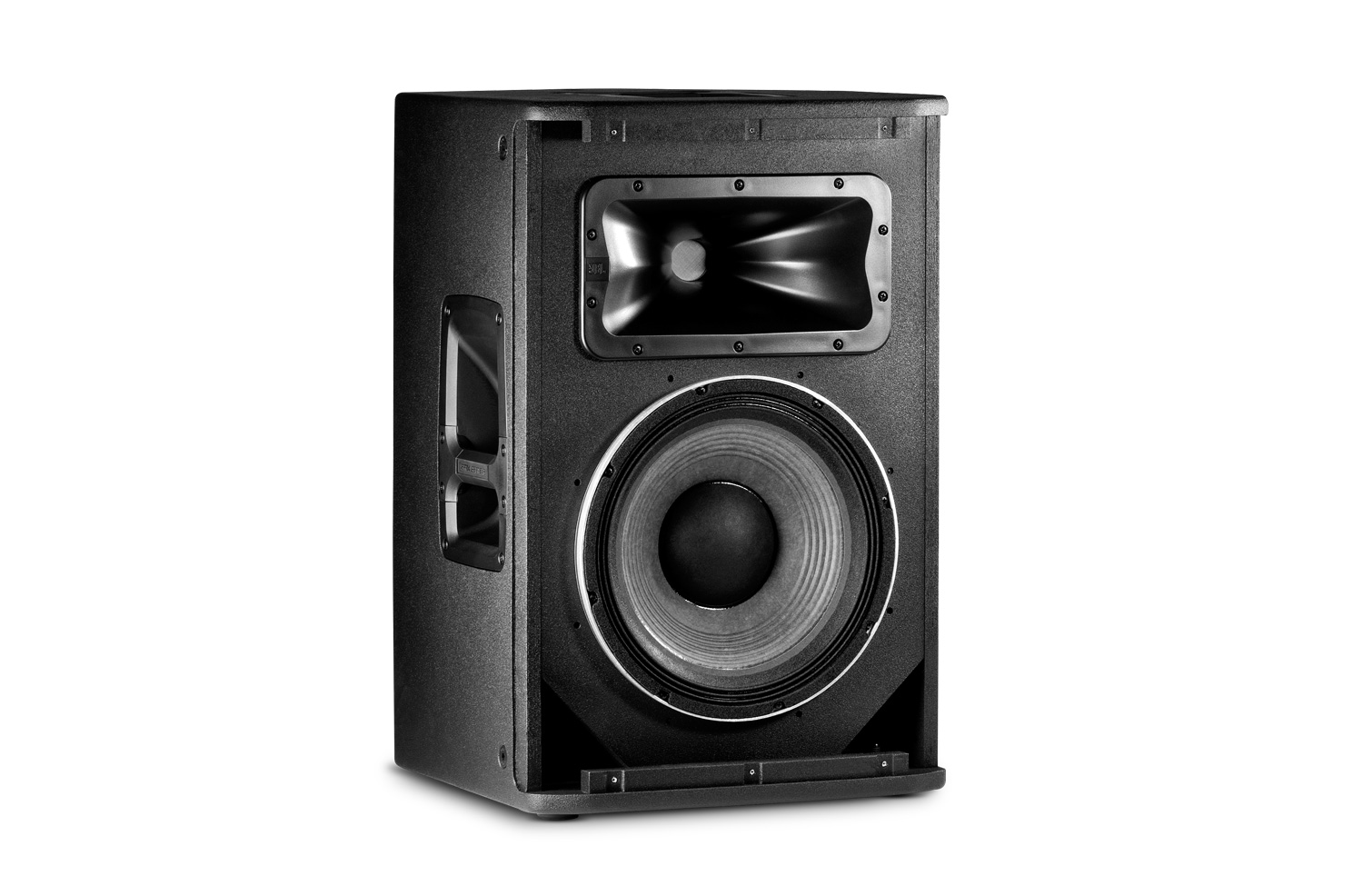

SRX812P Angle No-Grill
updated: 4月29日
    218.2 KB 4月29日

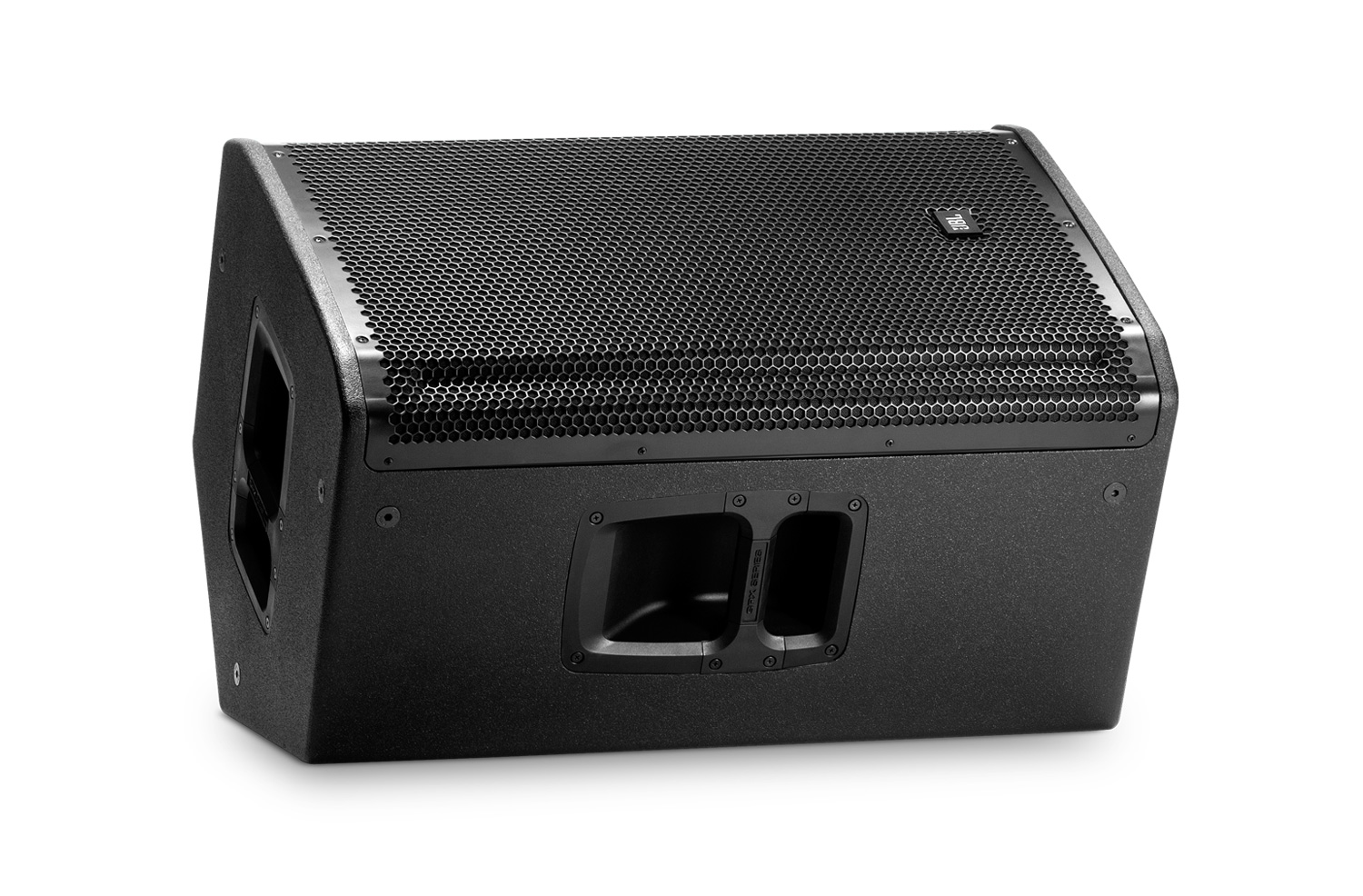

SRX812P Monitor
updated: 4月29日
    344.9 KB 4月29日

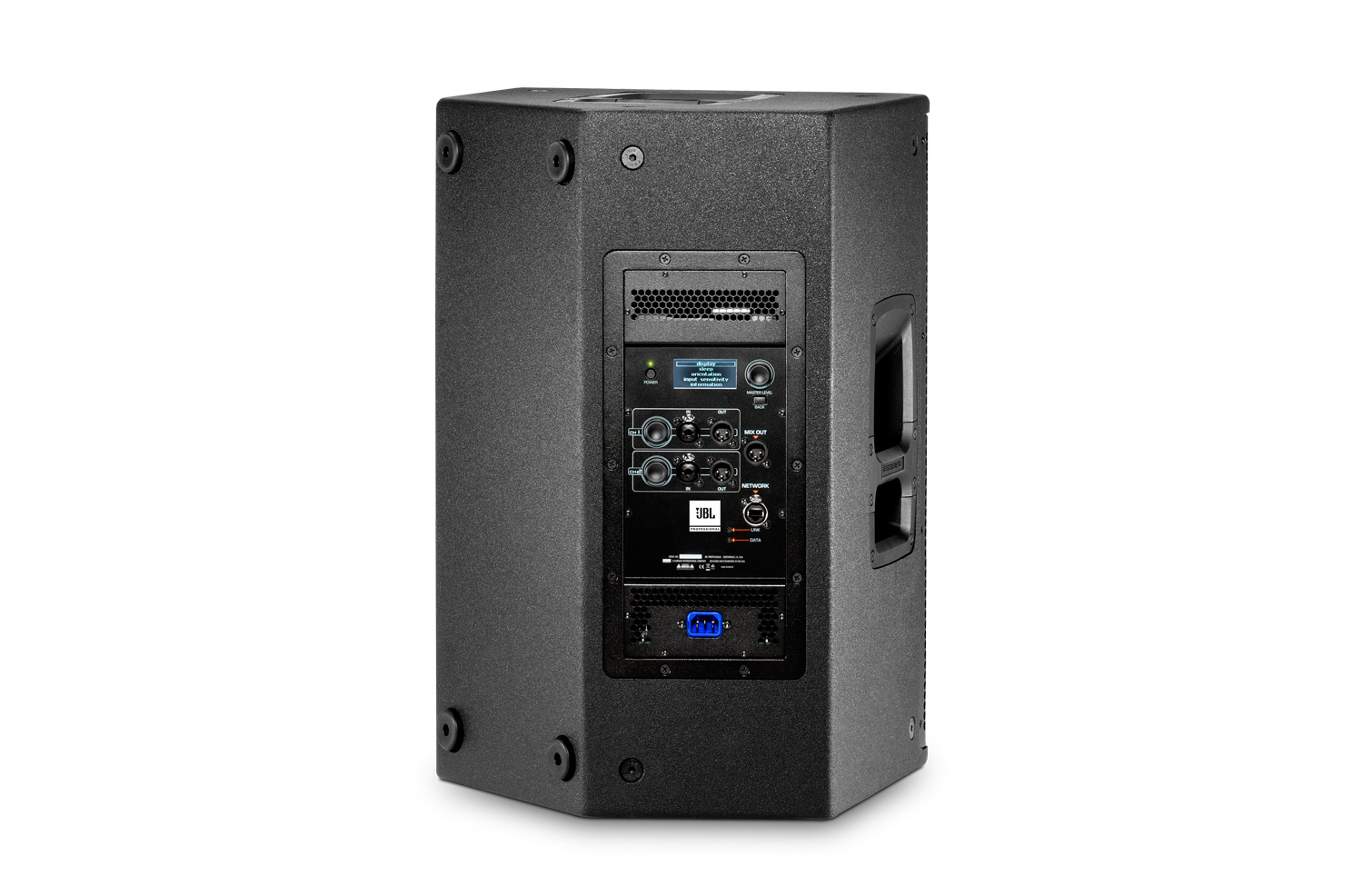

SRX812P Back
updated: 4月29日
    227.6 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type Self powered 12”, two-way, bass-reflex
Maximum SPL (1m) 136 dB
Frequency Response (-10dB) 40 Hz - 21 kHz
Frequency Response (±3 dB) 48 Hz - 20 kHz
覆盖范围 90° x 50°
Amplifier Design Class D
额定功率 2000 W Peak
尺寸(高 x 宽 x 厚) 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Net Weight (each) 26.4 kg (58 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
输入通道 Neutrik ¼ - XLR input; Neutrik XLR Output
输出 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
标称阻抗 NA - amplification is integrated
低频驱动单元 1 x 2272F, Differential Drive®, 12" diameter
HF 驱动程序 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points

Accessories

SRX812P-CVR-DLX | Deluxe padded cover for SRX812P
SRX812P-CVR-DLX Main photo
较大的图像

Deluxe padded cover for SRX812P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
