JBL Professional SRX812P

Gambar Lebih Besar

12-inch 2-Way Multipurpose Powered Speaker

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 12" two-way, SRX812P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

Fitur

Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
JBL Premium Transducers
Drivecore Amplification By Crown
Full User Configurable DSP
Network Control
JBL Engineered Application Presets
LCD Screen and Glow in the Dark Ink on Back Panel
M10 Suspension Points
Standard 35mm Pole Cup
Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

Keterangan Lebih Lanjut

PURPOSEFUL DESIGN

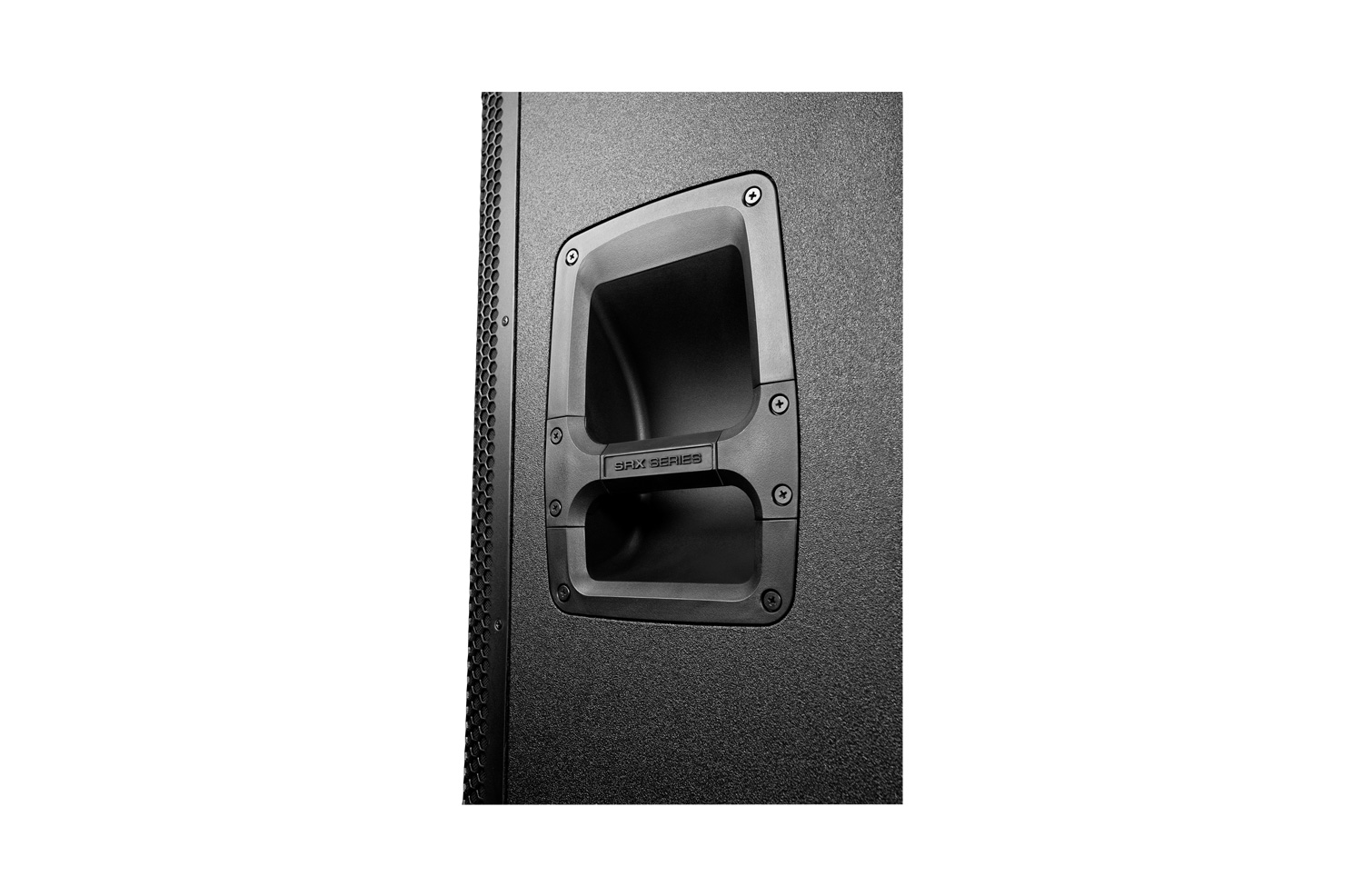

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

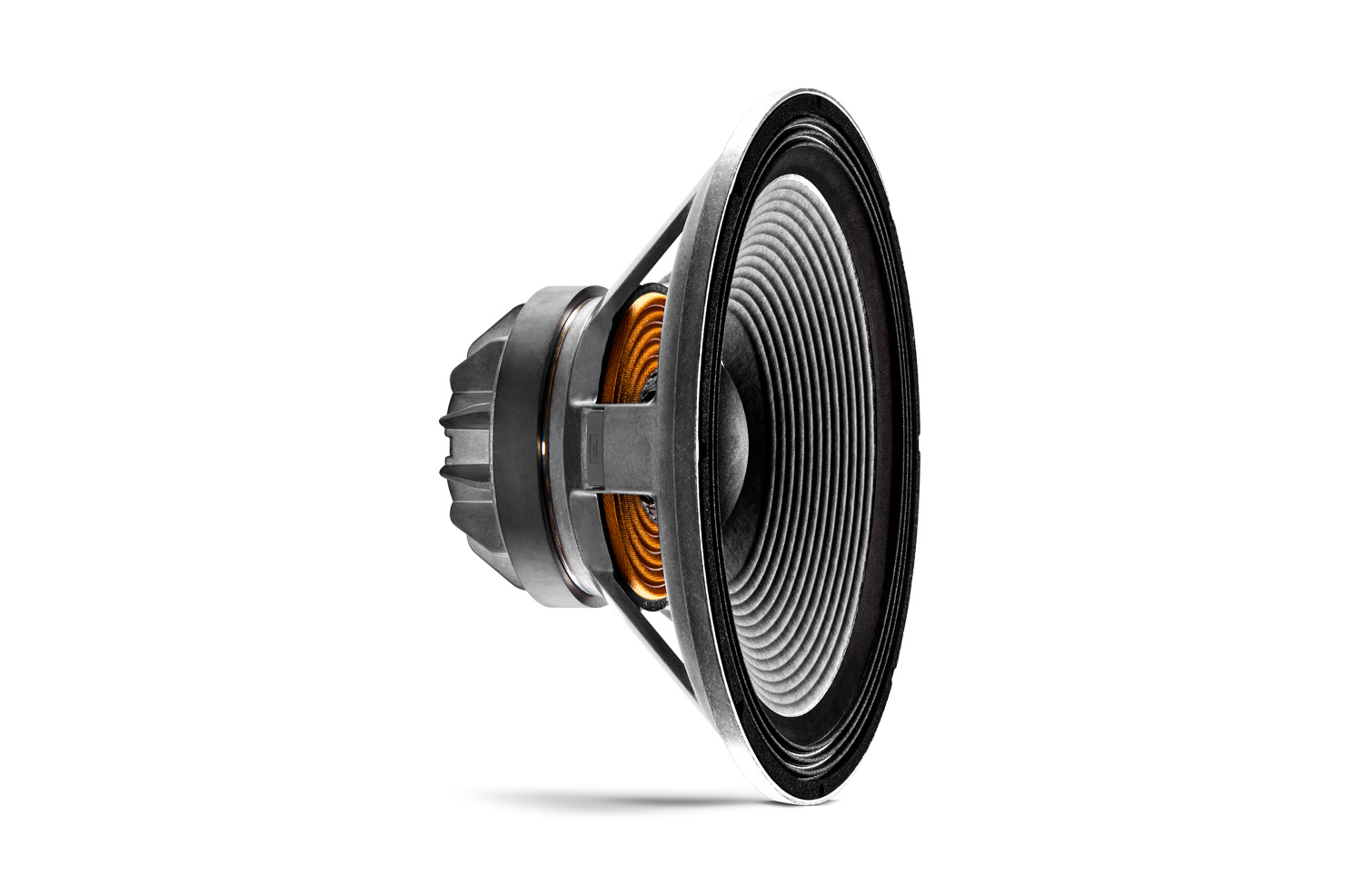

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

Unduhan

Data Sheets

	Ukuran	Diunggah
SRX812P Data Sheet diperbarui: Apr 2019	1,88 MB	Apr 2019

Specifications

	Ukuran	Diunggah
SRX812P Spec Sheet diperbarui: Des 2019	746 KB	Des 2019

Manuals

	Ukuran	Diunggah
SRX Connect Delay HelpGuide diperbarui: Okt 2020	188 KB	Okt 2020
SRX Connect EQ HelpGuide diperbarui: Okt 2020	373 KB	Okt 2020
SRX Connect Limiter HelpGuide diperbarui: Okt 2020	263 KB	Okt 2020
SRX Connect NormalView HelpGuide diperbarui: Okt 2020	427 KB	Okt 2020
SRX Connect Presets HelpGuide diperbarui: Okt 2020	286 KB	Okt 2020
SRX Connect Error Reporting HelpGuide diperbarui: Okt 2020	261 KB	Okt 2020

Brochures

	Versi	Bahasa	Ukuran	Diunggah
JBL 2025 PPA Brochure versi B, diperbarui: Agu 2025	B		8,45 MB	Agu 2025

Compliances

	Ukuran	Diunggah
SRX800 Series Declaration of Conformity diperbarui: Okt 2020	154 KB	Okt 2020

Software

	Ukuran	Diunggah
Software Support diperbarui: Apr 2019	114 KB	Apr 2019
SRX Connect dirilis: Agu 2023		Agu 2023
HiQnet Audio Architect dirilis: Nov 2020		Nov 2020
SRX Connect dirilis: Agu 2023		Agu 2023

User Guides

	Ukuran	Diunggah
SRX 812P/815P/835P QuickStart Guide diperbarui: Nov 2020	1,75 MB	Nov 2020
SRX800 User Guide diperbarui: Apr 2019	7,41 MB	Apr 2019

Images

	Ukuran	Diunggah
SRX800 Driver diperbarui: Apr 2019	158 KB	Apr 2019
SRX800 Handle diperbarui: Apr 2019	208 KB	Apr 2019

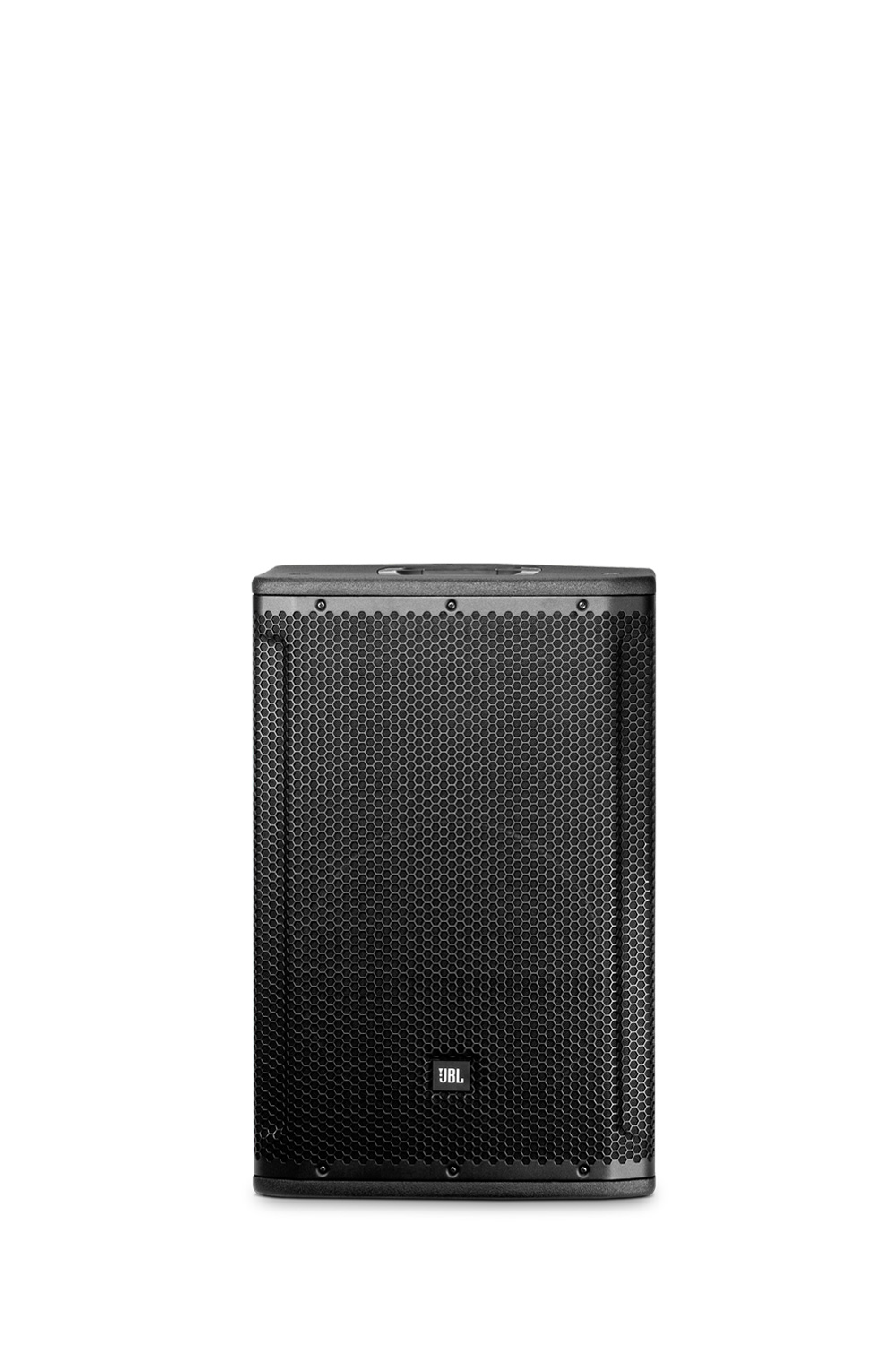

SRX812P Front diperbarui: Apr 2019	211 KB	Apr 2019

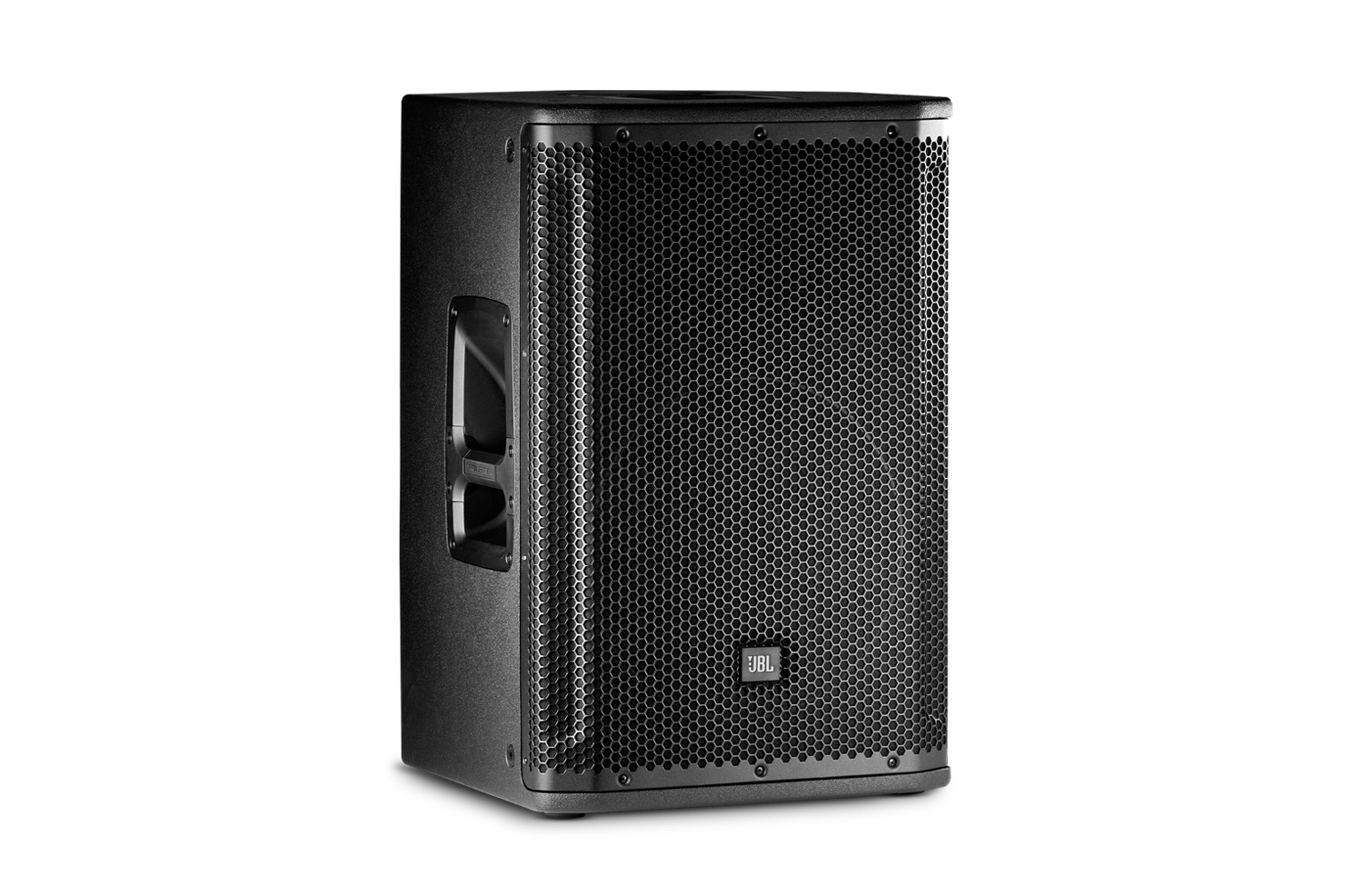

SRX812P Angle diperbarui: Apr 2019	291 KB	Apr 2019

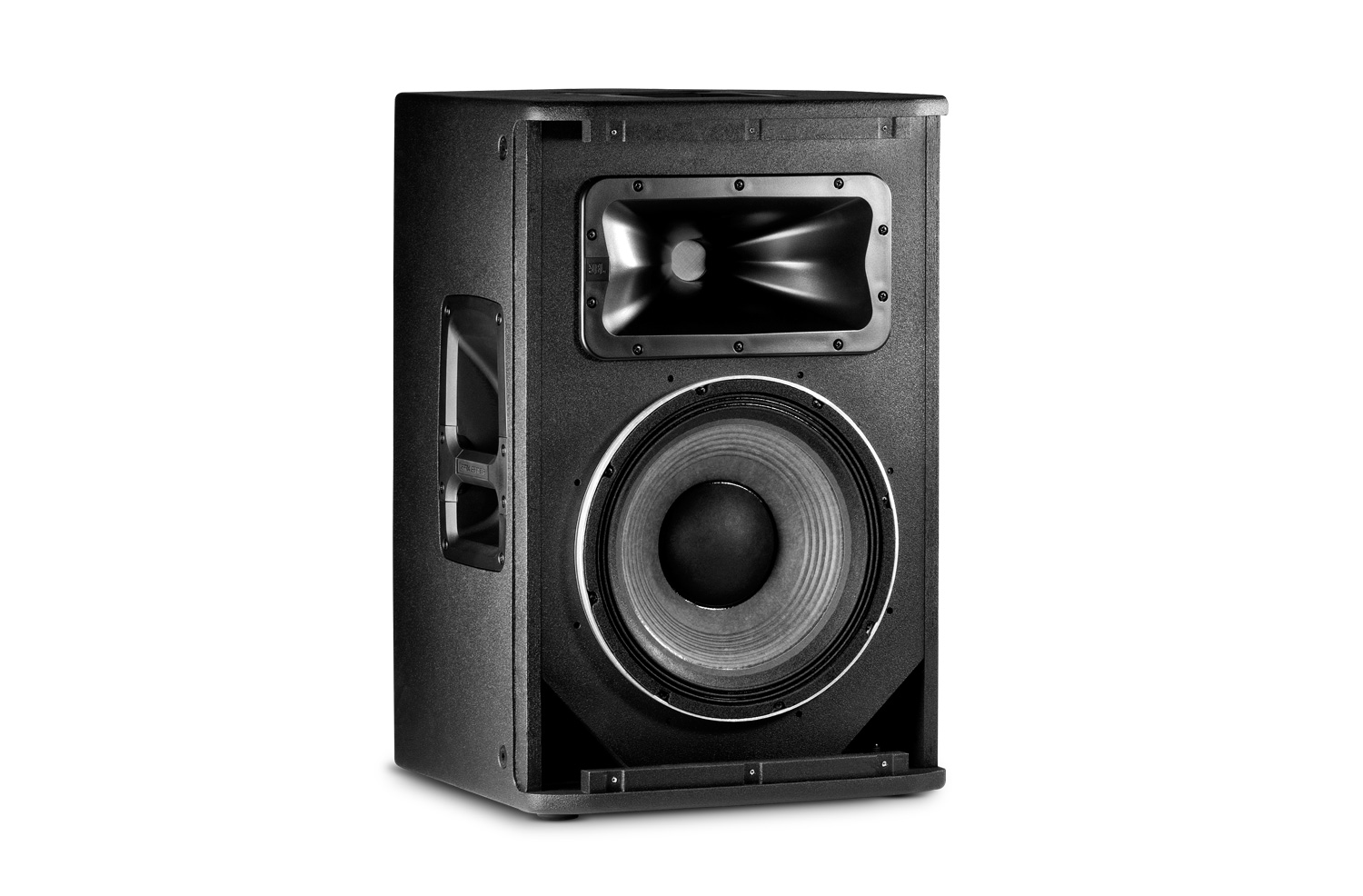

SRX812P Angle No-Grill diperbarui: Apr 2019	218 KB	Apr 2019

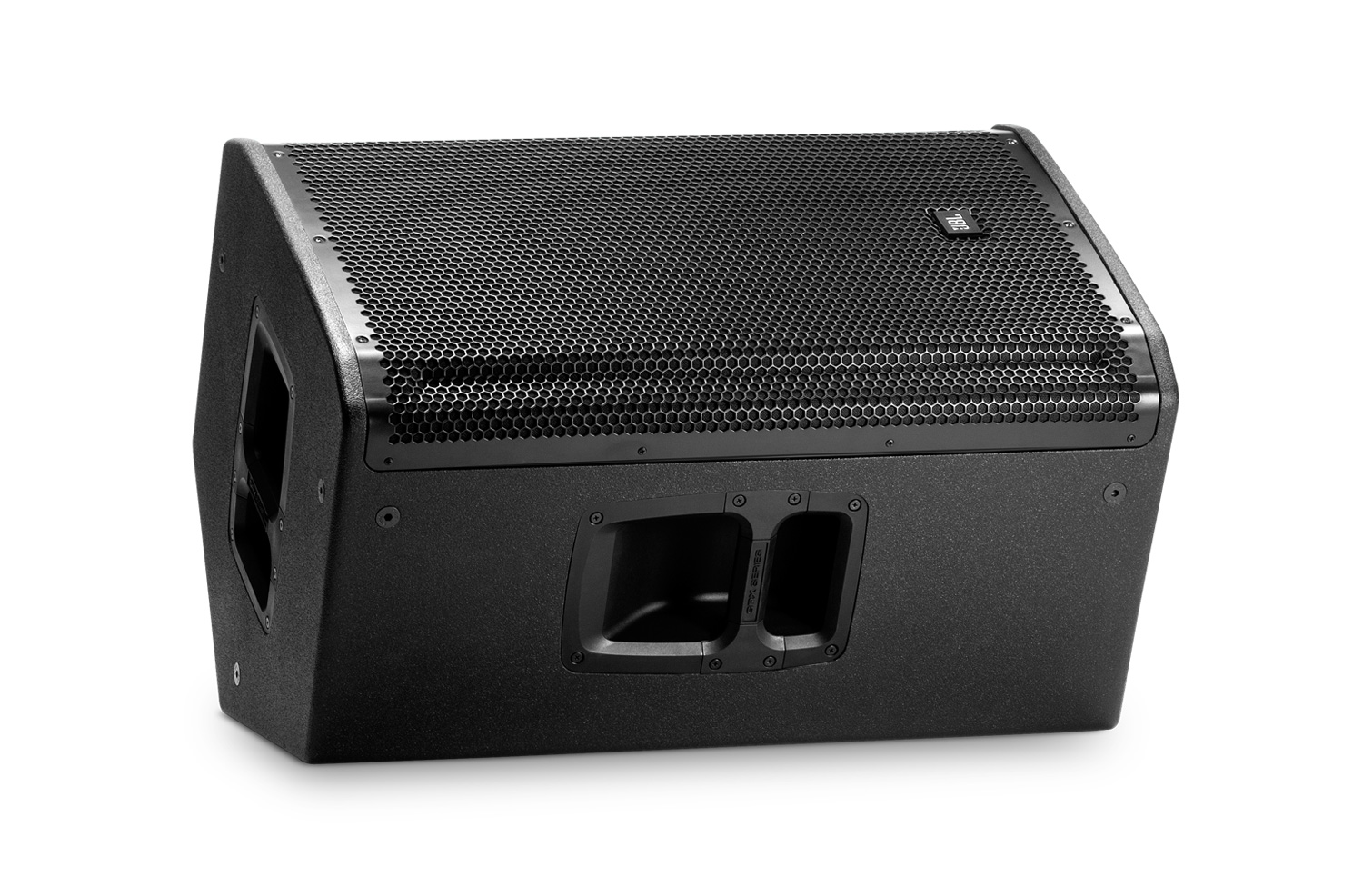

SRX812P Monitor diperbarui: Apr 2019	345 KB	Apr 2019

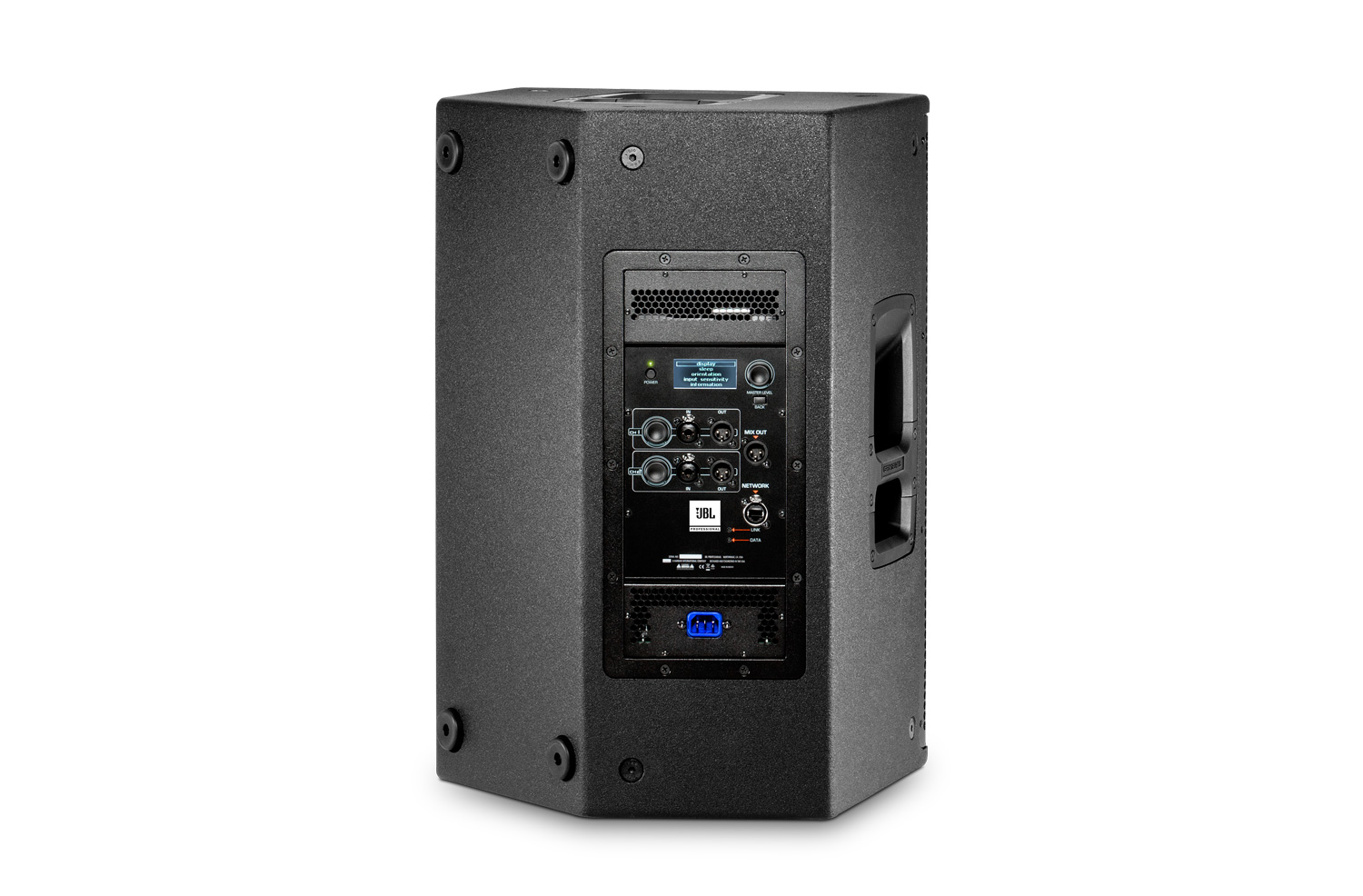

SRX812P Back diperbarui: Apr 2019	228 KB	Apr 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

System Type	Self powered 12”, two-way, bass-reflex
Maximum SPL (1m)	136 dB
Frequency Range (-10dB)	40 Hz - 21 kHz
Frequency Response (±3 dB)	48 Hz - 20 kHz
Coverage Pattern	90° x 50°
Amplifier Design	Class D
Power Rating	2000 W Peak
Dimensions (H x W x D)	429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Net Weight (each)	26.4 kg (58 lb)
EQ	20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs	Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs	2 x XLR
Enclosure	18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance	NA - amplification is integrated
LF Driver	1 x 2272F, Differential Drive®, 12" diameter
HF Driver	1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting	Dual 36 mm pole socket, 12 x M10 suspension points

Aksesori

SRX812P-CVR-DLX | Deluxe padded cover for SRX812P

Gambar Lebih Besar

Deluxe padded cover for SRX812P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
