SRX812P

Coluna Amplificada Multipropósito de 2 Vias com 12 Polegadas

SRX812P
Imagens maiores

Coluna Amplificada Multipropósito de 2 Vias com Altifalante de 12 Polegadas

A Série SRX800 é a próxima geração de sistema de altifalante amplificado de elevado desempenho, compreendendo três modelos de gama completa e dois modelos de subbaixo com uma série de características que elevam a Série SRX800 ao melhor nível em comparação com todos os sistemas concorrentes. O modelo de gama completa de 12" de 2 vias, SRX812P, apresenta os lendários Controladores JBL, amplificação Crown de 2.000 Watts proprietária, Tecnologia Crown Front-End DriveCore, DSP configurável pelo utilizador JBL de topo, Sintonizações V5 compatíveis com sistemas de digressão Vertec e VTX, e opções de controlo de rede HiQnet através de aplicações iOS e Android. Baseando-se no longo histórico da JBL de tecnologia inovadora e design de altifalantes, a Série SRX800 satisfaz as necessidades de casas de espectáculos, instalações e as aplicações de som ao vivo mais exigentes, garantindo que podem implementar uma solução abrangente sem compromissos, apresentando o som e desempenho lendários da JBL, um amplo conjunto de opções de configuração e compatibilidade com os sistemas de digressão de topo da JBL.

Características

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup
  • Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Mais detalhes

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

Descarregamentos

Data Sheets
  Tamanho Carregado
file type icon SRX812P Data Sheet
atualizado: abr 2019
2 MB abr 2019
Specifications
  Tamanho Carregado
file type icon SRX812P Spec Sheet
atualizado: dez 2019
700 KB dez 2019
Manuals
  Tamanho Carregado
file type icon SRX Connect Delay HelpGuide
atualizado: out 2020
200 KB out 2020
file type icon SRX Connect EQ HelpGuide
atualizado: out 2020
400 KB out 2020
file type icon SRX Connect Limiter HelpGuide
atualizado: out 2020
300 KB out 2020
file type icon SRX Connect NormalView HelpGuide
atualizado: out 2020
400 KB out 2020
file type icon SRX Connect Presets HelpGuide
atualizado: out 2020
300 KB out 2020
300 KB out 2020
Brochures
  Versão Idioma Tamanho Carregado
file type icon JBL 2025 PPA Brochure
en versão B, atualizado: ago 2025
en  8 MB ago 2025
Compliances
  Tamanho Carregado
200 KB out 2020
Software
  Tamanho Carregado
file type icon Software Support
atualizado: abr 2019
100 KB abr 2019
Android download icon SRX Connect
publicado: ago 2023
ago 2023
Windows download icon HiQnet Audio Architect
publicado: nov 2020
nov 2020
iOS download icon SRX Connect
publicado: ago 2023
ago 2023
User Guides
  Tamanho Carregado
2 MB nov 2020
file type icon SRX800 User Guide
atualizado: abr 2019
7 MB abr 2019
Images
  Tamanho Carregado
file type icon SRX800 Driver
atualizado: abr 2019
200 KB abr 2019
file type icon SRX800 Handle
atualizado: abr 2019
200 KB abr 2019

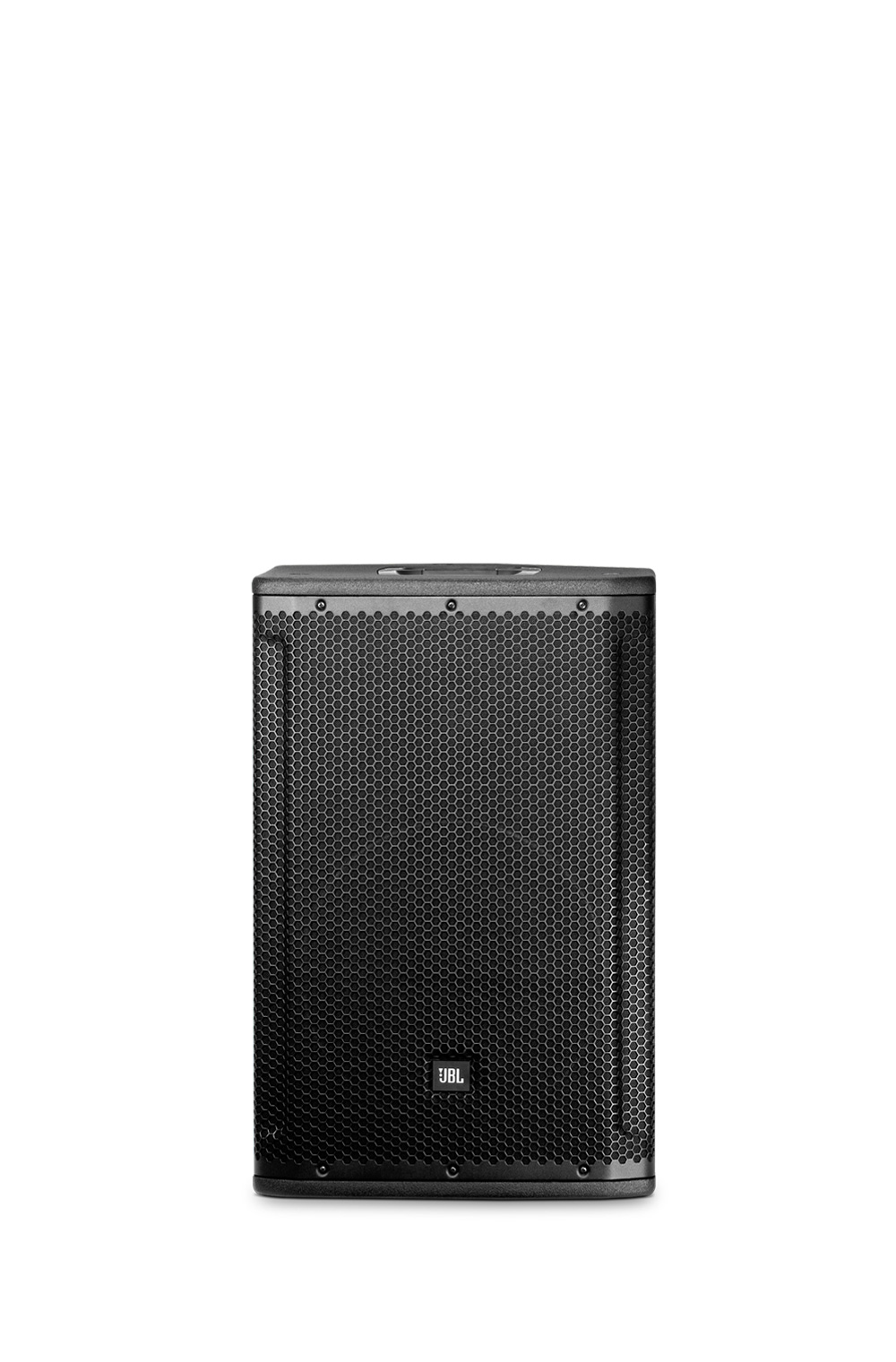

file type icon SRX812P Front
atualizado: abr 2019
200 KB abr 2019

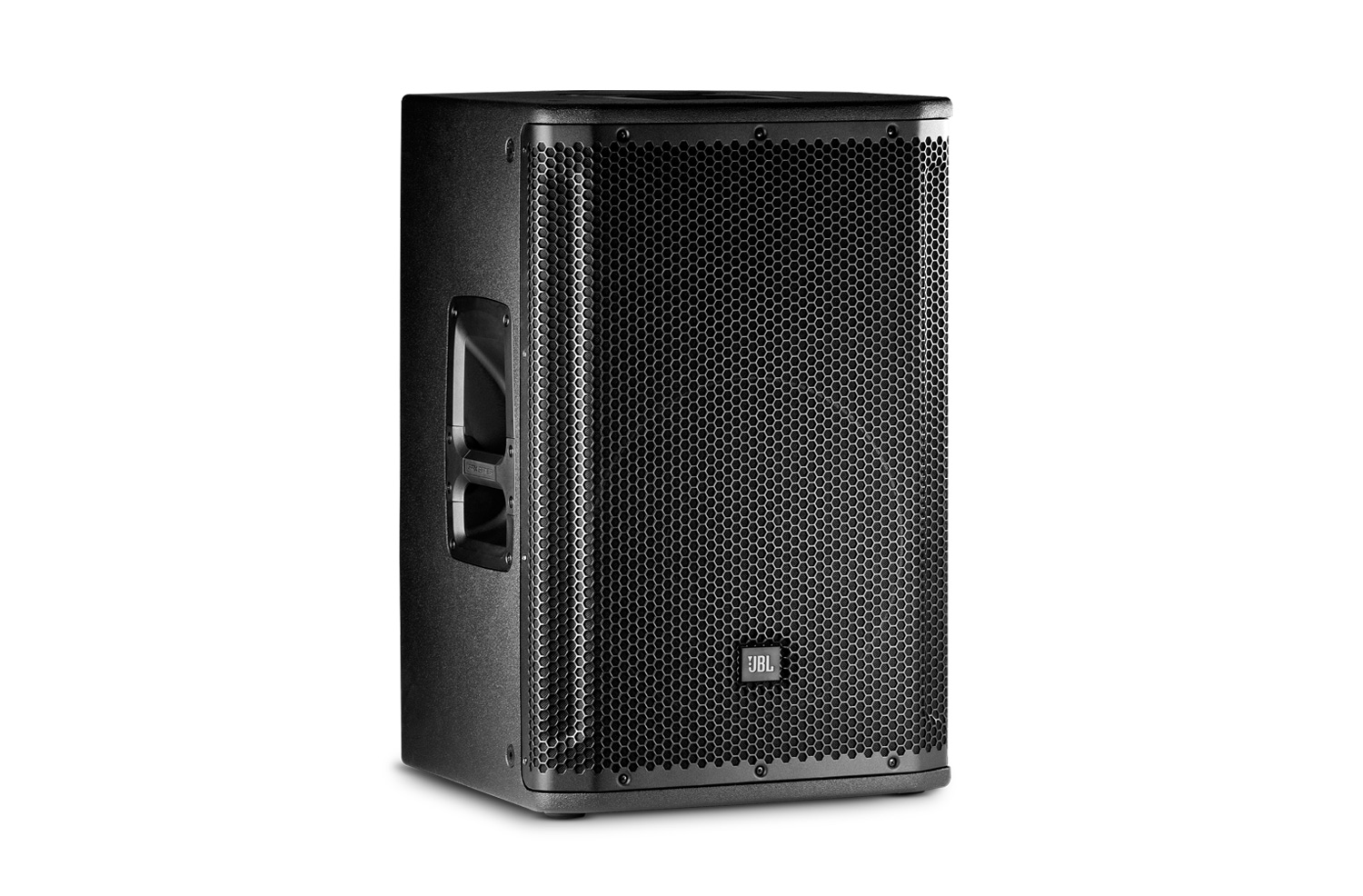

file type icon SRX812P Angle
atualizado: abr 2019
300 KB abr 2019

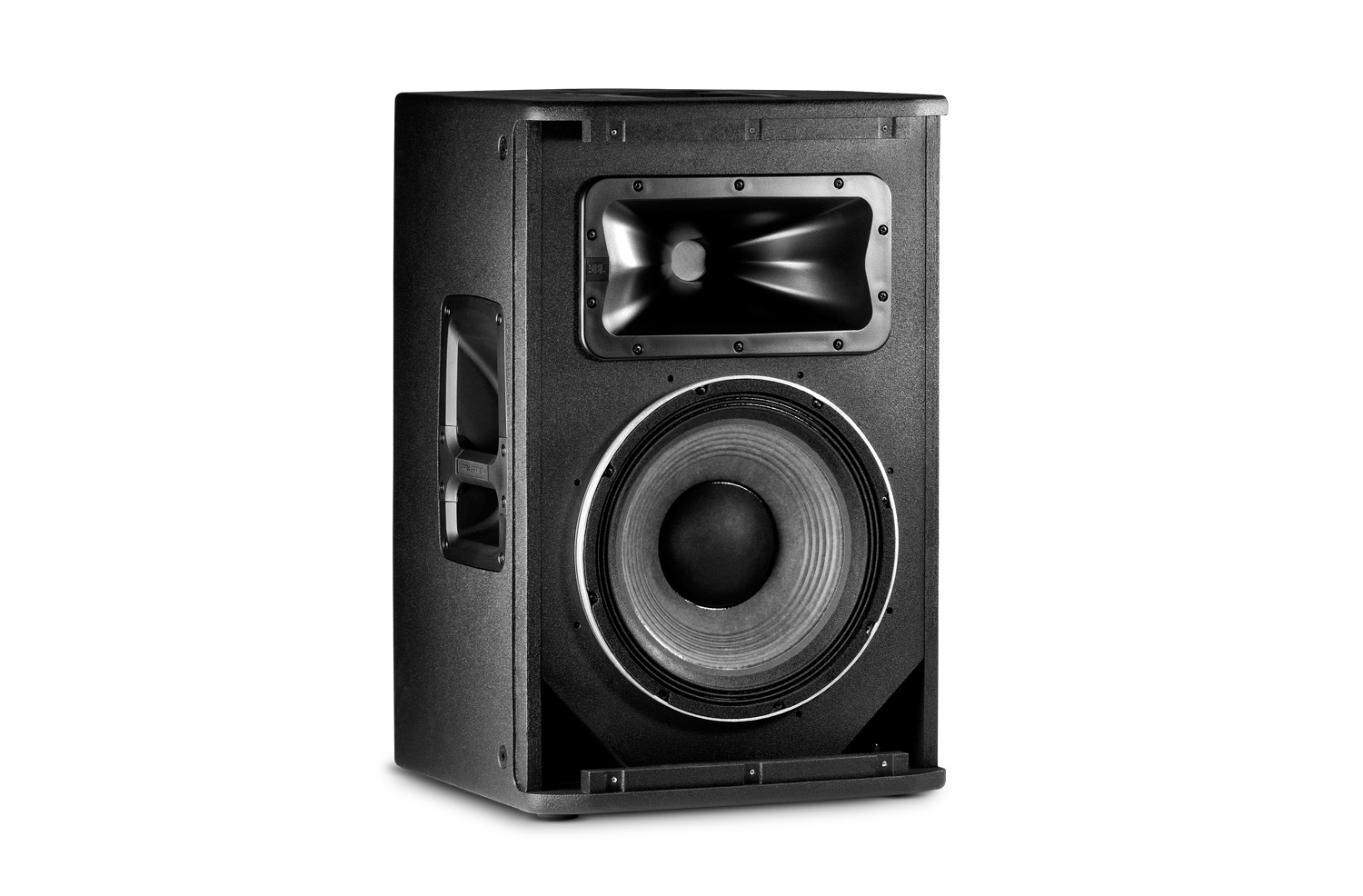

file type icon SRX812P Angle No-Grill
atualizado: abr 2019
200 KB abr 2019

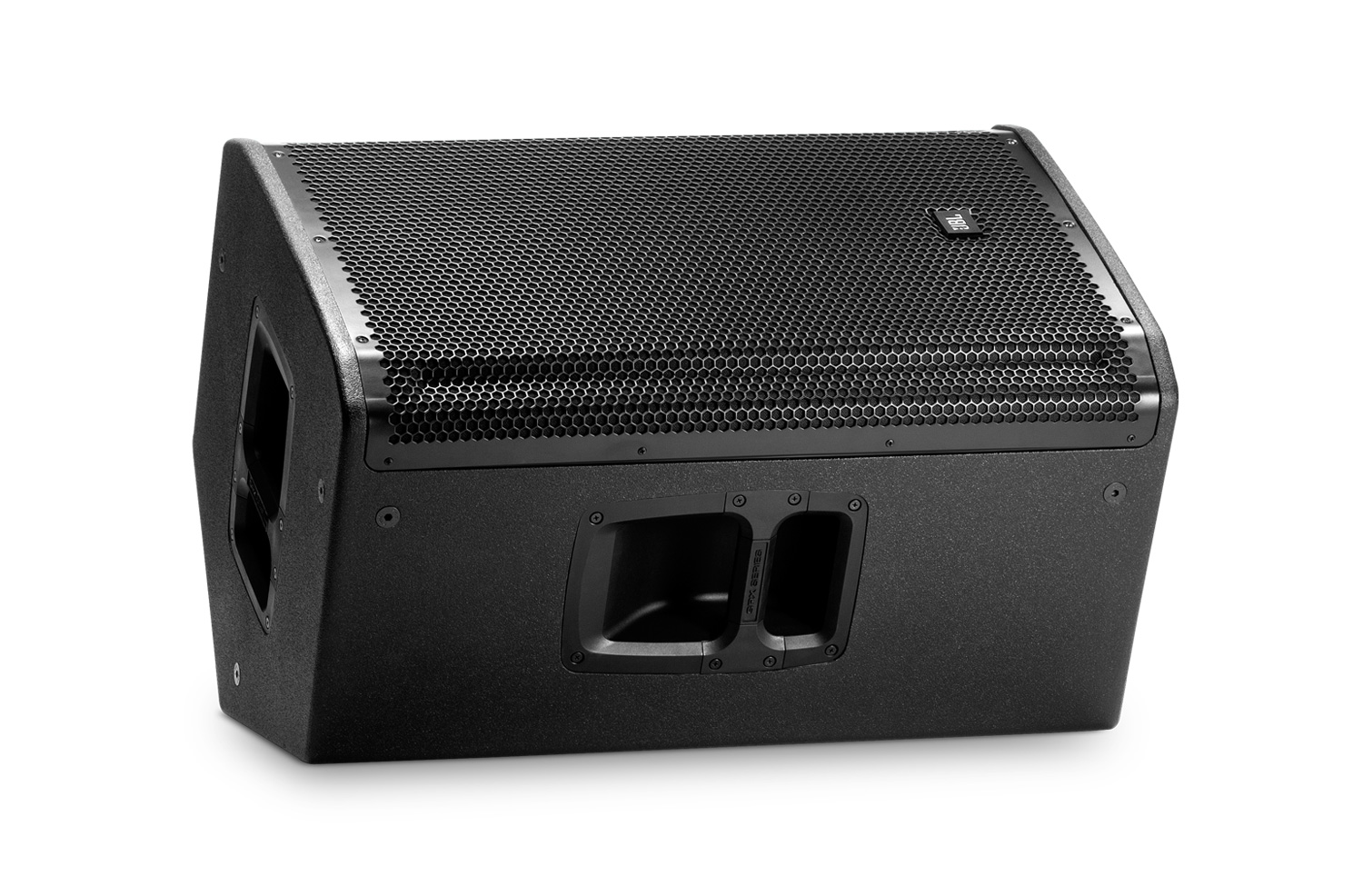

file type icon SRX812P Monitor
atualizado: abr 2019
300 KB abr 2019

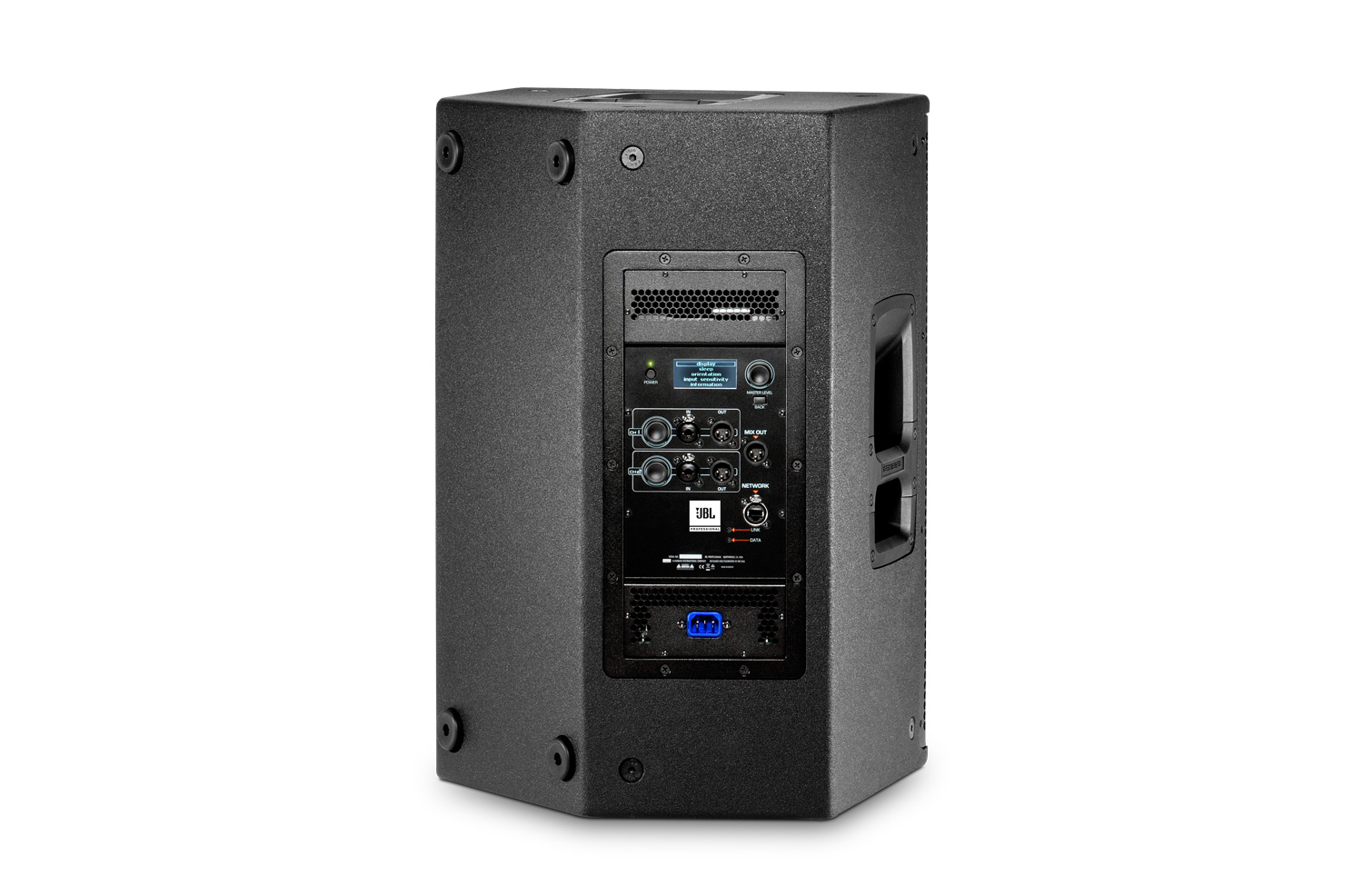

file type icon SRX812P Back
atualizado: abr 2019
200 KB abr 2019

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

System Type Self powered 12”, two-way, bass-reflex
Maximum SPL (1m) 136 dB
Frequency Range (-10dB) 40 Hz - 21 kHz
Frequency Response (±3 dB) 48 Hz - 20 kHz
Coverage Pattern 90° x 50°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Net Weight (each) 26.4 kg (58 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance NA - amplification is integrated
LF Driver 1 x 2272F, Differential Drive®, 12" diameter
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points
