SRX812P

12-inch 2-Way Multipurpose Powered Speaker

SRX812P
รูปภาพขนาดใหญ่

12-inch 2-Way Multipurpose Powered Speaker

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 12" two-way, SRX812P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

คุณสมบัติ

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup
  • Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


รายละเอียดเพิ่มเติม

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

การดาวน์โหลด

Data Sheets
  ขนาด อัปโหลดแล้ว
file type icon SRX812P Data Sheet
อัปเดต: เม.ย. 2019
1.88 เมกะไบต์ เม.ย. 2019
Specifications
  ขนาด อัปโหลดแล้ว
file type icon SRX812P Spec Sheet
อัปเดต: ธ.ค. 2019
746 กิโลไบต์ ธ.ค. 2019
Manuals
  ขนาด อัปโหลดแล้ว
file type icon SRX Connect Delay HelpGuide
อัปเดต: ต.ค. 2020
188 กิโลไบต์ ต.ค. 2020
file type icon SRX Connect EQ HelpGuide
อัปเดต: ต.ค. 2020
373 กิโลไบต์ ต.ค. 2020
file type icon SRX Connect Limiter HelpGuide
อัปเดต: ต.ค. 2020
263 กิโลไบต์ ต.ค. 2020
file type icon SRX Connect NormalView HelpGuide
อัปเดต: ต.ค. 2020
427 กิโลไบต์ ต.ค. 2020
file type icon SRX Connect Presets HelpGuide
อัปเดต: ต.ค. 2020
286 กิโลไบต์ ต.ค. 2020
file type icon SRX Connect Error Reporting HelpGuide
อัปเดต: ต.ค. 2020
261 กิโลไบต์ ต.ค. 2020
Brochures
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon JBL 2025 PPA Brochure
en เวอร์ชัน B, อัปเดต: ส.ค. 2025
en  8.45 เมกะไบต์ ส.ค. 2025
Compliances
  ขนาด อัปโหลดแล้ว
file type icon SRX800 Series Declaration of Conformity
อัปเดต: ต.ค. 2020
154 กิโลไบต์ ต.ค. 2020
Software
  ขนาด อัปโหลดแล้ว
file type icon Software Support
อัปเดต: เม.ย. 2019
114 กิโลไบต์ เม.ย. 2019
Android download icon SRX Connect
เผยแพร่: ส.ค. 2023
ส.ค. 2023
Windows download icon HiQnet Audio Architect
เผยแพร่: พ.ย. 2020
พ.ย. 2020
iOS download icon SRX Connect
เผยแพร่: ส.ค. 2023
ส.ค. 2023
User Guides
  ขนาด อัปโหลดแล้ว
file type icon SRX 812P/815P/835P QuickStart Guide
อัปเดต: พ.ย. 2020
1.75 เมกะไบต์ พ.ย. 2020
file type icon SRX800 User Guide
อัปเดต: เม.ย. 2019
7.41 เมกะไบต์ เม.ย. 2019
Images
  ขนาด อัปโหลดแล้ว
file type icon SRX800 Driver
อัปเดต: เม.ย. 2019
158 กิโลไบต์ เม.ย. 2019
file type icon SRX800 Handle
อัปเดต: เม.ย. 2019
208 กิโลไบต์ เม.ย. 2019

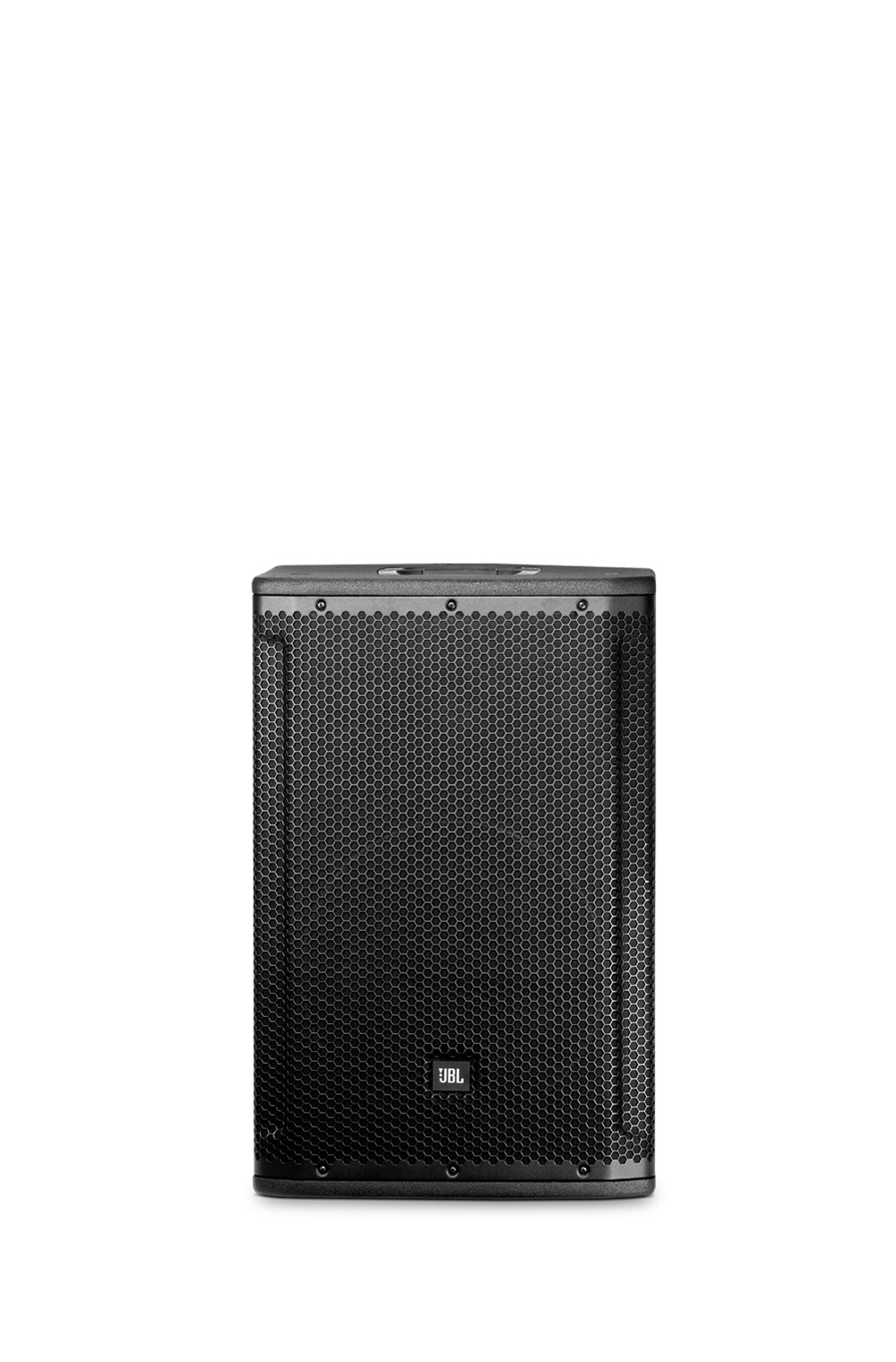

file type icon SRX812P Front
อัปเดต: เม.ย. 2019
211 กิโลไบต์ เม.ย. 2019

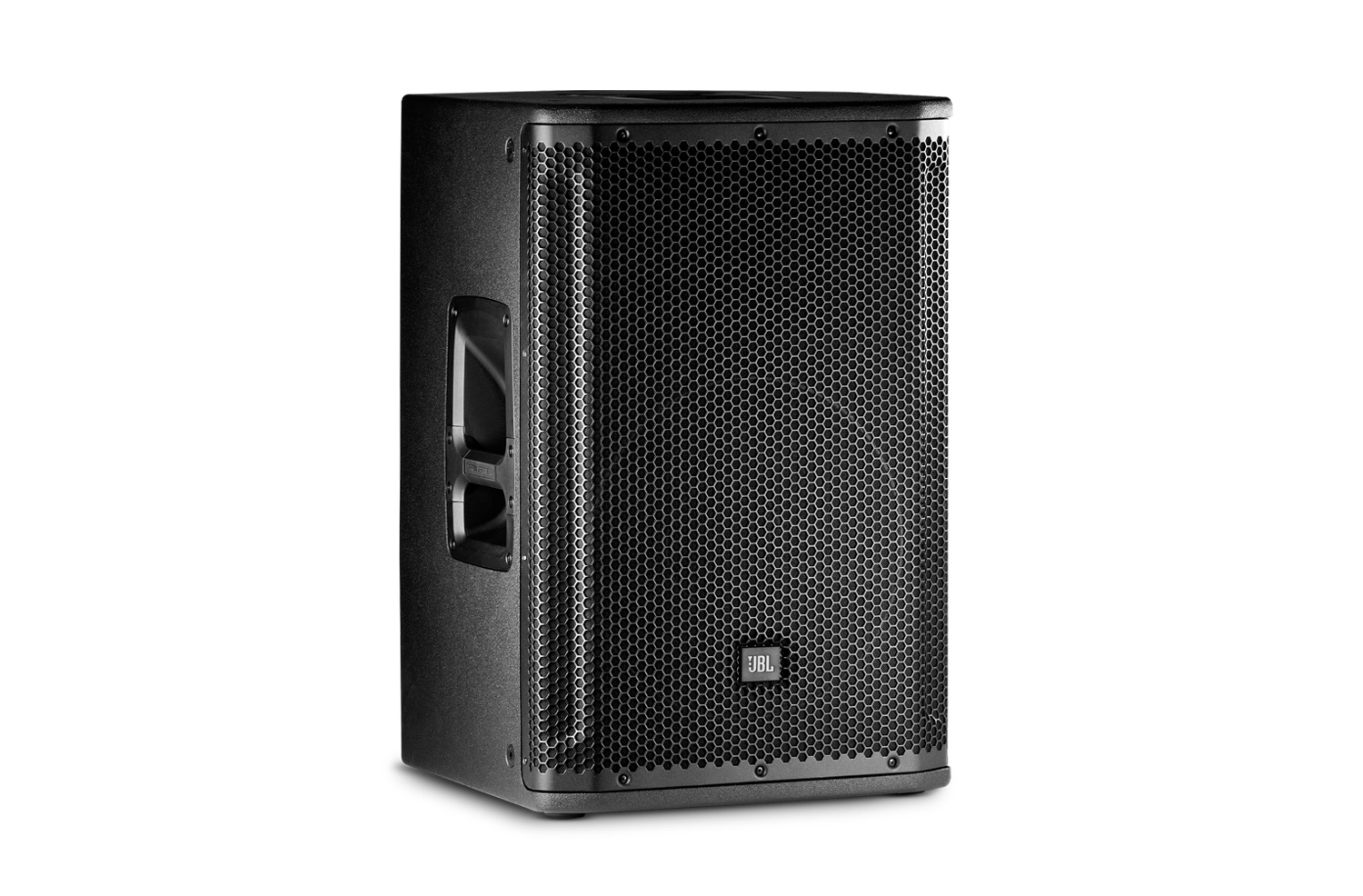

file type icon SRX812P Angle
อัปเดต: เม.ย. 2019
291 กิโลไบต์ เม.ย. 2019

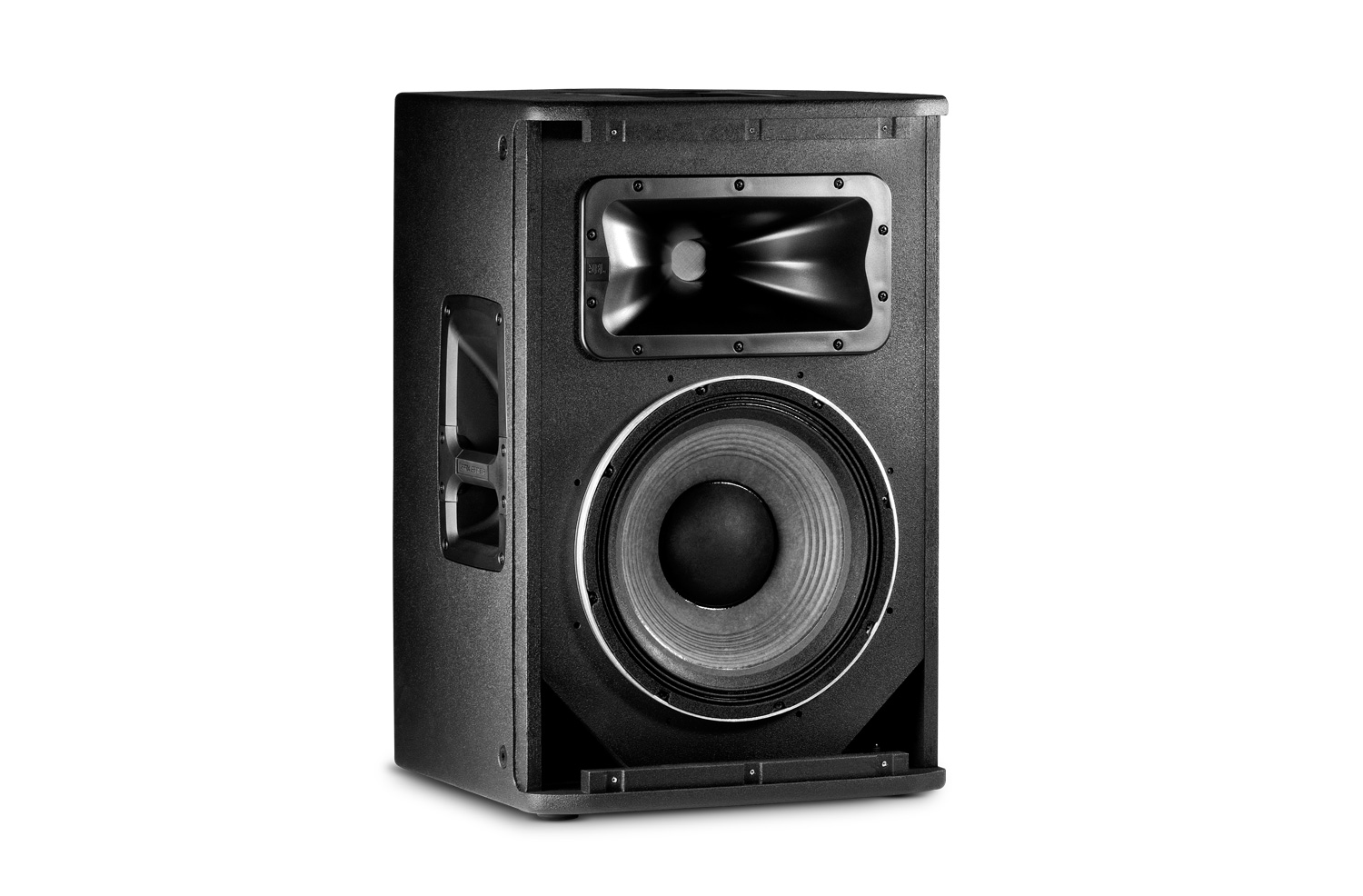

file type icon SRX812P Angle No-Grill
อัปเดต: เม.ย. 2019
218 กิโลไบต์ เม.ย. 2019

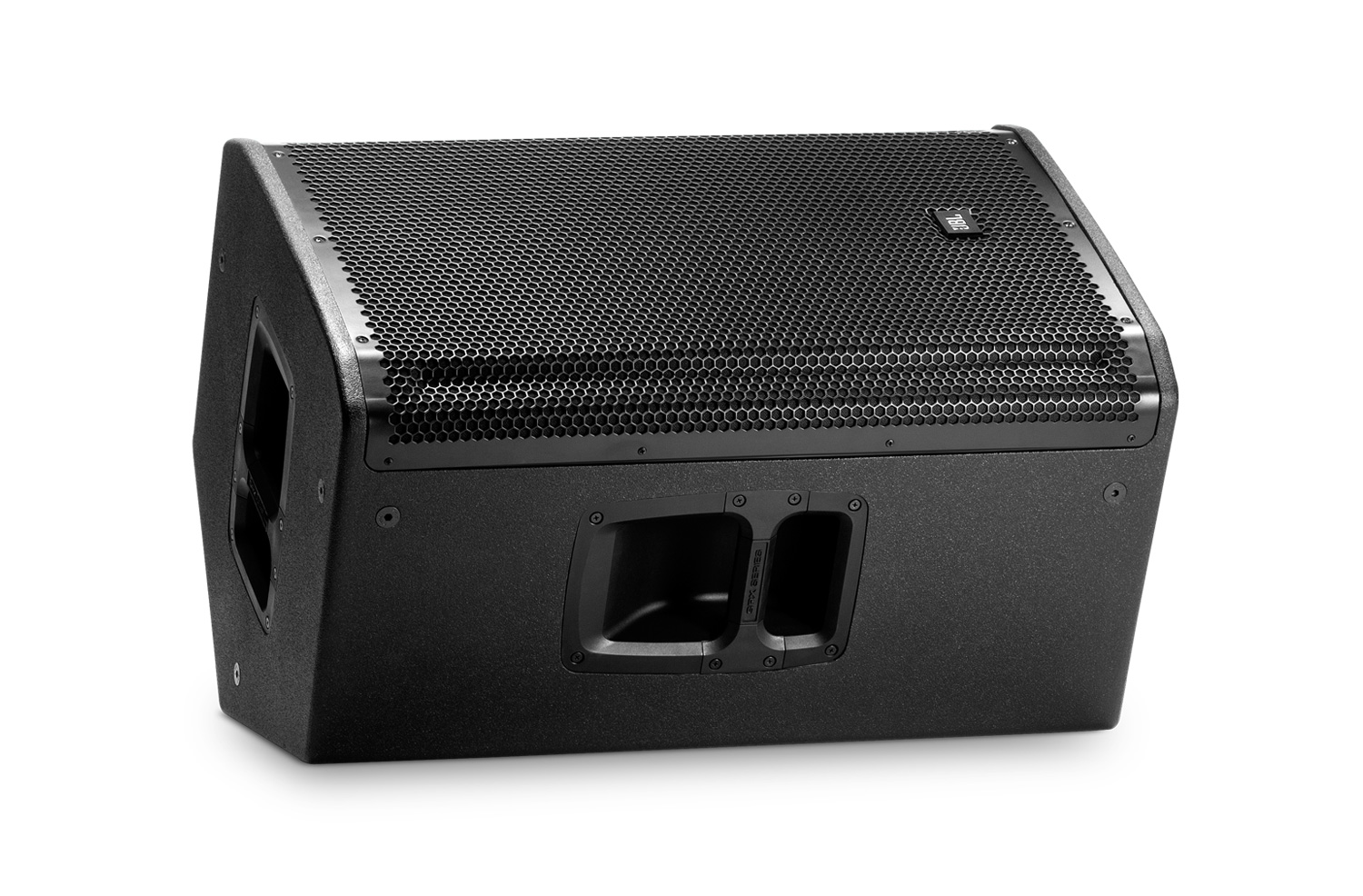

file type icon SRX812P Monitor
อัปเดต: เม.ย. 2019
345 กิโลไบต์ เม.ย. 2019

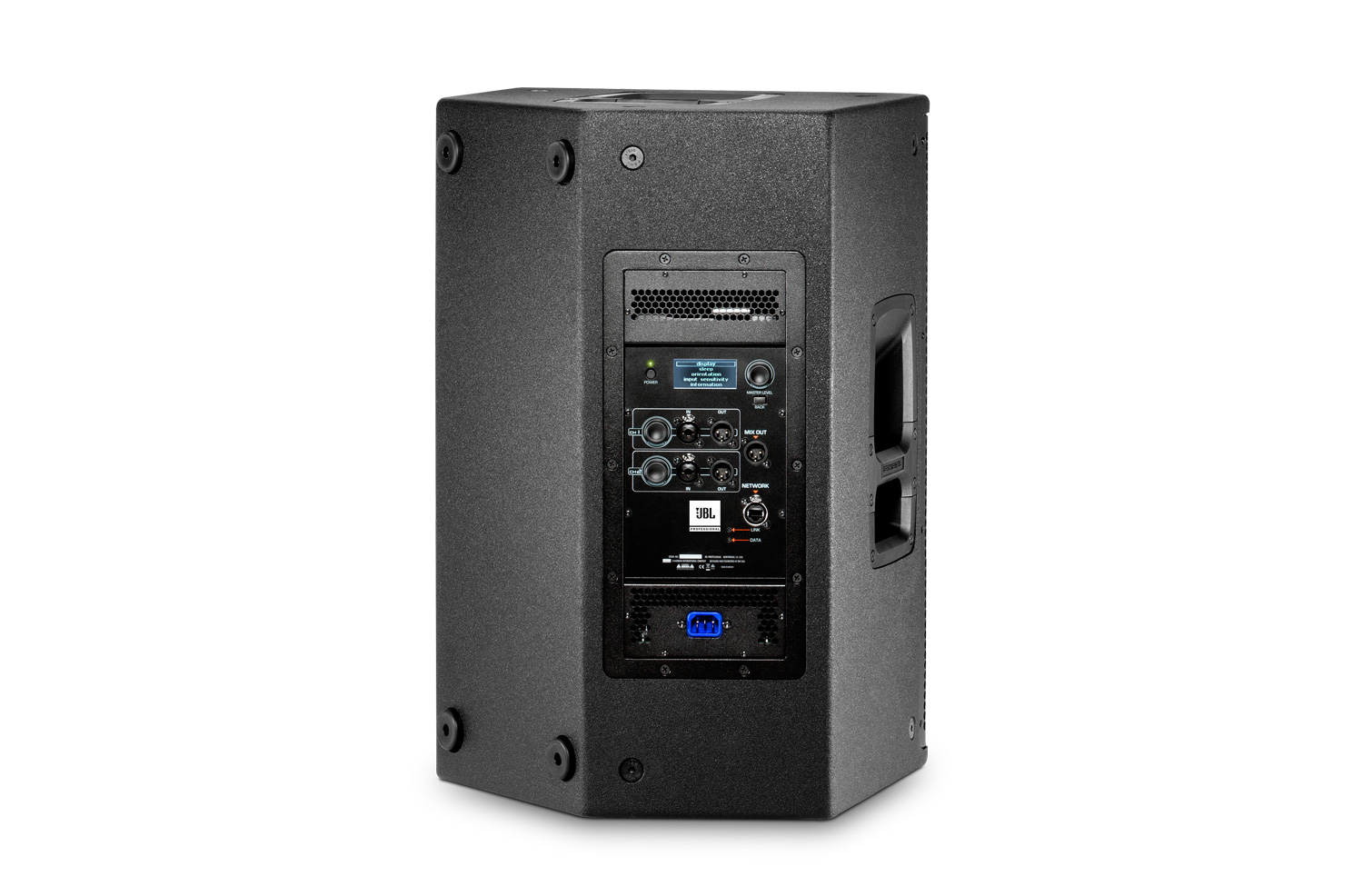

file type icon SRX812P Back
อัปเดต: เม.ย. 2019
228 กิโลไบต์ เม.ย. 2019

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

อะไหล่และบริการ

ข้อมูลจำเพาะ

System Type Self powered 12”, two-way, bass-reflex
Maximum SPL (1m) 136 dB
Frequency Range (-10dB) 40 Hz - 21 kHz
Frequency Response (±3 dB) 48 Hz - 20 kHz
Coverage Pattern 90° x 50°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Net Weight (each) 26.4 kg (58 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance NA - amplification is integrated
LF Driver 1 x 2272F, Differential Drive®, 12" diameter
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points

อุปกรณ์เสริม

SRX812P-CVR-DLX | Deluxe padded cover for SRX812P
SRX812P-CVR-DLX Main photo
รูปภาพขนาดใหญ่
SRX812P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX812P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
