VP7212/95DPC (discontinued)

Powered 12" 2-way Integrated Loudspeaker System

Larger Images

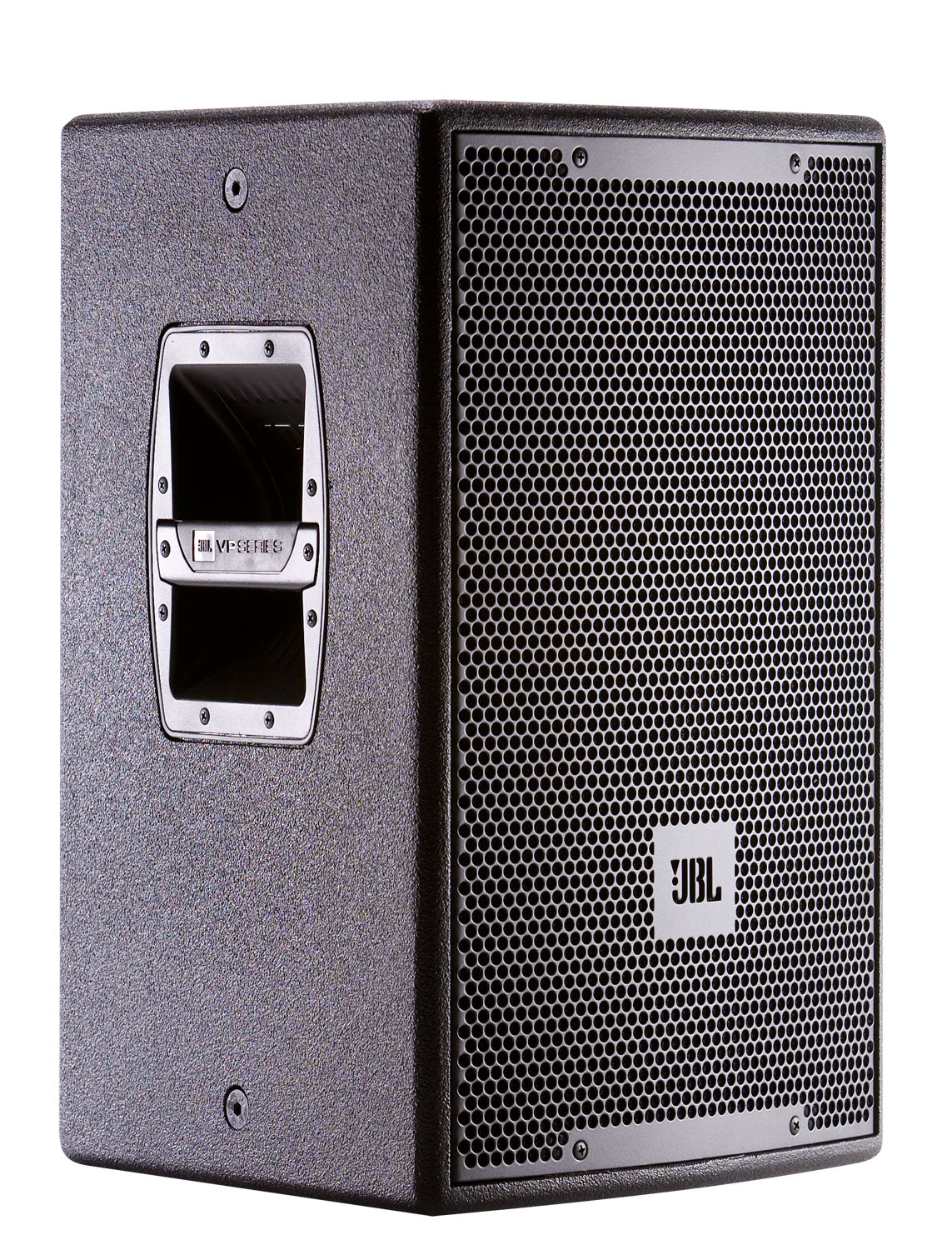

VP7212/95DPC Powered 12" 2-way Integrated Loudspeaker System

The VP7212/95DPC is a powered 12" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.


  • Compact Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable
    or installed use
  • Optimized for both portable/rental or permanent-venue use
  • 1750 watts peak output power, 875 watts continuous
  • 12-inch Differential Drive® low frequency driver for extended low frequency output
  • Robust powder-coated die cast aluminum handles, designed for strength and comfort
  • Integrated 35 mm stand mount


  Version Language Size Uploaded
file type icon VP7212/95DPC Spec Sheet
updated: jul 2019
    299 KB jul 2019
file type icon VP DrivePack DPC2 User's Guide
updated: oct 2019
    1,02 MB oct 2019
file type icon VP Series Brochure
updated: jul 2019
    2,73 MB jul 2019
CAD Drawings
file type icon VP7212/95DPC 2d pdf
updated: jul 2019
    52,5 KB jul 2019
file type icon VP7212/95DPC 2d dxf
updated: jul 2019
    317 KB jul 2019
file type icon VP7212/95DPC 3D dxf
updated: jul 2019
    10,4 KB jul 2019
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: mar 2022
    21 MB mar 2022
file type icon VP7212/95DPC Hi-res image
updated: jul 2019
    631 KB jul 2019
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: may 2023
12-10-21    24 MB may 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range 55 Hz - 20 kHz50
Frequency Response 65 Hz - 18 kHz80
Coverage Pattern 90°x 50°
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Maximum Peak Output1 134 dB SPL 1m
Low Frequency Section JBL 2262FF, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil Neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 2 x 2 ohms
High Frequency JBL 2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit.
DPC1 Internal Amplification Output (at nominal load) 1750 Watts Peak, 875 Watts Continuous
DPC1 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/125HF Watts
DP1 Output Section LF: Dual Bridged Technology™, Class DHF: Bridged Class D
Audio Input Connector XLR with loop-through
User Controls 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps
Signal Processing DSP based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC/216-264 VAC, 50/60 Hz
AC Line Voltage 50/60 Hz; User Selectable; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 13 M10 Fittings, 35 mm pole mount socket
Grille 14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D) 533 x 358 x 334 mm21.0 x 14.1 x 13.1 in
Net Weight 21.3 kg (47 lb)
