VP7212/95DPC (停产)

Powered 12" 2-way Integrated Loudspeaker System

较大的图像

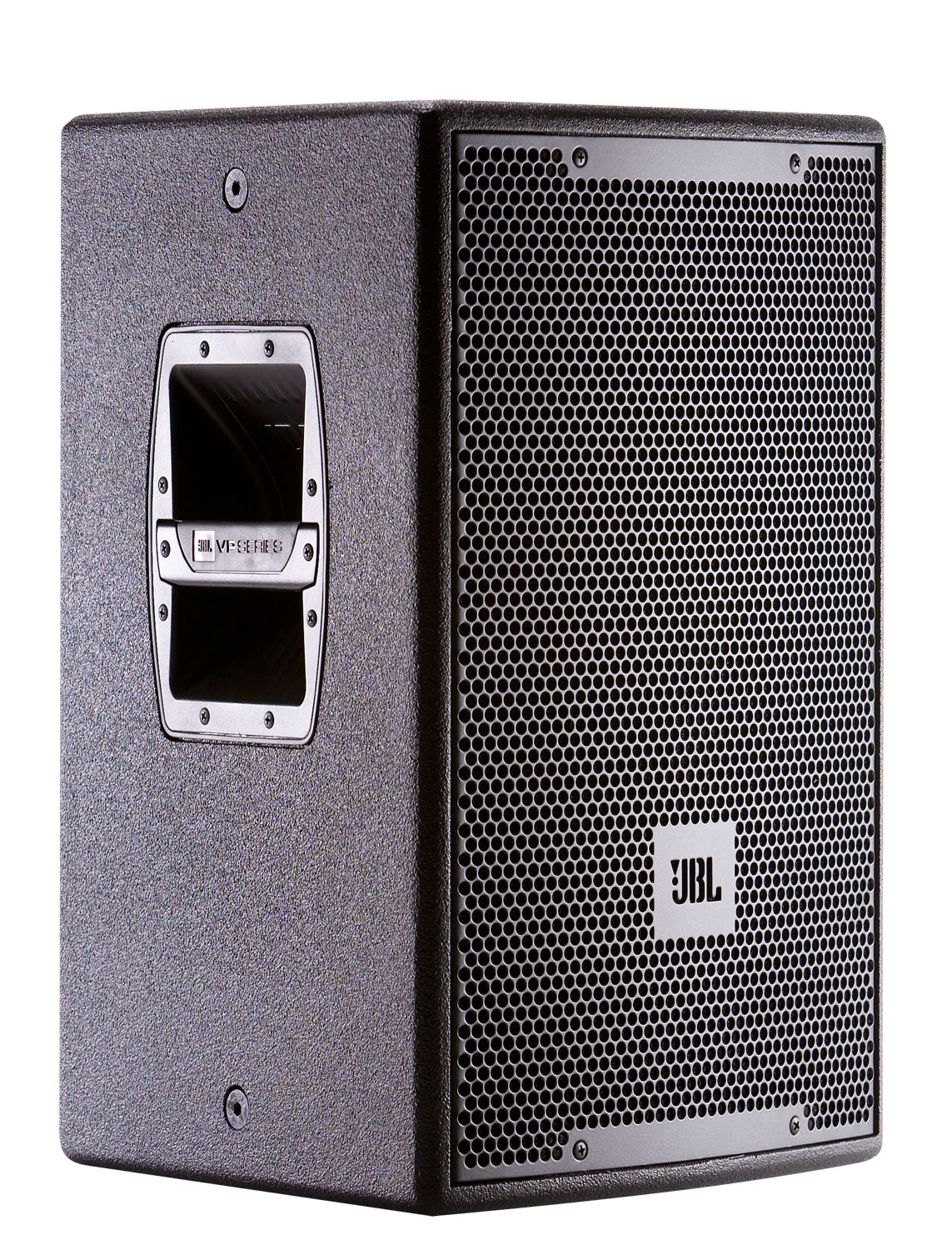

VP7212/95DPC Powered 12" 2-way Integrated Loudspeaker System

The VP7212/95DPC is a powered 12" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.

特点

  • Compact Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable
    or installed use
  • Optimized for both portable/rental or permanent-venue use
  • 1750 watts peak output power, 875 watts continuous
  • 12-inch Differential Drive® low frequency driver for extended low frequency output
  • Robust powder-coated die cast aluminum handles, designed for strength and comfort
  • Integrated 35 mm stand mount

下载

  Version Language Size Uploaded
VP Series Brochure
en updated: 10月22日
  en  2.7 MB 10月22日
VP7212/95DPC Spec Sheet
en updated: 10月22日
  en  299.2 KB 10月22日
Specifications
VP7212/95DPC Spec Sheet
updated: 7月08日
    299.2 KB 7月08日
Manuals
VP DrivePack DPC2 User's Guide
updated: 10月18日
    1.0 MB 10月18日
Brochures
VP Series Brochure
updated: 7月08日
    2.7 MB 7月08日
    2.6 MB 10月22日
CAD Drawings
VP7212/95DPC 3D dxf
updated: 7月08日
    10.4 KB 7月08日
VP7212/95DPC 2d dxf
updated: 7月08日
    317.2 KB 7月08日
VP7212/95DPC 2d pdf
updated: 7月08日
    52.5 KB 7月08日
Images
VP7212/95DPC Hi-res image
updated: 7月08日
    630.7 KB 7月08日
Ease Data
    20.5 MB 7月08日
Clf Files
CLF Files
version 03-16-20, updated: 3月16日
03-16-20    22.5 MB 3月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 55 Hz - 20 kHz50

频率响应

65 Hz - 18 kHz80
覆盖范围 90°x 50°
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Maximum Peak Output1 134 dB SPL 1m
Low Frequency Section JBL 2262FF, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil Neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 2 x 2 ohms
High Frequency JBL 2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit.
DPC1 Internal Amplification Output (at nominal load) 1750 Watts Peak, 875 Watts Continuous
DPC1 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/125HF Watts
DP1 Output Section LF: Dual Bridged Technology™, Class DHF: Bridged Class D
Audio Input Connector XLR with loop-through
User Controls 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps
Signal Processing DSP based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC/216-264 VAC, 50/60 Hz
AC 线路电压 50/60 Hz; User Selectable; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 13 M10 Fittings, 35 mm pole mount socket
网罩 14 Gauge Black powder-coated perforated steel with foam backing
尺寸(高 x 宽 x 厚) 533 x 358 x 334 mm21.0 x 14.1 x 13.1 in
净重量 21.3 kg (47 lb)
