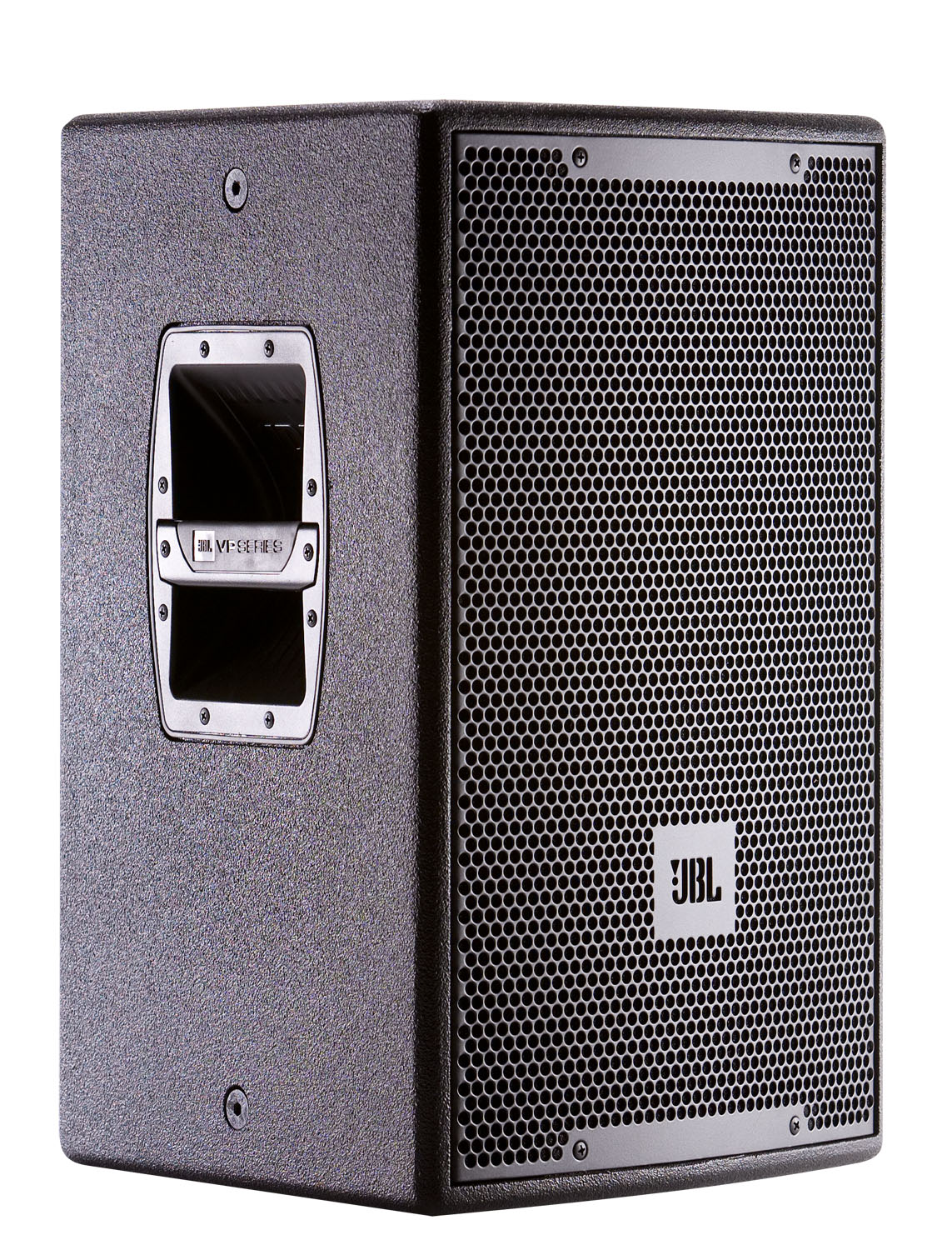

VP7212/95DPC Powered 12" 2-way Integrated Loudspeaker System
The VP7212/95DPC is a powered 12" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- Compact Powered bi-amplified
full-range loudspeaker with JBL
DrivePack® technology for portable
or installed use - Optimized for both portable/rental or permanent-venue use
- 1750 watts peak output power, 875 watts continuous
- 12-inch Differential Drive® low frequency driver for extended low frequency output
- Robust powder-coated die cast aluminum handles, designed for strength and comfort
- Integrated 35 mm stand mount
Λήψεις
Έγγραφα
| Μέγεθος | |
VP Series Brochure
ενημέρωση: Απρ 2026
|
3 MB |
|
VP7212/95DPC Spec Sheet
ενημέρωση: Απρ 2026
|
300 KB |
Specifications
| Μέγεθος | |
|
|
300 KB |
Manuals
| Μέγεθος | |
|
|
1 MB |
Brochures
| Μέγεθος | |
|
|
3 MB |
CAD Drawings
| Μέγεθος | |
|
|
50 KB |
|
|
300 KB |
|
|
10 KB |
Simulation Data
| Μέγεθος | |
|
|
20 MB |
|
|
20 MB |
Images
| Μέγεθος | |
|
|
600 KB |
Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.
Ανταλλακτικά και σέρβις
Προδιαγραφές
| Frequency Range | 55 Hz - 20 kHz50 |
| Frequency Response | 65 Hz - 18 kHz80 |
| Coverage Pattern | 90°x 50° |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Maximum Peak Output1 | 134 dB SPL 1m |
| Low Frequency Section | JBL 2262FF, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil Neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 2 x 2 ohms |
| High Frequency | JBL 2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit. |
| DPC1 Internal Amplification Output (at nominal load) | 1750 Watts Peak, 875 Watts Continuous |
| DPC1 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/125HF Watts |
| DP1 Output Section | LF: Dual Bridged Technology™, Class DHF: Bridged Class D |
| Audio Input Connector | XLR with loop-through |
| User Controls | 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps |
| Signal Processing | DSP based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | 90-132 VAC/216-264 VAC, 50/60 Hz |
| AC Line Voltage | 50/60 Hz; User Selectable; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 13 M10 Fittings, 35 mm pole mount socket |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 533 x 358 x 334 mm21.0 x 14.1 x 13.1 in |
| Net Weight | 21.3 kg (47 lb) |
