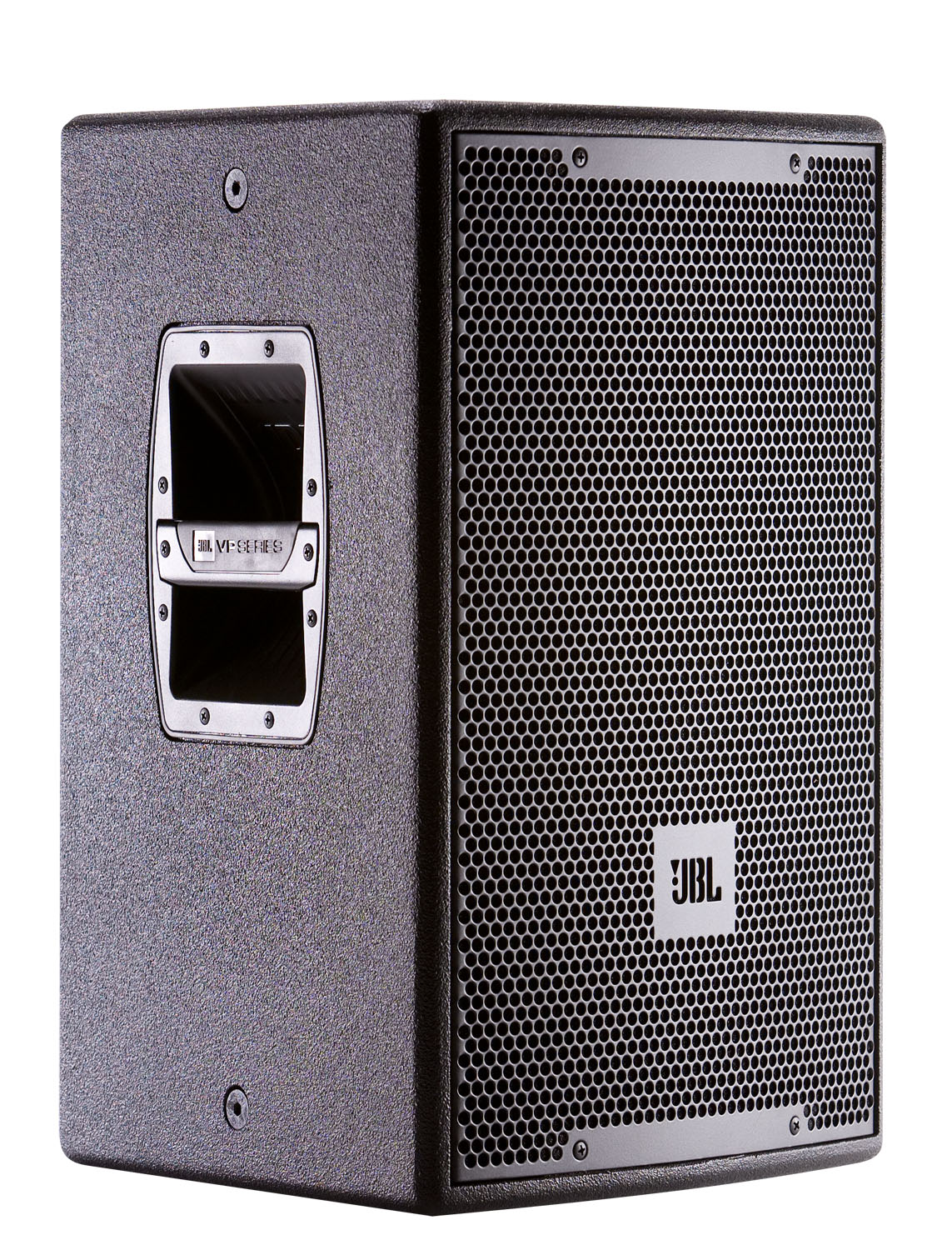

VP7212/95DPC Powered 12" 2-way Integrated Loudspeaker System
The VP7212/95DPC is a powered 12" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.
Larger Images
Features
- Compact Powered bi-amplified
full-range loudspeaker with JBL
DrivePack® technology for portable
or installed use - Optimized for both portable/rental or permanent-venue use
- 1750 watts peak output power, 875 watts continuous
- 12-inch Differential Drive® low frequency driver for extended low frequency output
- Robust powder-coated die cast aluminum handles, designed for strength and comfort
- Integrated 35 mm stand mount
Downloads
| Size | ||||
VP Series Brochure
updated: 9月 2023
|
2.73MB | |||
|
VP7212/95DPC Spec Sheet
updated: 9月 2023
|
299KB | |||
Specifications | ||||
|
VP7212/95DPC Spec Sheet
updated: 7月 2019
|
299KB | |||
Manuals | ||||
|
VP DrivePack DPC2 User's Guide
updated: 10月 2019
|
1.02MB | |||
Brochures | ||||
|
VP Series Brochure
updated: 7月 2019
|
2.73MB | |||
CAD Drawings | ||||
|
VP7212/95DPC 2d pdf
updated: 7月 2019
|
52.5KB | |||
VP7212/95DPC 2d dxf
updated: 7月 2019
|
317KB | |||
|
VP7212/95DPC 3D dxf
updated: 7月 2019
|
10.4KB | |||
Ease Data | ||||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
|
21MB | |||
Images | ||||
|
VP7212/95DPC Hi-res image
updated: 7月 2019
|
631KB | |||
Simulation Data | ||||
|
JBL Pro ALL CLF Files
version 12-10-21,
updated: 5月 2023
|
24MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Range | 55 Hz - 20 kHz50 |
| Frequency Response | 65 Hz - 18 kHz80 |
| Coverage Pattern | 90°x 50° |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Maximum Peak Output1 | 134 dB SPL 1m |
| Low Frequency Section | JBL 2262FF, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil Neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 2 x 2 ohms |
| High Frequency | JBL 2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit. |
| DPC1 Internal Amplification Output (at nominal load) | 1750 Watts Peak, 875 Watts Continuous |
| DPC1 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/125HF Watts |
| DP1 Output Section | LF: Dual Bridged Technology™, Class DHF: Bridged Class D |
| Audio Input Connector | XLR with loop-through |
| User Controls | 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps |
| Signal Processing | DSP based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | 90-132 VAC/216-264 VAC, 50/60 Hz |
| AC Line Voltage | 50/60 Hz; User Selectable; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 13 M10 Fittings, 35 mm pole mount socket |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 533 x 358 x 334 mm21.0 x 14.1 x 13.1 in |
| Net Weight | 21.3 kg (47 lb) |
