SRX815P

Altavoz Amplificado Multipropósito de 2 Vías de 15 Pulgadas

Imágenes más grandes

15-inch 2-Way Multipurpose Powered Speaker

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 15" two-way, SRX815P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.



Características

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup
  • Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Más detalles

DISEÑO INTENCIONAL

Cada detalle de la serie SRX800 fue diseñado y estudiado de forma intencional, teniendo plenamente en cuenta su uso previsto. Las asas ergonómicas ofrecen un agarre cómodo y sin fatiga para un manejo simplificado. Los puntos de suspensión M10, los pies indexados y los soportes de poste/trípode permiten una amplia y flexible variedad de configuraciones.

TECNOLOGÍA DE TRANSDUCTORES

Los transductores de ferrita con Tecnología Differential Drive® patentada de JBL incorporan bobinas móviles de 3" con imanes de ferrita de menor masa para reducir el peso, aumentar la capacidad de potencia y lograr una distorsión excepcionalmente baja y una respuesta extendida en bajas frecuencias. El 2432H de JBL es el único motor de compresión de esta clase con bobina móvil de neodimio de 3", y ofrece niveles de potencia muy altos y un sonido suave y cristalino.

DRIVECORE DE CROWN

Cada modelo se alimenta mediante la tecnología DriveCore de etapa de entrada (front-end) propia de Crown, con una enorme potencia nominal de 2000 W, la más alta en esta clase de altavoces. Con una notable relación señal-ruido de 103 dB, la serie SRX800 es capaz de generar niveles de presión sonora muy elevados con un margen dinámico excepcional, una distorsión muy baja y una claridad absoluta en todo su rango de frecuencias.

CONTROL DE RED HIQNET

Con la integración completa de red HiQnet, la configuración de un sistema SRX800 se simplifica drásticamente, lo que ahorra tiempo y automatiza por completo la configuración de la interfaz de control. Se proporciona un control por cable sencillo a través del conector Ethercon e incluye compatibilidad con enrutadores inalámbricos de terceros. Las opciones de control incluyen Audio Architect, la aplicación para iOS HiQnet Motion Control™ y aplicaciones independientes para iOS y Android.

Descargas

Data Sheets
  Tamaño Subido
file type icon SRX815P Data Sheet
actualizado: abr 2019
1,8 MB abr 2019
Specifications
  Tamaño Subido
file type icon SRX815P Spec Sheet
actualizado: abr 2019
713 KB abr 2019
Manuals
  Tamaño Subido
file type icon SRX Connect Presets HelpGuide
actualizado: oct 2020
286 KB oct 2020
file type icon SRX Connect NormalView HelpGuide
actualizado: oct 2020
427 KB oct 2020
Brochures
  Versión Idioma Tamaño Subido
file type icon JBL 2025 PPA Brochure
en versión B, actualizado: ago 2025
en  8,45 MB ago 2025
Compliances
  Tamaño Subido
154 KB oct 2020
Software
  Tamaño Subido
file type icon Software Support
actualizado: abr 2019
114 KB abr 2019
Android download icon SRX Connect
publicado: ago 2023
ago 2023
Windows download icon HiQnet Audio Architect
publicado: nov 2020
nov 2020
iOS download icon SRX Connect
publicado: ago 2023
ago 2023
User Guides
  Tamaño Subido
file type icon SRX 812P/815P/835P QuickStart Guide
actualizado: nov 2020
1,75 MB nov 2020
file type icon SRX800 User Guide
actualizado: abr 2019
7,41 MB abr 2019
Images
  Tamaño Subido
file type icon SRX800 Driver
actualizado: abr 2019
158 KB abr 2019
file type icon SRX800 Handle
actualizado: abr 2019
208 KB abr 2019

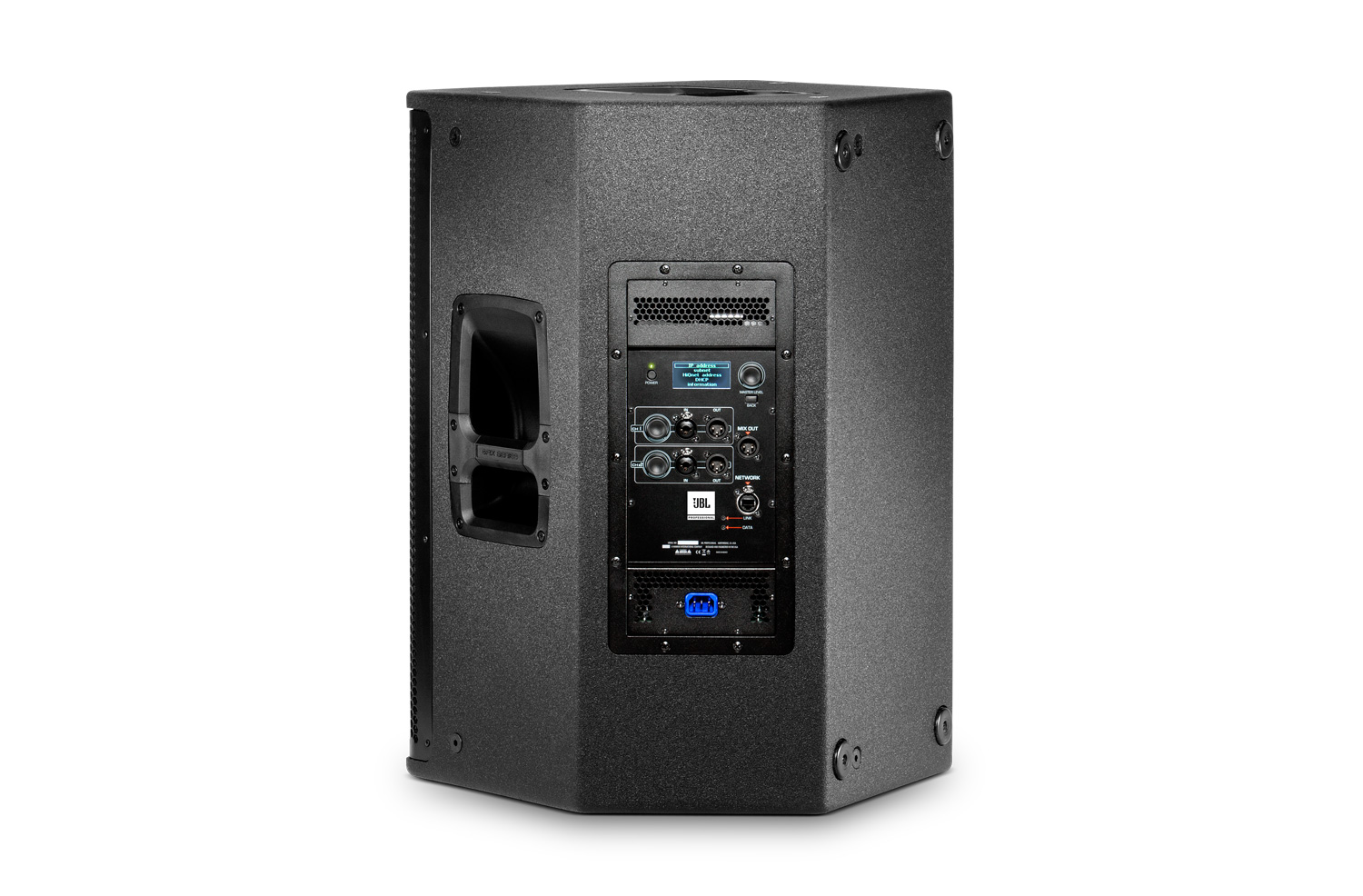

file type icon SRX815P Back
actualizado: abr 2019
253 KB abr 2019

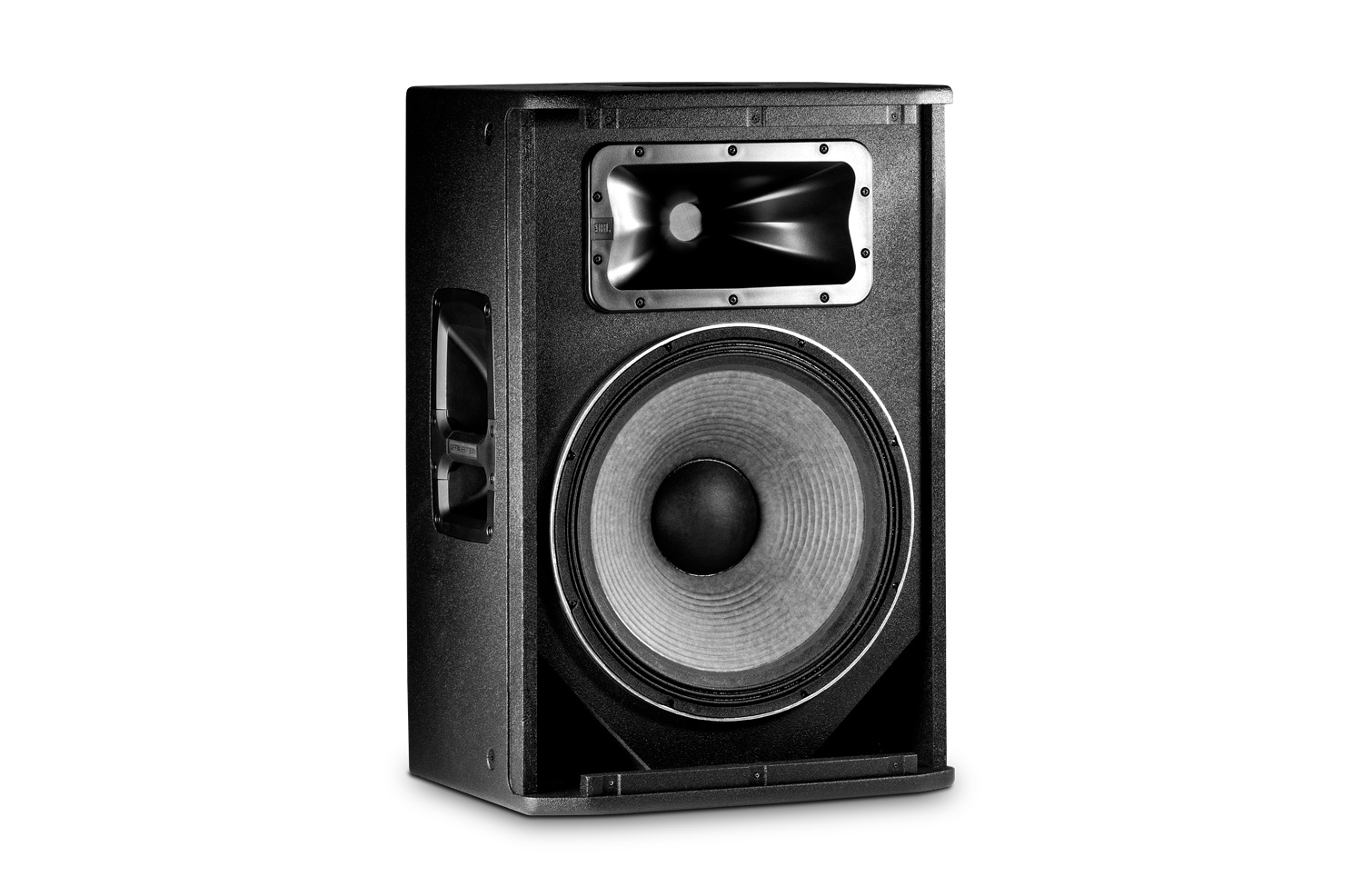

file type icon SRX815P Angle No-Grill
actualizado: abr 2019
232 KB abr 2019

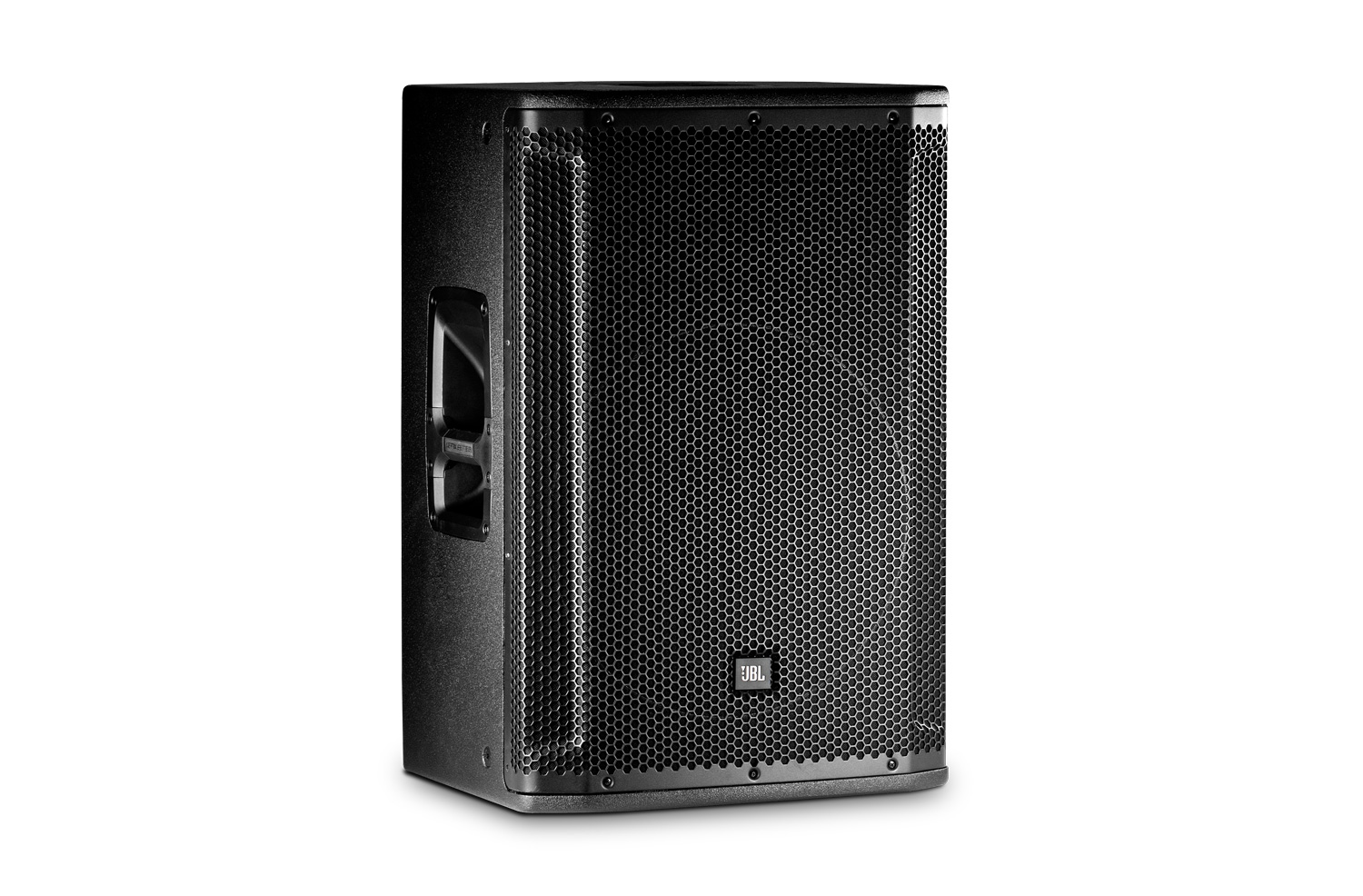

file type icon SRX815P Angle
actualizado: abr 2019
322 KB abr 2019

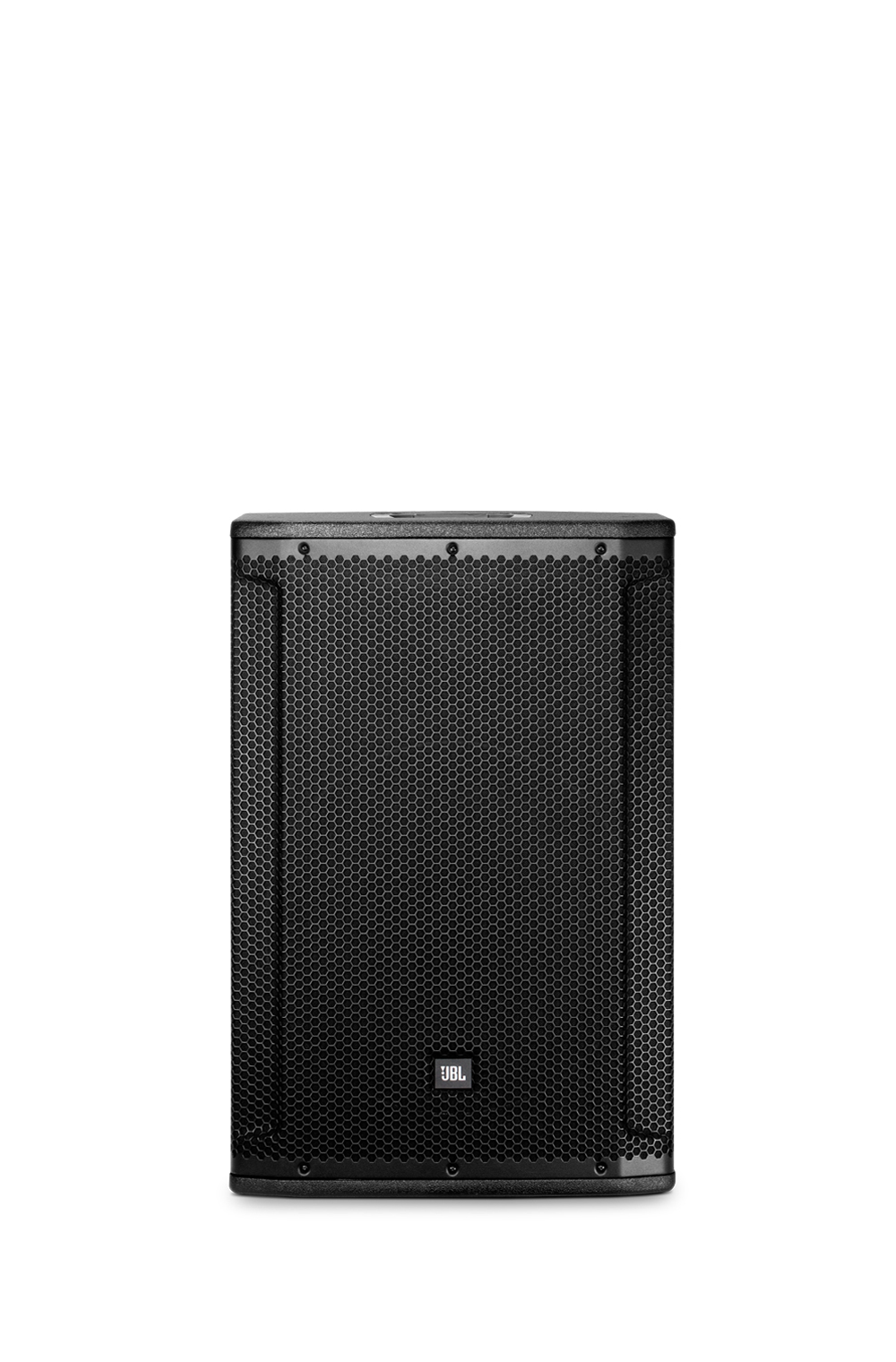

file type icon SRX815P Front
actualizado: abr 2019
338 KB abr 2019

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

TIPO DE SISTEMA Self powered 15”, two-way, bass-reflex
Maximum SPL (1m) 137 dB
Frequency Range (-10dB) 36 Hz - 21 kHz
RESPUESTA DE FRECUENCIA (±3 dB) 44 Hz - 20 kHz
Coverage Pattern 90° x 50°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in)
Net Weight (each) 28.6 kg (63 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Impedancia nominal NA - amplification is integrated
LF Driver 1 x 2275F, Differential Drive®, 15" diameter
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points

Accesorios

SRX815P-CVR-DLX | Funda acolchada de lujo para SRX815P
SRX815P-CVR-DLX Main photo
Imágenes más grandes
SRX815P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX815P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
